CLUTCH RELEASE BEARING

Removal & Installation

Removal information not available from manufacturer. Use Fig. 35 as an aid for procedure. If damaged, replace
guide sleeve and O-ring together. Lubricate guide sleeve in area of release bearing with MoS2 grease. Lubricate
surfaces which contact release lever with MoS2 grease. Grease end of slave cylinder plunger with MoS2 grease.

CAUTION: DO NOT wash out bearing. Replace noisy bearing.

NOTE:

Inspect clutch release bearing for smooth operation and looseness. Replace
bearing if noisy. DO NOT wash release bearing in solvent.



2003 Volkswagen New Beetle GLS

1998-2004 CLUTCHES New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:04:02 AM

Page 37

© 2004 Mitchell Repair Information Company, LLC.

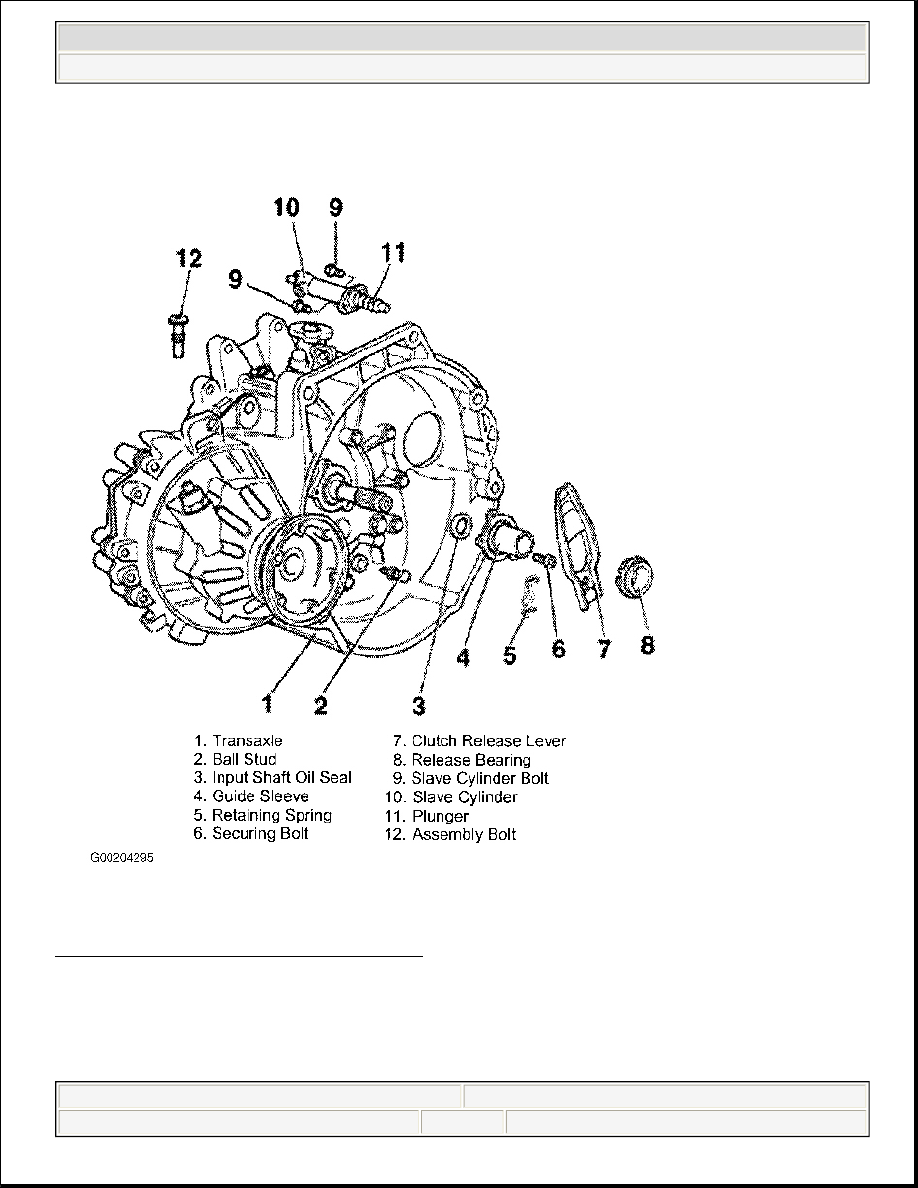

Fig. 35: Identifying Clutch Release Components
Courtesy of VOLKSWAGEN UNITED STATES, INC.

CLUTCH SLAVE CYLINDER

Removal & Installation



2003 Volkswagen New Beetle GLS

1998-2004 CLUTCHES New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:04:02 AM

Page 38

© 2004 Mitchell Repair Information Company, LLC.

Full removal and installation procedure is not available from manufacturer. See Fig. 35 for location.

Before removing slave cylinder, remove gear selector cable from gear selector lever. Remove relay lever and
actuating arm for gate selector cable. After installing adjust gear selector mechanism. See SELECTOR
MECHANISM under ADJUSTMENTS.

OVERCENTER SPRING

Removal & Installation

1. Remove driver's side lower cover. Install Assembly Clamp (T10111) from right side, onto overcenter

spring. See Fig. 36 . Ensure assembly clamp is correctly seated. Clamp must be positioned on rear part of
overcenter spring so claws fit over web (1). Press clutch pedal lightly toward bulkhead. Hook tab (2) of
assembly clamp into cutout of overcenter spring.

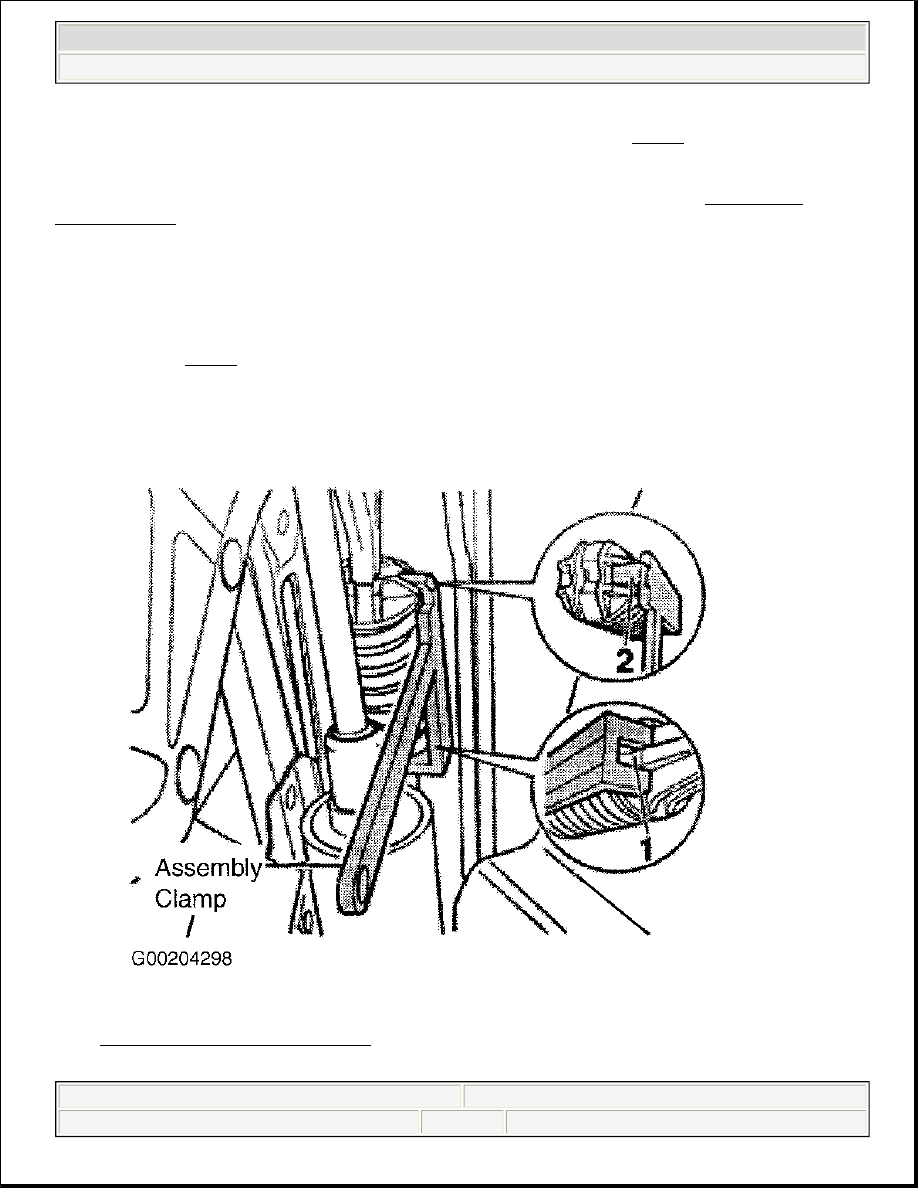

Fig. 36: Installing Assembly Clamp
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1998-2004 CLUTCHES New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:04:02 AM

Page 39

© 2004 Mitchell Repair Information Company, LLC.

2. Press clutch pedal as far as possible toward bulkhead until overcenter spring can be removed downward

out of mountings on bearing bracket and clutch pedal. Bring clutch pedal to rest position. Turn overcenter
spring together with assembly clamp in direction of arrow (A) and take out downward in direction of
arrow (B). See Fig. 37 .

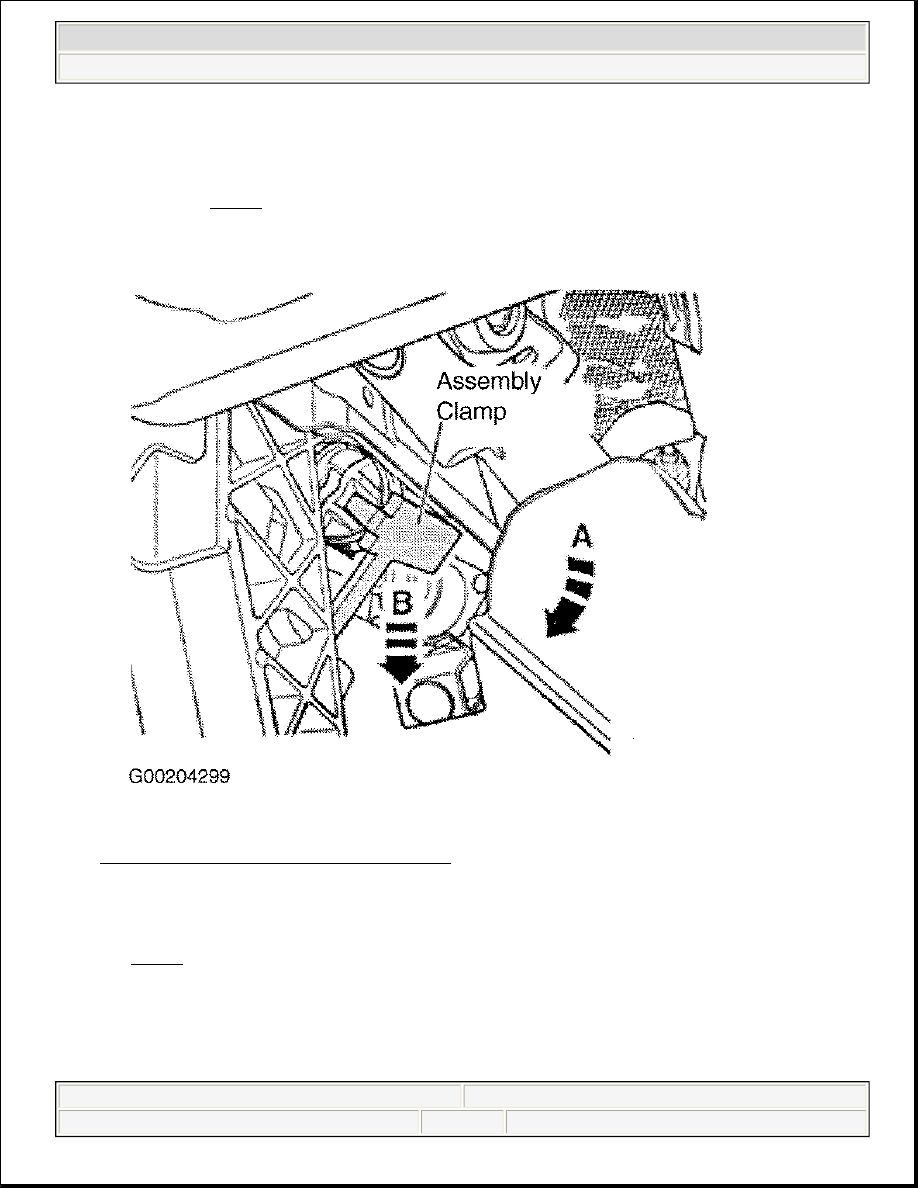

Fig. 37: Turning Overcenter Spring & Clamp
