Volkswagen New Beetle. Manual - part 2361





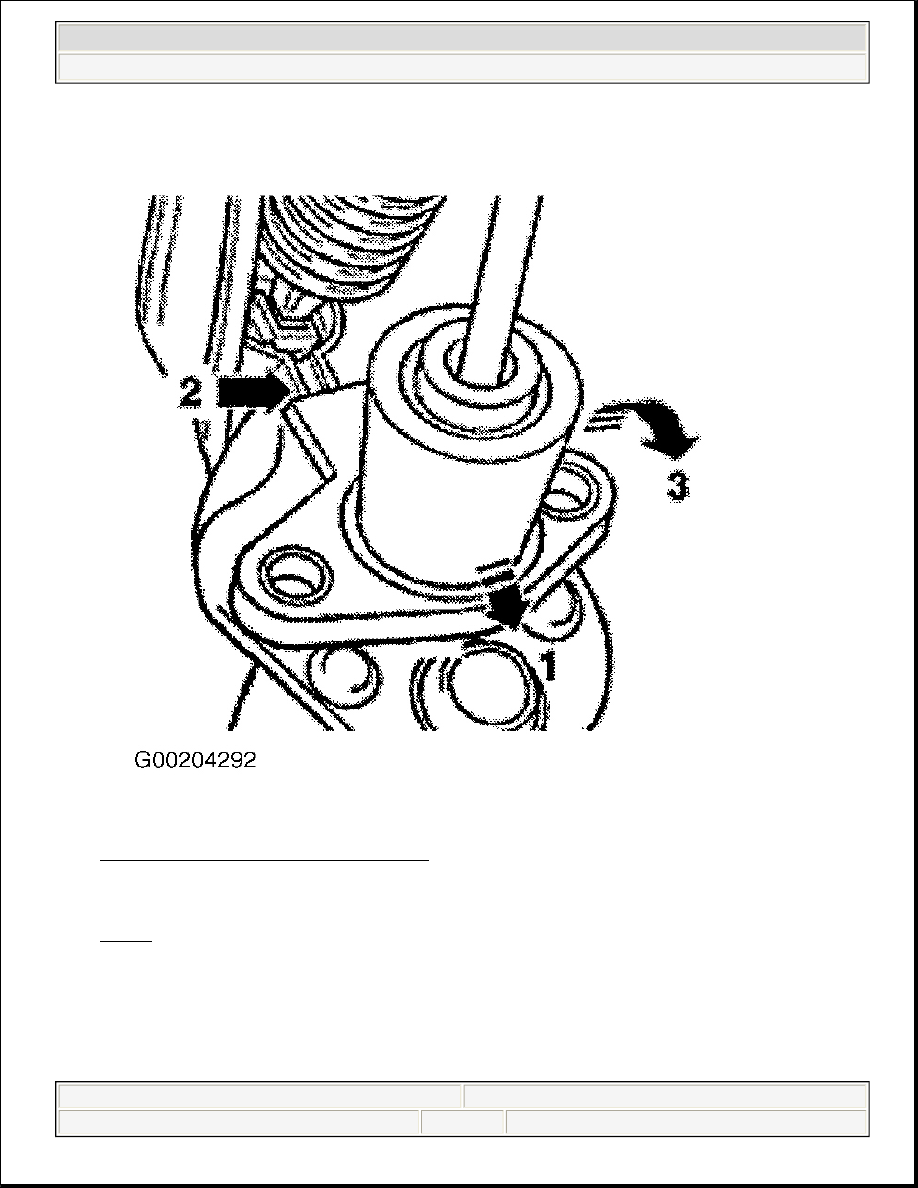

Fig. 31: Removing Clutch Master Cylinder
Courtesy of VOLKSWAGEN UNITED STATES, INC.

6. To install, reverse removal procedure. Fit retainer (A) to clutch master cylinder operating rod (B). See

Fig. 32 . Press clutch pedal in direction of arrow to engage. Ensure retainer is installed in correct location.



2003 Volkswagen New Beetle GLS

1998-2004 CLUTCHES New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:04:02 AM

Page 33

© 2004 Mitchell Repair Information Company, LLC.

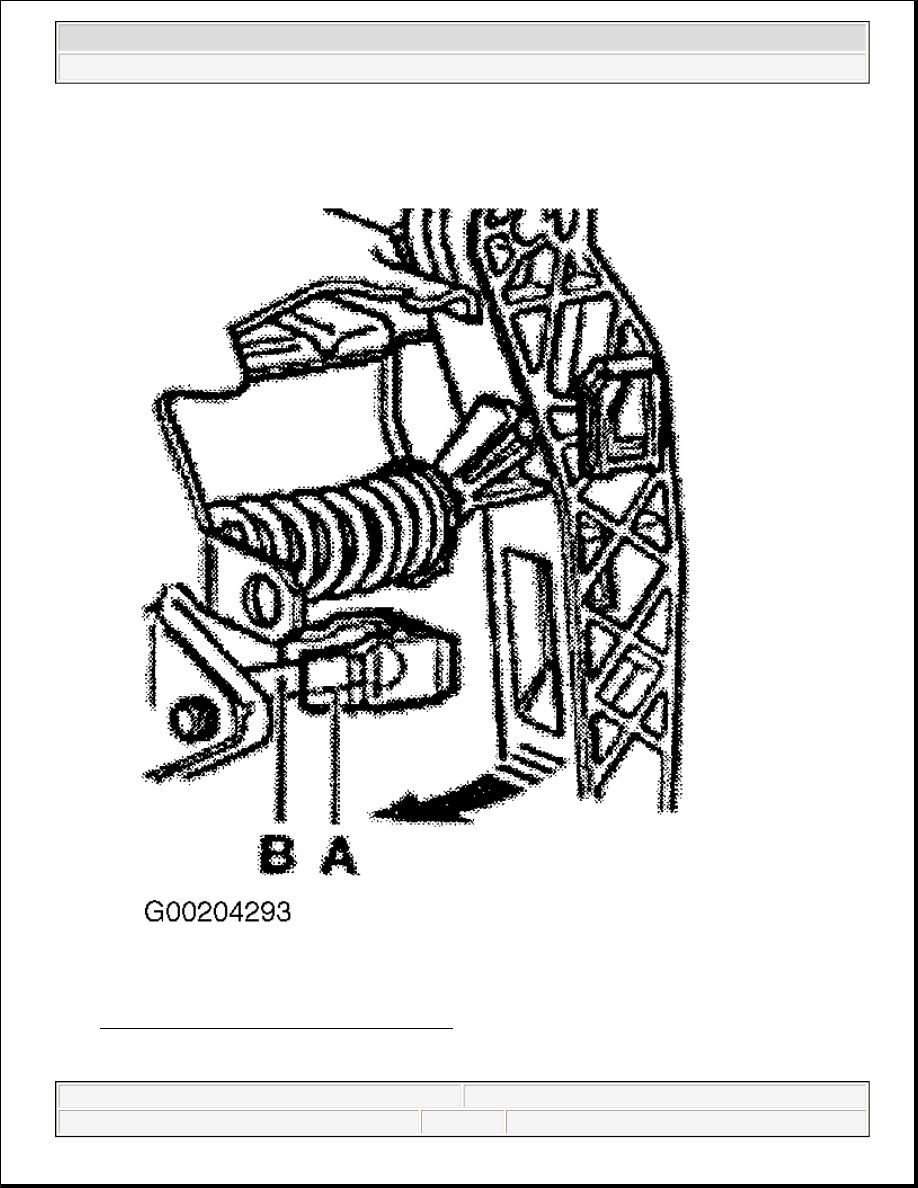

Fig. 32: Installing Retainer To Operating Rod
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1998-2004 CLUTCHES New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:04:02 AM

Page 34

© 2004 Mitchell Repair Information Company, LLC.

7. Fit stop (A) for clutch pedal. Arm (arrow) points toward clutch master cylinder (B). See Fig. 33 . Bleed

clutch system after installing clutch master cylinder. See BLEEDING

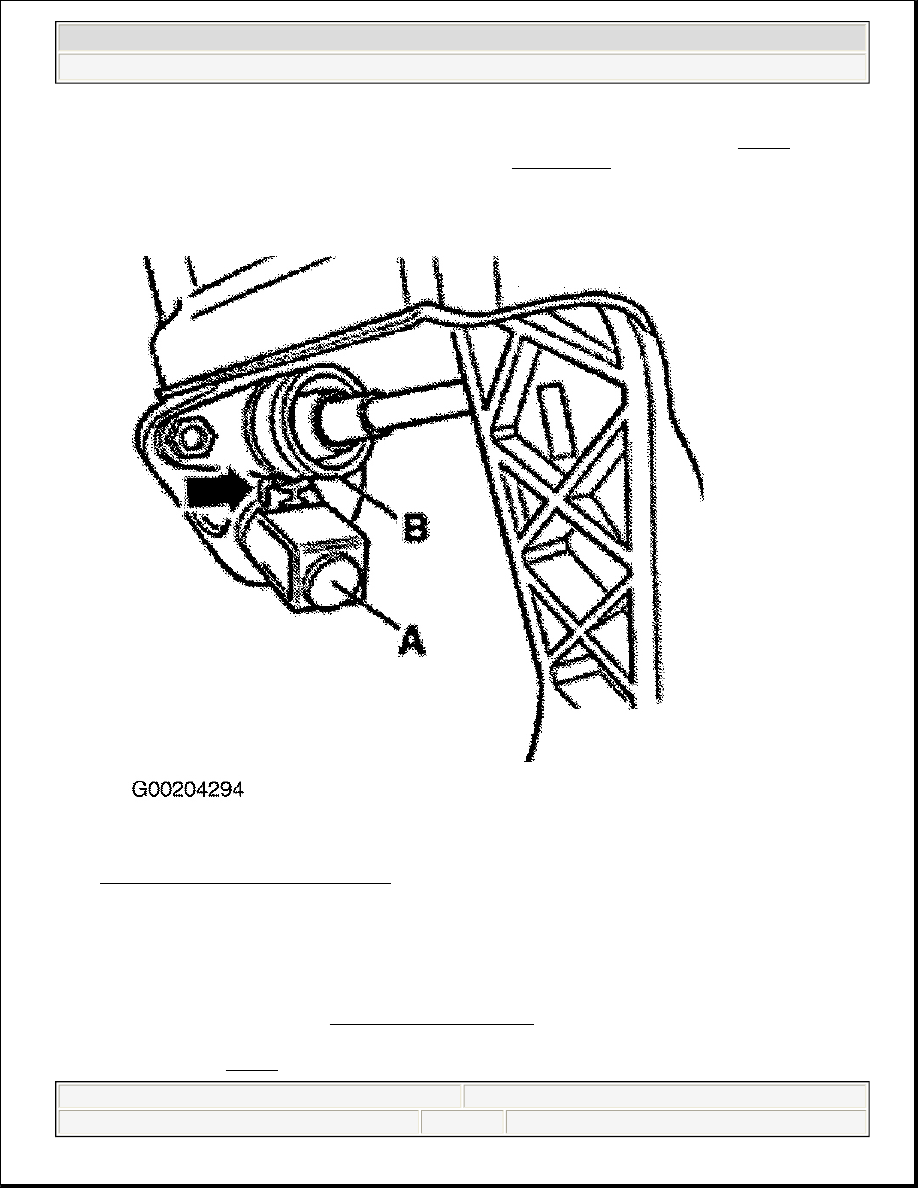

Fig. 33: Fitting Stop For Clutch Pedal
Courtesy of VOLKSWAGEN UNITED STATES, INC.

CLUTCH PEDAL

Removal & Installation

1. Remove overcenter spring. See OVERCENTER SPRING .

2. Separate clutch master cylinder rod from clutch pedal by, inserting Release Tool (3309) into clutch pedal

cut outs (A). See Fig. 29 . Inscription (B, top/open) on release tool points away from clutch pedal. Using



2003 Volkswagen New Beetle GLS

1998-2004 CLUTCHES New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:04:02 AM

Page 35

© 2004 Mitchell Repair Information Company, LLC.

pliers positioned in recesses (C), press release tool together.

3. Push operating rod toward engine compartment until stopped. Remove nut (A). See Fig. 34 . Pull bolt out

until clutch pedal can be removed.

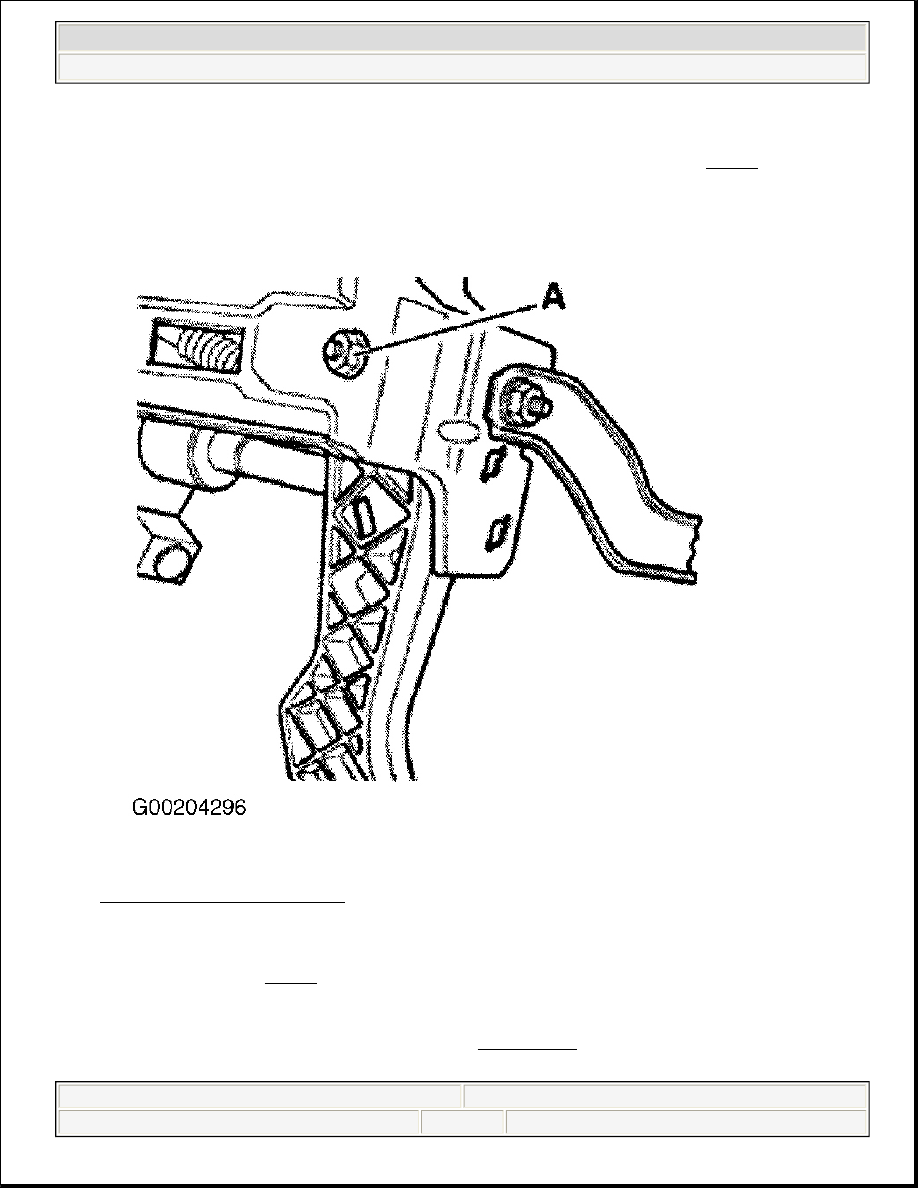

Fig. 34: Removing Clutch Pedal
Courtesy of VOLKSWAGEN UNITED STATES, INC.

4. To install, reverse removal procedure. Install overcenter spring. Fit retainer (A) to clutch master cylinder

operating rod (B). See Fig. 32 . Press clutch pedal in direction of arrow to engage. Ensure retainer is
installed in correct location.

5. Fill brake fluid reservoir up to "MAX" marking. Bleed clutch system when fluid level is below "MIN"

marking. after installing clutch master cylinder. See BLEEDING



2003 Volkswagen New Beetle GLS

1998-2004 CLUTCHES New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:04:02 AM

Page 36

© 2004 Mitchell Repair Information Company, LLC.
