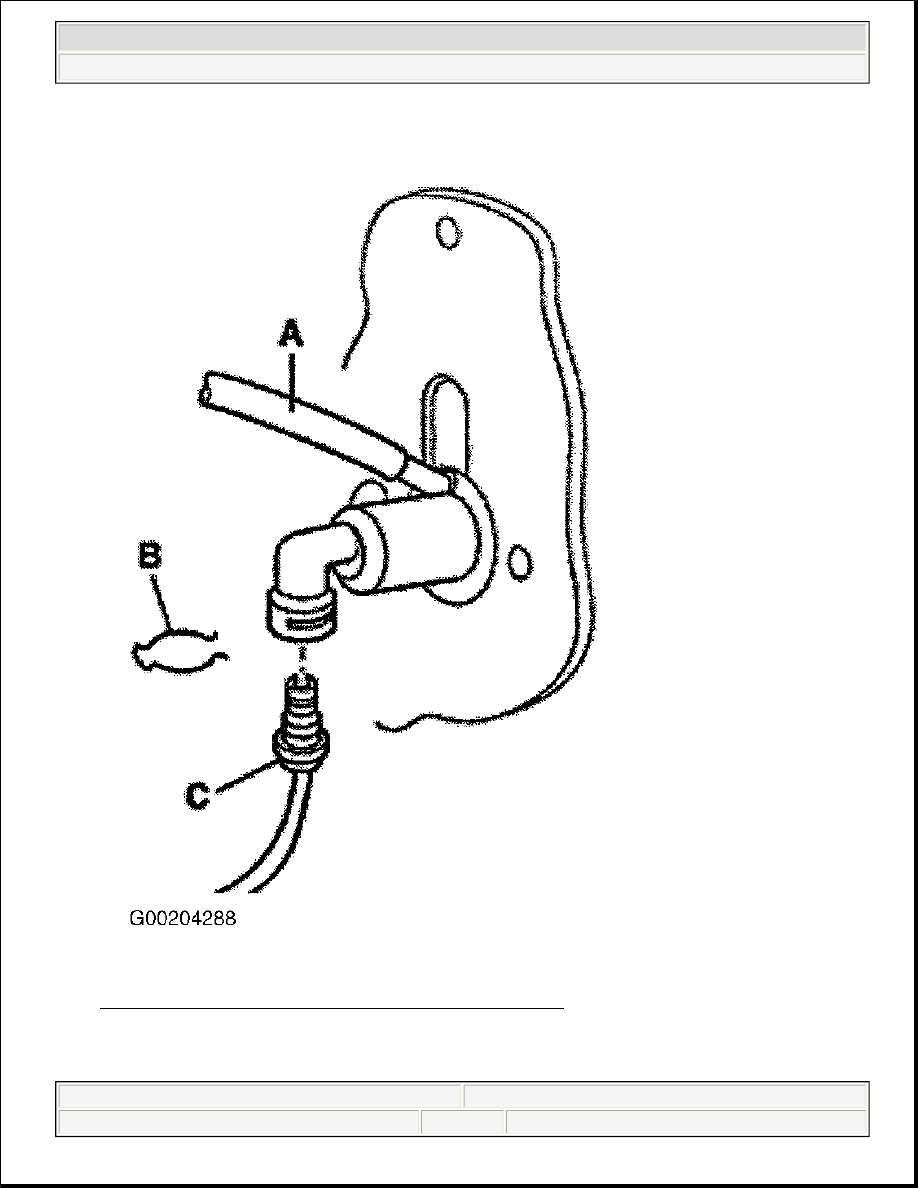

Fig. 27: Removing Supply Hose, Clip & Line/Hose Assembly
Courtesy of VOLKSWAGEN UNITED STATES, INC.

3. Remove driver's side lower trim panel cover. To remove clutch master cylinder, complete clutch pedal



2003 Volkswagen New Beetle GLS

1998-2004 CLUTCHES New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:04:02 AM

Page 29

© 2004 Mitchell Repair Information Company, LLC.

mounting bracket must be removed. Remove connecting plate bolts (1) and plate (A). See Fig. 28 .
Remove securing nuts (2) for mounting bracket (B). Remove mounting bracket.

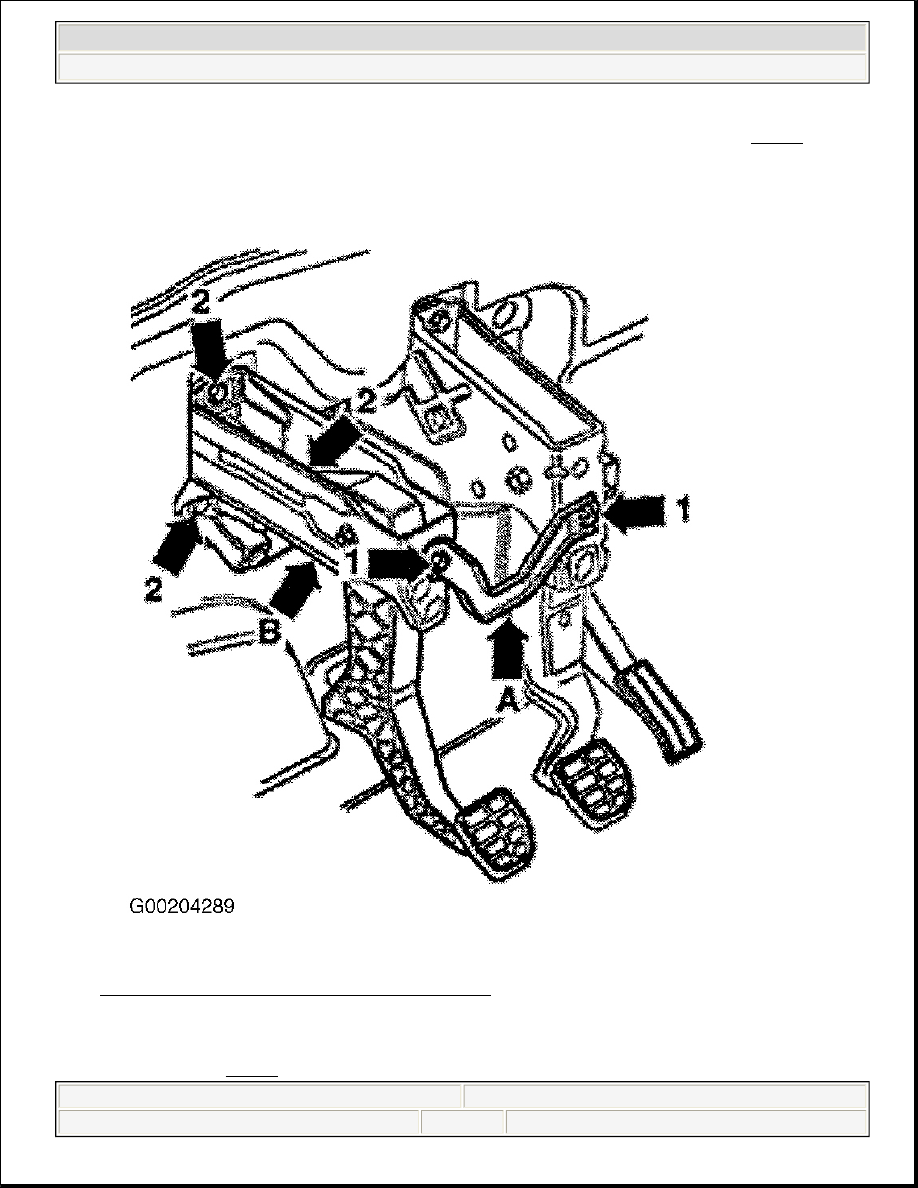

Fig. 28: Removing Clutch Pedal Mounting Bracket
Courtesy of VOLKSWAGEN UNITED STATES, INC.

4. Separate clutch master cylinder rod from clutch pedal by, inserting Release Tool (3309) into clutch pedal

cut outs (A). See Fig. 29 . Inscription (B, top/open) on release tool points away from clutch pedal. Using



2003 Volkswagen New Beetle GLS

1998-2004 CLUTCHES New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:04:02 AM

Page 30

© 2004 Mitchell Repair Information Company, LLC.

pliers positioned in recesses (C), press release tool together.

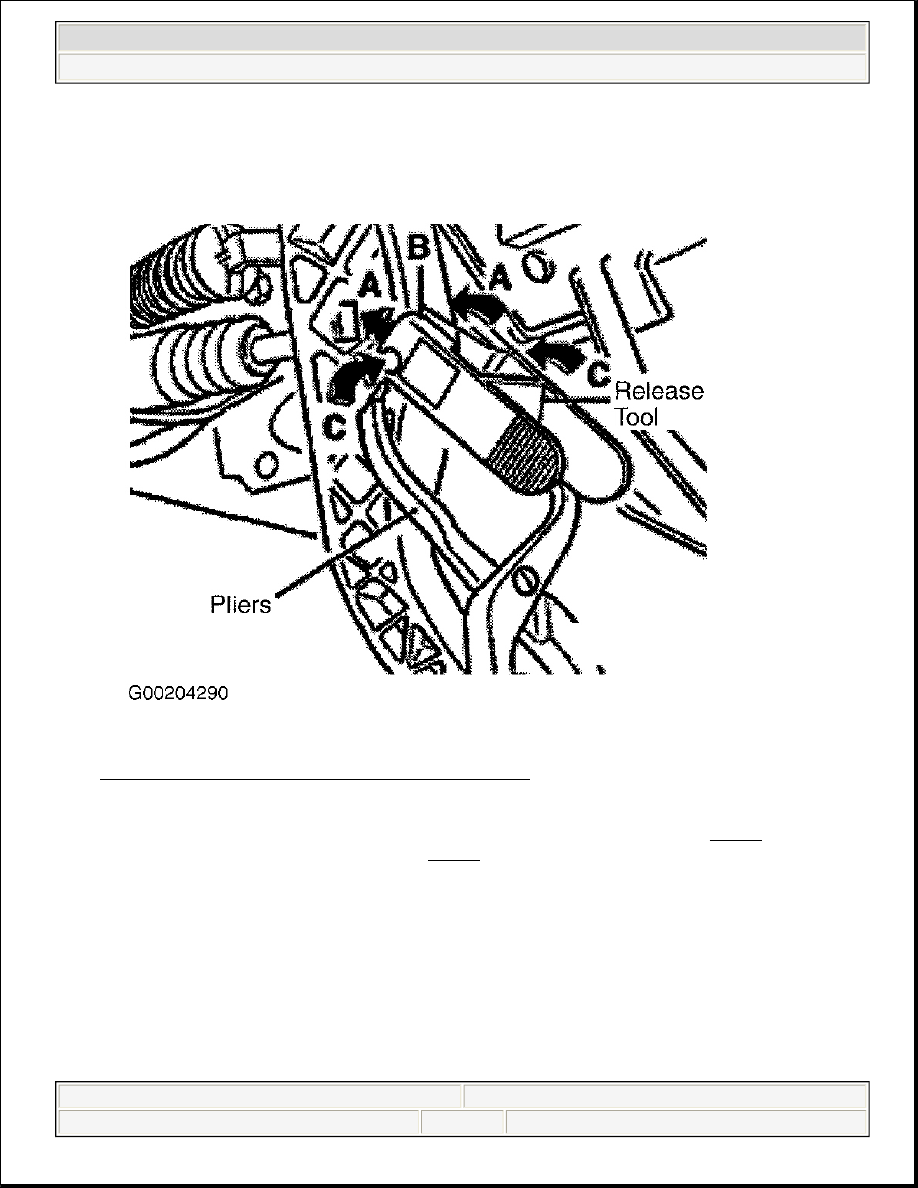

Fig. 29: Separating Master Cylinder From Clutch Pedal
Courtesy of VOLKSWAGEN UNITED STATES, INC.

5. Turn stop (A) for clutch pedal in a counterclockwise direction and remove stop. See Fig. 30 . Push clutch

master cylinder downward (1) onto stop. See Fig. 31 . Clutch master cylinder must not be covered in
upper area by overcenter spring mounting (2). Swing clutch master cylinder in direction of arrow (3) and
remove from mounting bracket.



2003 Volkswagen New Beetle GLS

1998-2004 CLUTCHES New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:04:02 AM

Page 31

© 2004 Mitchell Repair Information Company, LLC.

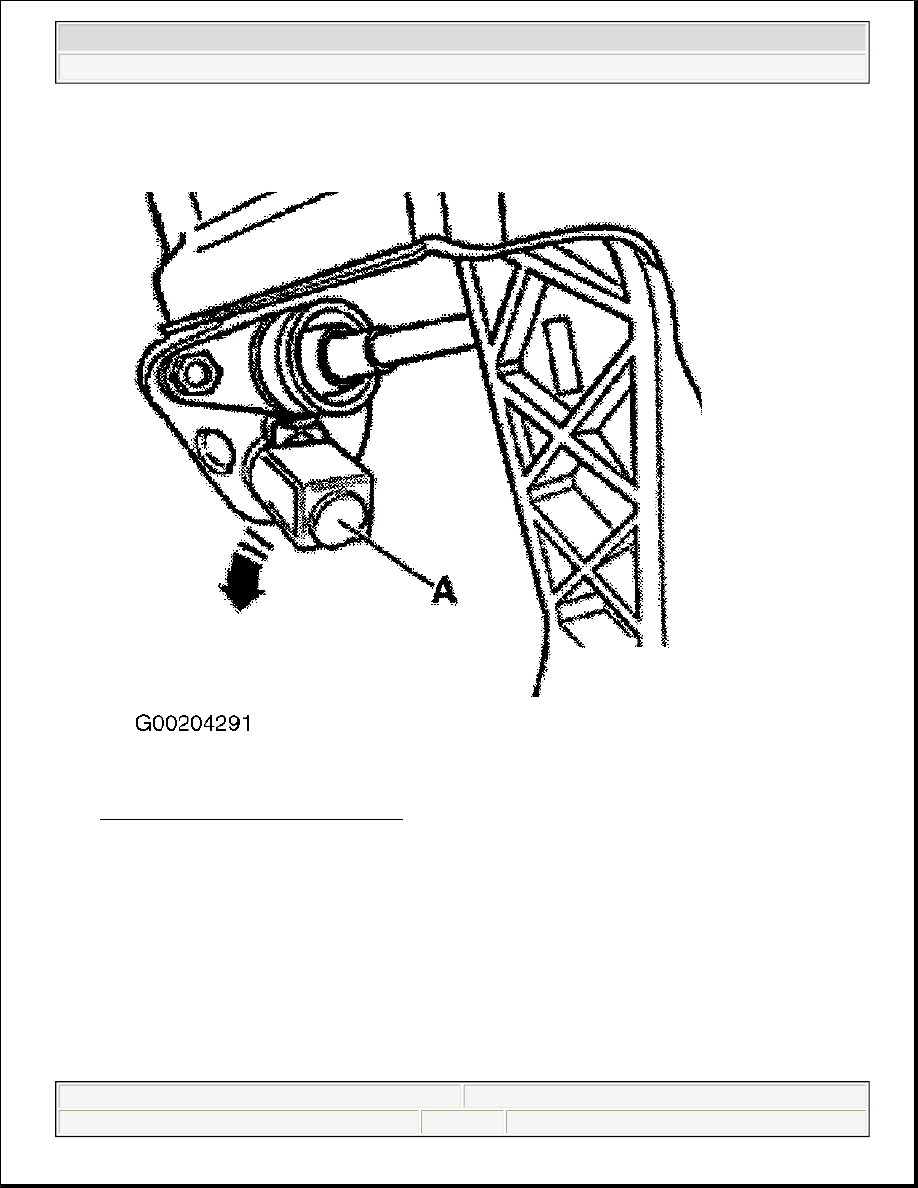

Fig. 30: Turning Stop For Clutch Pedal
Courtesy of VOLKSWAGEN UNITED STATES, INC.
