Volkswagen New Beetle. Manual - part 2358





Fig. 20: Turning Locking Mechanism (Vehicles Built From June 1999)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

5. Turn right-angled piece (A) back to original position (direction of arrow). See Fig. 21 . Selector shaft

must now be able to be moved in direction of arrow. See Fig. 22



2003 Volkswagen New Beetle GLS

1998-2004 CLUTCHES New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:04:01 AM

Page 21

© 2004 Mitchell Repair Information Company, LLC.

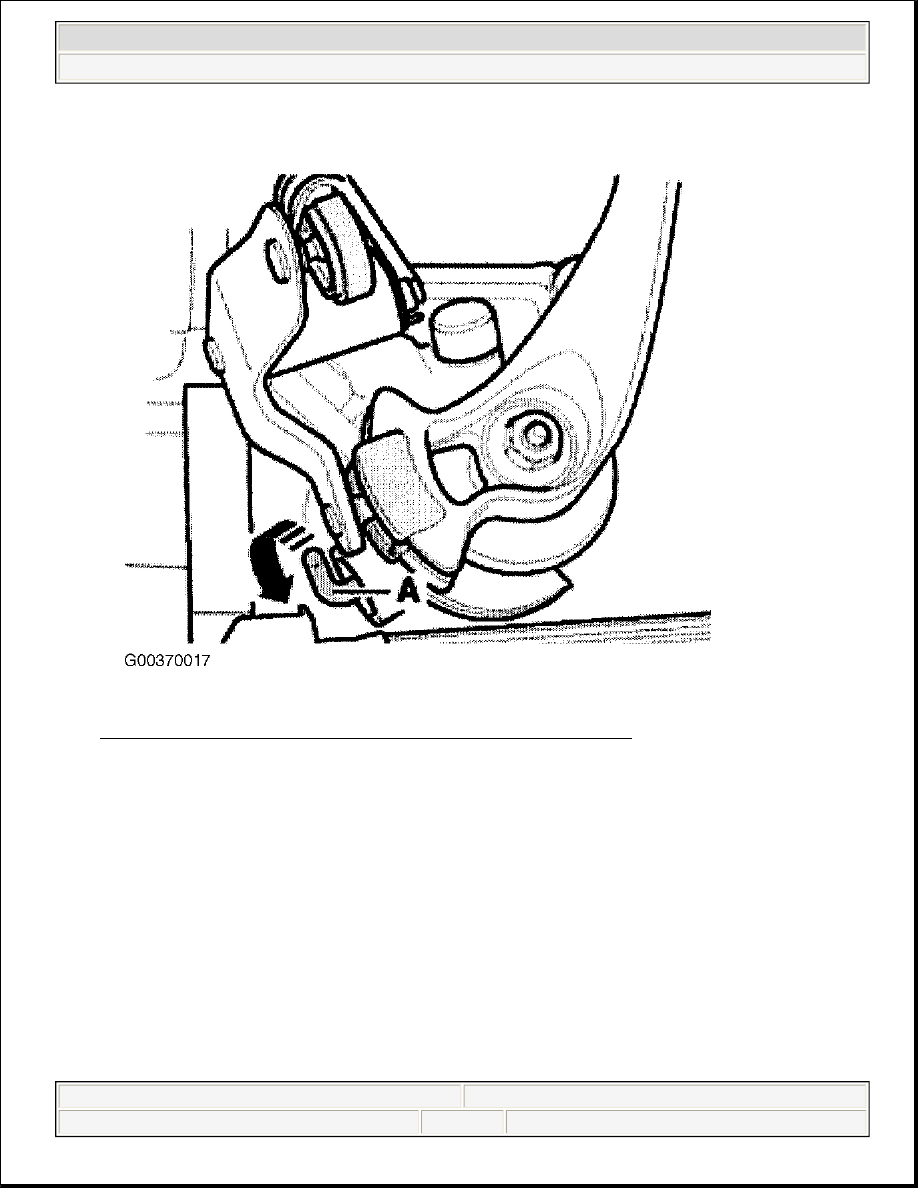

Fig. 21: Turning Right-Angled Piece (Vehicles Built From June 1999)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1998-2004 CLUTCHES New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:04:01 AM

Page 22

© 2004 Mitchell Repair Information Company, LLC.

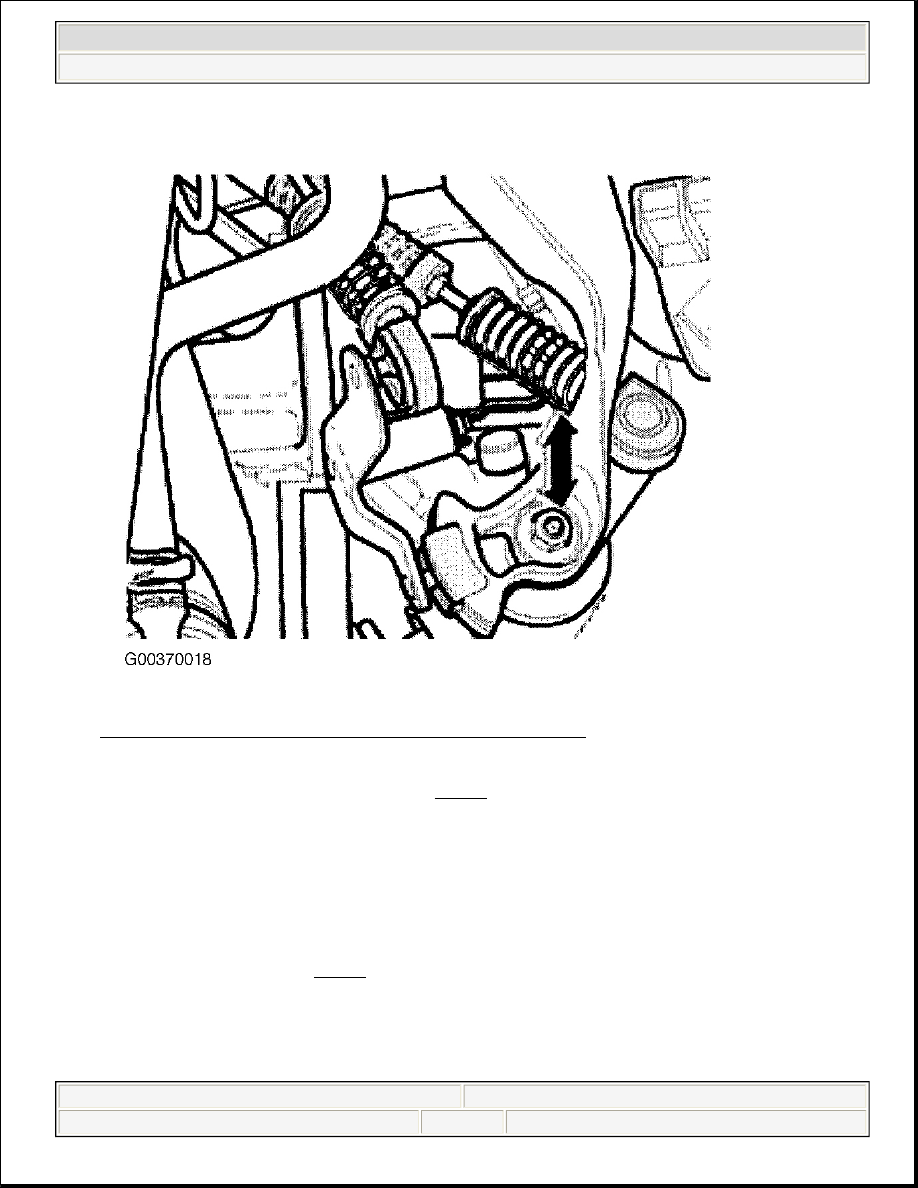

Fig. 22: Moving Selector Shaft (Vehicles Built From June 1999)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

6. Pull pin (T10027) out of holes (A and B). See Fig. 19 . Clip boot into frame.

7.

Operate clutch. Select all gears several times. Pay particular attention to operation of reverse gear lock.
Should a gear fail to engage smoothly after repeated selection, selector shaft play (lift) should be checked.

8. Engage 1st gear. Press gear lever to left, onto stop and release. With aid from a second technician,

observe selector shaft in gear box. When moving gear lever, selector shaft must move approximately 1
mm (direction of arrow). See Fig. 22 . If selector shaft does not move, repeat adjustment.

BATTERY DISCONNECT PRECAUTIONS

NOTE:

Gear shift lever must rest in 3rd/4th gear gate with transmission in Neutral.

CAUTION: Turn ignition switch to OFF position. Before disconnecting negative



2003 Volkswagen New Beetle GLS

1998-2004 CLUTCHES New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:04:02 AM

Page 23

© 2004 Mitchell Repair Information Company, LLC.

Do not loosen or remove ground strap from body. Disconnect terminal from battery only.

Once battery has been connected, check operation of radio, clock and convenience electronics. Completely open
and close all power windows.

ECM

If connector is disconnected from ECM or battery is disconnected, all adaptation values in control module are
erased. DTC memory content will remain intact however. If engine is started after this, a rough, uneven idle can
result. In this case, engine must be allowed to run at idle for a few minutes or a longer road test must be
performed until adaptation procedure has been completed.

REMOVAL & INSTALLATION

CLUTCH ASSEMBLY

Removal

Remove transmission. See TRANSMISSION . Install Flywheel Holder (3067) on flywheel. Remove pressure
plate bolts, evenly in stages and alternating in a diagonal pattern. Supporting clutch disc, remove pressure plate
and disc. See Fig. 23 .

battery terminal, obtain anti-theft radio security code. Disconnect negative
battery terminal. After reconnecting battery, re-code and check operation
of anti-theft radio.

NOTE:

Vehicles with On Board Diagnostics (OBD) II must have readiness code for
Electronic Control Module (ECM) re-generated after battery has been
disconnected. See appropriate SELF-DIAGNOSTICS article in ENGINE
PERFORMANCE.

NOTE:

When battery is disconnected, vehicle computer and memory systems may lose
memory data. Driveability problems may exist until computer systems have
completed a relearn cycle.

CAUTION: Radio/cassette or radio/CD player is equipped with an anti-theft protection

circuit. Whenever battery is disconnected, radio will go into anti-theft
mode. When battery is reconnected, radio will display CODE, and will be
inoperative until proper code number is entered. Obtain security code
before disconnecting battery.



2003 Volkswagen New Beetle GLS

1998-2004 CLUTCHES New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:04:02 AM

Page 24

© 2004 Mitchell Repair Information Company, LLC.
