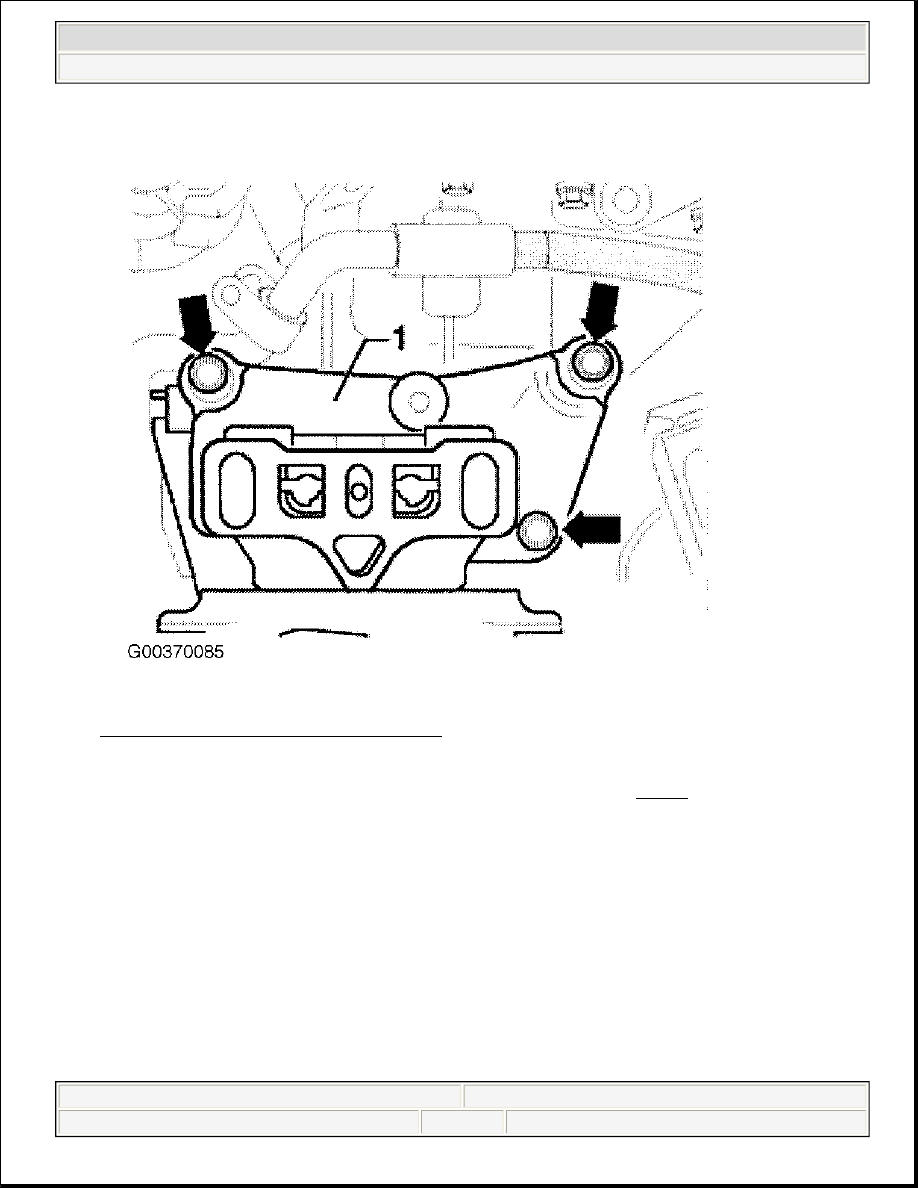

Fig. 59: Removing Left Transmission Mount
Courtesy of VOLKSWAGEN UNITED STATES, INC.

18. Pull off gate selector cable (A) with relay lever, in direction of arrow. See Fig. 60 . Tie up selector cable

with transmission selector lever, and gate selector cable with relay lever. Incline engine/transmission
assembly further, by lowering it through left spindle of support bar (10-222A).



2003 Volkswagen New Beetle GLS

2002-04 CLUTCHES Clutches - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:05:55 AM

Page 61

© 2004 Mitchell Repair Information Company, LLC.

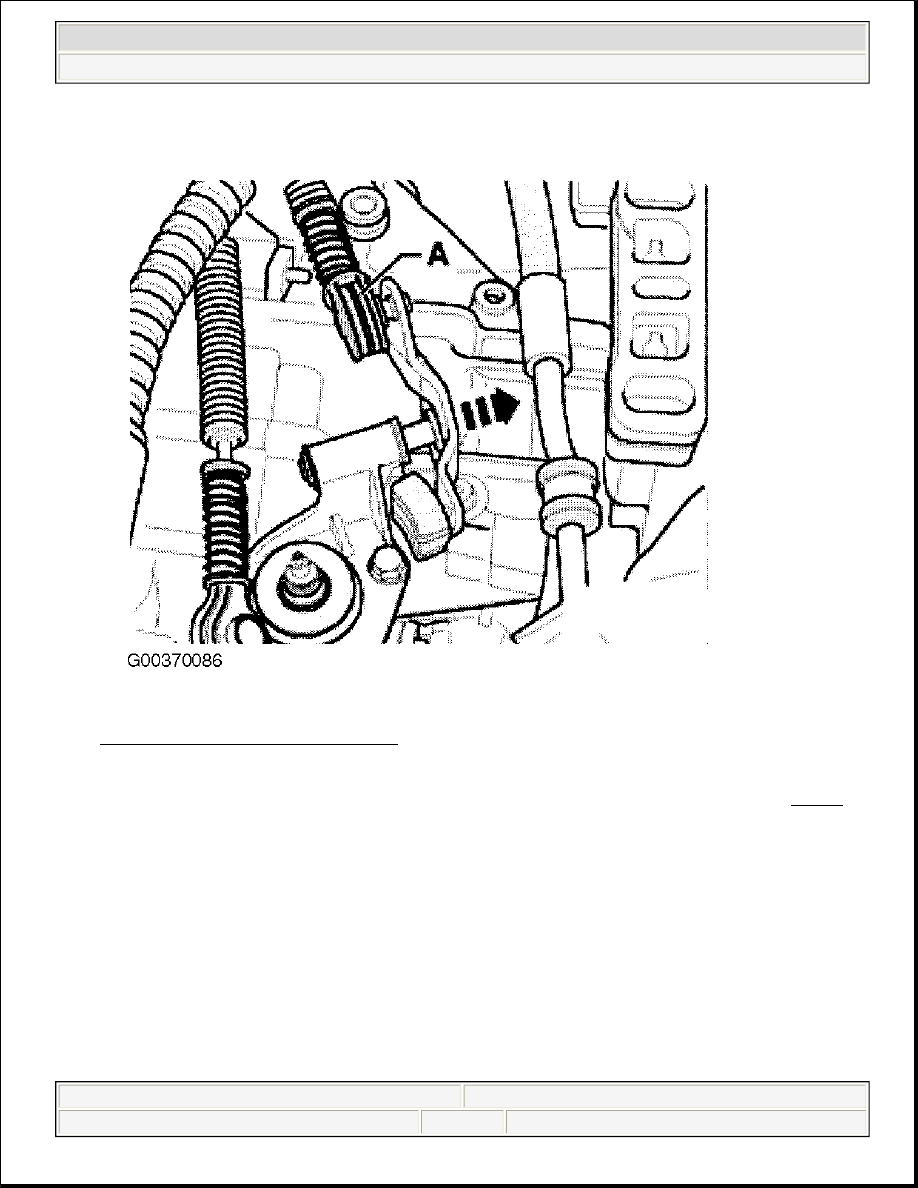

Fig. 60: Removing Gate Selector Cable
Courtesy of VOLKSWAGEN UNITED STATES, INC.

19. Bolt support rail (T10036) to both pendulum support securing holes on subframe (bolts A). See Fig. 61 .

Install support (3300 A) so it is almost touching assembly mounting and secure (arrow). Carefully press
engine/transmission forward.



2003 Volkswagen New Beetle GLS

2002-04 CLUTCHES Clutches - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:05:55 AM

Page 62

© 2004 Mitchell Repair Information Company, LLC.

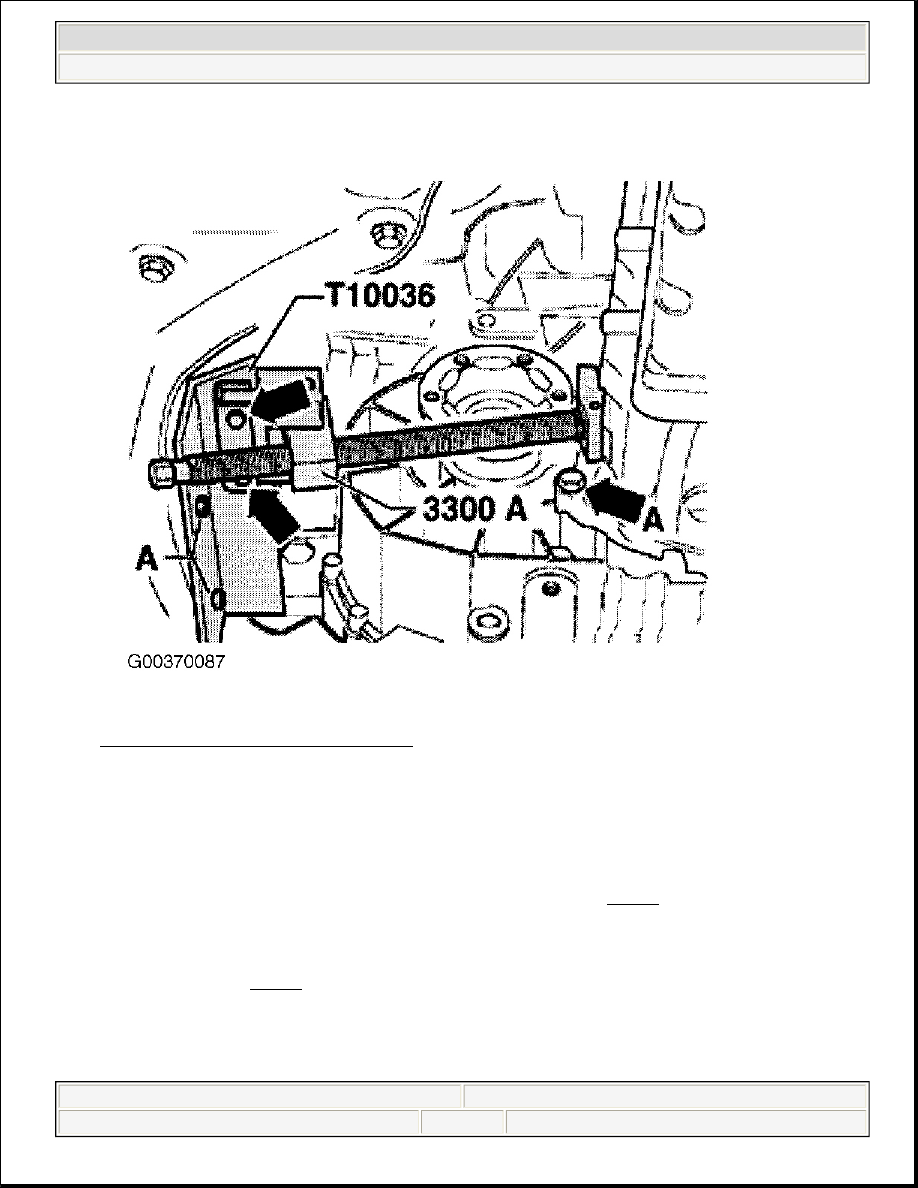

Fig. 61: Installing Support Rail (T10036)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

20.

Remove lower rear engine/transmission securing bolts (arrow A). See Fig. 61 . Remove lower
engine/transmission securing bolts.

21. Set up transmission support (3282) with adjustment plate (3282/27) to remove transmission. Align arms

of transmission support according to holes in adjustment plate. Bolt support elements (A) on adjustment
plate, as shown. See Fig. 62 . Arrow (B) indicates front of vehicle.

CAUTION: DO NOT damage any connecting lines and hoses, when moving

engine/transmission assembly.



2003 Volkswagen New Beetle GLS

2002-04 CLUTCHES Clutches - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:05:55 AM

Page 63

© 2004 Mitchell Repair Information Company, LLC.

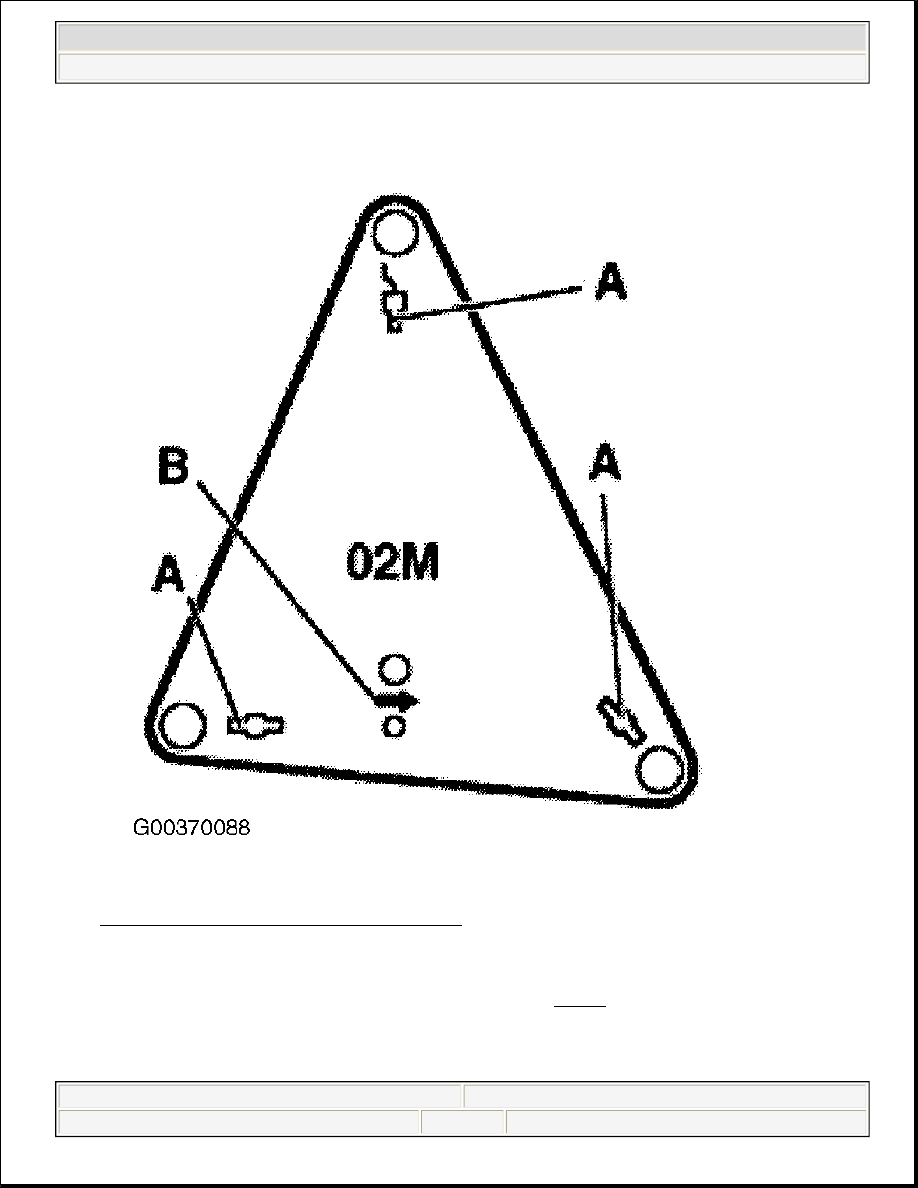

Fig. 62: Identifying Adjustment Plate (3282/27)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

22. Place transmission jack under vehicle. Align adjustment plate parallel to transmission. Secure

transmission to transmission support (3282) with bolt (A). See Fig. 63 . Remove engine/transmission
connecting bolt (arrow). Press transmission off dowel sleeves, and carefully swing toward subframe.
Lower transmission slightly, and incline to left through spindles of transmission support (3282).
