Volkswagen New Beetle. Manual - part 2348





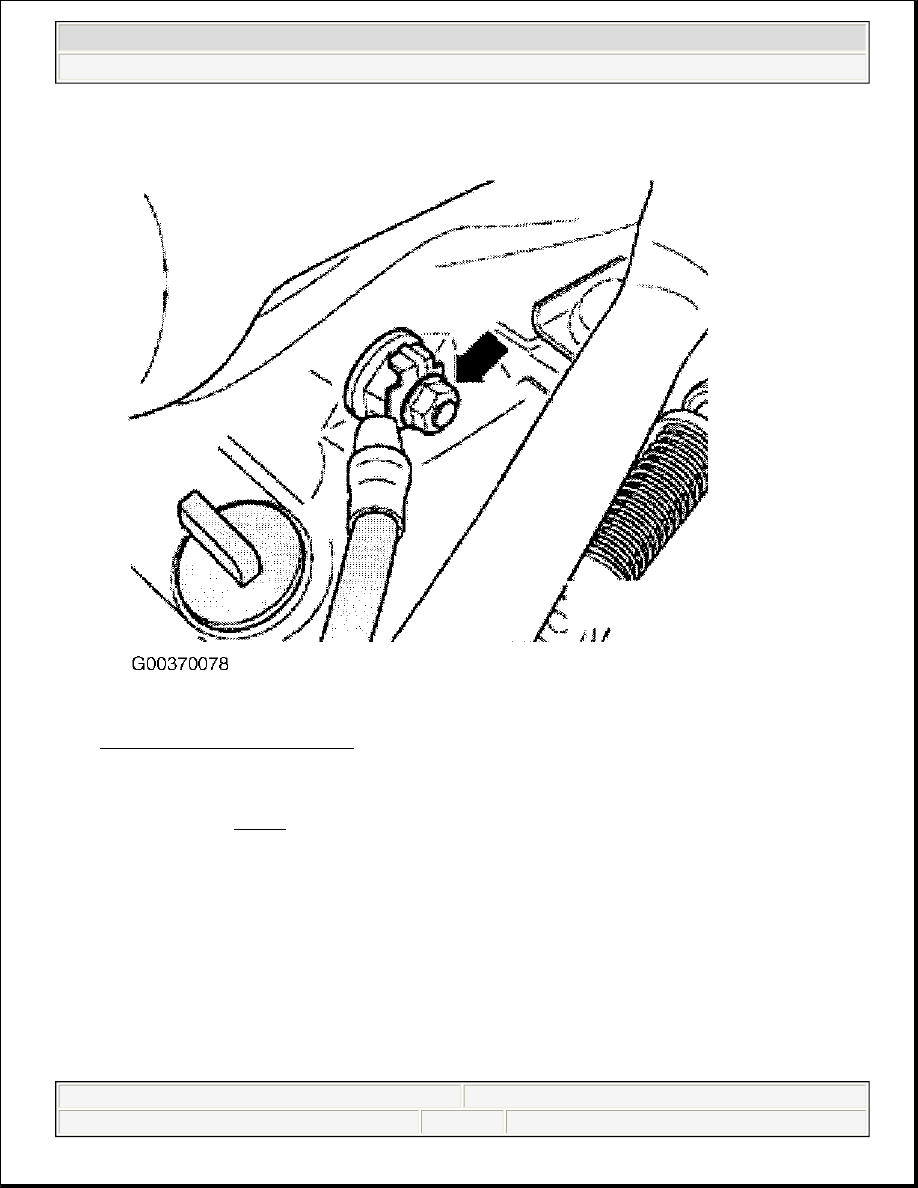

Fig. 51: Removing Ground Strap
Courtesy of VOLKSWAGEN UNITED STATES, INC.

9. Install support bar (10-222A) together with legs (10-222 A/1), special hook (10-222 A/2) and adapter

(10-222 A/3). See Fig. 52 .



2003 Volkswagen New Beetle GLS

2002-04 CLUTCHES Clutches - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:05:55 AM

Page 53

© 2004 Mitchell Repair Information Company, LLC.

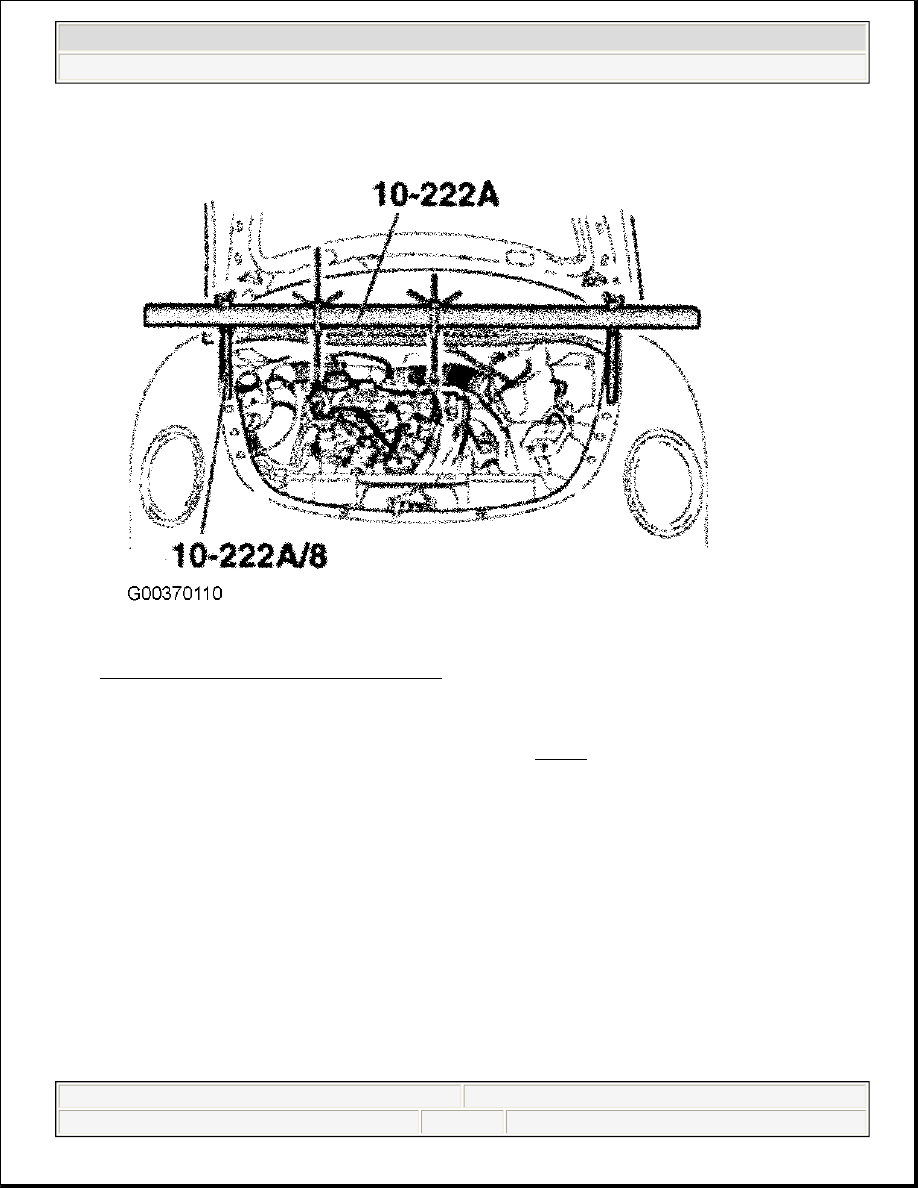

Fig. 52: Installing Engine Support (10-222A)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

10. Take weight of engine/transmission assembly on spindles. Turn wheels fully to left lock. Raise and

support vehicle. Remove noise insulation tray (arrows). See Fig. 53



2003 Volkswagen New Beetle GLS

2002-04 CLUTCHES Clutches - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:05:55 AM

Page 54

© 2004 Mitchell Repair Information Company, LLC.

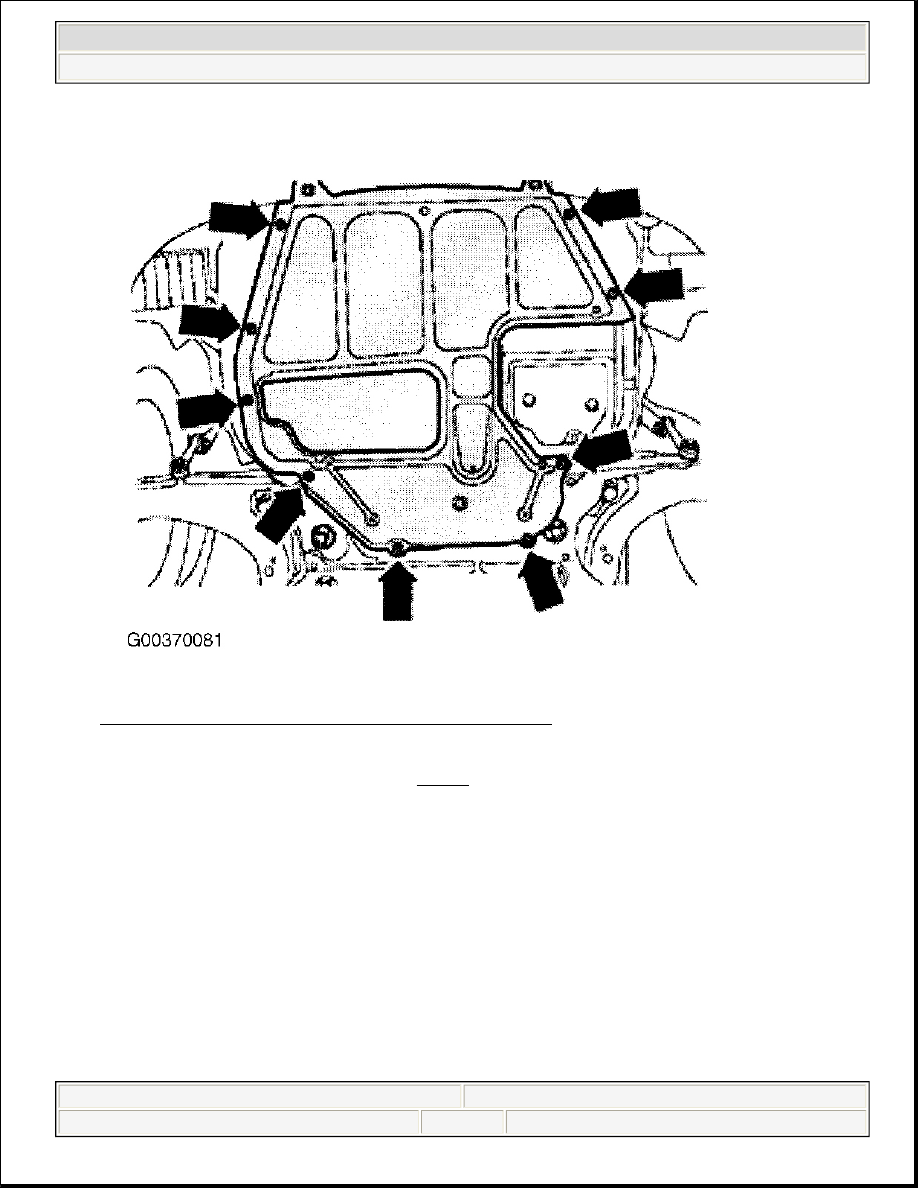

Fig. 53: Identifying Noise Insulation Tray Mounting Points
Courtesy of VOLKSWAGEN UNITED STATES, INC.

11. Remove left sound insulation (arrows). See Fig. 54 . Remove right sound insulation.



2003 Volkswagen New Beetle GLS

2002-04 CLUTCHES Clutches - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:05:55 AM

Page 55

© 2004 Mitchell Repair Information Company, LLC.

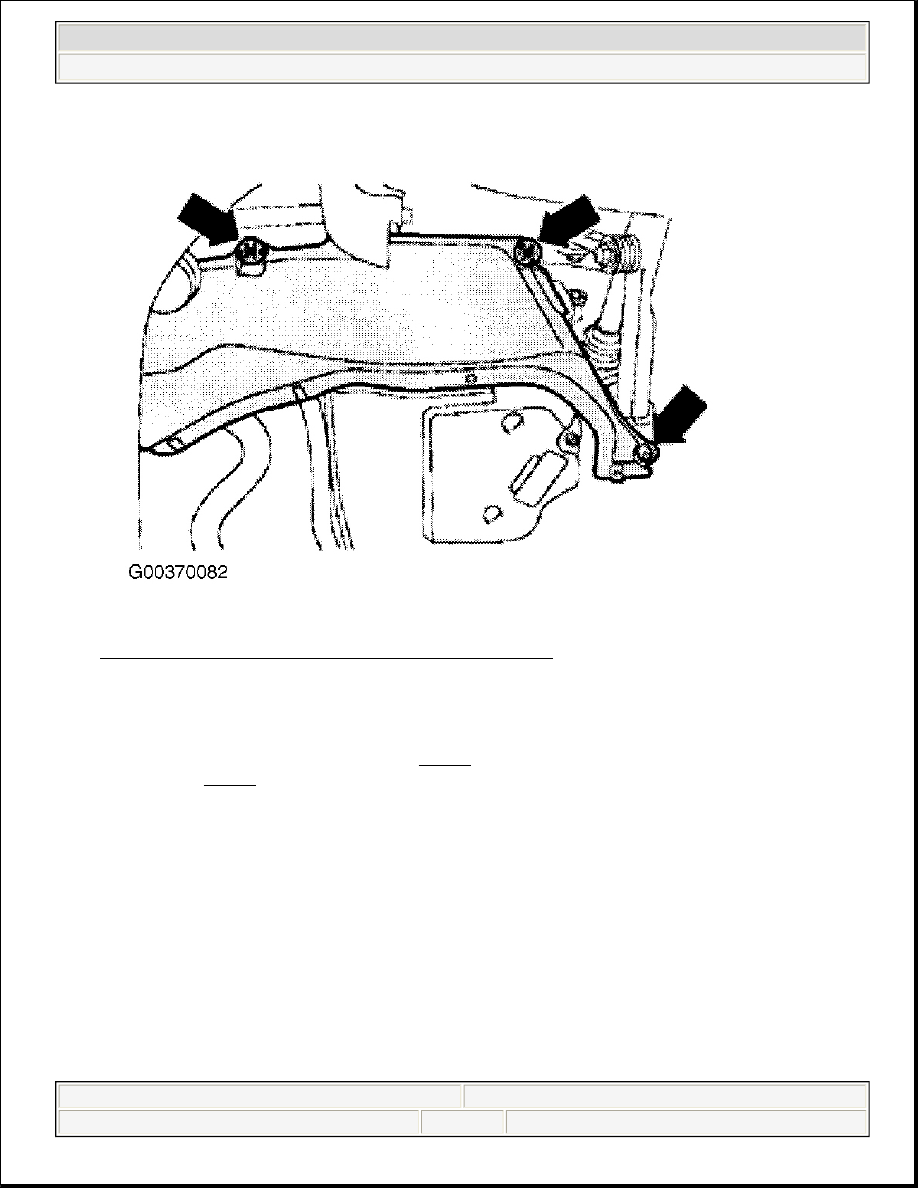

Fig. 54: Identifying Left Sound Insulation Mounting Points
Courtesy of VOLKSWAGEN UNITED STATES, INC.

12. Disconnect drive axle shafts from transmission flange. Wire axle shafts up as high as possible. While

wiring axle shafts, DO NOT damage body surface protection.

13. Disconnect front exhaust manifold (A). See Fig. 43 . Remove support (arrows), and unhook support

elements. See Fig. 55 . Secure front exhaust pipe to bodywork, around area of catalytic converter with
wire.



2003 Volkswagen New Beetle GLS

2002-04 CLUTCHES Clutches - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:05:55 AM

Page 56

© 2004 Mitchell Repair Information Company, LLC.
