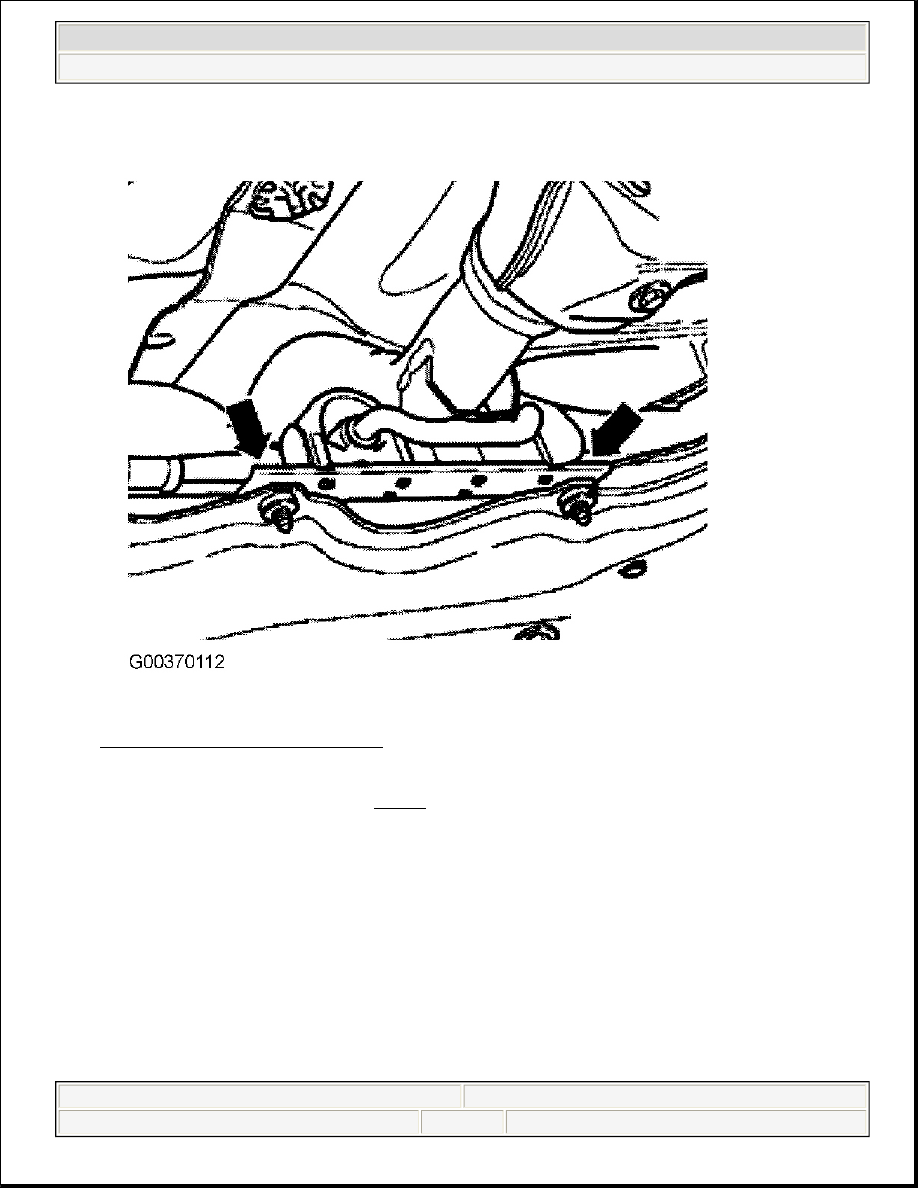

Fig. 55: Removing Exhaust Supports
Courtesy of VOLKSWAGEN UNITED STATES, INC.

14. Remove pendulum support bolts. See Fig. 56 . Remove power steering pipe from starter and

transmission. Remove starter.



2003 Volkswagen New Beetle GLS

2002-04 CLUTCHES Clutches - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:05:55 AM

Page 57

© 2004 Mitchell Repair Information Company, LLC.

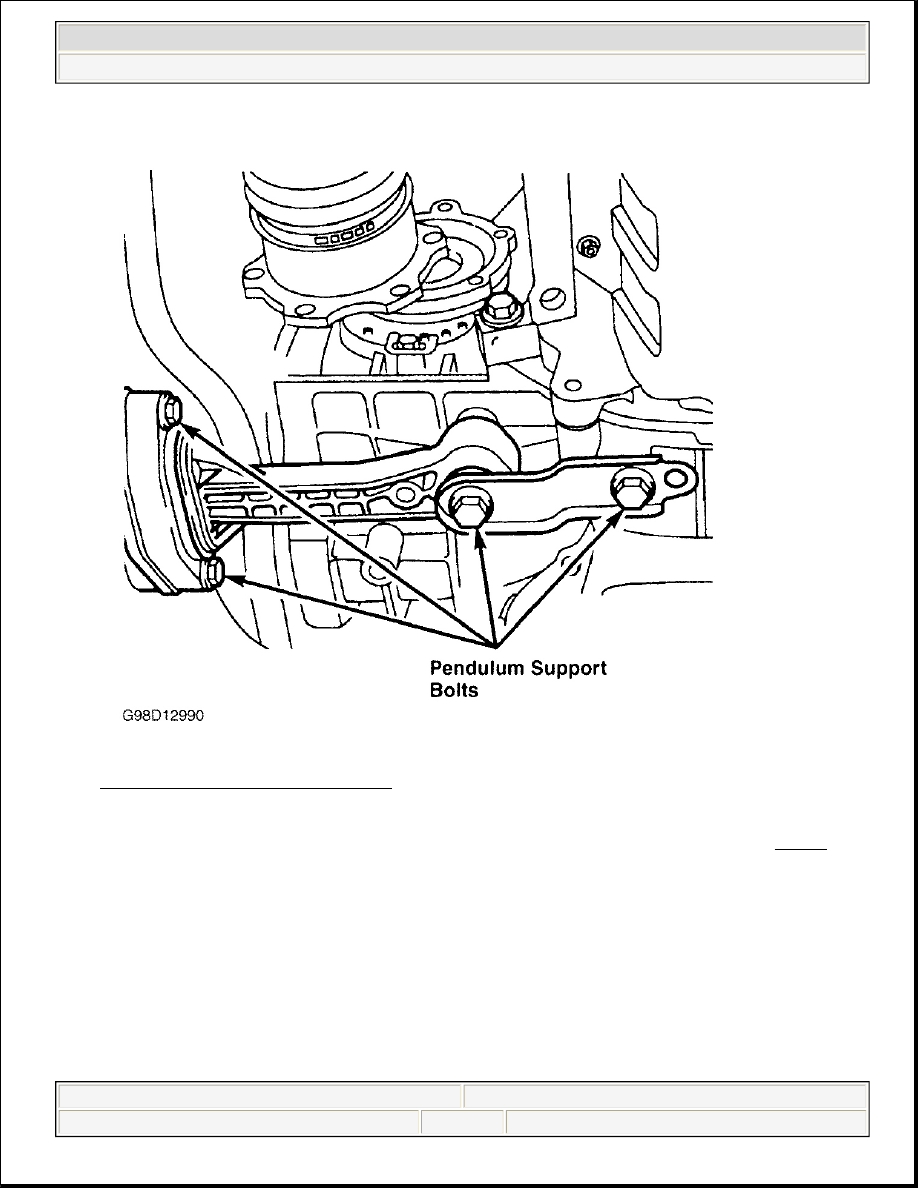

Fig. 56: Removing Pendulum Support
Courtesy of VOLKSWAGEN UNITED STATES, INC.

15. Unbolt engine side of right assembly mounting from engine carrier from above (arrows). See Fig. 57 .



2003 Volkswagen New Beetle GLS

2002-04 CLUTCHES Clutches - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:05:55 AM

Page 58

© 2004 Mitchell Repair Information Company, LLC.

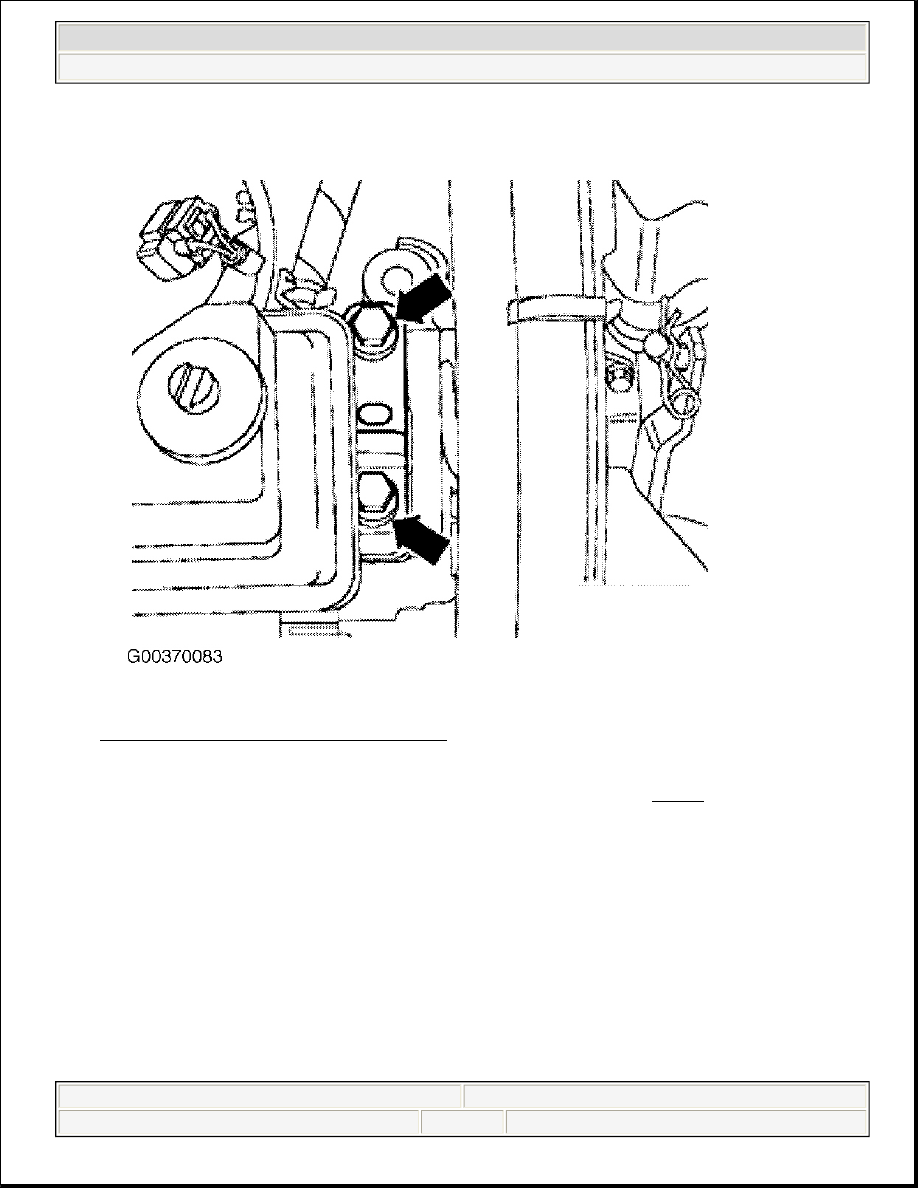

Fig. 57: Removing Right Assembly Mounting
Courtesy of VOLKSWAGEN UNITED STATES, INC.

16. Remove left assembly mounting (2), bolts (arrows) front left mount (1). See Fig. 58 . Carefully tilt engine

and transmission, by lower left-hand spindle approximately 2.36" (60 mm) on support bar (10-222A).



2003 Volkswagen New Beetle GLS

2002-04 CLUTCHES Clutches - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:05:55 AM

Page 59

© 2004 Mitchell Repair Information Company, LLC.

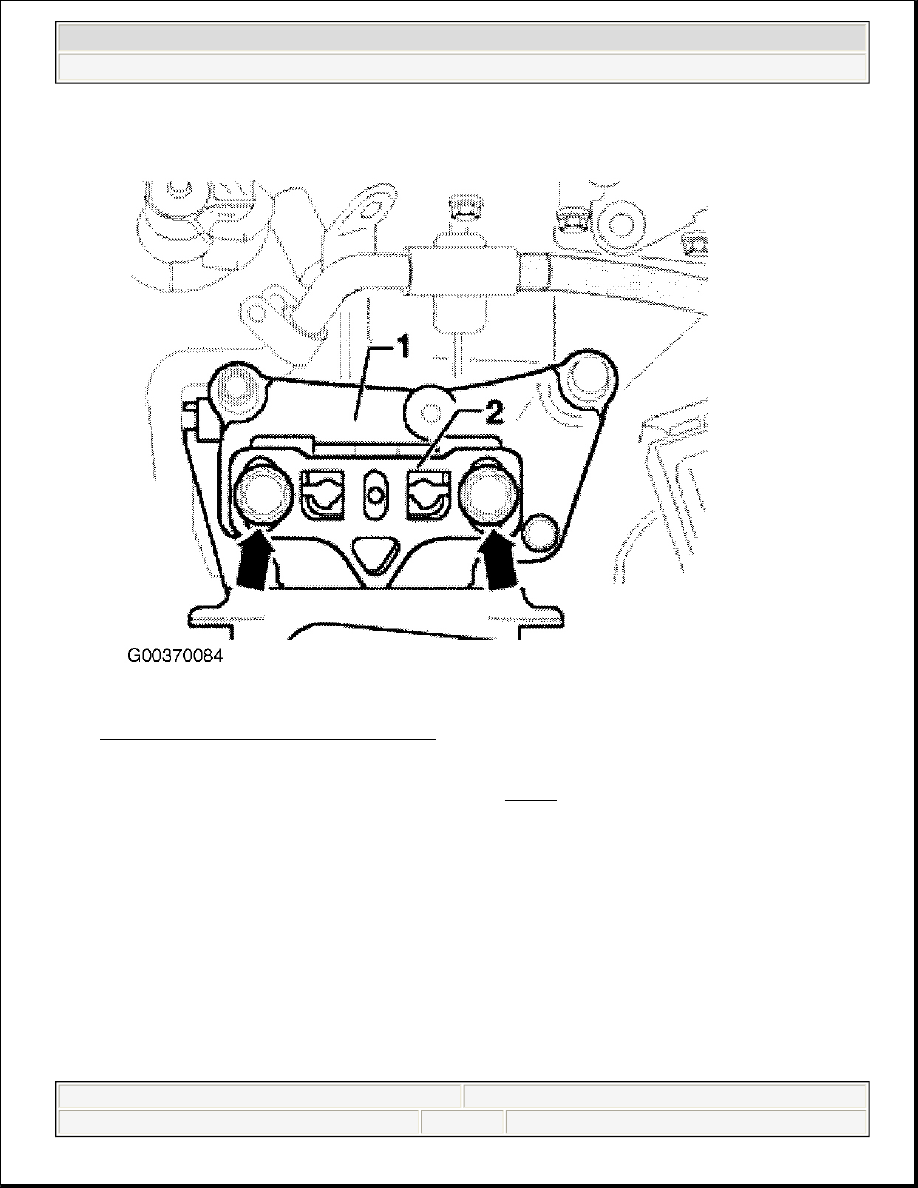

Fig. 58: Removing Left Assembly Mounting
Courtesy of VOLKSWAGEN UNITED STATES, INC.

17. Remove left mount (1) from transmission (arrows). See Fig. 59 .



2003 Volkswagen New Beetle GLS

2002-04 CLUTCHES Clutches - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:05:55 AM

Page 60

© 2004 Mitchell Repair Information Company, LLC.
