Volkswagen New Beetle. Manual - part 2351

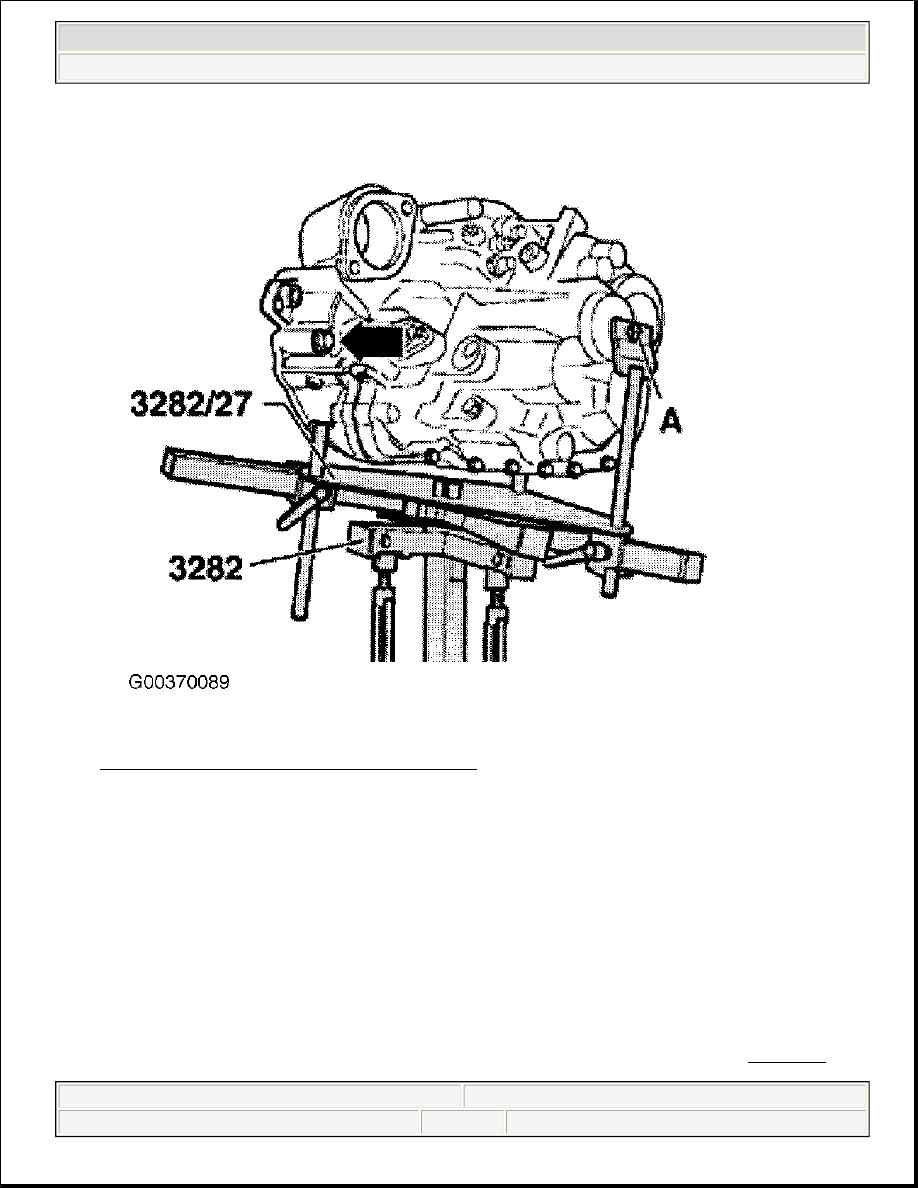

Fig. 63: Positioning Transmission Support (3282)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

23. Carefully lower transmission, guiding right-hand flange shaft in area of flywheel and left-hand flange

shaft, in area of subframe. When lowering transmission, change position of transmission, using
transmission support (3282) spindles. DO NOT damage power steering line when lowering transmission.

Installation

1. Apply grease to ball stud and inner surface of release bearing. Clean input shaft splines and lightly grease

with G000 100 grease. Ensure clutch disc slides on input shaft spines.

2. Check whether dowel sleeves for aligning engine/transmission are installed in cylinder block. Install if

necessary. Ensure that intermediate plate is correctly positioned on engine.

3. Install pressure plate bolts finger tight. Using clutch centering tool (3190A), align clutch disc and pilot

bushing holes. Tighten pressure plate bolts to specification using a crosswise pattern. See TORQUE
SPECIFICATIONS
.



2003 Volkswagen New Beetle GLS

2002-04 CLUTCHES Clutches - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:05:55 AM

Page 65

© 2004 Mitchell Repair Information Company, LLC.

4. If flywheel was removed, using flywheel lock (3067) or similar device to hold crankshaft from turning.

Tighten flywheel bolts to specification. See TORQUE SPECIFICATIONS .

5. Bolt support rail (T10036) to both pendulum support securing holes on subframe (arrows). See Fig. 61 .

Install support (3300 A) so it is almost touching assembly mounting and secure (arrows). Press engine
forward carefully. Do NOT damage power steering line.

6. Install transmission to engine. Do NOT damage power steering line. Install lower rear

engine/transmission connecting bolt (arrow A). See Fig. 61 . Install lower engine/transmission securing
bolts. Tighten bolts to specification. See TORQUE SPECIFICATIONS . Remove pressing device 3300
A (arrows). Remove bolt (A). Remove support rail (T10036).

7. Install gate selector cable (A) with relay lever in direction of arrow. See Fig. 60 .

8. Install left mount (1) on transmission (arrows). See Fig. 59 . Align engine/transmission in installation

position. Install NEW hex bolts (arrows) for left assembly mounting (2) in mount (1). See Fig. 58 .

9.

Install NEW hex bolts (arrows) for right assembly mounting in engine mounting. See Fig. 57 .

10. Install pendulum support. See Fig. 56 . Use NEW bolts for securing. Tighten to specification. See Fig.

64 .

11. Install drive axle shafts to transmission. Tighten bolts to specification. See TORQUE

SPECIFICATIONS .

12. Reconnect exhaust system. Install starter and secure with lower bolt. Install retainer for power steering

line on starter and on transmission.

13. Install upper engine/transmission securing bolts. Tighten upper engine/transmission securing bolts to

specification. See TORQUE SPECIFICATIONS .

14. Install ground strap at upper engine/transmission securing bolt. See Fig. 51 . Attach connector to

speedometer sensor (arrow). See Fig. 48 .

15. Install slave cylinder line/hose in clamp. See Fig. 50 . Remove special tool (3094). Install upper securing

bolt on starter.

16. Install cable retainer (A) on starter (arrow 3). See Fig. 49 . Attach connectors for starter (arrow 1) and

back-up light (arrow 2).

17. Install cable support bracket on transmission (arrows). See Fig. 46 . Tighten bolts to specification. See

TORQUE SPECIFICATIONS .

18. Install gear selector cable (B) with transmission selector lever (arrow 2). See Fig. 47 . Tighten NEW self-

locking hex nut (arrow 2) to 18 ft. lbs. (25 N.m). Secure gate selector cable (A) with relay lever using
lock washer (arrow 1). Install power steering line (arrow 3).

19. Install battery and battery carrier. Install complete air cleaner housing by tightening bolts (4 and 5). See

Fig. 17 . Install intake hose (1). Attach connector (2) and hose (3) to Mass Air Flow sensor.

20. Install insulation tray below engine/transmission, if so equipped. Lower vehicle. Install engine cover.

Adjust gear selector mechanism. See SELECTOR MECHANISM under ADJUSTMENTS.

21. Bleed clutch system, if necessary. See BLEEDING . Check transmission oil level, if necessary.

WARNING:

DO NOT remove support bar (10-222A) until bolts securing left and
right assembly mountings have been tightened to torque
specification.



2003 Volkswagen New Beetle GLS

2002-04 CLUTCHES Clutches - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:05:55 AM

Page 66

© 2004 Mitchell Repair Information Company, LLC.

OVERHAUL

CLUTCH MASTER CYLINDER

Information not available from manufacturer.

CLUTCH SLAVE CYLINDER

Information not available from manufacturer.

TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

Application

Ft. Lbs. (N.m)

Axle Shaft-To-Transmission Flange Bolt

M8

30 (40)

M10

52 (70)

Cable Support Bracket-To-Transmission Bolt

18 (25)

Clutch Pedal Mounting Plate Nut

(1)

18 (25)

Clutch Master Cylinder Nut

(1)

18 (25)

Cross Support-To-Body Bolt

18 (25)

Exhaust System Nut

22 (30)

Flywheel-To-Crankshaft Bolt

(1)

Step 1

44 (60)

Step 2

Additional 90° Turn

Gearshift Selector Assembly

Gear Selector Cable Mounting Bolt

18 (25)

Gear Selector Lever Self-Locking Nut

(1)

18 (25)

Shift Housing-To-Body

18 (25)

Support Bracket Bolt

18 (25)

Selector Housing Nut

18 (25)

Selector Lever-To-Transmission

15 (20)

Pendulum Support Bolt

(1)

 ,

(2)

Pressure Plate Bolt

(1)

 ,

(3)

1-Piece Flywheel

16 (22)

2-Piece Flywheel

15 (20)

Starter Bolt

48 (65)

Transmission-To-Body Bolt

(5)

74 (100)

Transmission Mount-To-Transmission

(1)

 ,

(6)



2003 Volkswagen New Beetle GLS

2002-04 CLUTCHES Clutches - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:05:55 AM

Page 67

© 2004 Mitchell Repair Information Company, LLC.

Step 1

37 (50)

Step 2

Additional 90° Turn

Transmission-To-Engine Bolt

(4)

Transmission Selector Lever Nut

(1)

15 (20)

Wheel Lug Bolt

89 (120)

INCH Lbs. (N.m)

Slave Cylinder/Release Bearing Bolt

106 (12)

(1)

Always replace with NEW fastener. Always replace self-locking nuts.

(2)

See Fig. 64 .

(3)

Loosen or tighten bolts gradually, in a crosswise pattern.

(4)

See Fig. 65 .

(5)

See Fig. 66 .

(6)

See Fig. 67 .



2003 Volkswagen New Beetle GLS

2002-04 CLUTCHES Clutches - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:05:55 AM

Page 68

© 2004 Mitchell Repair Information Company, LLC.
