2002-04 CLUTCHES

Clutches - New Beetle (5 & 6 Speed, 02M)

IDENTIFICATION

On 02M transmission model, identification tag is located on transmission, identifying code letters and date of
manufacture. See Fig. 1 .



2003 Volkswagen New Beetle GLS

2002-04 CLUTCHES Clutches - New Beetle (5 & 6 Speed, 02M)





2003 Volkswagen New Beetle GLS

2002-04 CLUTCHES Clutches - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:05:52 AM

Page 1

© 2004 Mitchell Repair Information Company, LLC.

Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:06:01 AM

Page 1

© 2004 Mitchell Repair Information Company, LLC.

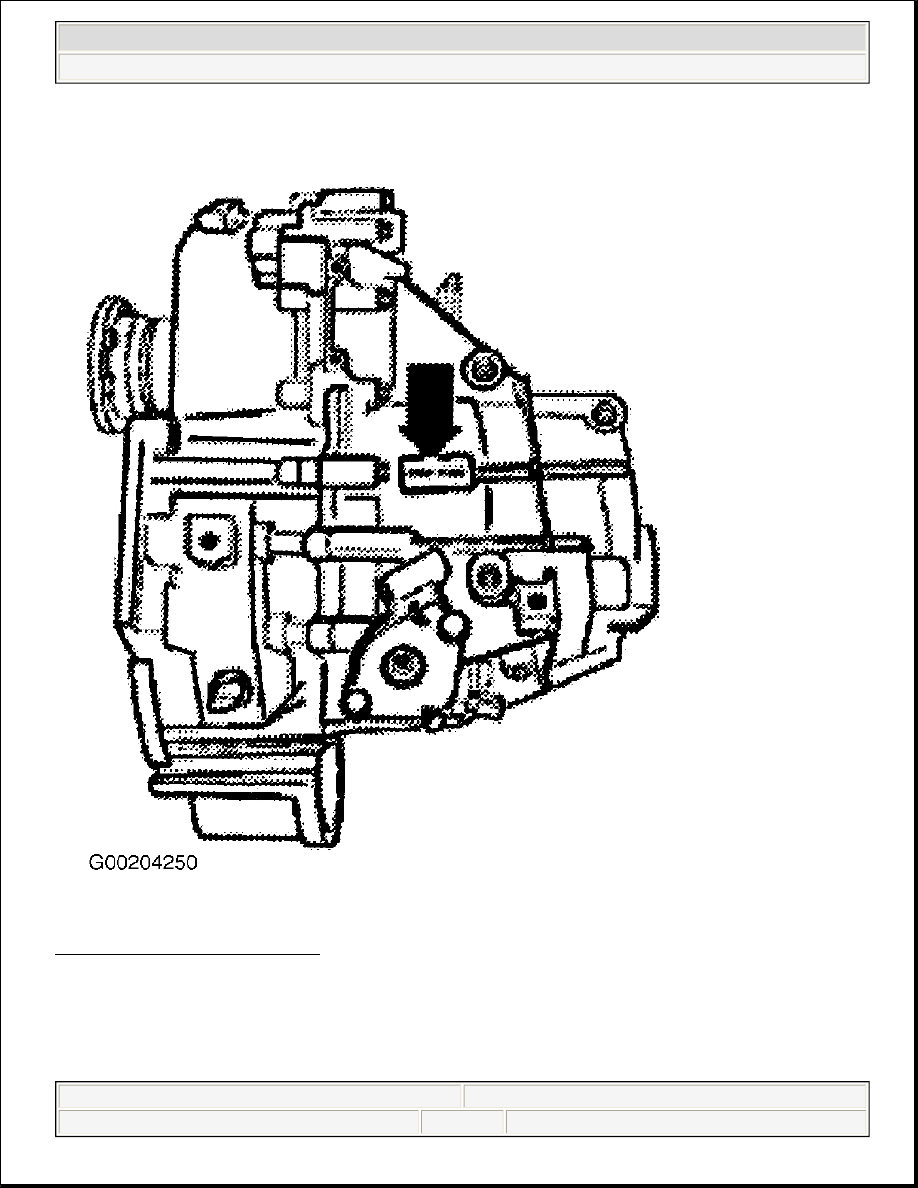

Fig. 1: Locating Identification Tag
Courtesy of VOLKSWAGEN UNITED STATES, INC.

DESCRIPTION & OPERATION

Clutch is a single-disc type, using a diaphragm spring to engage pressure plate. Clutch is hydraulically
controlled by master cylinder, slave cylinder, release lever and pre-lubricated release bearing. Clutch release



2003 Volkswagen New Beetle GLS

2002-04 CLUTCHES Clutches - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:05:52 AM

Page 2

© 2004 Mitchell Repair Information Company, LLC.

bearing and slave cylinder are an integral unit, and must be replace together. Clutch master cylinder is supplied
fluid from brake master cylinder fluid reservoir. Flywheel on some models was changed from a single piece
solid flywheel to a dual mass flywheel. Note changes in torque specifications for pressure plate.

BLEEDING

1. Connect brake filler/bleeder unit (VAG 5234), or equivalent. Connect bleed hose to brake bleeding

collector bottle. Attach hose (arrow) to bleeder (arrow) fitting located on clutch master cylinder, next to
hydraulic line

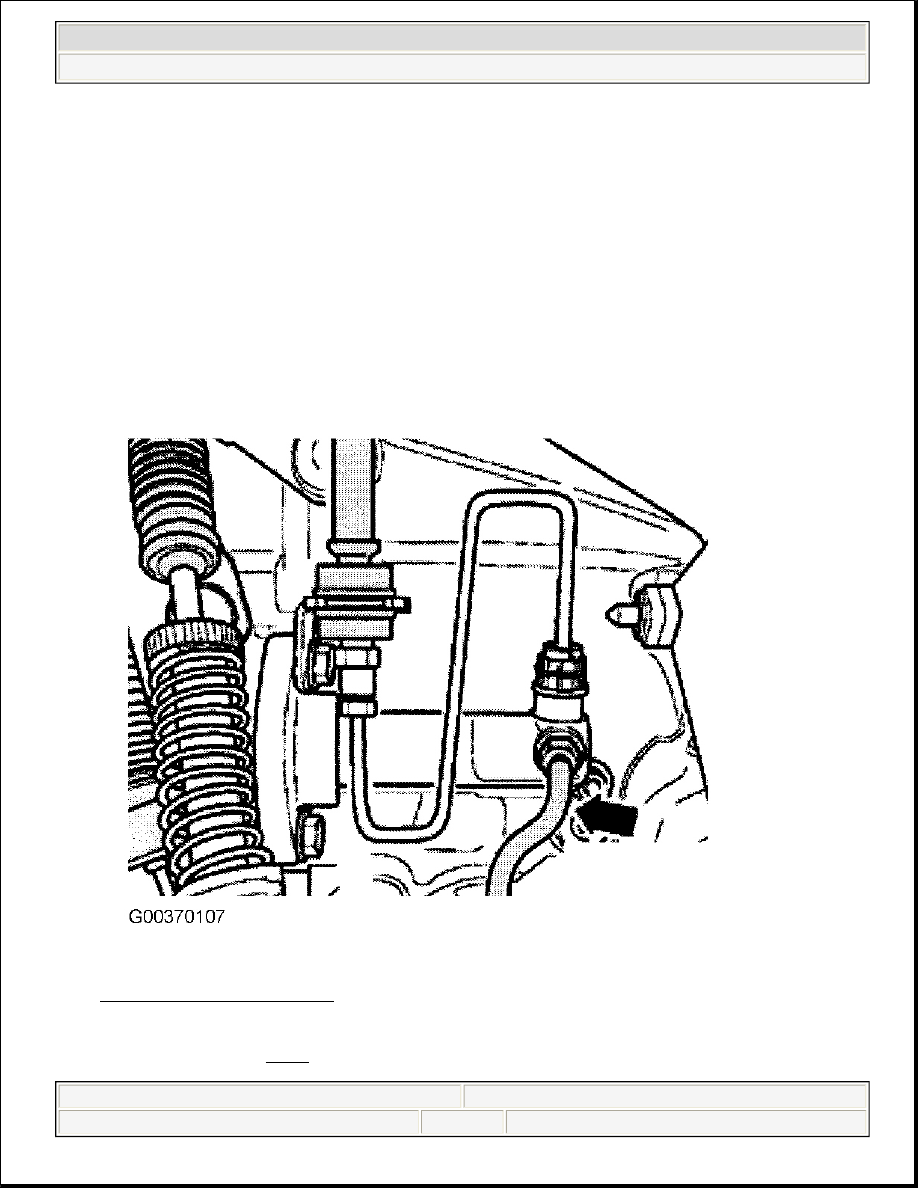

Fig. 2: Locating Bleeder Valve
Courtesy of VOLKSWAGEN UNITED STATES, INC.

2. Open bleed valve. See Fig. 2 . Turn bleed unit on. After finishing bleeding process, depress clutch pedal

several times.

NOTE:

Fill brake master cylinder reservoir with DOT 4 brake fluid.



2003 Volkswagen New Beetle GLS

2002-04 CLUTCHES Clutches - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:05:53 AM

Page 3

© 2004 Mitchell Repair Information Company, LLC.

ADJUSTMENTS

CLUTCH

BRAKE LIGHT SWITCH

For servicing purposes, they will be referred to as "old style" and "new style". It is important to identify which
style of switch is installed, prior to servicing, as each requires specific removal and installation (replacement)
procedures. See Fig. 3 .

"Old style" switch is identified by a large (approximately 10 mm) plunger tip button, and a square plunger shaft.
"New style" switch is identified by a small (approximately 4 mm) plunger tip without a button, and round
plunger shaft. "Old style" switches can be removed and reinstalled/adjusted. "New style" switch must NOT be
reused after removal. Always replace.

Should a brake light switch require replacement, only a specific "new style" switch is available (supersedes all
previous part number versions). This switch requires critical procedures be followed, prior to and during
installation.

NOTE:

Hydraulic clutch systems are automatically adjusted and require no manual
adjustment.

NOTE:

Two different styles of brake light switch were used in production.



2003 Volkswagen New Beetle GLS

2002-04 CLUTCHES Clutches - New Beetle (5 & 6 Speed, 02M)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:05:53 AM

Page 4

© 2004 Mitchell Repair Information Company, LLC.
