Volkswagen New Beetle. Manual - part 2334

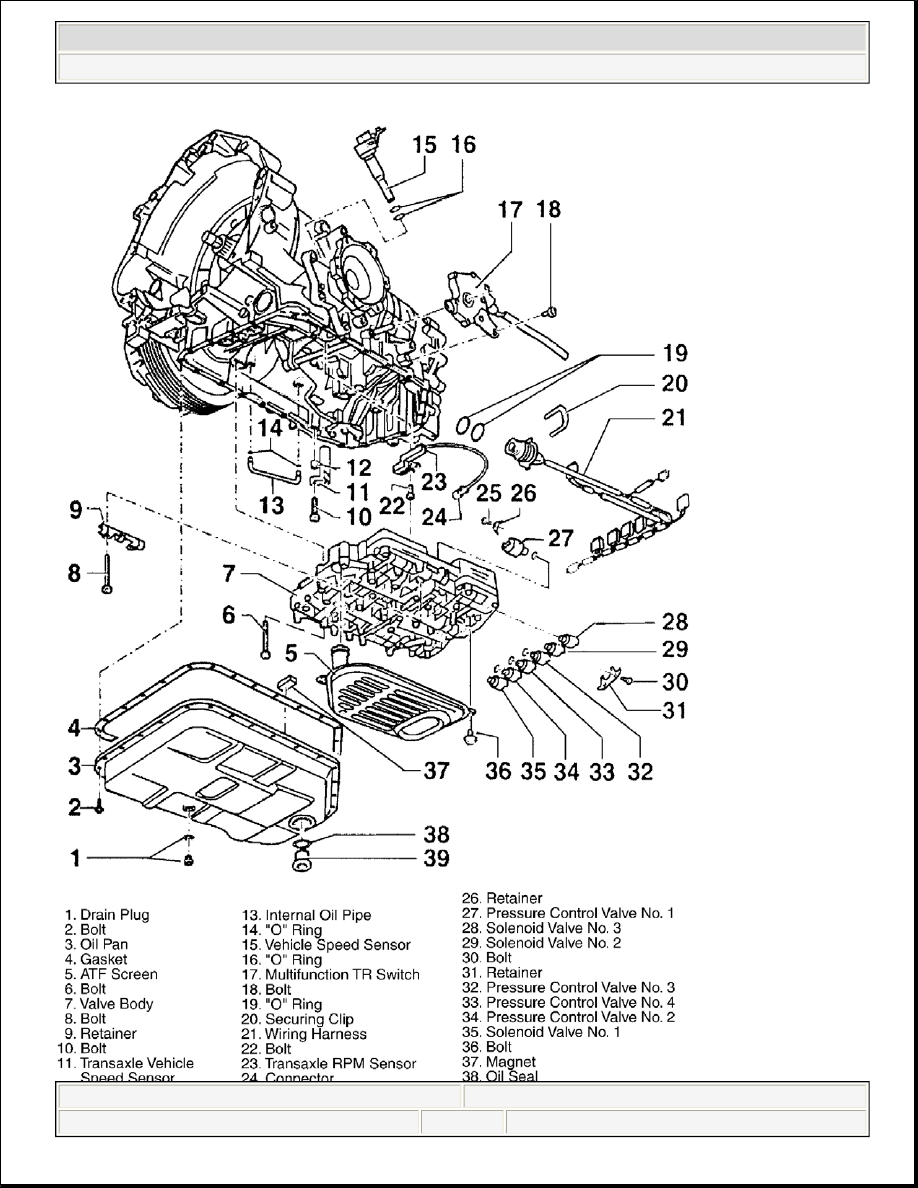

Fig. 72: Exploded View Of E17 Valve Body Components (01V Transaxle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Servicing - 01M & 01V



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:59:39 AM

Page 82

© 2004 Mitchell Repair Information Company, LLC.



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Servicing - 01M & 01V



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:59:39 AM

Page 83

© 2004 Mitchell Repair Information Company, LLC.

Fig. 73: Exploded View Of E18 Valve Body Components (01V Transaxle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

Application

Ft. Lbs. (N.m)

ATF Cooler Line Bolt (01V)

15 (20)

ATF Level Plug

01M

11 (15)

01V

30 (40)

ATF Inspection Plug (01V)

59 (80)

Center Differential Fill Plug (01V AWD)

26 (35)

Final Drive Fill Plug

01M

(2)

01V

Front Final Drive

22 (30)

Rear Final Drive (AWD)

26 (35)

Final Drive Inspection Plug (01M)

(1)

Oil Pan Drain Plug

01V

30 (40)

Pendulum Support Bolt (01M Except Cabrio)

Inner Bolt

Step 1

15 (20)

Step 2

Turn Additional 90

Degrees

Outer Bolt

Step 1

30 (40)

Step 2

Turn Additional 90

Degrees

Selector Lever Cable Bolt (Cabrio)

18 (25)

Selective Lever Cable Protective Plate Bolt (01V)

17 (23)

Selector Lever Cable Support Bracket Bolt (01V)

17 (23)

Transaxle Carrier Bolt

Step 1

30 (40)

Step 2

Turn Additional 90

Degrees

Upper Retainer Bolt (01M)

15 (20)

INCH Lbs. (N.m)

ATF Screen Bolt (01V)

53 (6)



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Servicing - 01M & 01V



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:59:39 AM

Page 84

© 2004 Mitchell Repair Information Company, LLC.

Locking Cable Anchor Screw (Cabrio)

53 (6)

Locking Cable Support Bracket Bolt (01V)

89 (10)

Manual Selector Valve Bolt (01M)

35 (4)

Mounting Bracket Cover Nut (01V)

89 (10)

Oil Pan Bolt

01M

106 (12)

01V

89 (10)

Selector Lever Cable Bolt (01M Except Cabrio)

71 (8)

Selector Lever Cable Mounting Bolt (01M - Cabrio, Golf, GTI
& Jetta)

71 (8)

Selector Lever Cable Mounting Bolt (01M - New Beetle)

44 (5)

Selector Lever Cable-To-Support Bracket Bolt (01V)

106 (12)

Transaxle Range Switch Bolt

01M (Except Cabrio)

89 (10)

01V

71 (8)

Transaxle RPM Sensor

E17 Valve Body

53 (6)

E18 Valve Body

80 (9)

Transaxle Vehicle Speed Sensor Bolt

01M (Except Cabrio)

89 (10)

01V

53 (6)

Valve Body Bolt

01M

44 (5)

01V

71 (8)

Vehicle Speed Sensor Bolt (01M Except Cabrio)

89 (10)

(1)

Inspecting fluid level and draining fluid are done at the same plug on 01M
transaxles.

(2)

Final drive fluid level is checked through speedometer drive.



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Servicing - 01M & 01V



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:59:39 AM

Page 85

© 2004 Mitchell Repair Information Company, LLC.
