Volkswagen New Beetle. Manual - part 2333





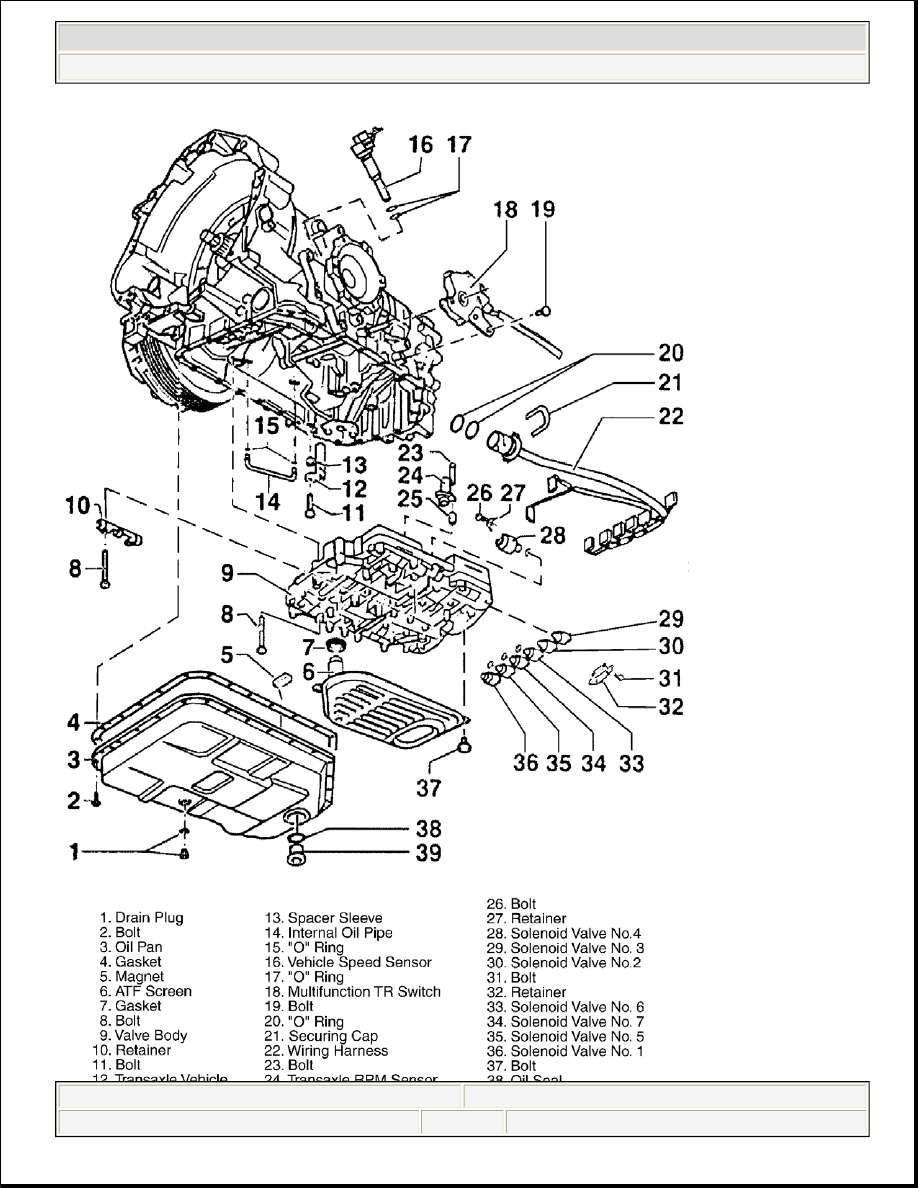

See Fig. 69 . On both valve bodies, lubricate NEW "O" rings for connector on wiring harness with ATF.
Install connector in transaxle housing with flat part (A) facing toward oil pan. See Fig. 70 .

5. Align dowel pin on valve body (B) with hole in transaxle housing (C). See Fig. 70 . Place valve body in

position so that pin of detent plate (1) engages in slot on selector slide (2). See Fig. 71 .

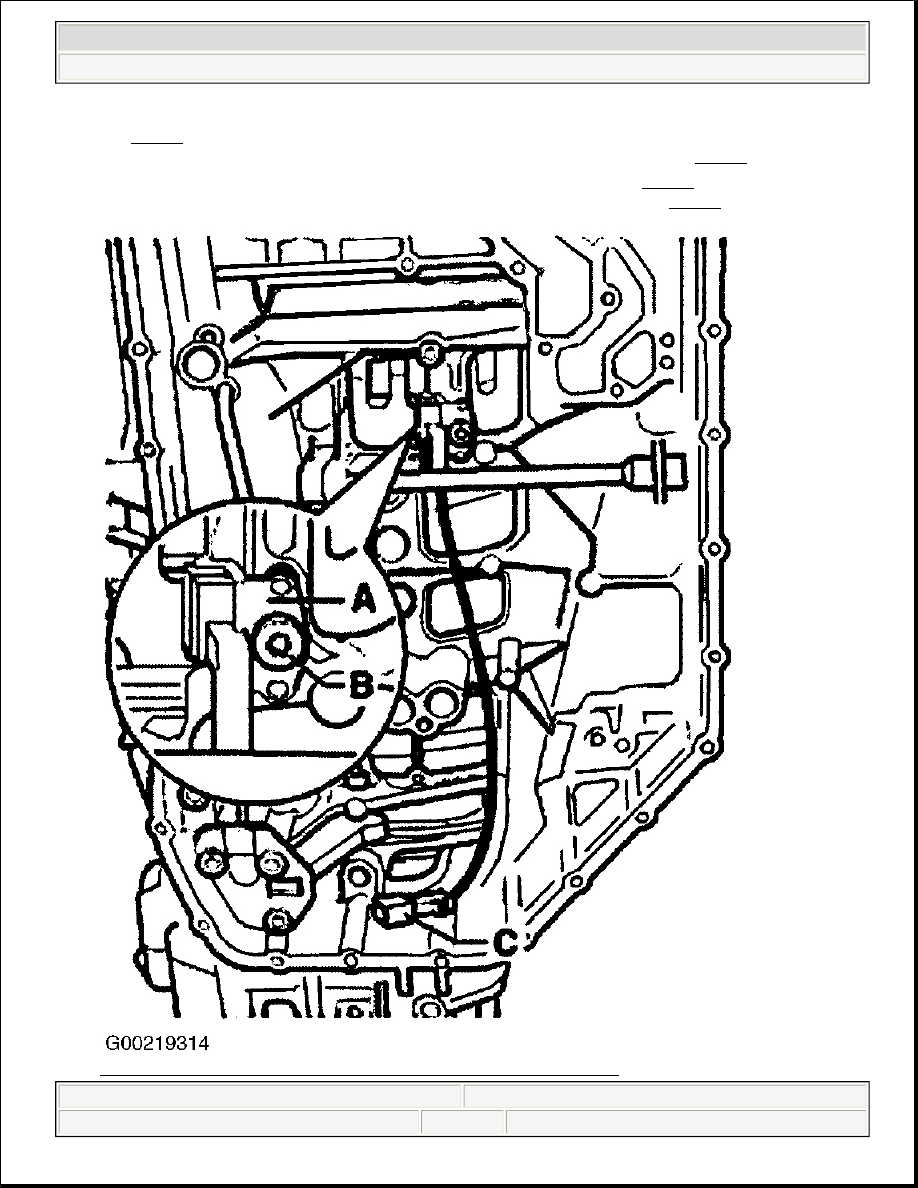

Fig. 69: Routing Wiring Harness (01V Transaxle - E18 Valve Body)



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Servicing - 01M & 01V



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:59:39 AM

Page 78

© 2004 Mitchell Repair Information Company, LLC.

Courtesy of VOLKSWAGEN UNITED STATES, INC.

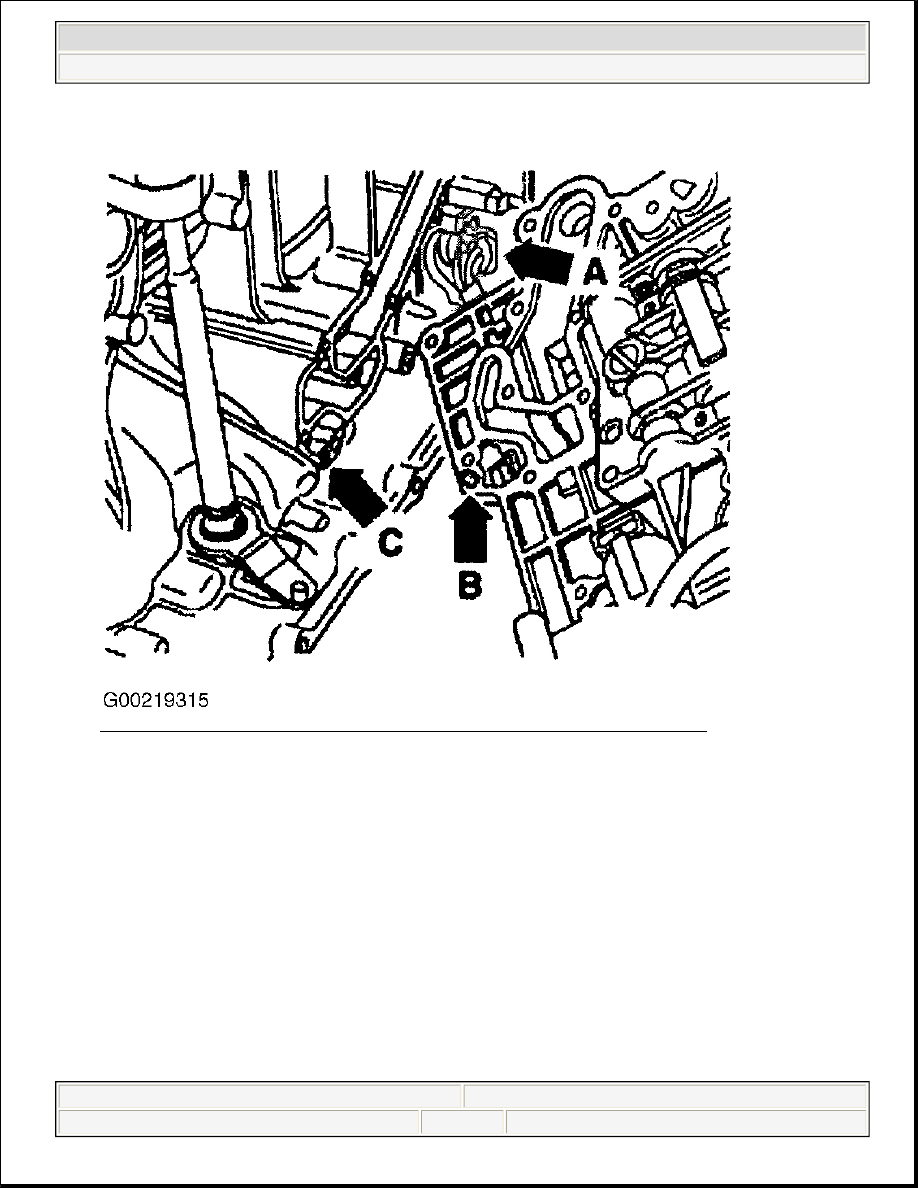

Fig. 70: Installing Connector & Aligning Dowel Pin With Hole (01V Transaxle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Servicing - 01M & 01V



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:59:39 AM

Page 79

© 2004 Mitchell Repair Information Company, LLC.

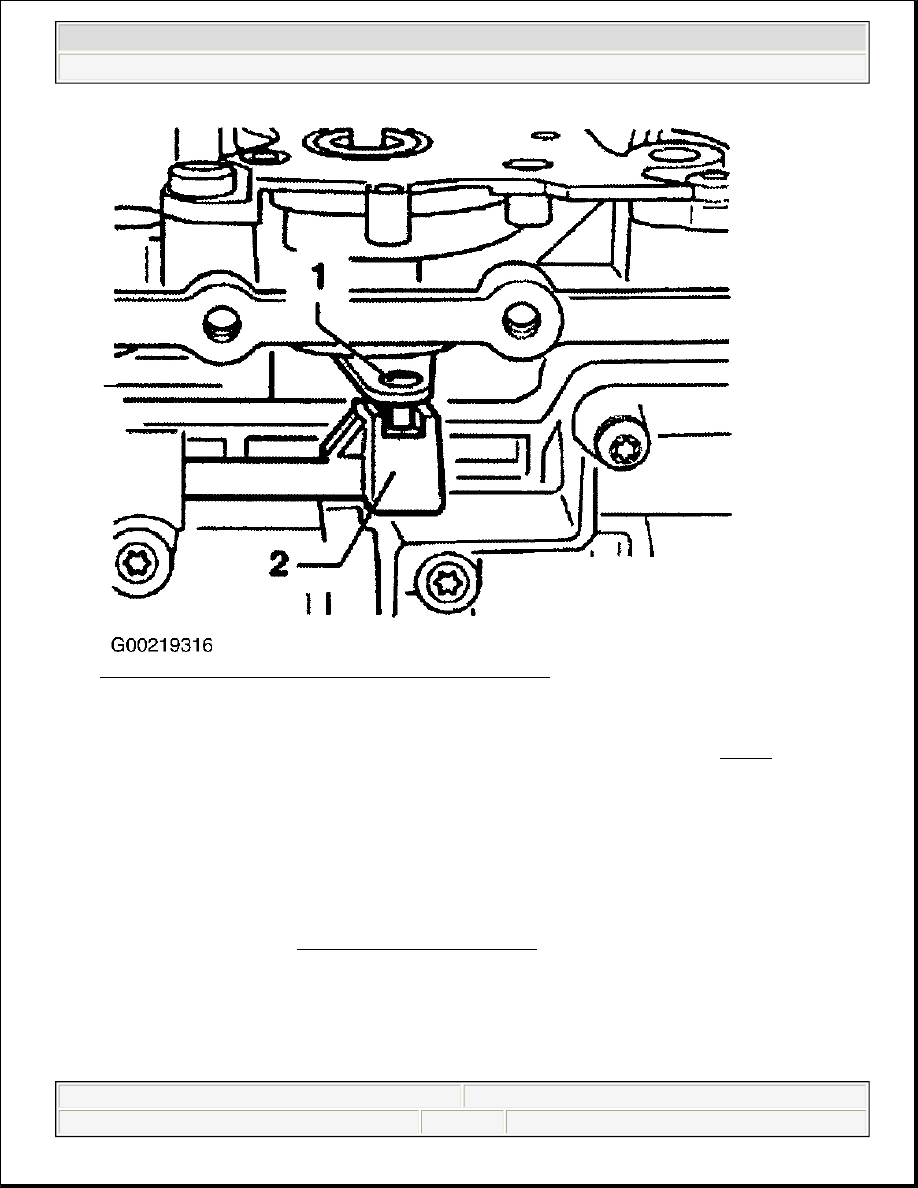

Fig. 71: Engaging Detent Plate Pin In Slot (01V Transaxle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

6. Tighten bolts (arrows) hand tight, securing valve body. On E18 valve body, bolt (A) does not apply and

should be ignored. On E17 valve body, bolt (A) is shorter than all the other bolts. See Fig. 68 . Tighten
bolts to 71 INCH lbs. (8 N.m), working from the inside of valve body outward. Connect transaxle vehicle
speed sensor connector. Pull up wire to transaxle RPM sensor (if equipped) between valve body and
wiring harness.

7. Press in securing clip for wiring harness connector until retaining tab engages. Moisten seal on intake

neck of ATF screen with ATF. Carefully push intake neck of ATF screen in opening of valve body.
Install ATF screen and tighten bolts to 53 INCH lbs. (6 N.m).

8. Install oil pan with NEW gasket. Tighten oil pan bolts to 89 INCH lbs. (10 N.m), in several stages and in

diagonal sequence. Install drain plug and tighten to 30 ft. lbs. (40 N.m). Fill transaxle with ATF, check
ATF level and top off. See CHECKING FLUID LEVELS under LUBRICATION.



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Servicing - 01M & 01V



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:59:39 AM

Page 80

© 2004 Mitchell Repair Information Company, LLC.



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Servicing - 01M & 01V



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:59:39 AM

Page 81

© 2004 Mitchell Repair Information Company, LLC.
