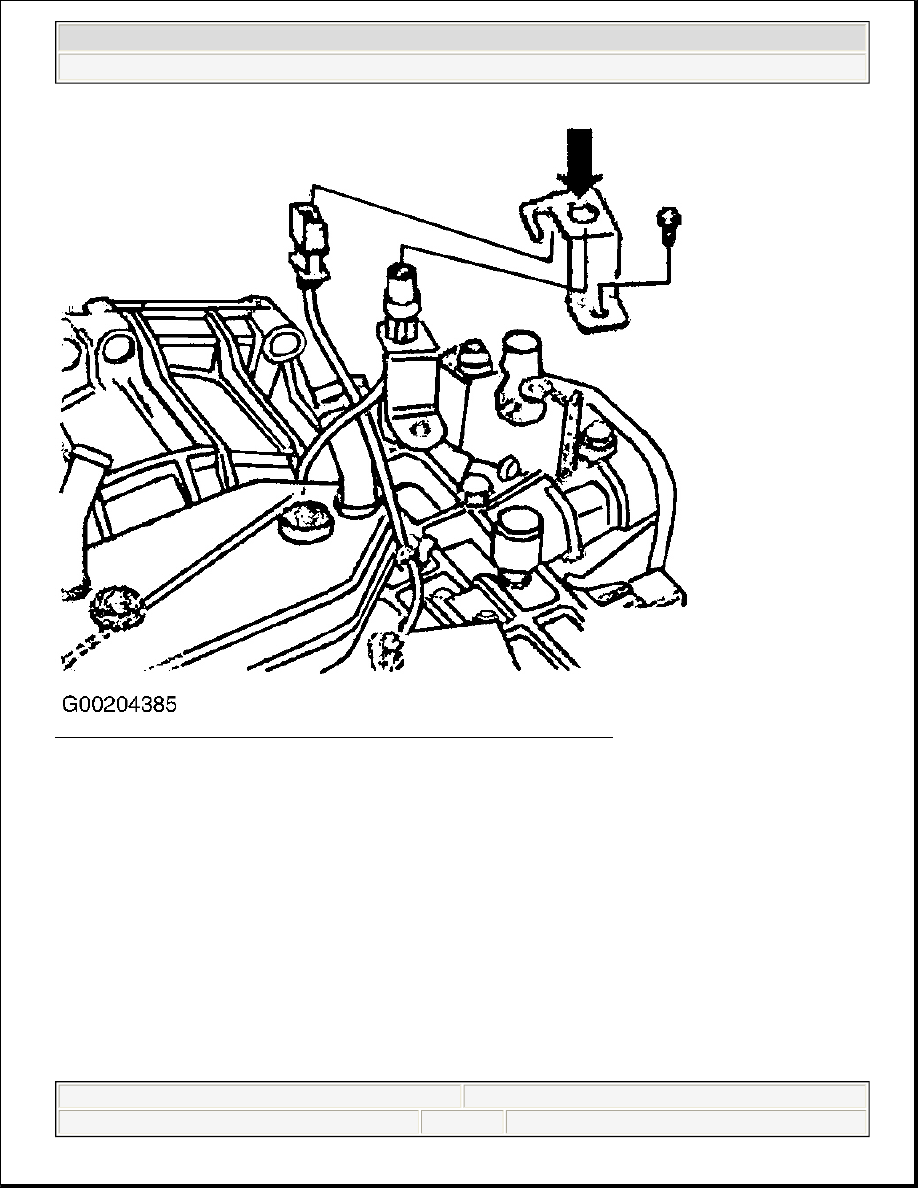

Fig. 61: Installing Upper Retainer Onto Connector Tab (01M Transaxle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Servicing - 01M & 01V



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:59:38 AM

Page 70

© 2004 Mitchell Repair Information Company, LLC.

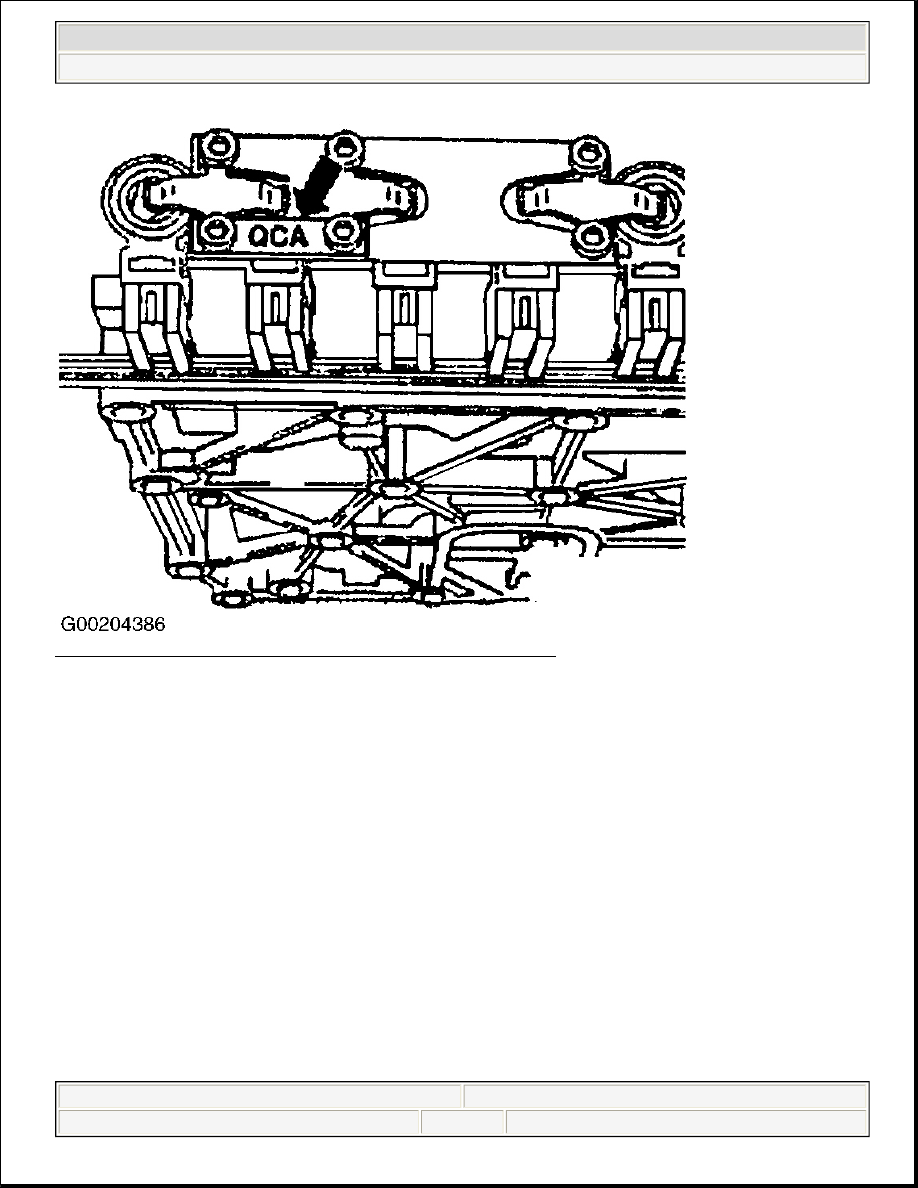

Fig. 62: Locating Valve Body Identification Tab (01M Transaxle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Servicing - 01M & 01V



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:59:38 AM

Page 71

© 2004 Mitchell Repair Information Company, LLC.

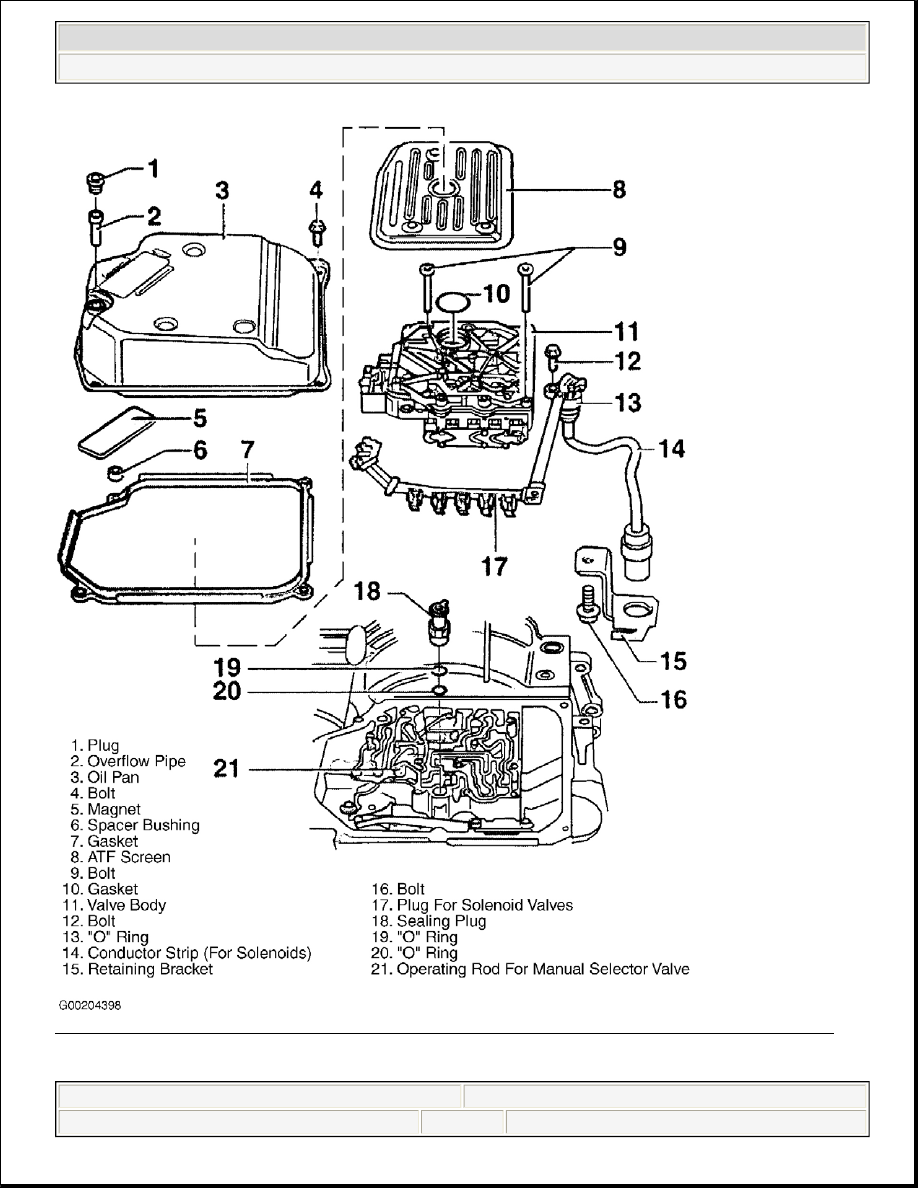

Fig. 63: Exploded View Of Valve Body Components (01M Transaxle - Cabrio)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Servicing - 01M & 01V



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:59:38 AM

Page 72

© 2004 Mitchell Repair Information Company, LLC.

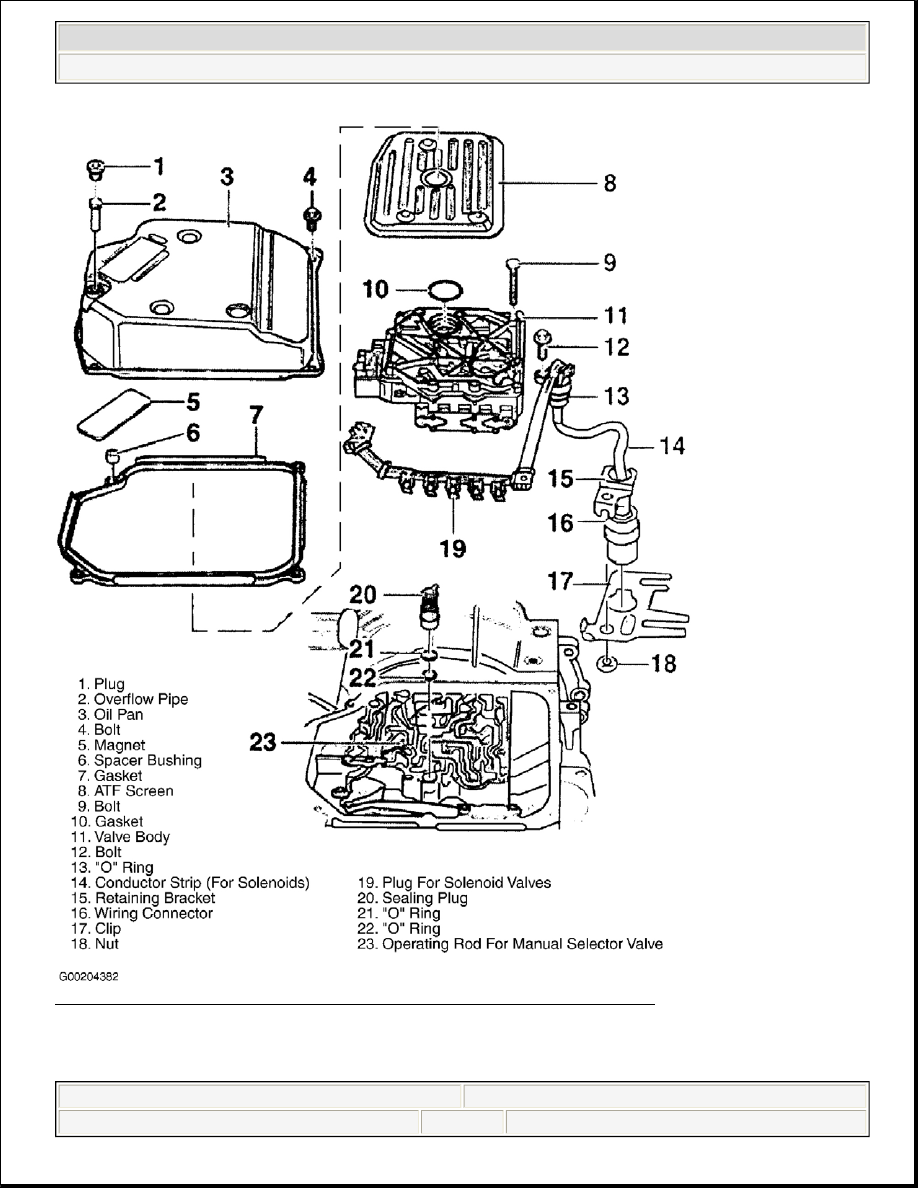

Fig. 64: Exploded View Of Valve Body Components (01M Transaxle - Golf, GTI, Jetta & New Beetle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Servicing - 01M & 01V



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:59:38 AM

Page 73

© 2004 Mitchell Repair Information Company, LLC.
