Remove valve body. See REMOVAL & INSTALLATION (01V TRANSAXLE) under VALVE BODY
ASSEMBLY. Turn valve body over and unplug connector from transaxle RPM sensor (1). See Fig. 46 .
Remove bolts and remove sensor from valve body. Install sensor with spacer (2) and tighten bolts to 53 INCH
lbs. (6 N.m). Ensure sensor is installed correctly. Side of sensor with plug contacts faces toward center of valve
body. Install connector to sensor. Install valve body. Fill with ATF and check ATF level. See CHECKING
FLUID LEVELS under LUBRICATION.

Removal & Installation (01V Transaxle With E18 Valve Body)

Remove valve body. See REMOVAL & INSTALLATION (01V TRANSAXLE) under VALVE BODY
ASSEMBLY. Remove bolt (B) and remove transaxle RPM sensor (A). See Fig. 69 . To install reverse removal
procedure. Tighten bolt to 80 INCH lbs. (9 N.m). To ensure wiring harness does not become trapped when
installing the valve body, route the wire with connector (C) according to the illustration. See Fig. 69 . Fill with
ATF and check ATF level. See CHECKING FLUID LEVELS under LUBRICATION.

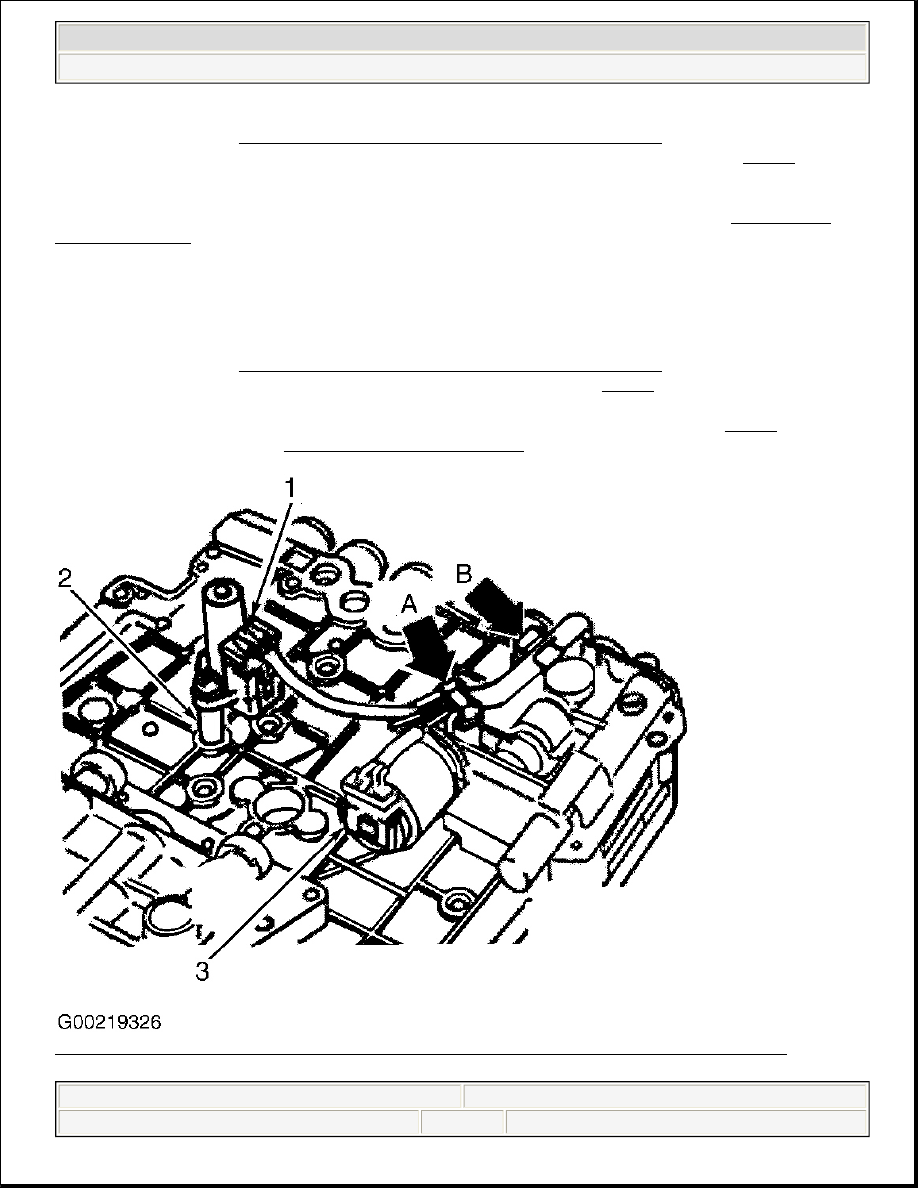

Fig. 46: Removing & Installing Transaxle RPM Sensor (01V Transaxle - With E17 Valve Body)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

NOTE:

In the following procedures, numbers in parenthesis are shown in illustrations.



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Servicing - 01M & 01V



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:59:38 AM

Page 54

© 2004 Mitchell Repair Information Company, LLC.

TRANSAXLE VEHICLE SPEED SENSOR

Removal & Installation (01M Transaxle - Golf, GTI, Jetta & New Beetle)

Transaxle vehicle speed sensor (arrow) is located on top of the transaxle. Turn ignition switch off and open
hood. Disconnect wiring connector from sensor. Remove bolt and pull sensor out. See Fig. 47 . To install,
reverse removal procedure. Replace seal on sensor. Tighten bolt to 89 INCH lbs. (10 N.m).

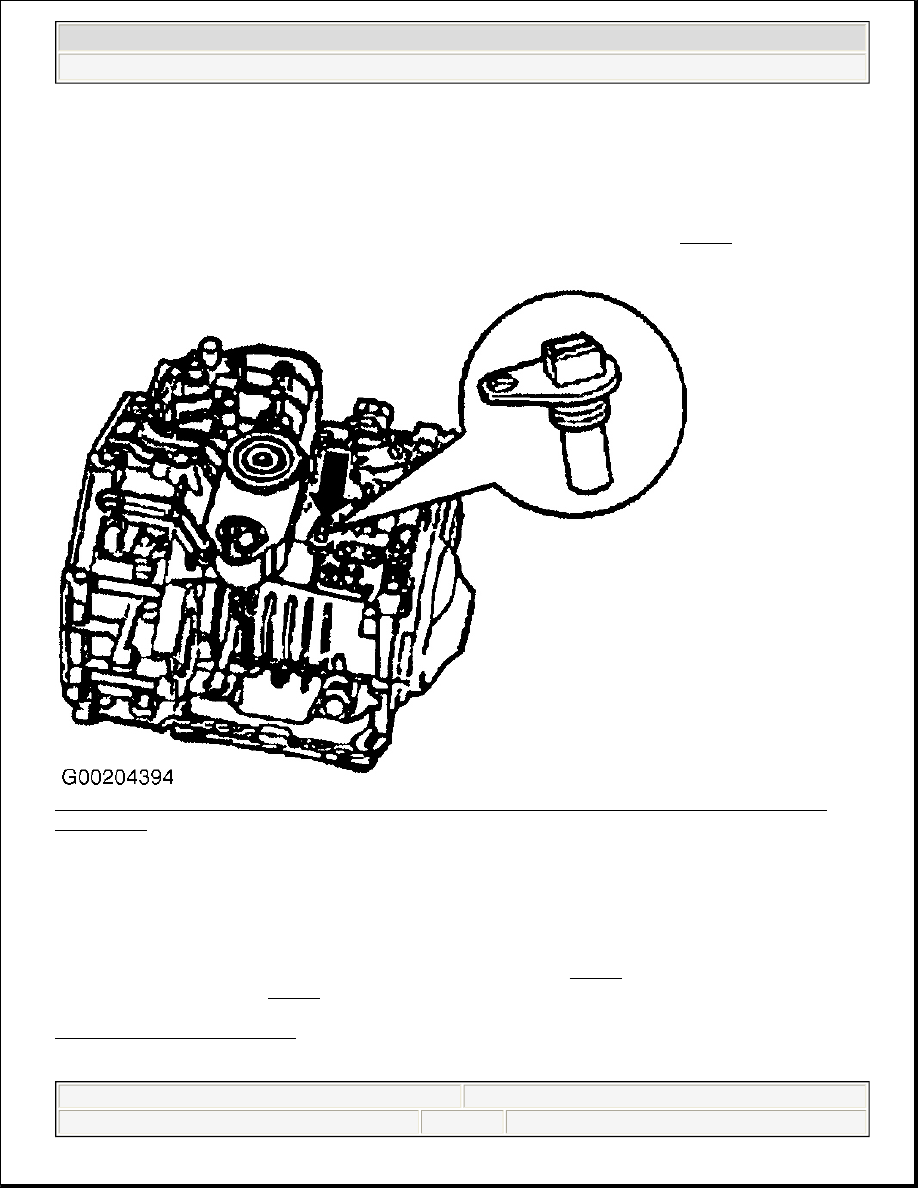

Fig. 47: Removing & Installing Transaxle Vehicle Speed Sensor (01M Transaxle - Golf, GTI, Jetta &
New Beetle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Removal & Installation (01V Transaxle)

Remove oil pan. Pull connector off transaxle vehicle speed sensor. See Fig. 66 . Remove bolt and transaxle
vehicle speed sensor (2). See Fig. 48 . To install, position speed sensor with spacer (1) and tighten bolt to 53
INCH lbs. (6 N.m). Connect speed sensor connector. Install oil pan. Fill with ATF and check ATF level. See
CHECKING FLUID LEVELS under LUBRICATION.

NOTE:

In the following procedure, numbers in parenthesis are shown in illustration.



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Servicing - 01M & 01V



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:59:38 AM

Page 55

© 2004 Mitchell Repair Information Company, LLC.

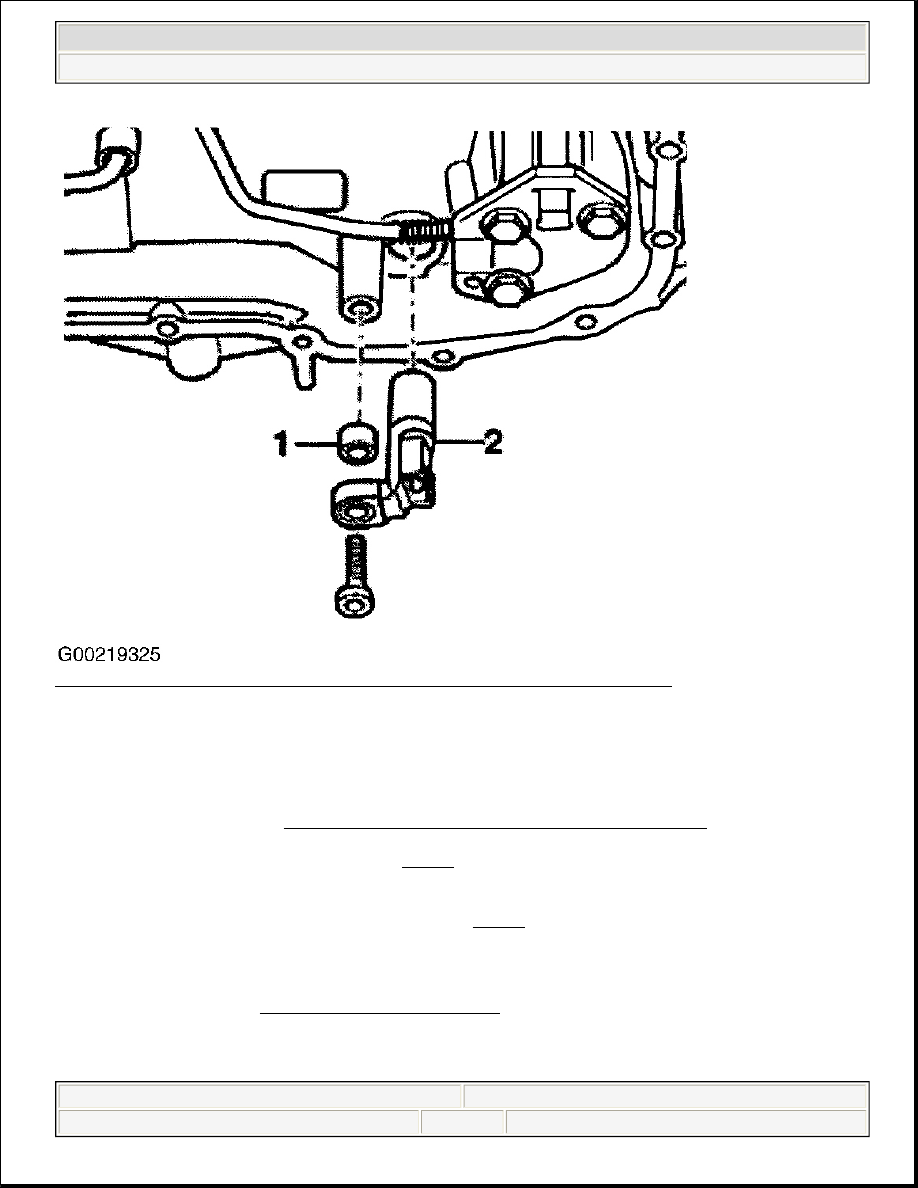

Fig. 48: Removing & Installing Transaxle Vehicle Speed Sensor (01V Transaxle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

TRANSAXLE WIRING HARNESS

Removal & Installation (01V Transaxle)

1. Remove valve body. See REMOVAL & INSTALLATION (01V TRANSAXLE) under VALVE

BODY ASSEMBLY. Using a small screwdriver, pry out retaining tabs on solenoid valve connectors, and

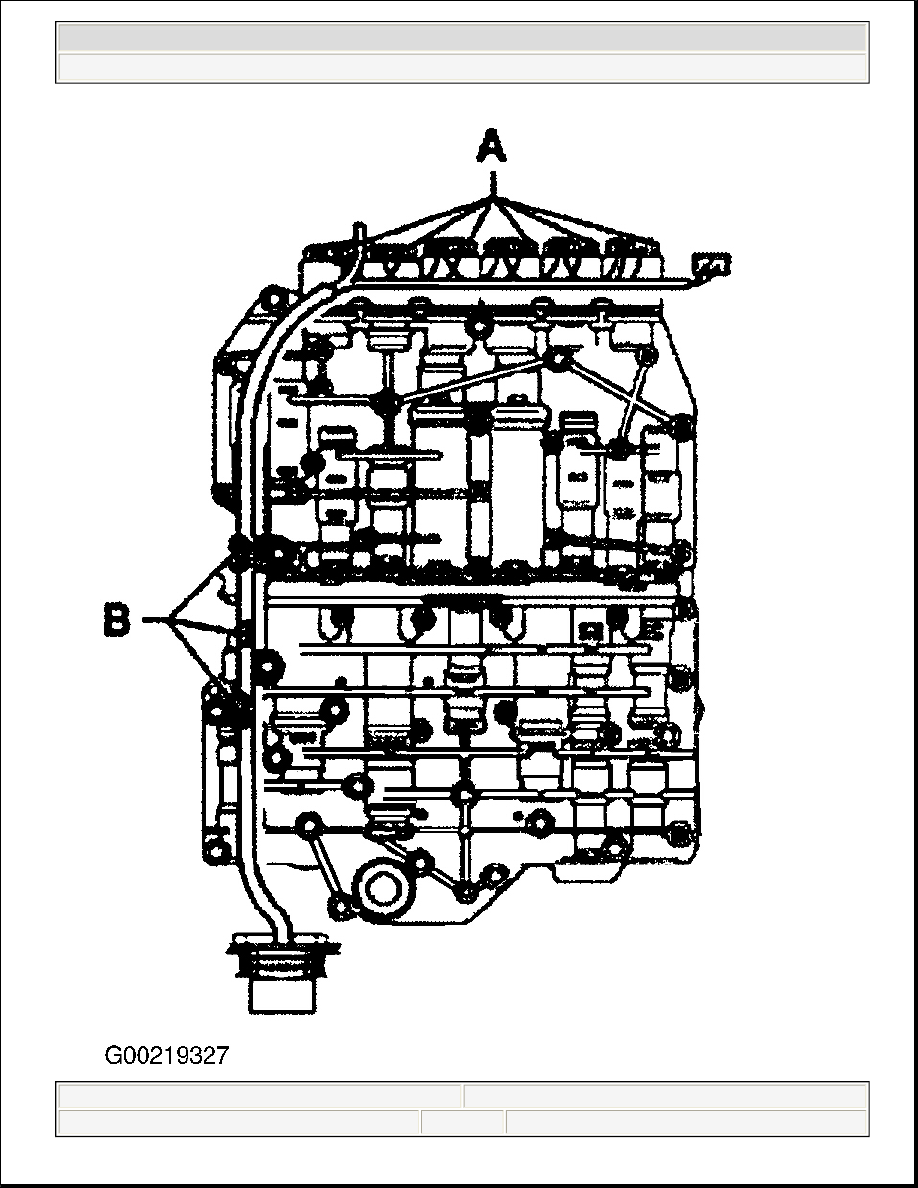

pull off connectors (A) one at a time. See Fig. 49 . Disengage wiring harness from retainers (B) on side of
valve body. Turn valve body over, and unplug connector from transaxle RPM sensor (1). Remove first
retaining clip (A) and unclip harness from second retaining clip (B). Pull connector (3) off solenoid valve
(pressure control solenoid on E18 valve body). See Fig. 46 .

2. To install, reverse removal procedure. When installing wiring harness, plug the connectors onto the

respective solenoid valves. Clip the wiring harness into the retaining clips. If not installed correctly,
wiring harness can be trapped when the valve body is installed. Install valve body. Fill with ATF and
check ATF level. See CHECKING FLUID LEVELS under LUBRICATION.
