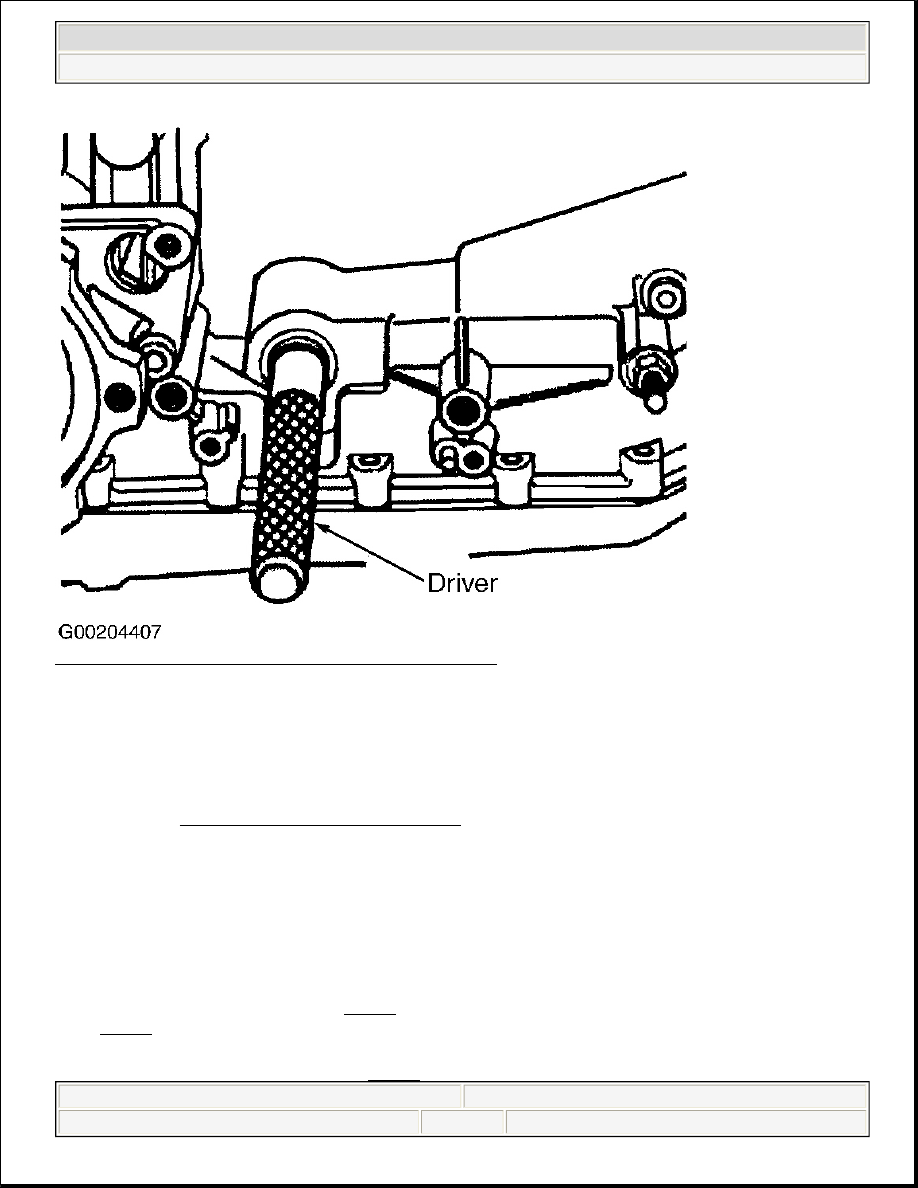

Fig. 42: Installing Selector Shaft Oil Seal (01V Transaxle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

TRANSAXLE FLUID TEMPERATURE SENSOR

Removal & Installation (01V Transaxle)

Transaxle fluid temperature sensor is integrated in the transaxle wiring harness. For temperature sensor
replacement, see TRANSAXLE WIRING HARNESS .

TRANSAXLE OIL PAN & ATF SCREEN

Removal & Installation (01V Transaxle)

1. On vehicles equipped with auxiliary heater, remove exhaust pipe bolts at noise insulation. On all vehicles,

remove noise insulation tray. See Fig. 25 . Place drain pan under transaxle. Remove drain plug (1). See
Fig. 14 . Unscrew oil pan bolts in diagonals sequence and remove oil pan. Clean all 4 magnets in recesses
of oil pan. Ensure magnets are seated correctly in pan upon installation.

2. Unscrew 2 bolts on ATF screen. See Fig. 43 . Pull ATF screen off of valve body. To install ATF screen,

NOTE:

In the following procedures, numbers in parenthesis are shown in illustrations.



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Servicing - 01M & 01V



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:59:37 AM

Page 50

© 2004 Mitchell Repair Information Company, LLC.

lubricate seal on intake neck of ATF screen with ATF. Carefully push intake neck of ATF screen into
opening of valve body. Install bolts and tighten to 53 INCH lbs. (6 N.m).

3. Install NEW oil pan gasket and oil pan. Install oil pan bolts and tighten in diagonal sequence to 89 INCH

lbs. (10 N.m). Install drain plug and tighten to 30 ft. lbs. (40 N.m). On vehicles equipped with auxiliary
heater, bolt exhaust pipe firmly to noise insulation. On all vehicles, fill transaxle with ATF. See 01V
TRANSAXLE
under DRAINING & REFILLING in LUBRICATION.

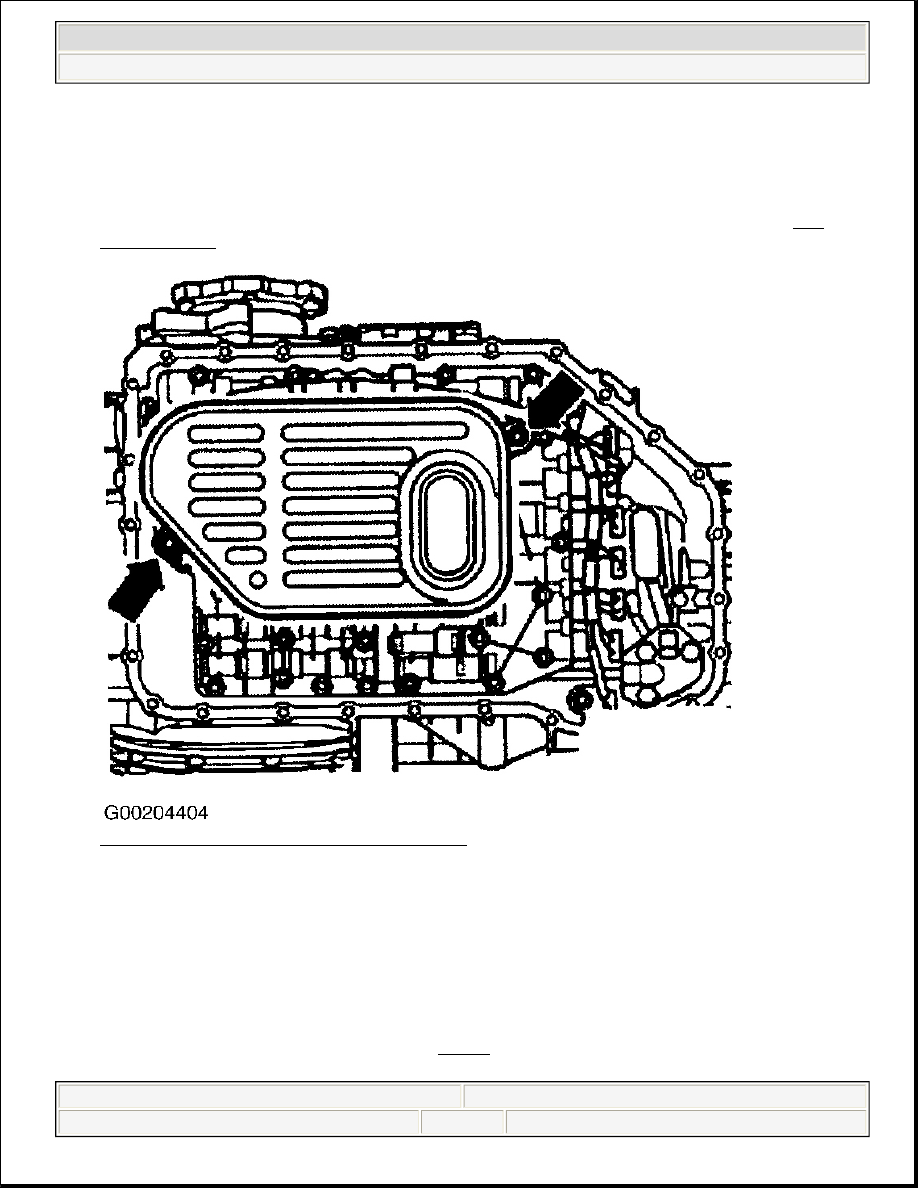

Fig. 43: Removing ATF Screen (01V Transaxle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

TRANSAXLE RANGE SWITCH

Removal & Installation (01M Transaxle - Golf, GTI, Jetta & New Beetle)

Multifunction TR switch is located on rear of transaxle. Turn ignition switch off and open hood. Disconnect
wiring connector from multifunction TR switch. See Fig. 44 . Remove bolt and retainer. Remove multifunction
TR switch. To install, reverse removal procedure. Replace seal on switch. Insert switch so that each pin rests on

NOTE:

Transaxle range switch may also be referred to as multifunction TR switch.



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Servicing - 01M & 01V



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:59:37 AM

Page 51

© 2004 Mitchell Repair Information Company, LLC.

a slope of detent segment. Tighten bolt to 89 INCH lbs. (10 N.m).

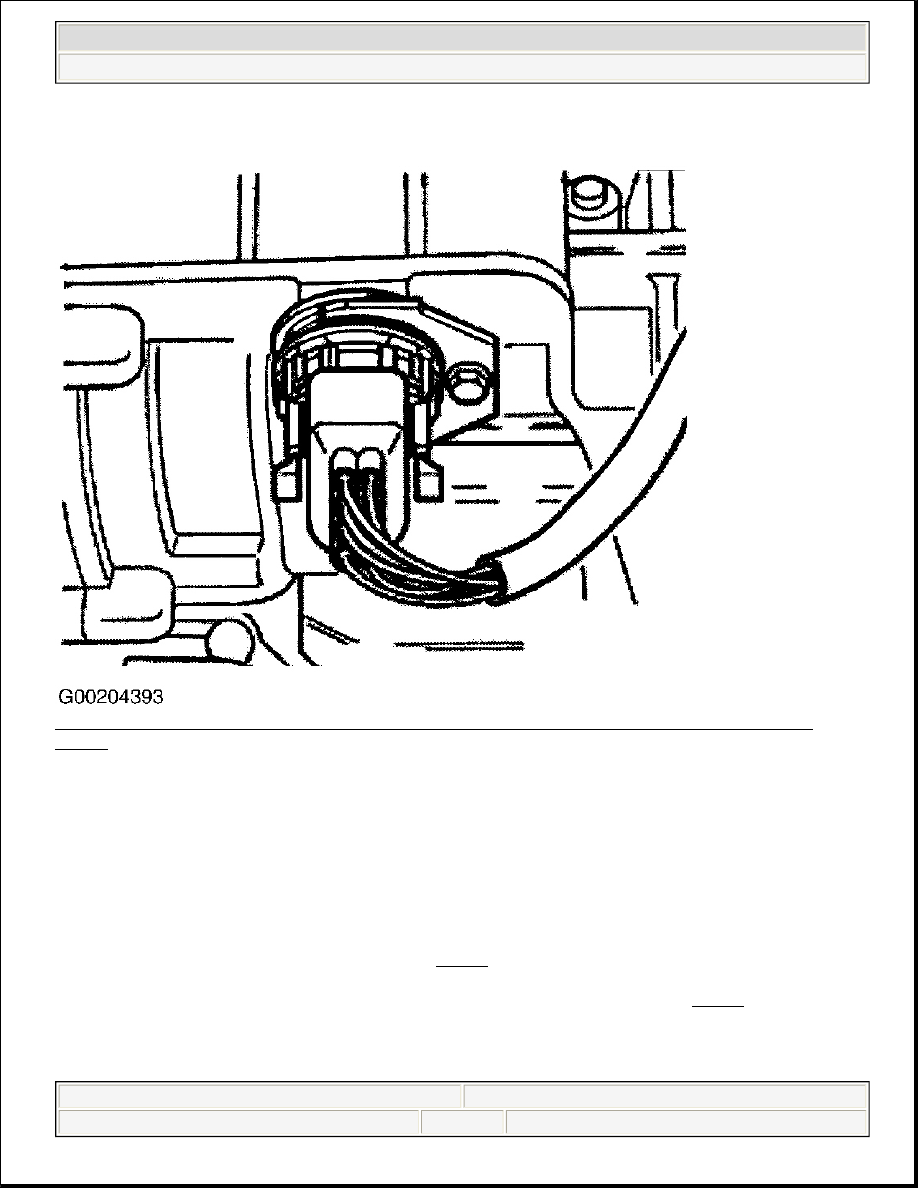

Fig. 44: Removing & Installing Multifunction TR Switch (01M Transaxle - Golf, GTI, Jetta & New
Beetle)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Removal & Installation (01V Transaxle)

1. Raise and support vehicle. Remove left wheel. On vehicles equipped with TDI engine, remove left drive

axle noise insulation from wheel housing. See Fig. 10 . On vehicles with auxiliary heater, remove exhaust
pipe bolts at noise insulation. On all vehicles, remove left hand transaxle bracket. Unscrew bolts and
detach multifunction TR switch from transaxle. Pull switch off selector shaft. See Fig. 45 .

2. To install, center multifunction TR switch on selector shaft. Flat section in splines in switch (3) must

coincide with flat section of selector shaft (1). Do not tilt or use force when installing switch. Switch
contacts may be damaged. Turn switch so that drilling (4) on switch housing can be installed on locating

NOTE:

Transaxle range switch may also be referred to as multifunction TR switch.

NOTE:

In the following procedures, numbers in parenthesis are shown in illustrations.



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Servicing - 01M & 01V



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:59:37 AM

Page 52

© 2004 Mitchell Repair Information Company, LLC.

pin (2) on transaxle housing. See Fig. 45 . Install bolts and tighten to 71 INCH lbs. (8 N.m).

3. Install left hand transaxle bracket. On vehicles equipped with TDI engine, install left drive axle noise

insulation to wheel housing. On all vehicles, install left wheel. Install noise insulation. On vehicles
equipped with auxiliary heater, bolt exhaust pipe firmly to noise insulation.

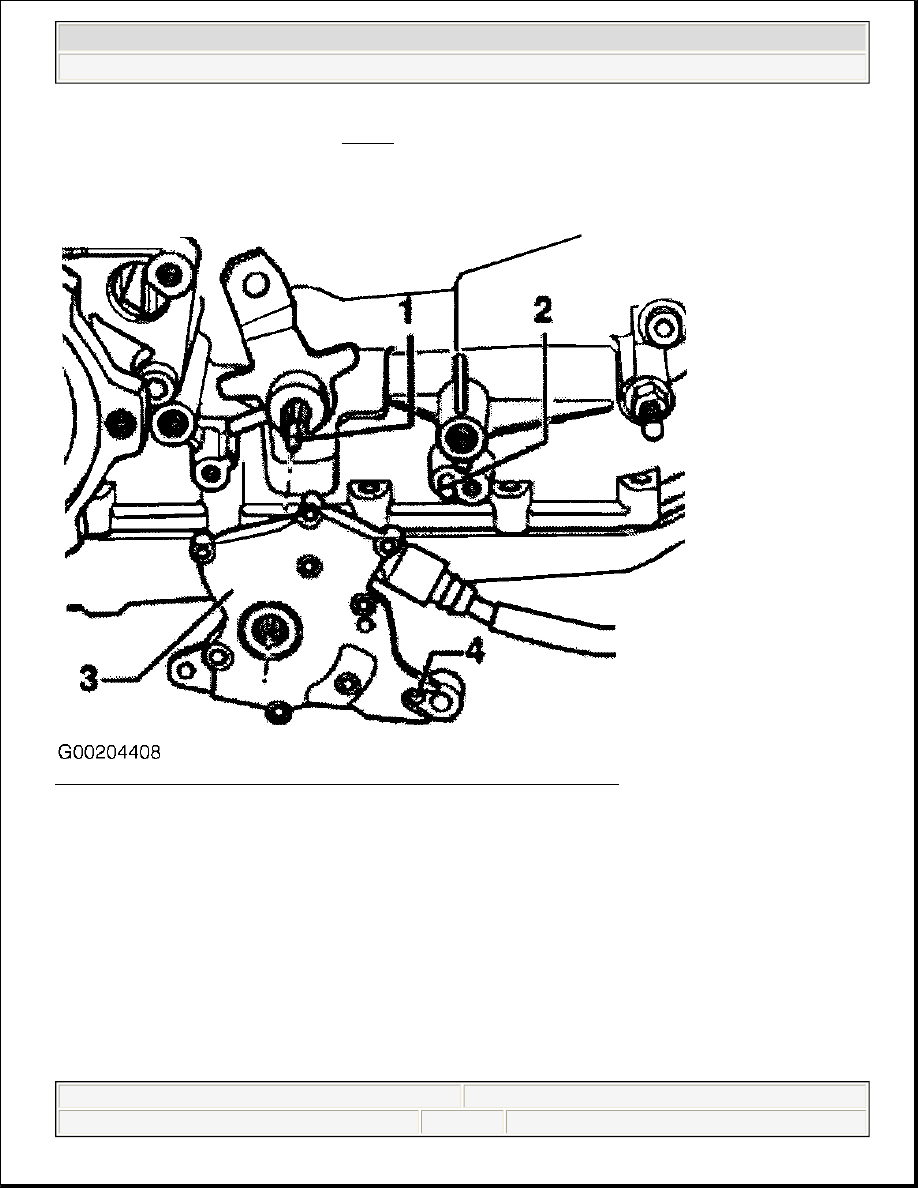

Fig. 45: Removing & Installing Multifunction TR Switch (01V Transaxle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.
