(3). See Fig. 39

8. Tighten mounting bracket cover nuts to 89 INCH lbs. (10 N.m). Check selector lever cable adjustment,

and adjust if necessary. See 01V TRANSAXLE under SELECTOR LEVER CABLE in
ADJUSTMENTS. Install left hand transaxle bracket. On vehicles with V6 engine, install selector lever
cable protective plate. Tighten bolts to 17 ft. lbs. (23 N.m). Install front exhaust system with catalytic
converter. On all vehicles, install noise insulation.

Fig. 38: Positioning Selector Lever Cable & Shaft Level (01V Transaxle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Servicing - 01M & 01V



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:59:37 AM

Page 46

© 2004 Mitchell Repair Information Company, LLC.

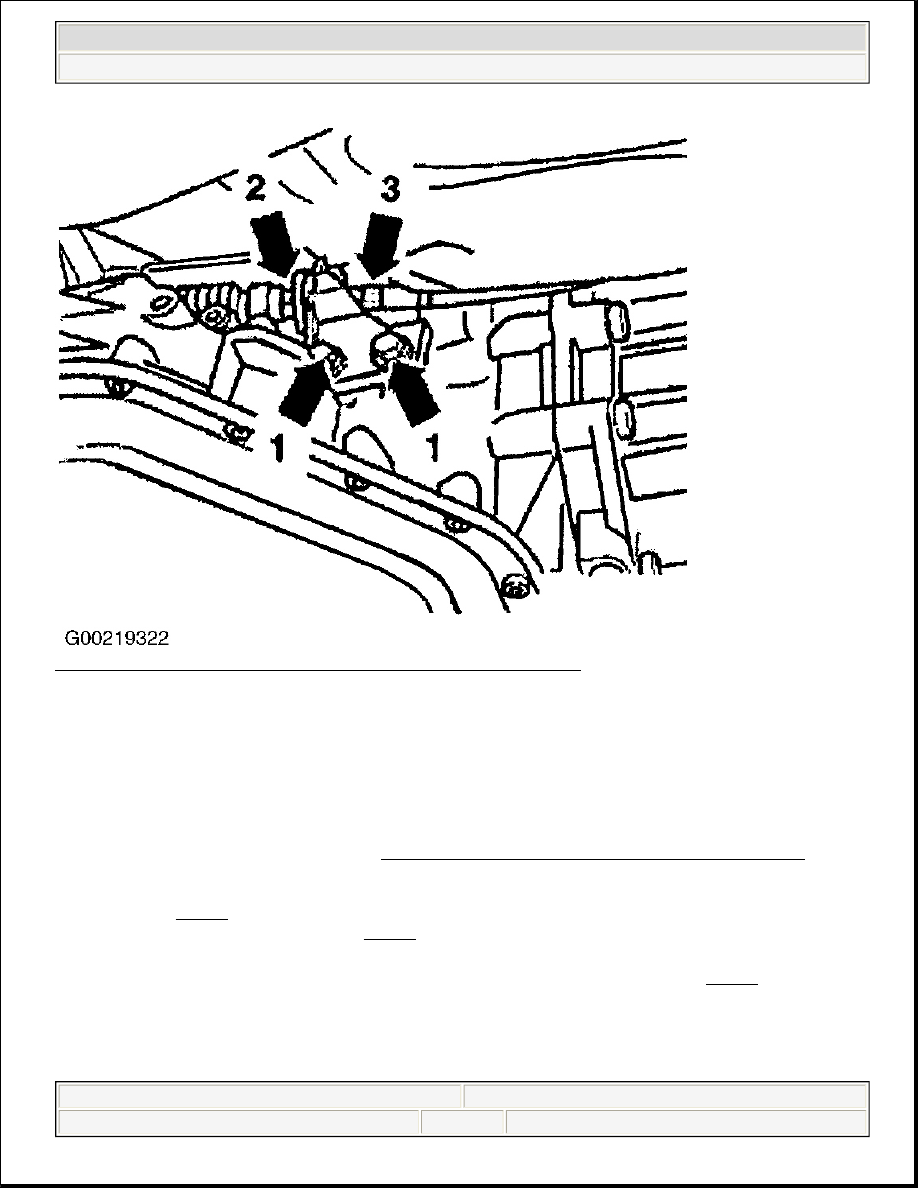

Fig. 39: Identifying Support Bracket Bolt Locations (01V Transaxle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

SELECTOR SHAFT OIL SEAL

Removal & Installation (01V Transaxle)

1. Remove multifunction TR switch. See REMOVAL & INSTALLATION (01V TRANSAXLE) under

TRANSAXLE RANGE SWITCH. On vehicles equipped with V6 and W8 engine, remove fornt left
exhaust system. On all vehicles, use appropriate pry bar to remove selector lever cable from selector shaft
lever. See Fig. 40 . Drive spring pin (1) out of transaxle selector lever (2) until transaxle selector lever can
be removed from selector shaft. See Fig. 41 . Using a screwdriver, pry out oil seal.

2. To install, apply ATF to circumference and sealing lips of oil seal. Open side of seal faces transaxle.

Using appropriate driver, drive in NEW oil seal until thrust piece contacts stop. See Fig. 42 . Ensure oil
seal remains straight during installation. Push transaxle selector lever onto selector shaft and install spring
pin. Carefully press selector lever cable onto selector shaft using a pair of pliers. Take care not to bend
selector shaft lever, otherwise selector mechanism will not be able to be adjusted correctly. Install
multifunction TR switch. On vehicles with V6 and W8 engine, install front left exhaust system.

NOTE:

In the following procedures, numbers in parenthesis are shown in illustrations.



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Servicing - 01M & 01V



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:59:37 AM

Page 47

© 2004 Mitchell Repair Information Company, LLC.

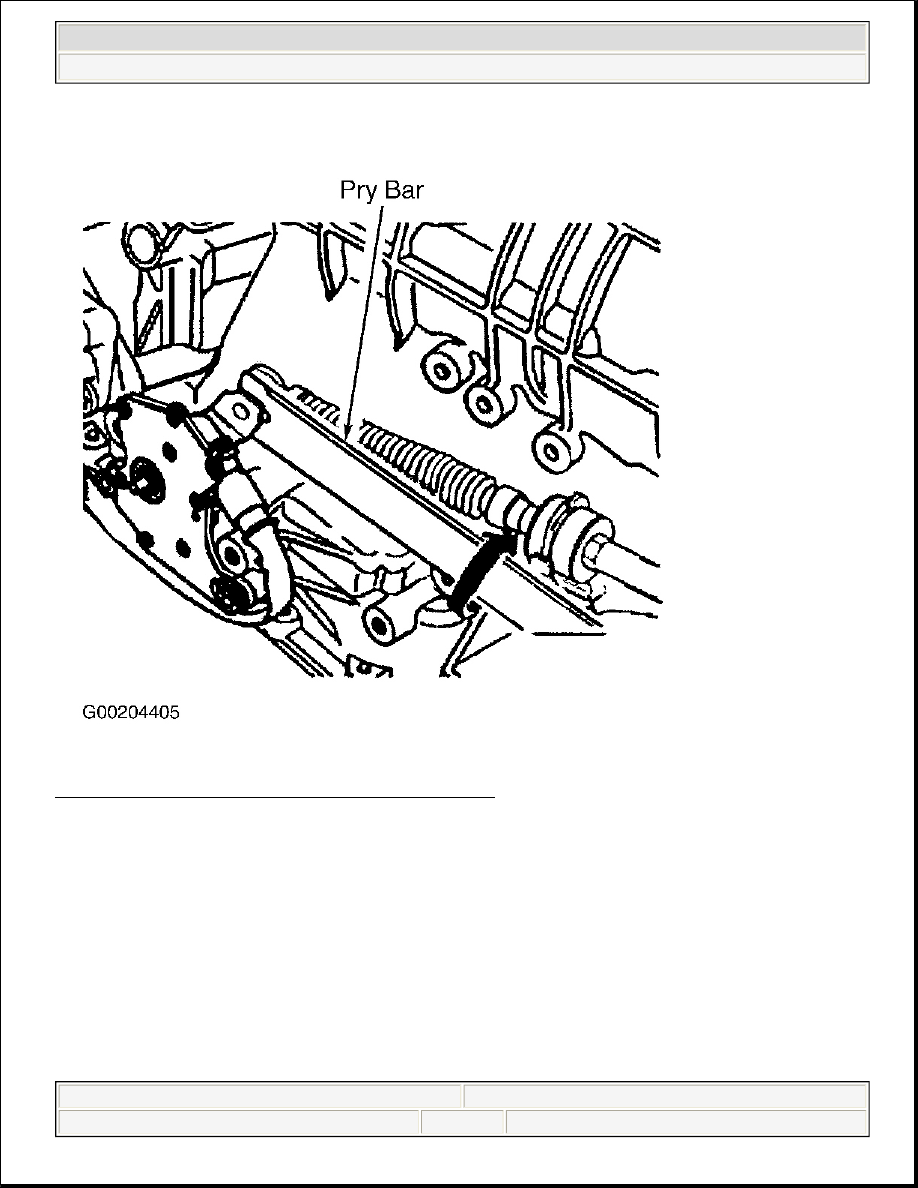

Fig. 40: Prying Off Selector Lever Cable (01V Transaxle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Servicing - 01M & 01V



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:59:37 AM

Page 48

© 2004 Mitchell Repair Information Company, LLC.

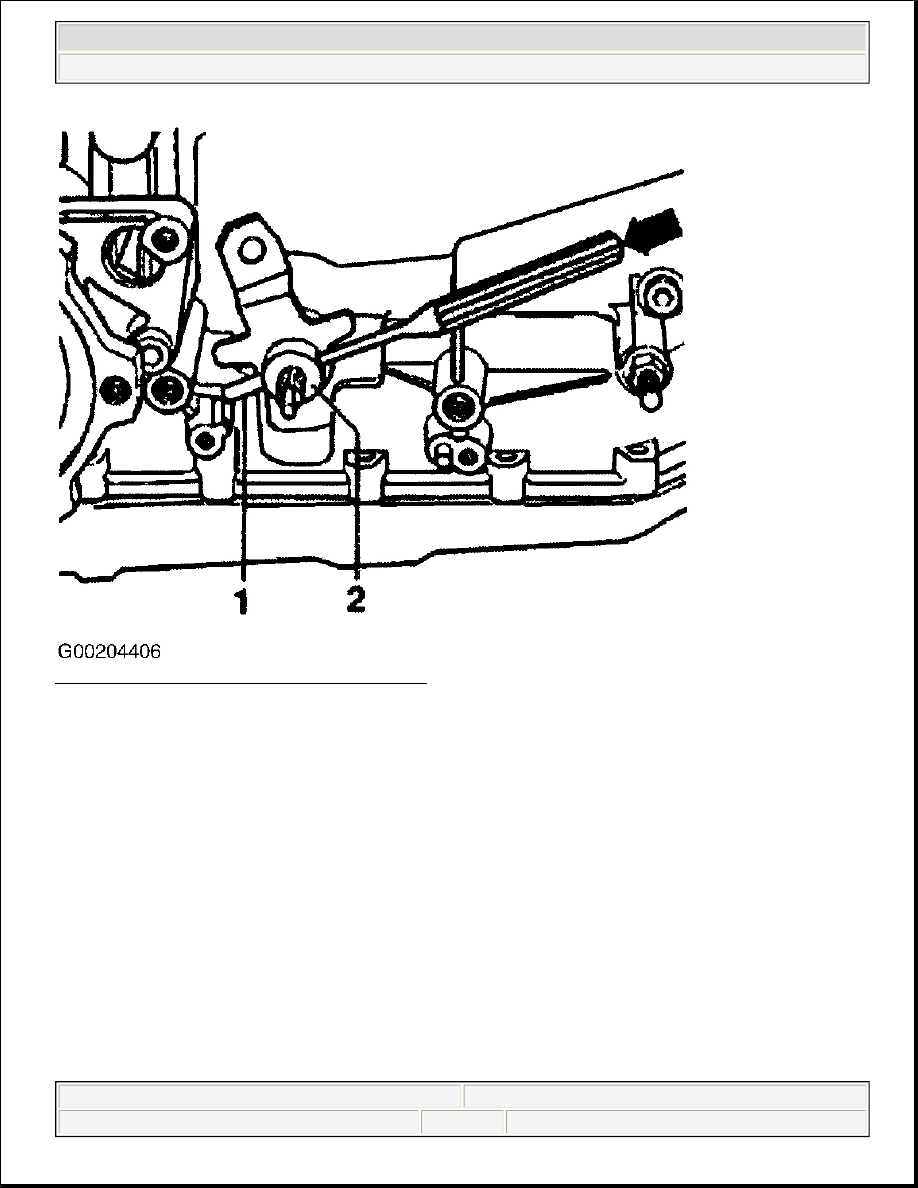

Fig. 41: Driving Out Spring Pin (01V Transaxle)
