Volkswagen New Beetle. Manual - part 2328





Fig. 49: Removing & Installing Wiring Harness (01V Transaxle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

VEHICLE SPEED SENSOR

Removal & Installation (01M Transaxle - Golf, GTI, Jetta & New Beetle)

1. Vehicle speed sensor (arrow) is located on top of the transaxle. See Fig. 50 . Sensor is covered by the left

assembly mounting. Turn ignition switch off and disconnect negative battery cable. Remove battery.
Remove air cleaner.

2.

Install Support Bar (10-222 A) with Legs (10-222 A/1) and if necessary, Adapter (10-222 A/3). Support
engine/transaxle in this position. Remove bracket for power steering pressure hose. Do not remove the
bolts for the transaxle carrier (arrows) until the transaxle has been supported. See Fig. 51 .

3. Remove pendulum support bolts (arrows) and support. See Fig. 52 . Lower transaxle about 2.36" (60

mm) (a). See Fig. 53 . Pull Black connector off sensor. Remove bolt and pull sensor (1) out. To install,
reverse removal procedure. Replace seal on sensor. Tighten transaxle carrier bolt and pendulum support
bolts to specification. See TORQUE SPECIFICATIONS

NOTE:

In the following procedures, letters and numbers in parenthesis are shown in
illustrations.

NOTE:

When battery is disconnected, vehicle computer and memory systems may lose
memory data. Driveability problems may exist until computer systems have
completed a relearn cycle.

CAUTION: Radio/cassette or radio/CD player is equipped with an anti-theft protection

circuit. Whenever battery is disconnected, radio will go into anti-theft
mode. When battery is reconnected, radio will display CODE, and will be
inoperative until proper code number is entered. Obtain security code
before disconnecting battery.

NOTE:

It may be necessary to remove hose and cable connections in area of
engine mounting eye for Support Bar (10-222 A).



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Servicing - 01M & 01V



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:59:38 AM

Page 58

© 2004 Mitchell Repair Information Company, LLC.

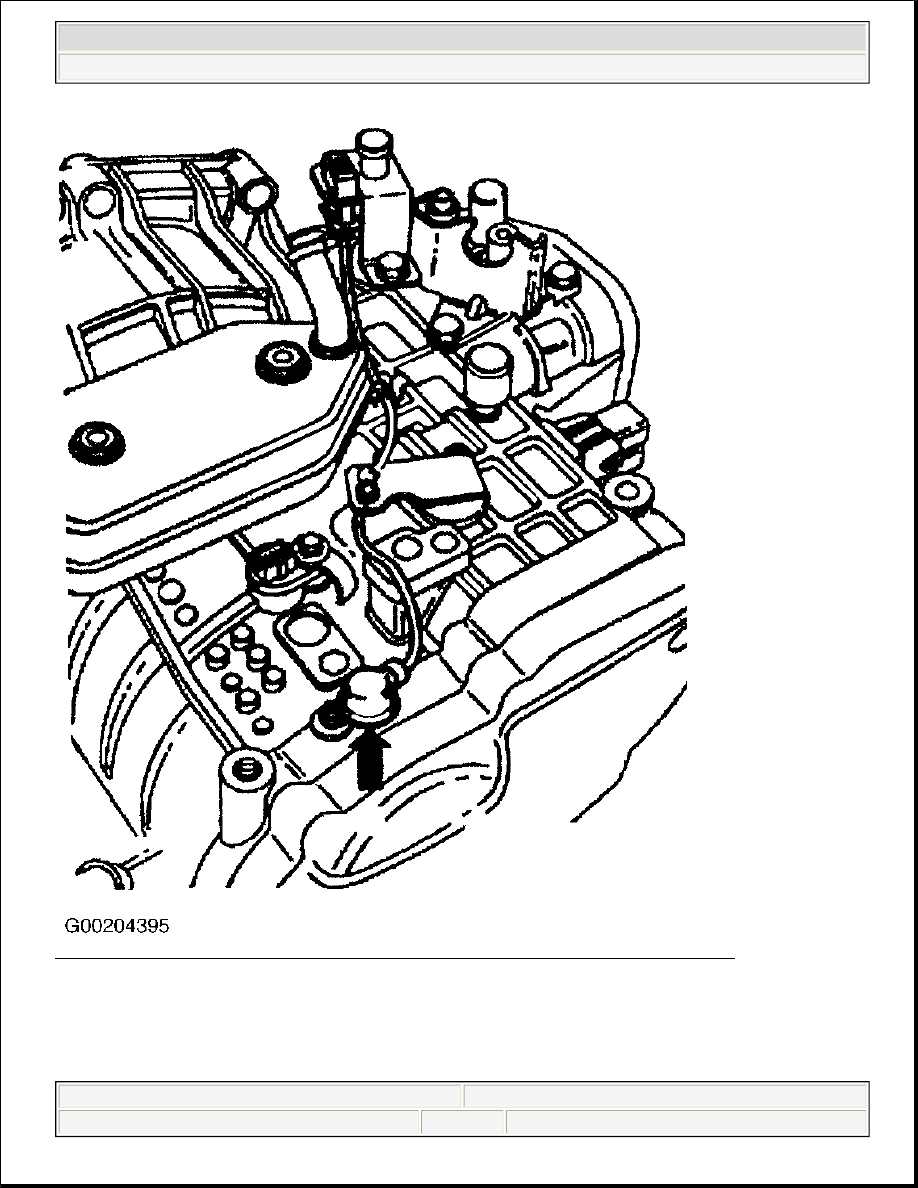

Fig. 50: Locating Vehicle Speed Sensor (01M Transaxle - Golf, GTI, Jetta & New Beetle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Servicing - 01M & 01V



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:59:38 AM

Page 59

© 2004 Mitchell Repair Information Company, LLC.

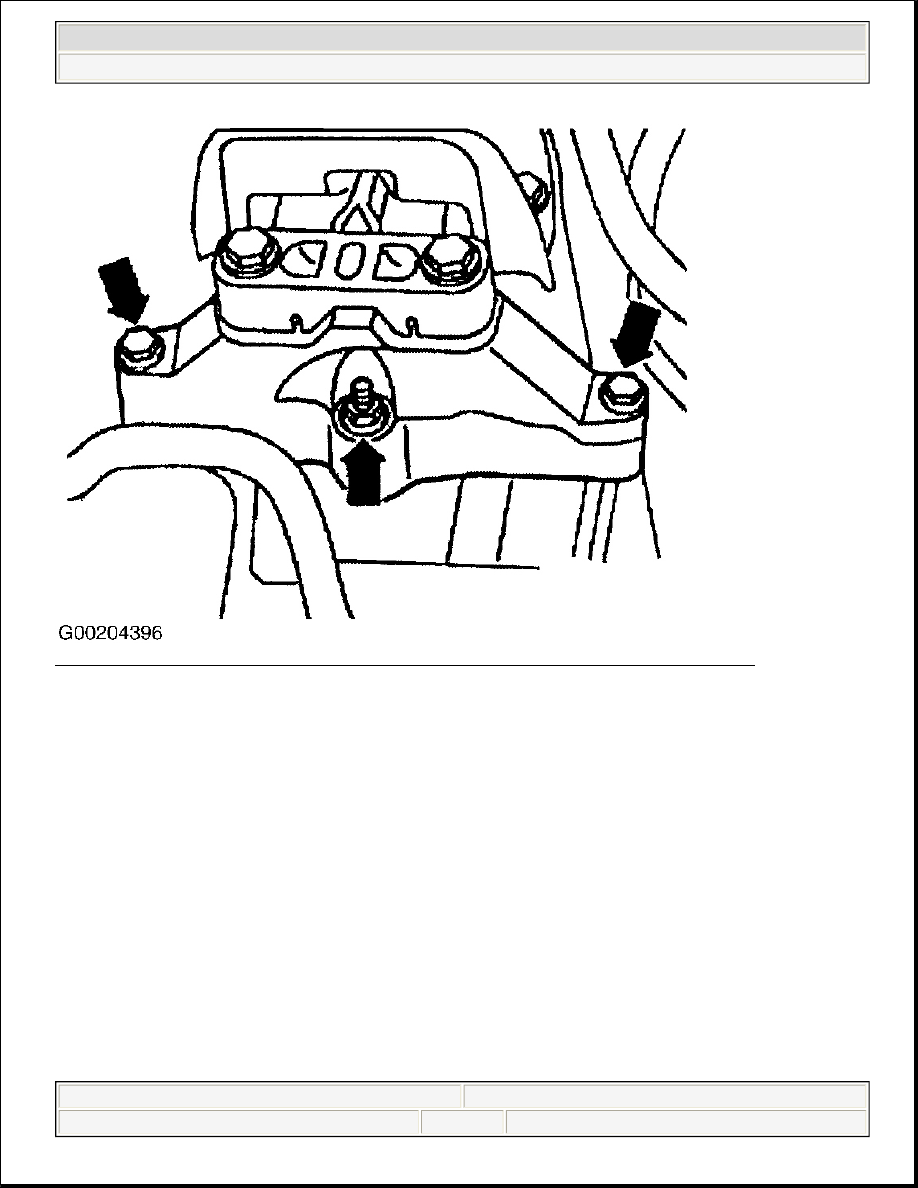

Fig. 51: Locating Transaxle Carrier Bolts (01M Transaxle - Golf, GTI, Jetta & New Beetle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Servicing - 01M & 01V



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:59:38 AM

Page 60

© 2004 Mitchell Repair Information Company, LLC.

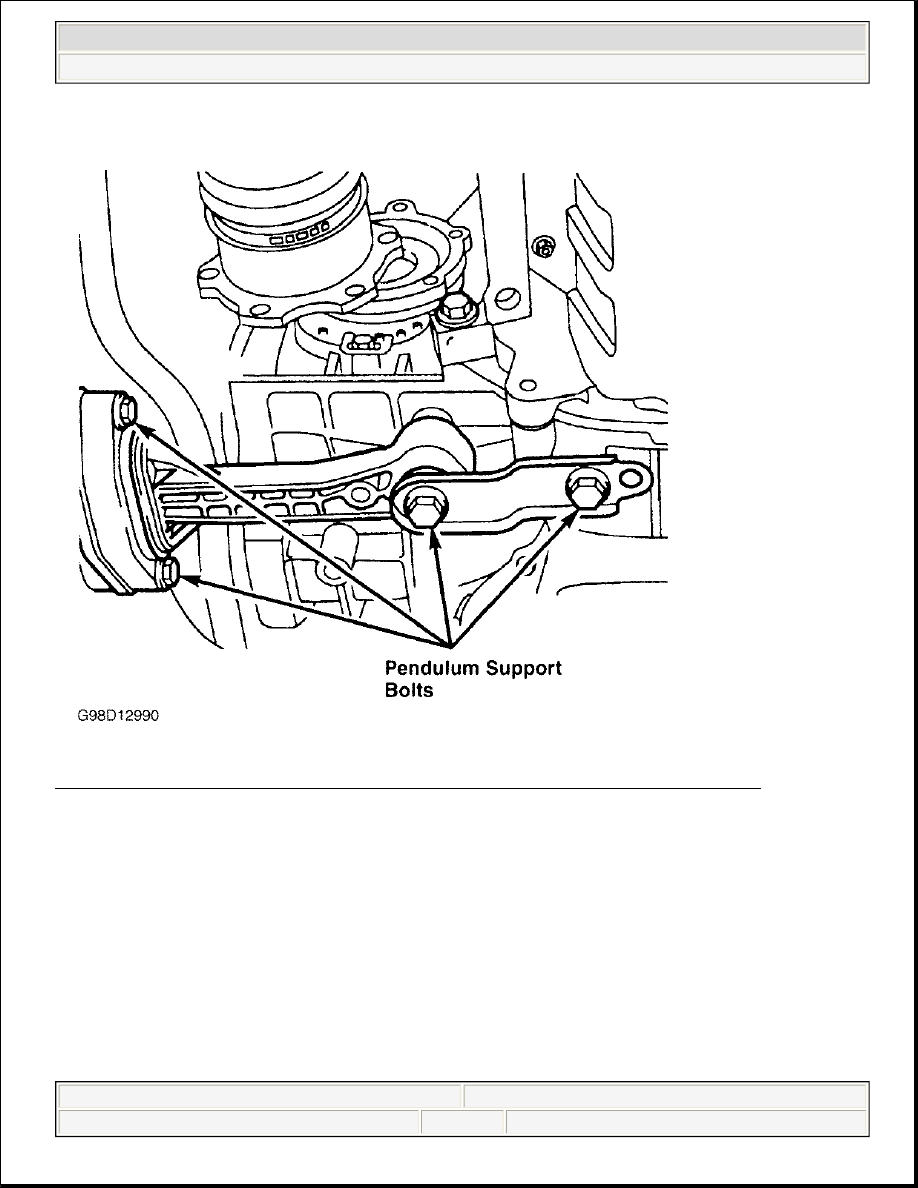

Fig. 52: Locating Pendulum Support Bolts (01M Transaxle - Golf, GTI, Jetta & New Beetle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Servicing - 01M & 01V



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:59:38 AM

Page 61

© 2004 Mitchell Repair Information Company, LLC.
