Volkswagen New Beetle. Manual - part 2317

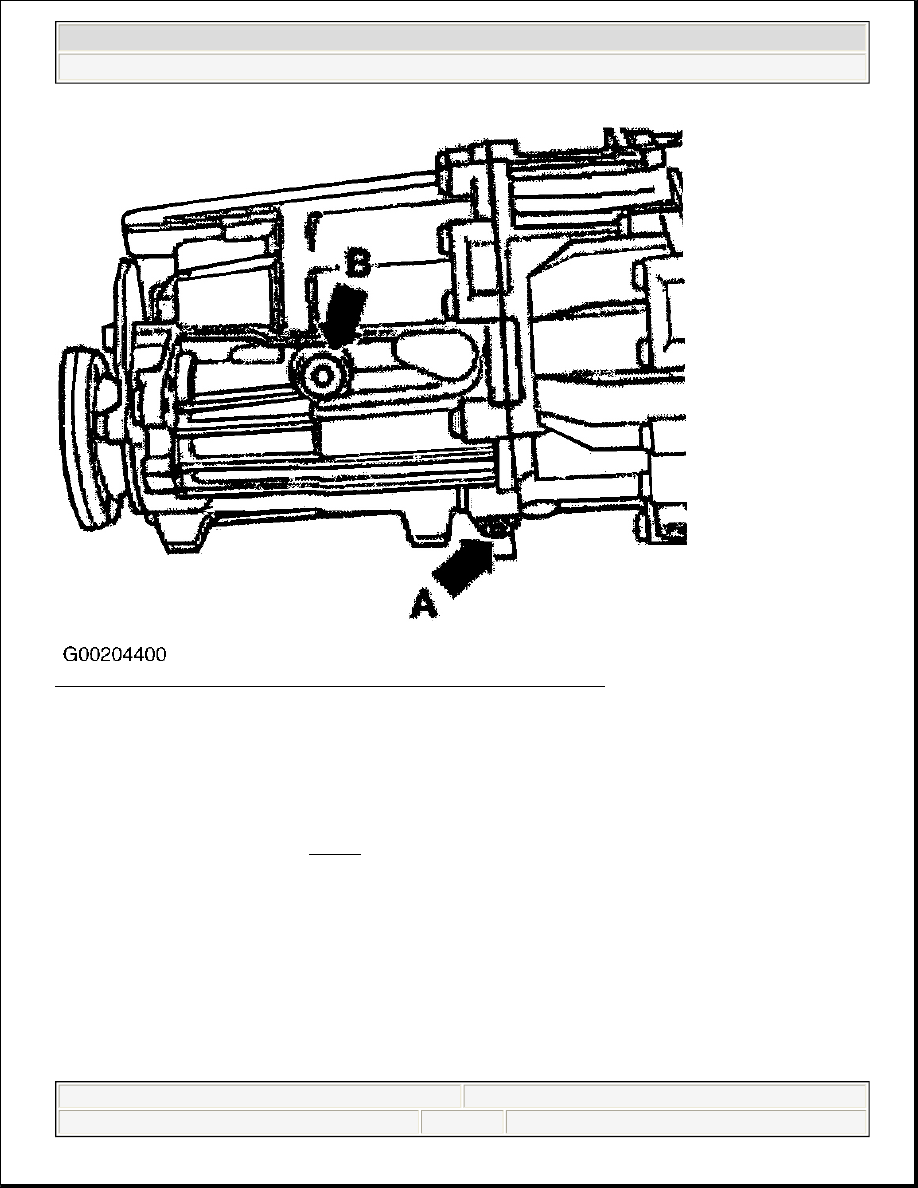

Fig. 12: Checking Center Differential Oil Level (01V Transaxle - AWD)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Rear Final Drive (01V Transaxle AWD)

Position vehicle on level surface (4-post hoist or over pit). Place drain pan under rear final drive. Remove fill
plug (arrow) to check gear oil. See Fig. 13 . Oil level is correct when the rear final drive is filled to the lower
edge of the fill hole. Install plug and tighten to 26 ft. lbs. (35 N.m).

NOTE:

Passat equipped with All Wheel Drive (AWD) is equipped with rear final drive.



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Servicing - 01M & 01V



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:59:36 AM

Page 14

© 2004 Mitchell Repair Information Company, LLC.

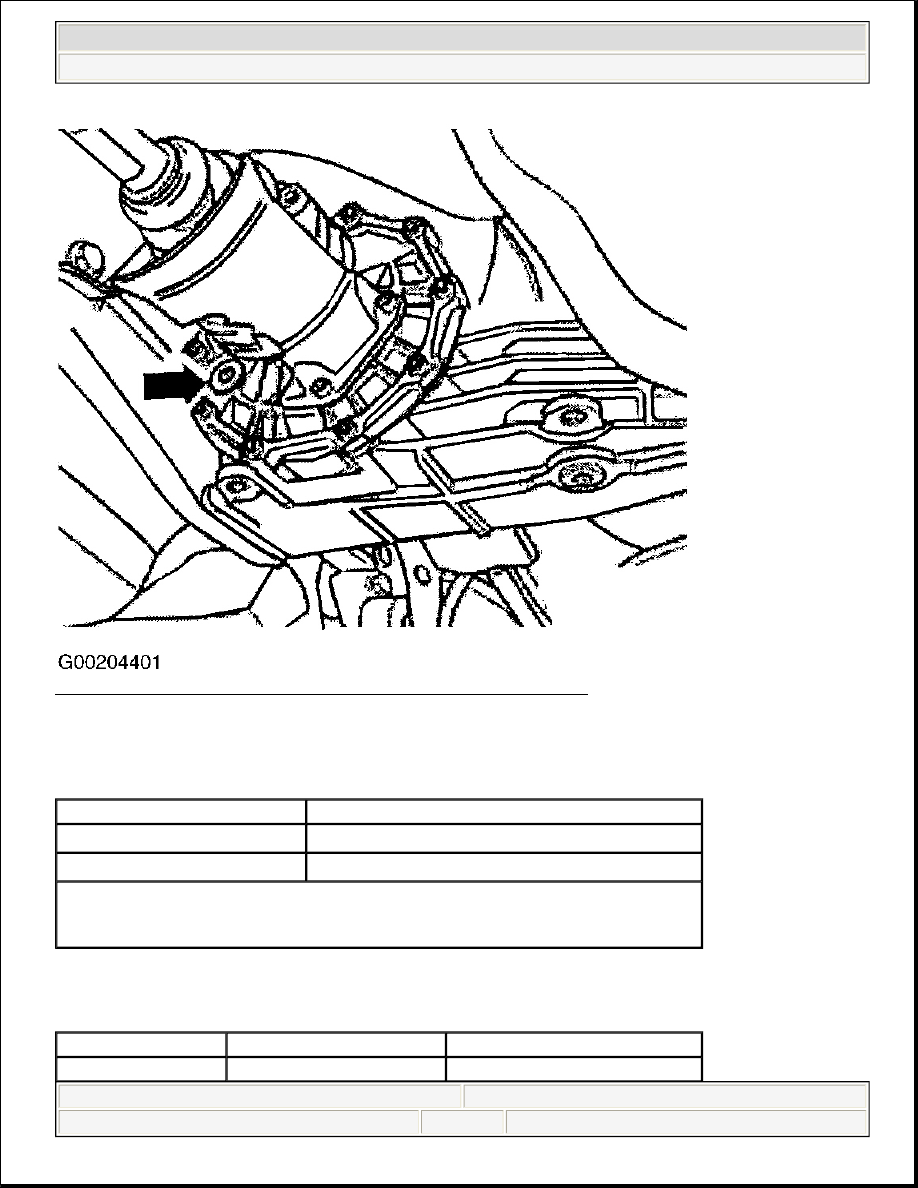

Fig. 13: Checking Rear Final Drive Oil Level (01V Transaxle - AWD)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

RECOMMENDED FLUIDS

RECOMMENDED FLUIDS

FLUID CAPACITIES

TRANSAXLE FLUID CAPACITIES

Application

Fluid Type

Transaxle (01M & 01V)

(1)

VW ATF (G 052 162 A2)

Final Drive

(2)

 G 50, SAE 75W-90 (G 052 145 S2)

(1)

Fluid is Light Yellow in color.

(2)

Synthetic oil. Includes Passat AWD front and rear final drive, and center differential.

Application

Refill - Qts. (L)

Dry-Fill - Qts. (L)

01M

3.2 (3.0)

5.6 (5.3)



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Servicing - 01M & 01V



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:59:36 AM

Page 15

© 2004 Mitchell Repair Information Company, LLC.

FINAL DRIVE & CENTER DIFFERENTIAL FLUID CAPACITIES

DRAINING & REFILLING

01M Transaxle (Cabrio)

1. Place container under transaxle. Remove ATF level plug from oil pan. See Fig. 3 . Remove overflow line

through level plug hole. Drain ATF. Install overflow line. Install ATF level plug and hand tighten.

2. Add correct amount of appropriate ATF through filler line. See RECOMMENDED FLUIDS and

FLUID CAPACITIES . Start engine and shift through all selector lever positions with vehicle
stationary. Check fluid level. See CHECKING FLUID LEVELS . Add ATF as necessary. Tighten ATF
level plug to 11 ft. lbs. (15 N.m).

01M Transaxle (Golf, GTI, New Beetle & Passat)

1. Remove sound insulation tray. Remove sound insulation from left longitudinal member. Place container

under transaxle. Remove ATF level plug from oil pan. See Fig. 3 . Remove overflow line through plug
hole. Drain ATF. Install overflow line. Install ATF level plug and hand tighten.

2. Add correct amount of appropriate ATF through filler pipe. See RECOMMENDED FLUIDS and

FLUID CAPACITIES . Start engine and shift through all selector lever positions with vehicle
stationary. Check fluid level. See CHECKING FLUID LEVELS . Add ATF as necessary. Tighten ATF
level plug to 11 ft. lbs. (15 N.m).

01V Transaxle

1. Ensure all electrical components are switched off. Ensure transaxle ATF temperature is not above about

86°F (30°C). Park vehicle on level surface. Set selector lever to Park. Apply parking brake. Remove noise
insulation tray. See Fig. 25 . Connect ATF reservoir from VAG 1924 filling system to vehicle. Raise and
support vehicle. On vehicles equipped with auxiliary heater, remove exhaust pipe bolts at noise
insulation. On all vehicles, place drain pan under transaxle. Remove drain plug (1). See Fig. 14 . Drain
ATF. Install NEW seal on drain plug. Install drain plug and tighten to 30 ft. lbs. (40 N.m).

2. Remove ATF inspection plug (2). See Fig. 14 . Using ATF Filling System (VAG 1924), carefully insert

fill hose through an opening in deflector cap. See Fig. 15 . Ensure deflector cap is not pushed upward out
of position. Fill until ATF runs out of inspection hole.

3. Shift selector lever into "P" position. Start engine. Press and hold brake pedal. Shift through all selector

01V

2.7 (2.6)

9.5 (9.0)

Application

Qts. (L)

Final Drive (All Models)

(1)

.8 (.75)

Center Differential (Passat AWD)

.9 (.80)

Rear Final Drive (Passat AWD)

1.6 (1.5)

(1)

Includes Passat AWD front final drive.

NOTE:

In the following procedures, numbers in parenthesis are shown in illustrations.



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Servicing - 01M & 01V



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:59:36 AM

Page 16

© 2004 Mitchell Repair Information Company, LLC.

lever positions with vehicle stationary, leaving selector lever in each position for about 10 seconds, and
ending in "P" position. Check fluid level and add ATF as necessary. Replace seal on ATF inspection
plug. Tighten inspection plug to 59 ft. lbs. (80 N.m).

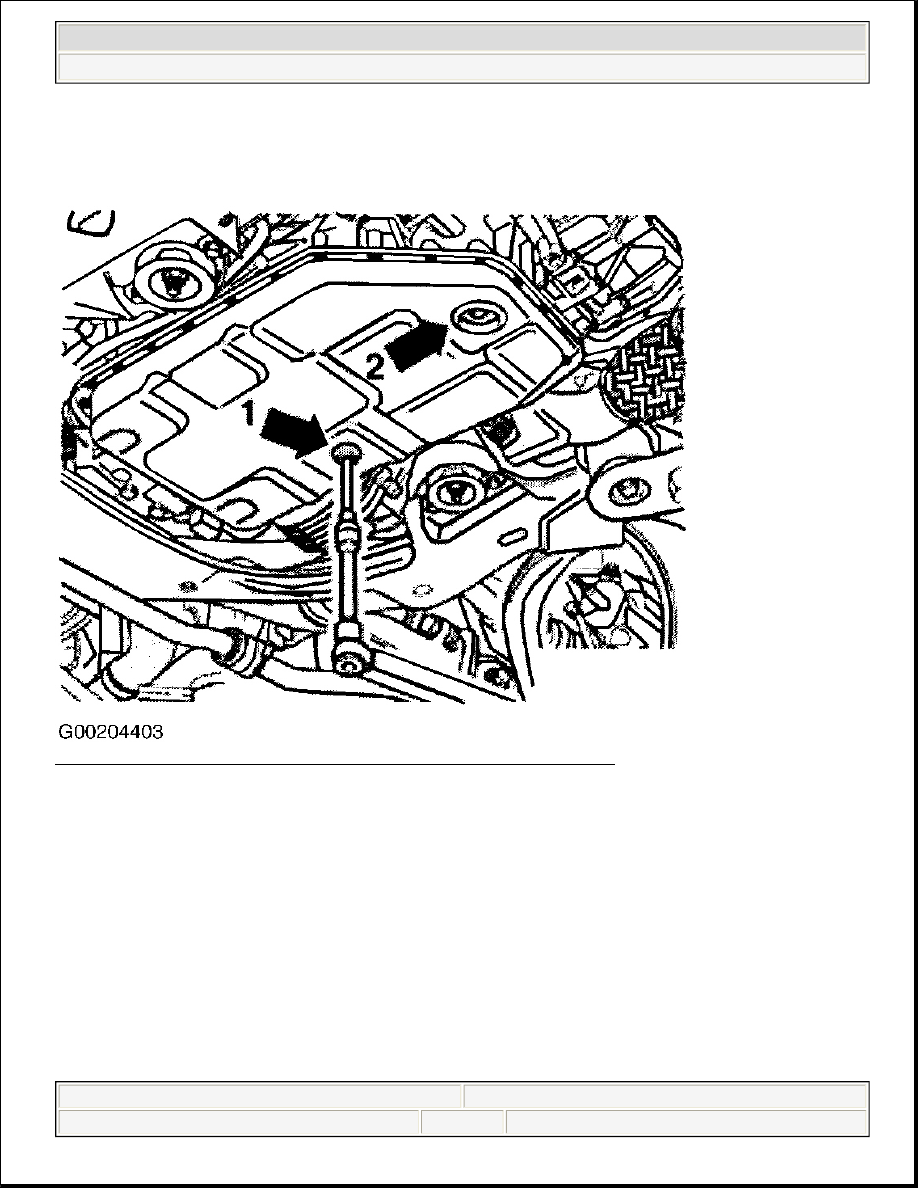

Fig. 14: Removing & Installing Drain & Inspection Plug (01V Transaxle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Servicing - 01M & 01V



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:59:36 AM

Page 17

© 2004 Mitchell Repair Information Company, LLC.
