Volkswagen New Beetle. Manual - part 2315

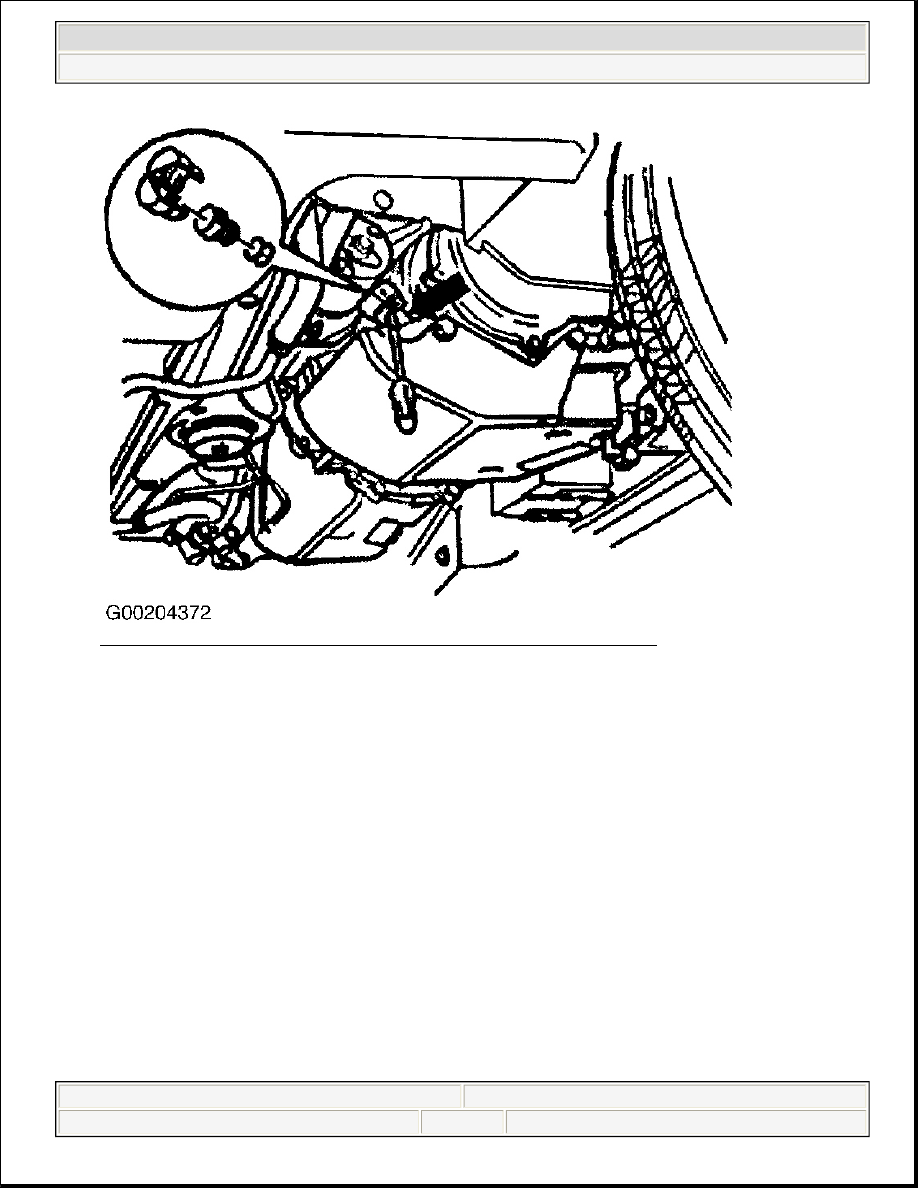

Fig. 5: Removing Plug Protective Cap From Filler Line (01M Transaxle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Servicing - 01M & 01V



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:59:35 AM

Page 6

© 2004 Mitchell Repair Information Company, LLC.

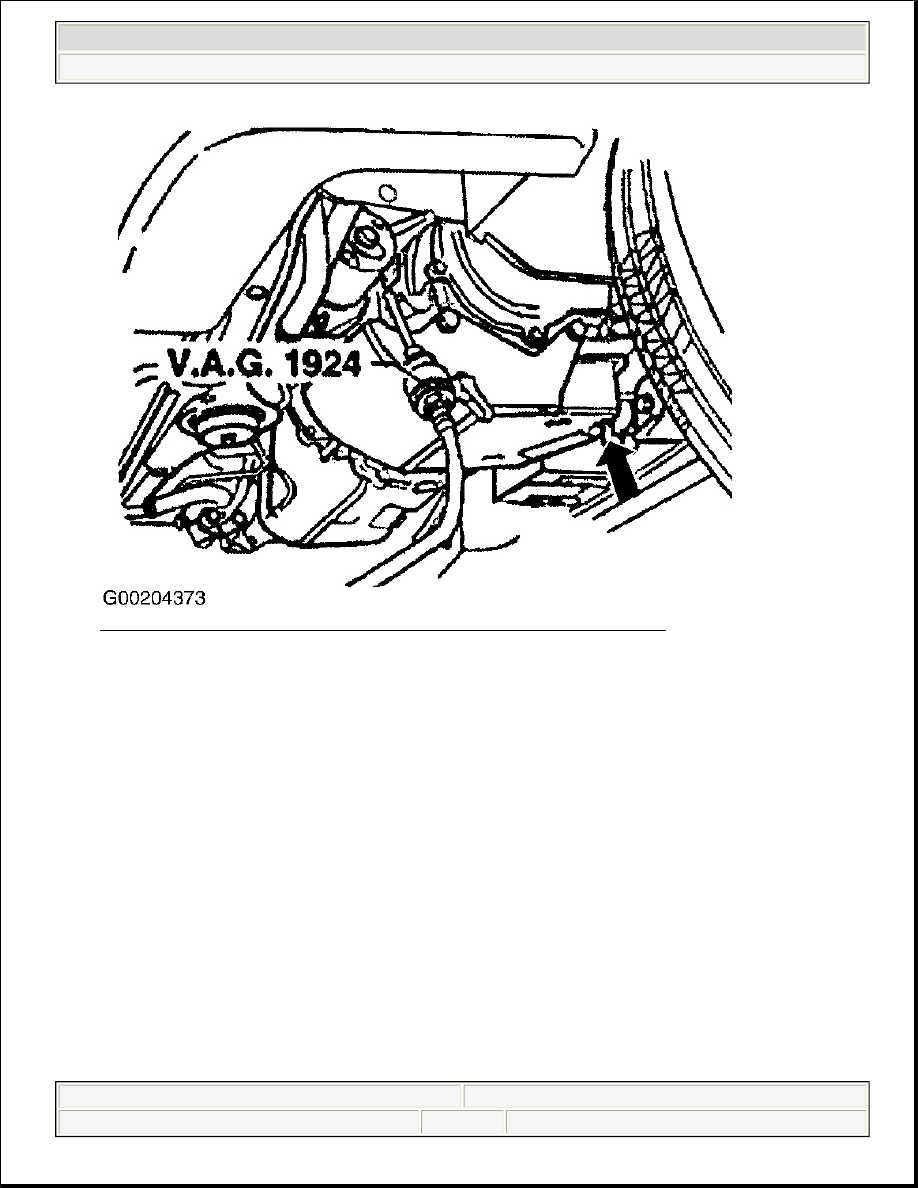

Fig. 6: Filling Transaxle Using VAG 1924 Filling System (01M Transaxle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Servicing - 01M & 01V



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:59:36 AM

Page 7

© 2004 Mitchell Repair Information Company, LLC.

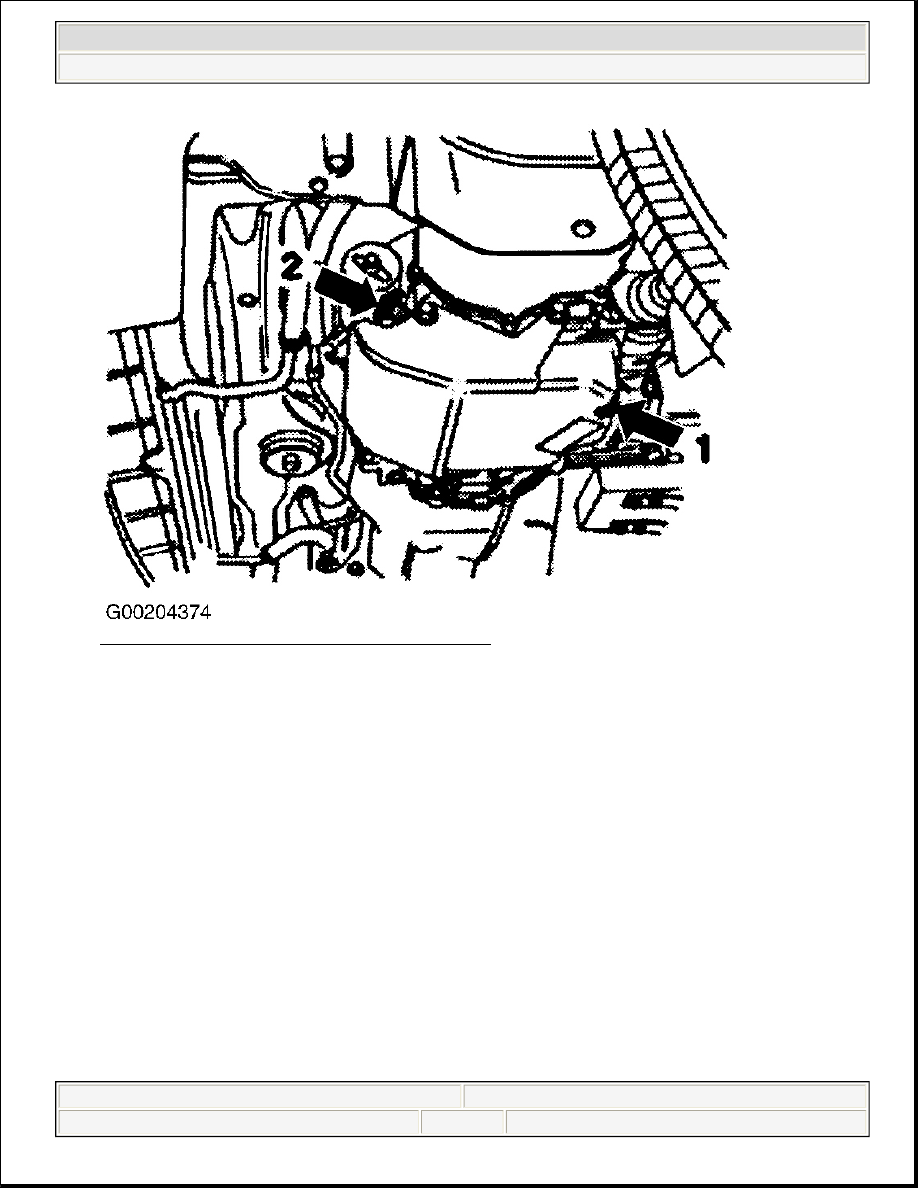

Fig. 7: Installing New Seal & Cap (01M Transaxle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

01M Transaxle (Golf, GTI, Jetta & New Beetle)

1. Prior to checking ATF level, ensure transaxle ATF temperature is not above about 86°F (30°C). Park

vehicle on level surface. Set selector lever to Park. Remove sound insulation tray. Remove sound
insulation from left longitudinal member. Apply parking brake. Connect ATF reservoir from VAG 1924
filling system to vehicle.

2. Remove Data Link Connector (DLC) cover located below stereo. Connect Scan Tool VAG 1551 with

Diagnosis Cable (1551/3A) to DLC. Scan tool will display "VAG ON BOARD DIAGNOSTIC HELP"
along with "1- Rapid data transfer" and "2- Blink code output". These outputs will appear alternately.
Start engine. Press key 1 for "Rapid data transfer" mode. Press keys 0 and 2 to select address word
"Transmission electronics".

NOTE:

When ATF level is checked, the seal on the level plug must always be replaced.
VAG Scan Tool (1551) and Diagnosis Cable (1551/3A) are required to check ATF
level. Scan tool is used to measure ATF temperature. Follow aftermarket scan
tool manufacturer instructions (if applicable) to check ATF temperature.

NOTE:

In the following procedures, numbers in parenthesis are shown in illustrations.



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Servicing - 01M & 01V



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:59:36 AM

Page 8

© 2004 Mitchell Repair Information Company, LLC.

3. Confirm entry with "Q" key. Press keys 0 and 8 to select function "Read measured value block". Confirm

with "Q" key. Press keys 0, 0 and 5 to select display group number. Confirm with "Q" key. First display
indicates ATF temperature. Allow temperature to reach 95-113°F (35-45°C).

4. Raise and support vehicle. Place container under transaxle. Remove ATF level plug (arrow) from oil pan.

See Fig. 3 . A small amount of ATF should drip from overflow line (2) with engine running. See Fig. 4 .
If ATF drips out of hole, ATF does not need to be topped off. Install NEW seal (1) on ATF level plug and
tighten to 11 ft. lbs. (15 N.m). Turn engine off. ATF check is complete. Plug (3) and cap (4) remain
closed. See Fig. 4 .

5. If ATF needs to be topped off, remove plug protective cap (arrow) using a screwdriver. See Fig. 5 .

Always replace cap, as cap will be damaged during removal. Remove plug from filler line.

6.

Using ATF Filling System (VAG 1924), add ATF until fluid runs out of level plug hole (arrow). See Fig.
6
 . Install NEW seal (1) to level plug and tighten to 11 ft. lbs. (15 N.m). See Fig. 7 . Install sealing plug
on filler pipe and secure with a NEW cap (2). See Fig. 7 . Lock cap in place. The cap secures the sealing
plug.

01V Transaxle

1. Ensure all electrical components are switched off. Ensure transaxle ATF temperature is not above about

86°F (30°C). Park vehicle on level surface. Set selector lever to Park. Apply parking brake. Remove noise
insulation tray. See Fig. 25 . Connect ATF reservoir from VAG 1924 filling system to vehicle.

2. Connect Scan Tool VAS 5051 to Data Link Connector (DLC), located under left side of instrument panel.

Turn ignition on. Select mode of operation. Press button on touch screen for "Vehicle self-diagnosis".
Select vehicle system. Select "02 - transmission electronics". Interact with system to confirm control
module number of system selected. Select diagnostic function. At this point, all diagnostic functions are
available.

3. Select "08 - read measured value blocks" on touch screen. Select display group 4 via "Read Measured

value block" and "Change display group number". The upper display zone shows ATF temperature.
Ensure transaxle ATF temperature is not above about 86°F (30°C). Start engine. On models with V8
engine, go to step 6 . On all other models, go to next step.

4. Raise and support vehicle. Place drain pan under transaxle. Allow temperature to reach 95-113°F (35-45°

C). Remove ATF inspection plug from oil pan. See Fig. 8 . A small amount of ATF should drip from
inspection hole with engine running. If level is okay, install NEW seal on inspection plug and tighten to

NOTE:

An insufficient amount of ATF, as well as filling ATF to excess, affects the
function of the transaxle.

NOTE:

VAS Scan Tool (5051) is required to check ATF level. Scan tool is used to
measure ATF temperature. Follow aftermarket scan tool manufacturer
instructions (if applicable) to check ATF temperature.

NOTE:

Models equipped with V8 engine use a secondary ATF cooler. An additional test
procedure is required for this vehicle when checking fluid level. Test procedure
is performed in step 6 .



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Servicing - 01M & 01V



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:59:36 AM

Page 9

© 2004 Mitchell Repair Information Company, LLC.
