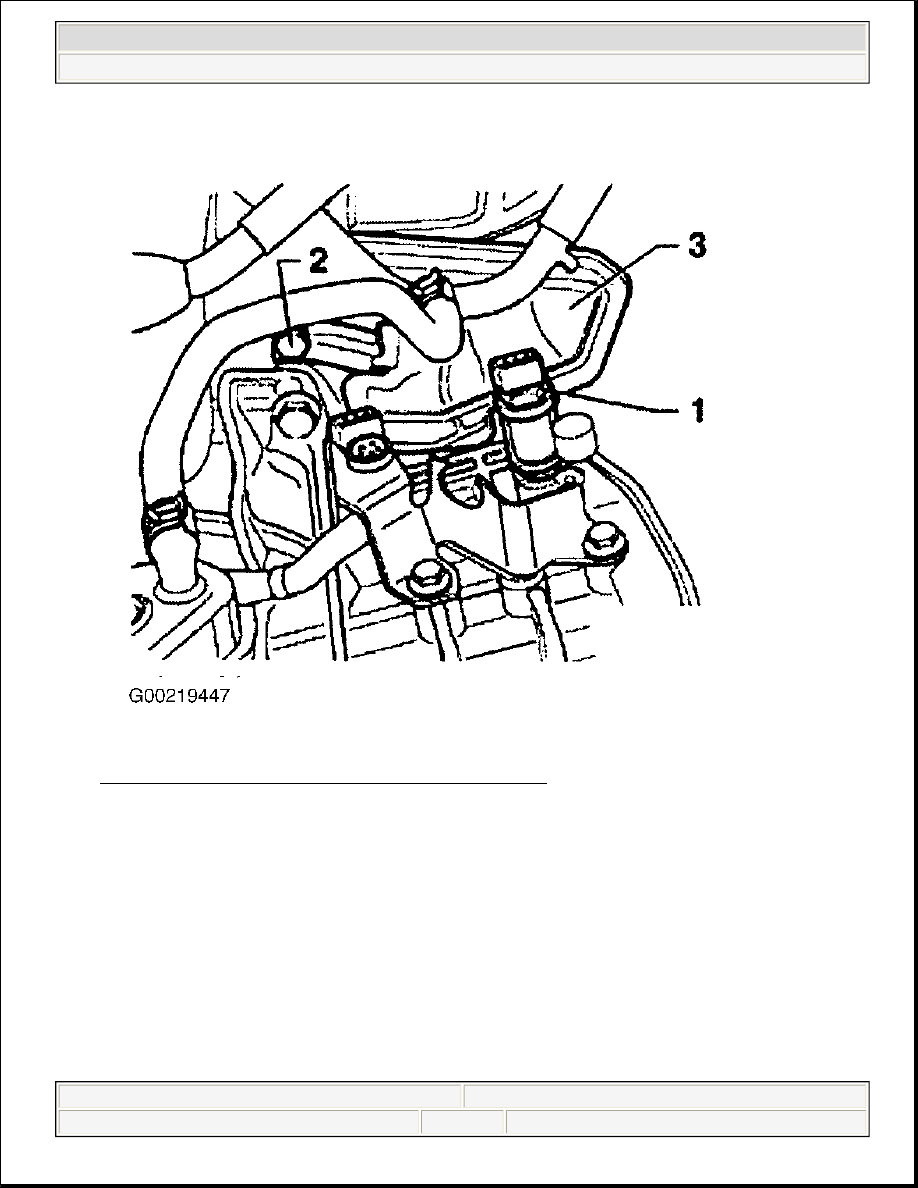

Fig. 31: Unscrewing Sensor, Removing Bolt & Heat Shield
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Removal & Installation - 01M



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:58:18 AM

Page 36

© 2004 Mitchell Repair Information Company, LLC.

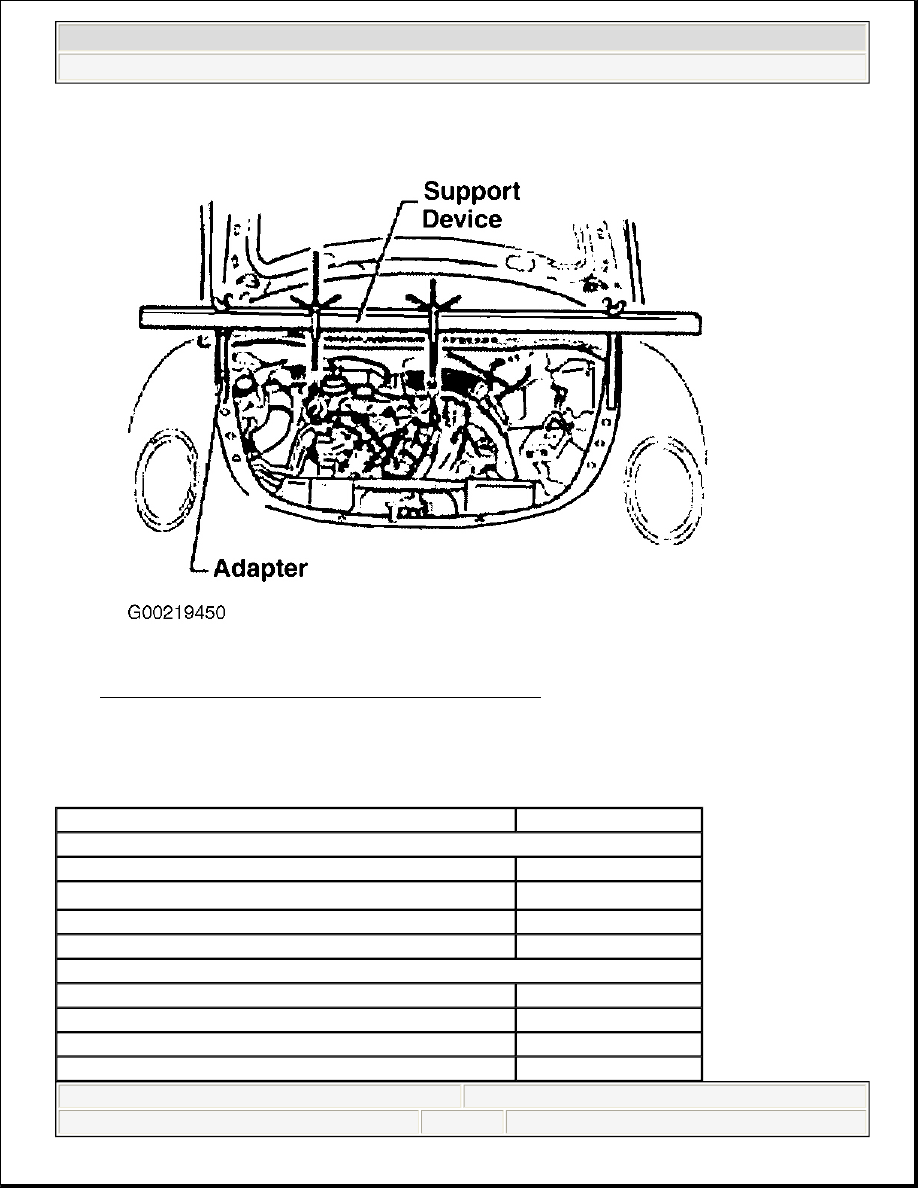

Fig. 32: Installing Support Device & Adapters To Vehicle
Courtesy of VOLKSWAGEN UNITED STATES, INC.

TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

Application

Ft. Lbs. (N.m)

Ball Joint-To-Control Arm Bolt

Cabrio

26 (35)

Except Cabrio

(1)

15 (20)

Coupling Rod-To-Control Arm Bolt

33 (45)

Drive Axle Protective Cap-To-Engine Bolt

24 (33)

Drive Axle-To-Flange Bolt

Cabrio

37 (45)

Except Cabrio

30 (40)

Exhaust Pipe Flange Nut

30 (40)

Front Mount-To-Assembly Bolt (Cabrio)

44 (60)



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Removal & Installation - 01M



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:58:18 AM

Page 37

© 2004 Mitchell Repair Information Company, LLC.

Left Assembly Mounting Bolt

(1)

 ,

(2)

2 Upper Bolts

44 (60)

3 Lower Bolts

30 (40)

Left Mount-To-Assembly Bolt (Cabrio)

44 (60)

Left Mount-To-Transaxle Bolt (Cabrio)

18 (25)

Pendulum Support Bolt

(1)

 ,

(3)

Small Bolts

15 (20)

Large Bolts

30 (40)

Selector Lever Cable Bolt (Cabrio)

18 (25)

Starter Bolt

Cabrio & New Beetle

44 (60)

Except Cabrio & New Beetle

48 (65)

Torque Converter-To-Drive Plate Nut

44 (60)

Transaxle-To-Engine Bolt

Except New Beetle

M 10 Bolt

44 (60)

M 12 Bolt

59 (80)

New Beetle

59 (80)

Transaxle-To-Engine Oil Pan Bolt

30 (40)

Wheel Bolt

89 (120)

INCH Lbs. (N.m)

Cover Plate-To-Transaxle Bolt (Cabrio)

133 (15)

Selector Lever Cable Bolt (Except Cabrio)

71 (8)

(1)

Tighten bolts to specification, then an additional 90 degrees.

(2)

For bolt locations, see Fig. 24 and Fig. 25 .

(3)

For bolt locations, see Fig. 21 .



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Removal & Installation - 01M



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:58:18 AM

Page 38

© 2004 Mitchell Repair Information Company, LLC.

2001-04 AUTOMATIC TRANSMISSIONS

Servicing - 01M & 01V

APPLICATION

TRANSAXLE APPLICATION

IDENTIFICATION

OIL PAN GASKET

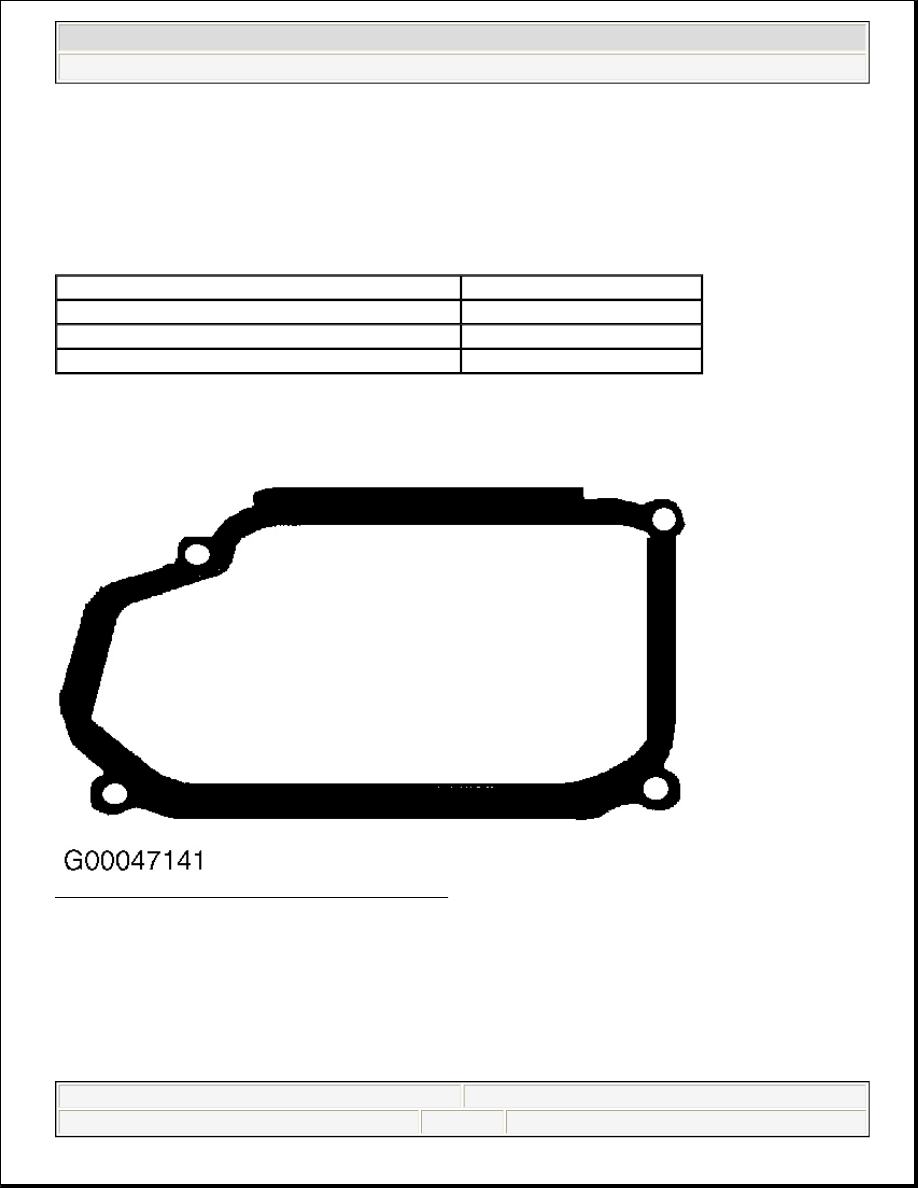

Fig. 1: Identifying Oil Pan Gasket (01M Transaxle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Application

Transaxle Model

Cabrio (2001-02)

01M 4-Speed

Golf, GTI, Jetta & New Beetle

01M 4-Speed

Passat

01V 5-Speed



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Servicing - 01M & 01V
