Volkswagen New Beetle. Manual - part 2316





59 ft. lbs. (80 N.m). Turn engine off.

5. If additional fluid is required, using ATF Filling System (VAG 1924), carefully insert fill hose through an

opening in the deflector cap. See Fig. 15 . Ensure deflector cap is not pushed upward out of position. Fill
until ATF runs out of inspection hole. Use VW ATF fluid only. DO NOT use any lubricant additives.
Install NEW seal on inspection plug and tighten to 59 ft. lbs. (80 N.m). Turn engine off.

6. On models with V8 engine, let engine run until ATF temperature reaches at least 185°F (85°C). It may be

necessary to test drive vehicle to increase ATF temperature. The thermostat at inlet to secondary ATF
cooler does not open until temperature reaches 176°F (80°C). ATF will then flow into cooler. Ensure
ATF is at test temperature. Turn engine off and let ATF cool down until temperature is less than 95°F
(35°C). Check ATF level and add fluid as needed as described in steps 4 and 5 .

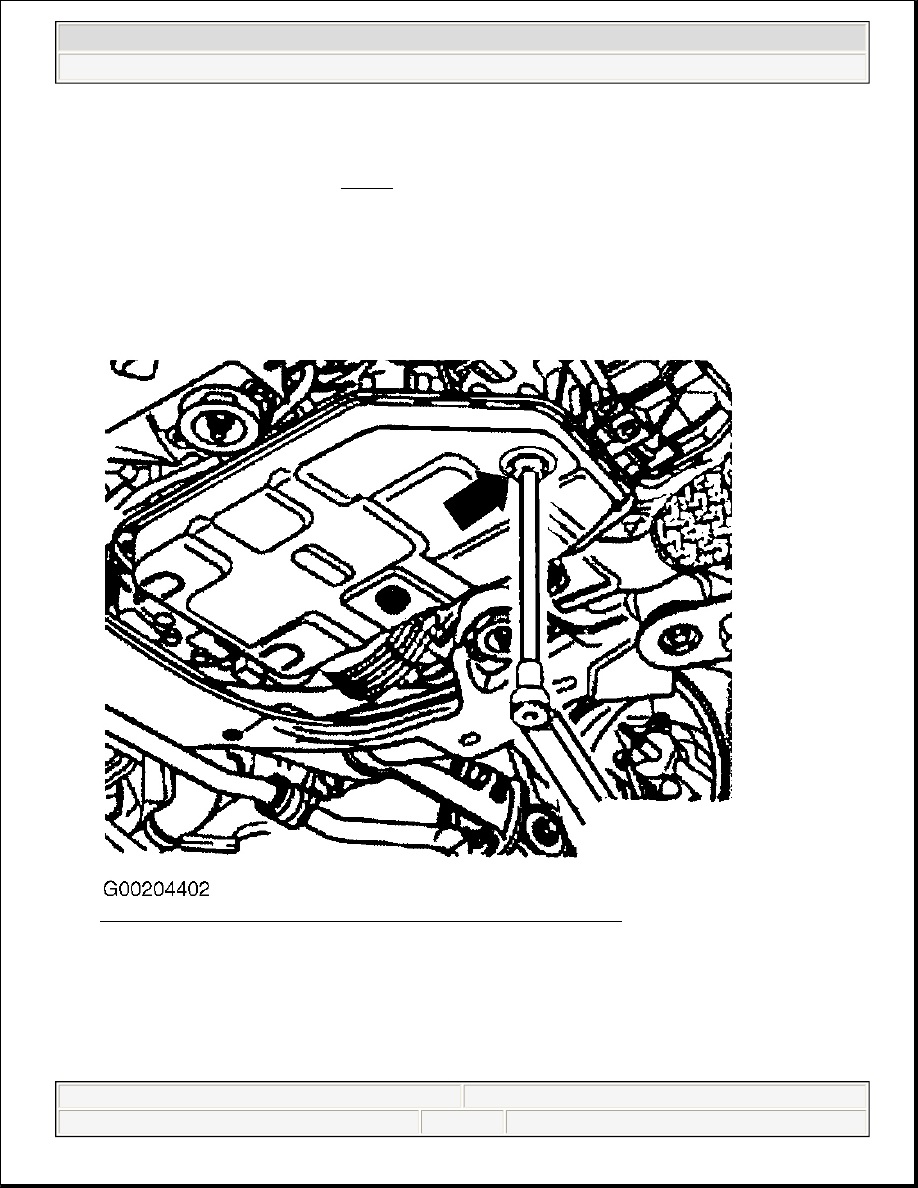

Fig. 8: Removing & Installing ATF Inspection Plug (01V Transaxle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Final Drive (01M Transaxle)

NOTE:

Final Drive oil is checked with transmission installed.

NOTE:

Excess oil can be drawn off using oil extraction system (V.A.G. 1358 A) or



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Servicing - 01M & 01V



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:59:36 AM

Page 10

© 2004 Mitchell Repair Information Company, LLC.

Park vehicle on level surface. Remove speedometer drive. Wipe clean and reinstall. Remove speedometer drive
and check oil level. Oil must be between MIN and MAX markings. See Fig. 9 . Add appropriate fluid as
required. See RECOMMENDED FLUIDS .

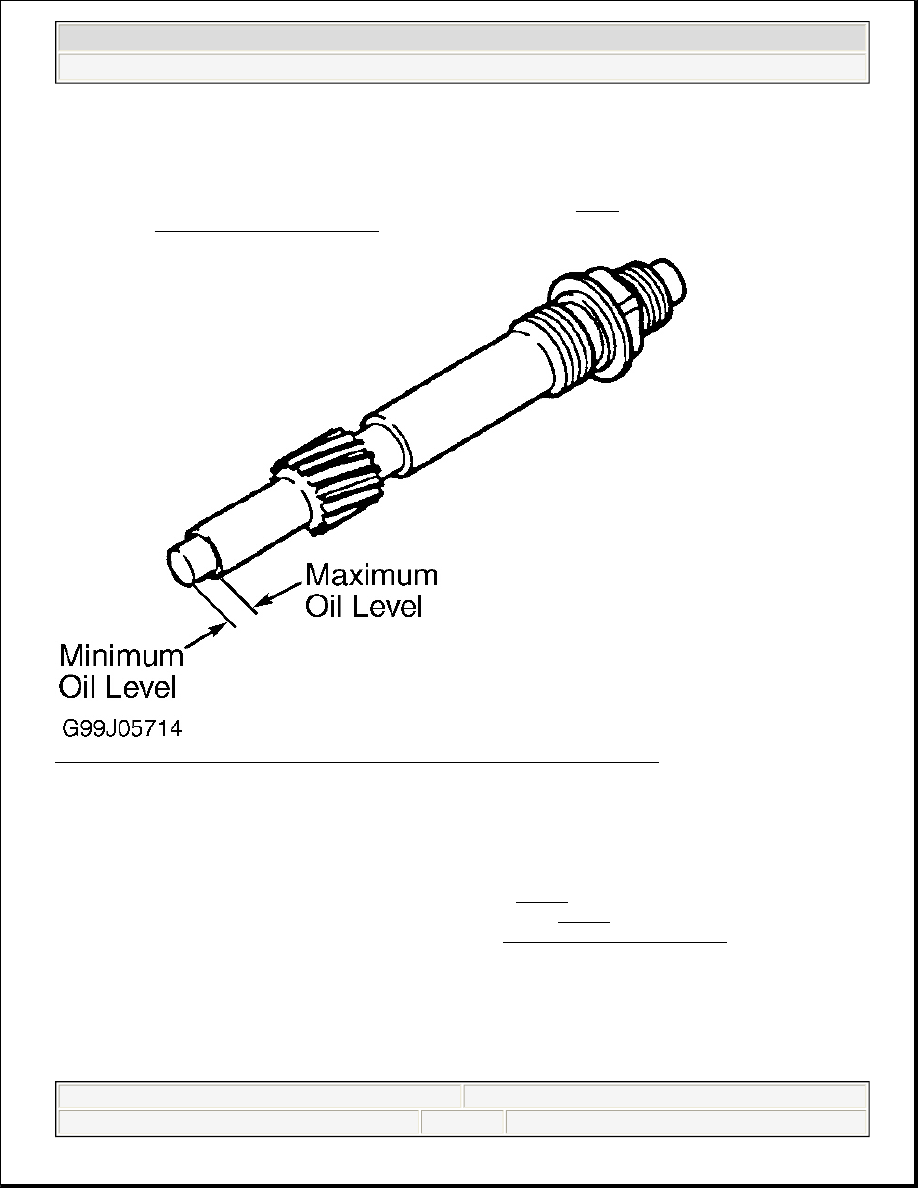

Fig. 9: Minimum & Maximum Marks On Speedometer Drive (01M Transaxle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Front Final Drive (01V Transaxle FWD)

1. Drive vehicle a short distance to warm up gear oil. Position vehicle on level surface (4-post hoist or over

pit). Turn engine off and let gear oil drain for 5 minutes. On vehicles equipped with TDI engine, remove
right drive axle noise insulation from wheel housing. See Fig. 10 . On all vehicles, place drain pan under
final drive. Remove fill plug (arrow) on side of final drive. See Fig. 11 . Gear oil level should be at lower
edge of fill hole. Add appropriate fluid as required. See RECOMMENDED FLUIDS . Install fill plug
and tighten to 22 ft. lbs. (30 N.m).

similar.



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Servicing - 01M & 01V



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:59:36 AM

Page 11

© 2004 Mitchell Repair Information Company, LLC.

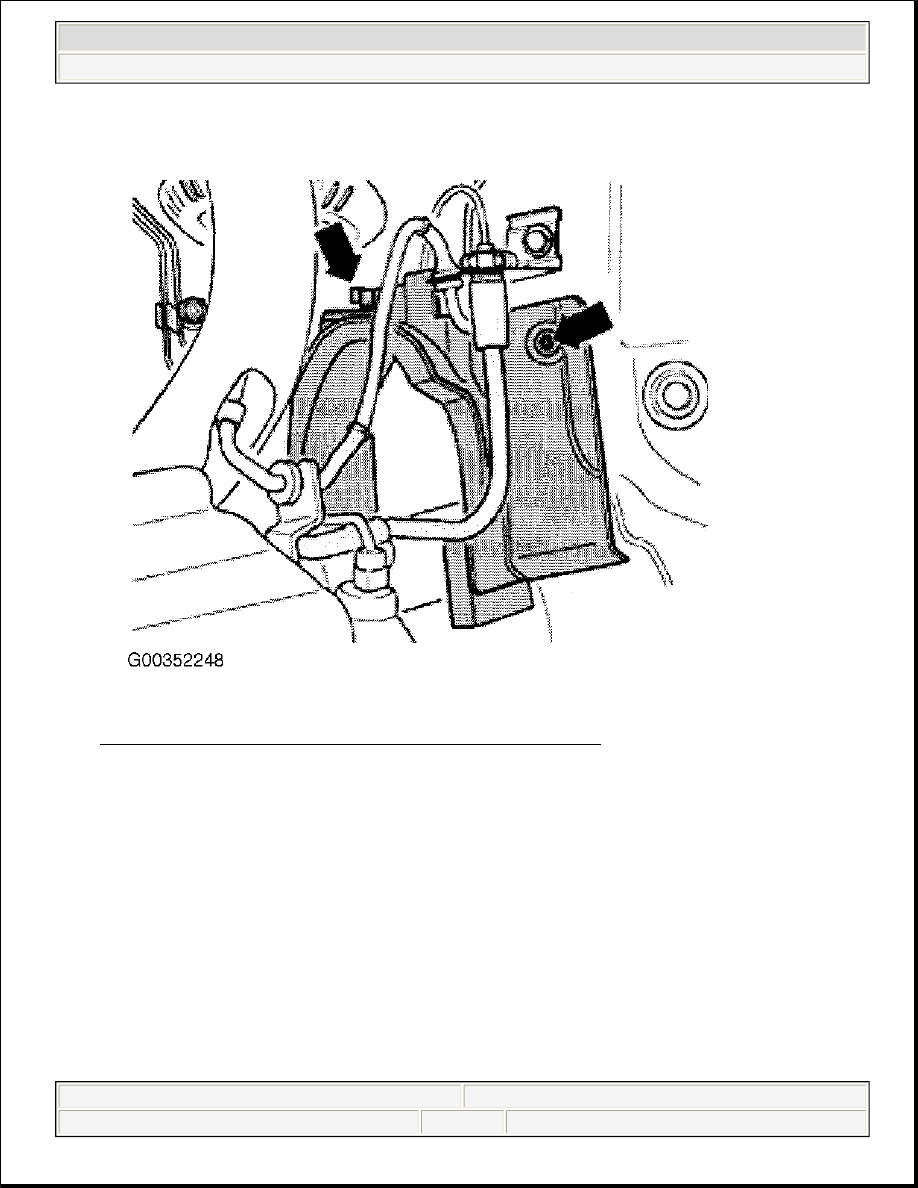

Fig. 10: Removing & Installing Right Drive Axle Noise Insulation
Courtesy of VOLKSWAGEN UNITED STATES, INC.

2. If gear oil needs to be replenished following final drive repair, fill front final drive slowly and evenly over

a period of at least 5 minutes until gear oil drips out over lower edge of fill hole. A filling time of at least
5 minutes is necessary to allow gear oil time to settle evenly in differential and cavities. On vehicles
equipped with TDI engine, install right drive axle noise insulation on wheel housing.



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Servicing - 01M & 01V



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:59:36 AM

Page 12

© 2004 Mitchell Repair Information Company, LLC.

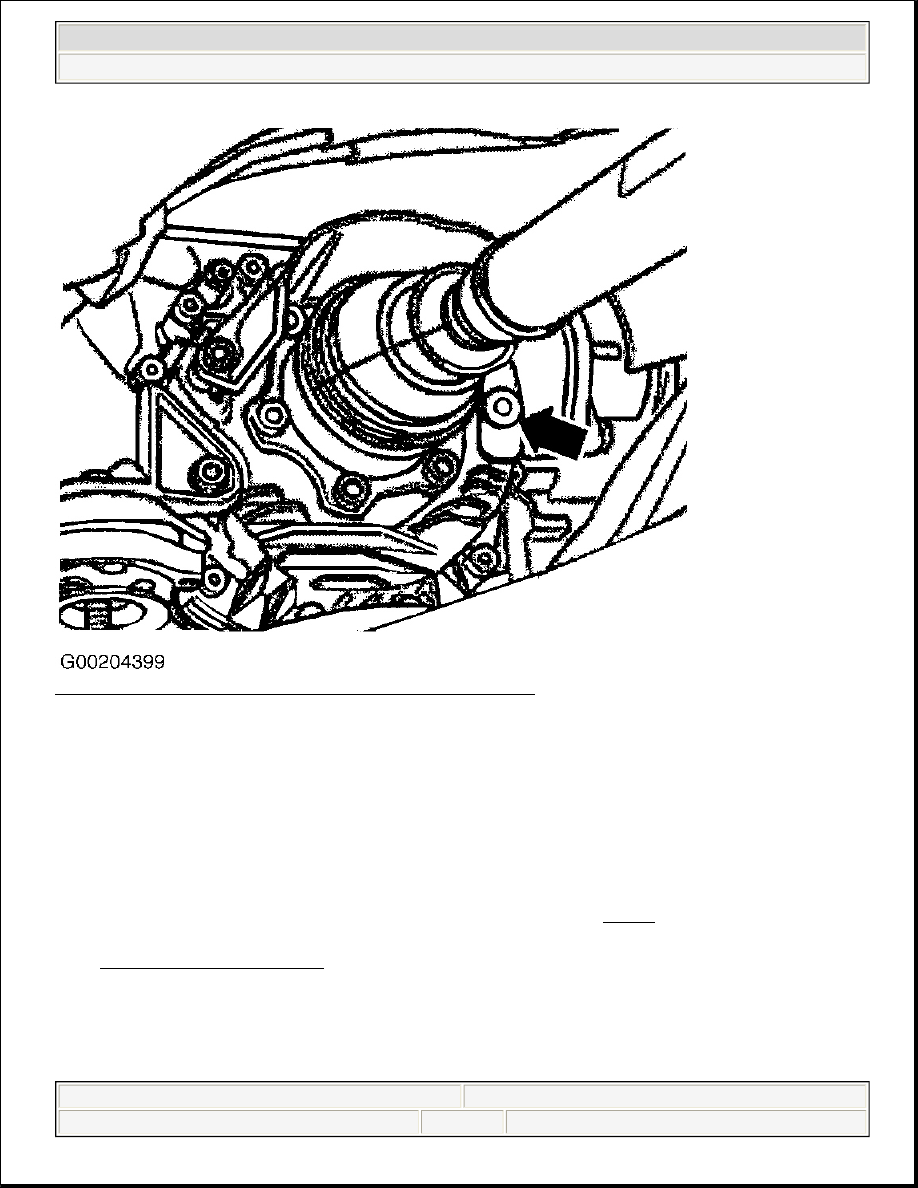

Fig. 11: Checking Front Final Drive Oil Level (01V Transaxle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Center Differential (01V Transaxle AWD)

1. Position vehicle on level surface (4-post hoist or over pit). On all vehicles except vehicles equipped with

TDI engine, separate right exhaust pipe from rear exhaust system at front double clamp. Push front
exhaust pipe in area of catalytic converter to right side of vehicle. On all vehicles, place drain pan under
center differential. Remove fill plug (B) and check gear oil level. See Fig. 12 .

2. Gear oil level should be at lower edge of fill hole. Add appropriate fluid as required. See

RECOMMENDED FLUIDS . Install fill plug and tighten to 26 ft. lbs. (35 N.m).

NOTE:

Passat equipped with All Wheel Drive (AWD) is equipped with center
differential.



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Servicing - 01M & 01V



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:59:36 AM

Page 13

© 2004 Mitchell Repair Information Company, LLC.
