Volkswagen New Beetle. Manual - part 2318





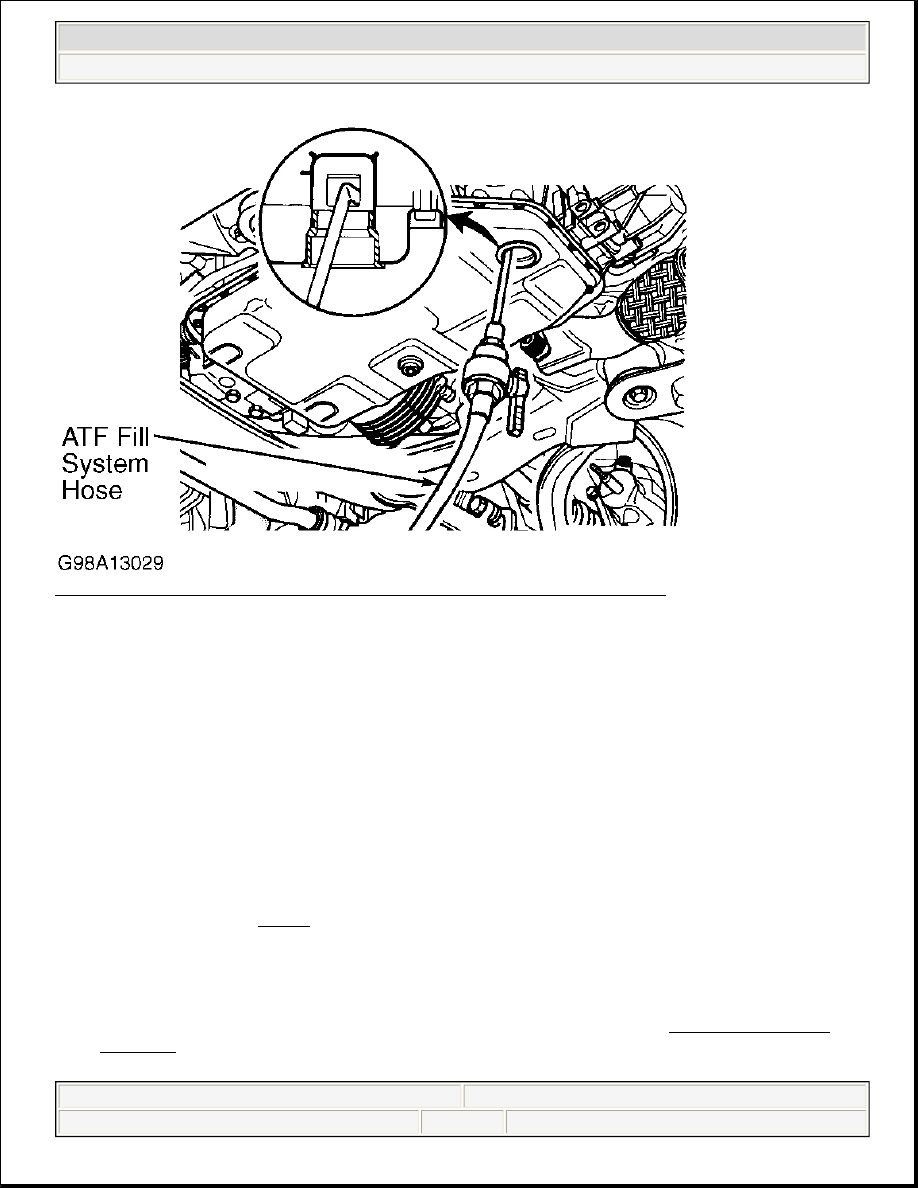

Fig. 15: Filling Transaxle Using ATF Filling System VAG 1924 (01V Transaxle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

ATF LINES & ATF COOLER FLUSHING

01V Transaxle

1. If there is debris in the ATF, blow through the ATF cooler and ATF lines with compressed air before

installing transaxle. Release bracket for rigid ATF lines on transaxle.

2. Remove bolt (2). See Fig. 16 . Pull ATF lines off transaxle. Connect a hose to ATF pipe (A) and secure

with a hose clamp. Hang other end of hose in a suitable container. Clear ATF line (B) with compressed
air. Change hose from ATF pipe (A) over to ATF pipe (B) and repeat sequence.

3. Prior to installing ATF lines to transaxle, replace "O" rings (1). Moisten "O" rings with ATF. Insert ATF

lines completely by hand onto stop in transaxle. Do not tighten bolt until ATF lines are completely
inserted. Tighten bolt to 15 ft. lbs. (20 N.m). Check and top up ATF level. See CHECKING FLUID
LEVELS
. When checking ATF level, check ATF line connections (A) and (B) for leaks.

CAUTION: Wear appropriate protective glasses.

NOTE:

In the following procedures, letters and numbers in parenthesis are shown in
illustrations.



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Servicing - 01M & 01V



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:59:36 AM

Page 18

© 2004 Mitchell Repair Information Company, LLC.

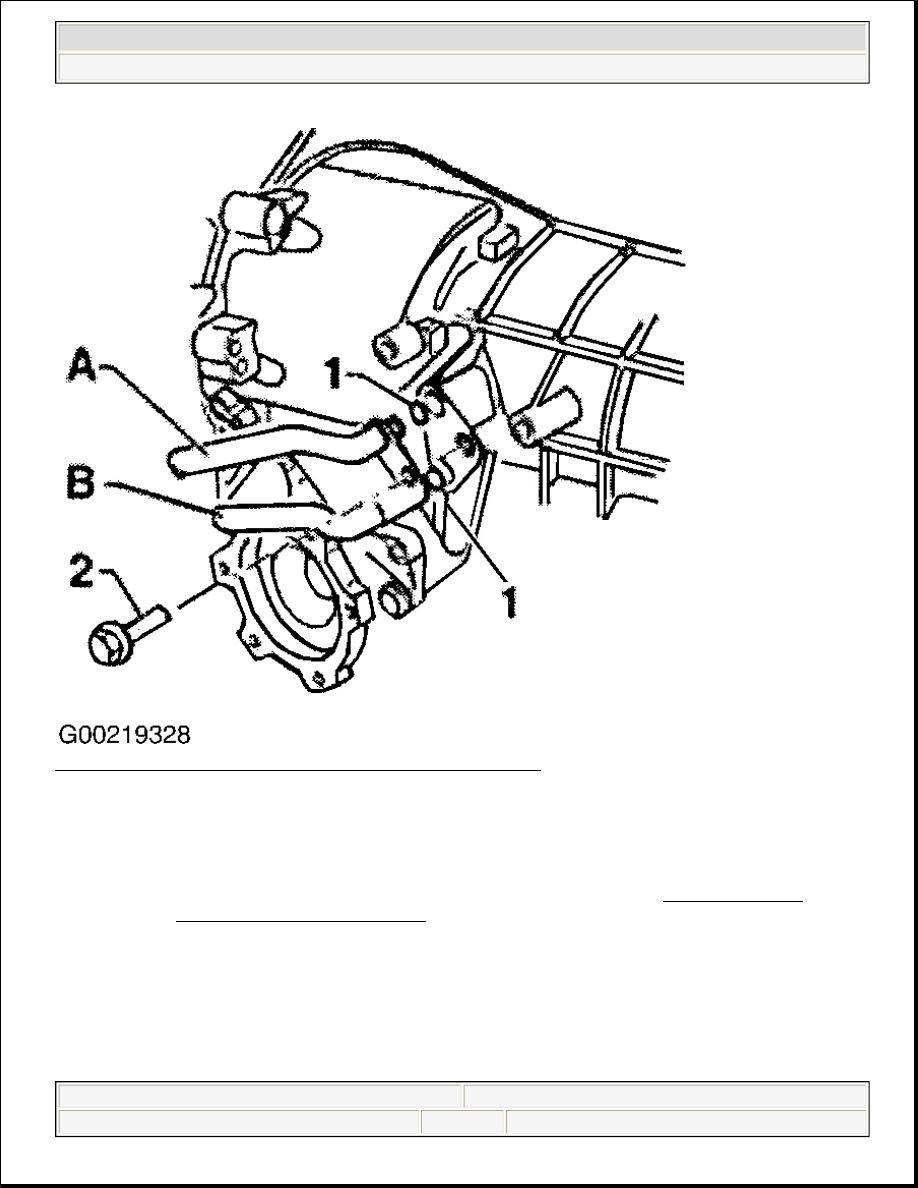

Fig. 16: Removing ATF Lines From Transaxle (01V Transaxle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

ON-VEHICLE REPAIRS

ADJUSTMENTS

LOCKING CABLE

01M Transaxle (Cabrio)

NOTE:

Various components may be serviced without transaxle removal. For servicing
of these components, see appropriate component under ADJUSTMENTS and/or
REMOVAL & INSTALLATION .



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Servicing - 01M & 01V



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:59:36 AM

Page 19

© 2004 Mitchell Repair Information Company, LLC.

1. Shift selector lever to "1" position. Turn ignition switch to starting position and release. Adjust clearance

to .028" (.70 mm) between lever (1) and locking pin (2) by sliding locking cable casing. See Fig. 18 .
Tighten locking cable anchor screw in this position to 53 INCH lbs. (6 N.m).

2. Shift selector lever into "P" position and turn ignition switch to end (LOCK) position. Remove ignition

key. Ensure ignition key cannot be removed in any other selector lever position. Ensure selector lever
cannot be shifted out of "P" position without ignition key in LOCK position.

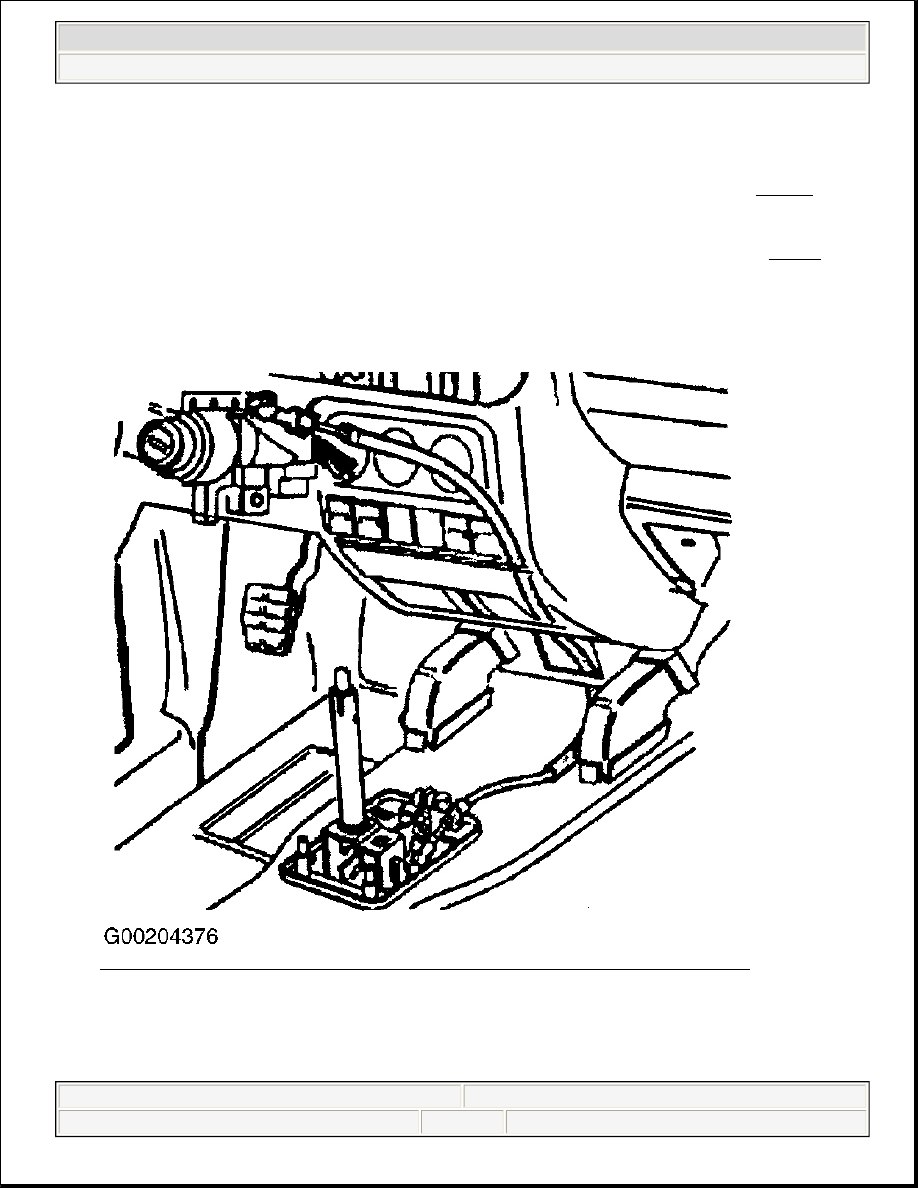

Fig. 17: Identifying Installation Position Of Locking Cable (01M Transaxle - Cabrio)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

NOTE:

In the following procedures, numbers in parenthesis are shown in illustrations.

NOTE:

Locking cable must always be adjusted in installation position. See Fig. 17 .



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Servicing - 01M & 01V



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:59:36 AM

Page 20

© 2004 Mitchell Repair Information Company, LLC.

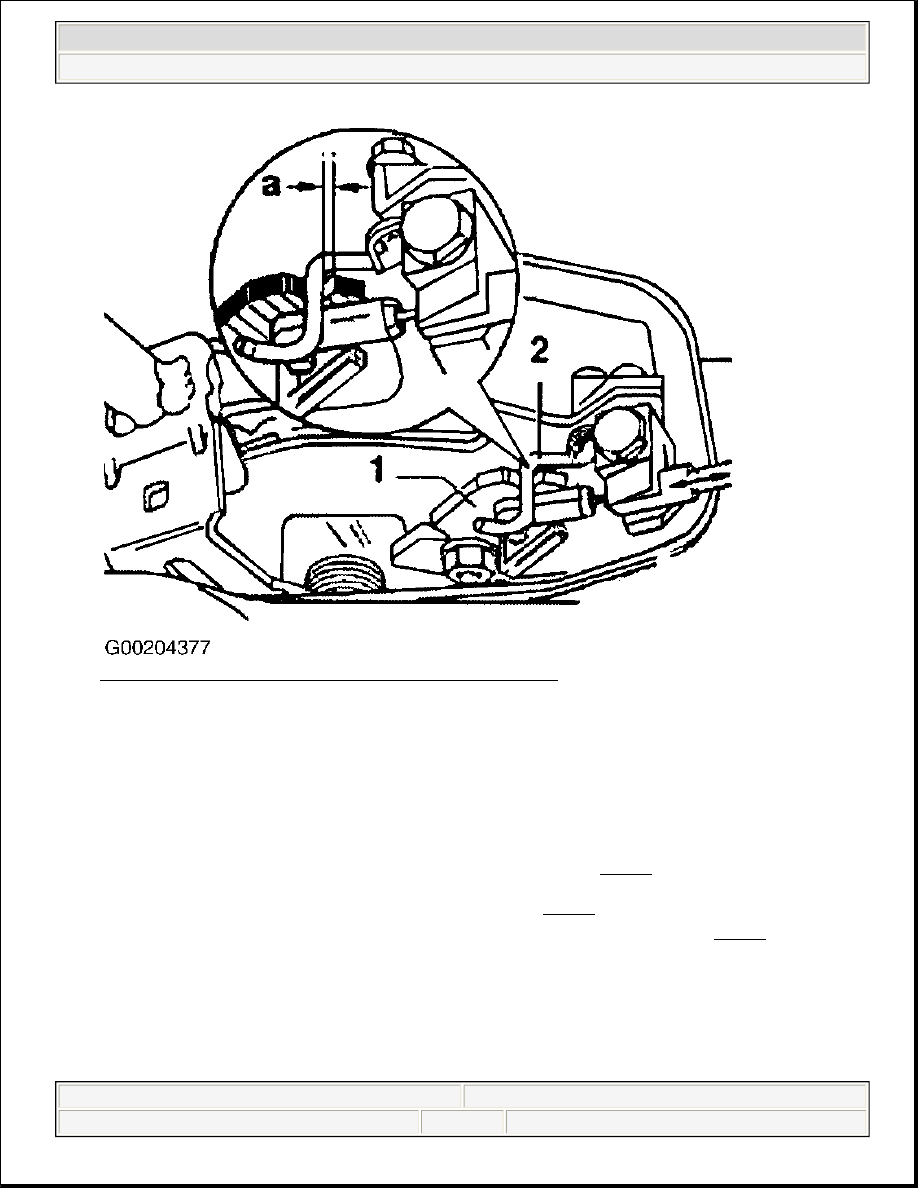

Fig. 18: Adjusting Locking Cable (01M Transaxle - Cabrio)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

01M Transaxle (Golf, GTI, Jetta & New Beetle)

1. Ensure cable is routed correctly. Remove center console. Ensure selector lever is in "P" position. Remove

ignition key.

2. Slide sliding sleeve forward. Unlatch release clip by pushing up. See Fig. 19 . Pull connector off (4).

Remove sleeve (5) upward. Release selector lever housing cover at 4 retaining tabs (6) by hand and lift
off. Carefully pry off 4 corners of frame (7) and remove. See Fig. 20 .

3. Slide .03" (0.8 mm) feeler gauge between locking lever and selector lever roller. See Fig. 21 . Pull outer

sleeve of locking cable slightly toward front of vehicle (1) and push Red clip down until it engages (2).
Push sliding sleeve over clip. Ensure selector lever cannot be moved from "P" position with key removed
from ignition.

NOTE:

In the following procedures, numbers in parenthesis are shown in illustration.



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Servicing - 01M & 01V



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:59:36 AM

Page 21

© 2004 Mitchell Repair Information Company, LLC.
