When subsequently installing the transmission the following points must be observed:

When tightening the bolts on the engine/transmission flange, check often that the torque converter still moves
behind the drive plate.

If the torque converter does not turn, one must assume that it has not been installed correctly and the torque
converter drive or the ATF pump will be destroyed when finally tightening the bolts.

OVERHAUL

Manufacturer does not provide overhaul procedures or specifications. For fluid capacities and types, adjustment
or servicing procedures, see SERVICING - A/T (09G) article. For removal and installation procedures, see
REMOVAL & INSTALLATION - A/T (09G) article.

drive or the ATF pump will be destroyed when the transmission is
connected to the engine.



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC TRANSMISSION Overhaul - New Beetle, 09G



2001-04 AUTOMATIC TRANSMISSIONS

Removal & Installation - 01M

APPLICATION

TRANSAXLE APPLICATION

REMOVAL & INSTALLATION

CABRIO

Removal & Installation

1. Disconnect negative battery cable. Disconnect speedometer connector at transaxle. Disconnect vehicle

speed sensor connector. Remove electrical connections (arrows) at transaxle. See Fig. 1 . Remove wiring
harness from retainer on transaxle and move to the side.

2. Pull connector off multifunction TR switch. See Fig. 2 . Move selector lever to "P" position and remove

selector lever cable from lever/selector shaft. Remove selector lever cable anchorage circlip and remove
selector lever cable. For transaxles with clipped selector lever cable, release selector lever cable (1).

Application

Transaxle Model

Cabrio (2001-02)

01M 4-Speed

Golf, GTI, Jetta & New Beetle

01M 4-Speed

NOTE:

In the following procedures, letters and numbers in parenthesis are shown in
illustrations.

NOTE:

When battery is disconnected, vehicle computer and memory systems may lose
memory data. Driveability problems may exist until computer systems have
completed a relearn cycle.

CAUTION: Radio/cassette or radio/CD player is equipped with an anti-theft protection

circuit. Whenever battery is disconnected, radio will go into anti-theft
mode. When battery is reconnected, radio will display CODE, and will be
inoperative until proper code number is entered. Obtain security code
before disconnecting battery.

WARNING:

Vehicle is equipped with Supplemental Inflatable Restraint (SIR) system.
When servicing vehicle, use care to avoid accidental air bag deployment.
SIR system-related components are located in various locations
throughout interior and exterior of vehicle, depending on application. Do
not use electrical test equipment on or near these circuits. If necessary,
deactivate SIR system before servicing components. See appropriate AIR
BAG DEACTIVATION PROCEDURES article in GENERAL INFORMATION.



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Removal & Installation - 01M





2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Removal & Installation - 01M



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:58:17 AM

Page 1

© 2004 Mitchell Repair Information Company, LLC.

Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:58:21 AM

Page 1

© 2004 Mitchell Repair Information Company, LLC.

Remove cable (1) from support bracket (2). See Fig. 3 .

3. Clamp off ATF cooler hoses with Hose Clamps (3094) and remove at ATF cooler. See Fig. 4 . Install

Support Bar (10-222 A) with Legs (10-222 A/1) and support engine/transaxle assembly in this position.
See Fig. 5 . Remove starter.

4. Remove bracket for power steering pressure hose. Disconnect front mount from engine carrier. Remove

mount. Remove coolant expansion tank and lay to one side. Remove left engine mount. Remove upper
engine/transaxle connecting bolts. Remove ATF oil pan protective plate.

5. Remove torque converter cover plate and nuts from torque converter. Disconnect drive axles at flanges.

Raise right drive axle and secure out of the way. Remove left wheel. Turn steering to right lock. Mark
installation position of ball joint bolts on left hand control arm and remove bolts.

6. On vehicles with Plus running gear, remove bolts (A) and loosen bolts (B). See Fig. 6 . Swing ball joint

outward and move left hand drive axle to one side. Remove drive axle with a star shaped joint.

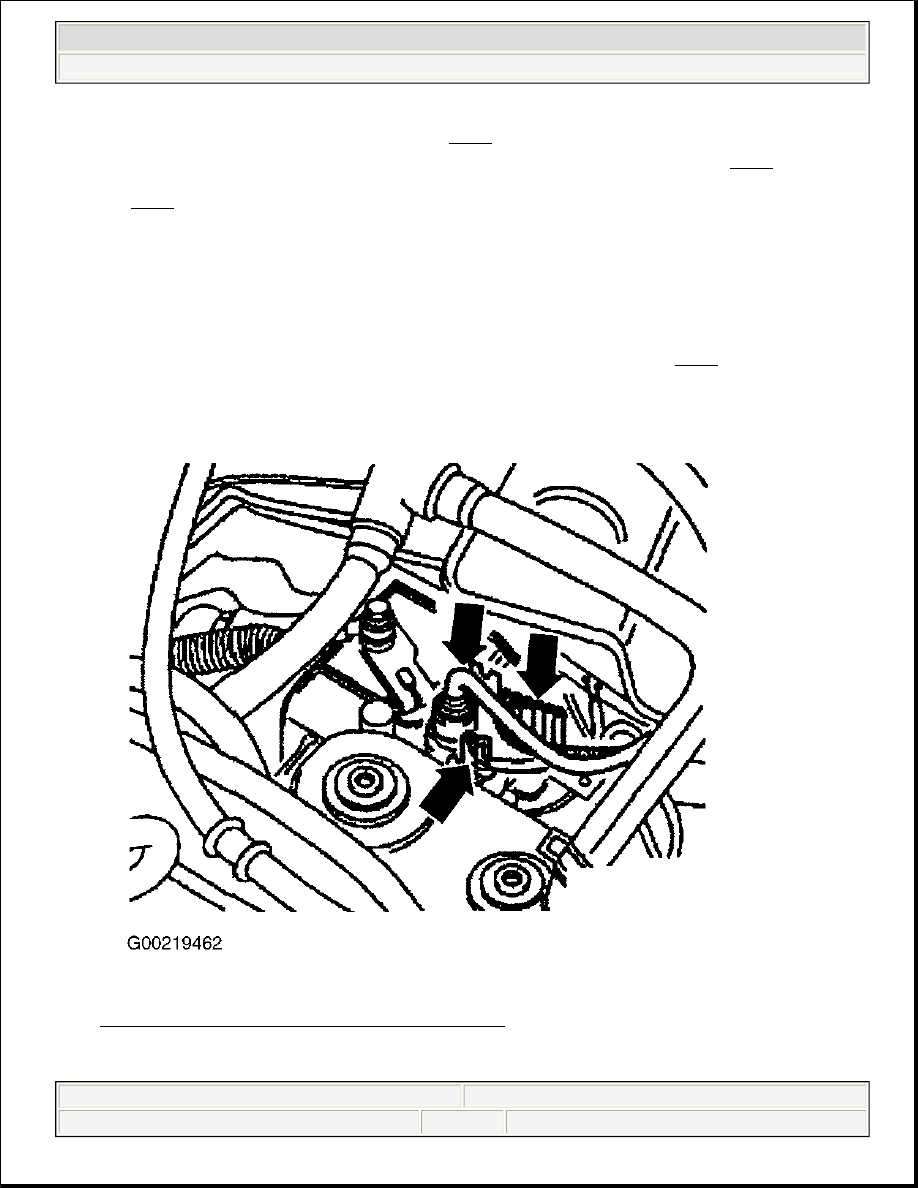

Fig. 1: Locating Electrical Connections At Transaxle
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Removal & Installation - 01M



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:58:17 AM

Page 2

© 2004 Mitchell Repair Information Company, LLC.

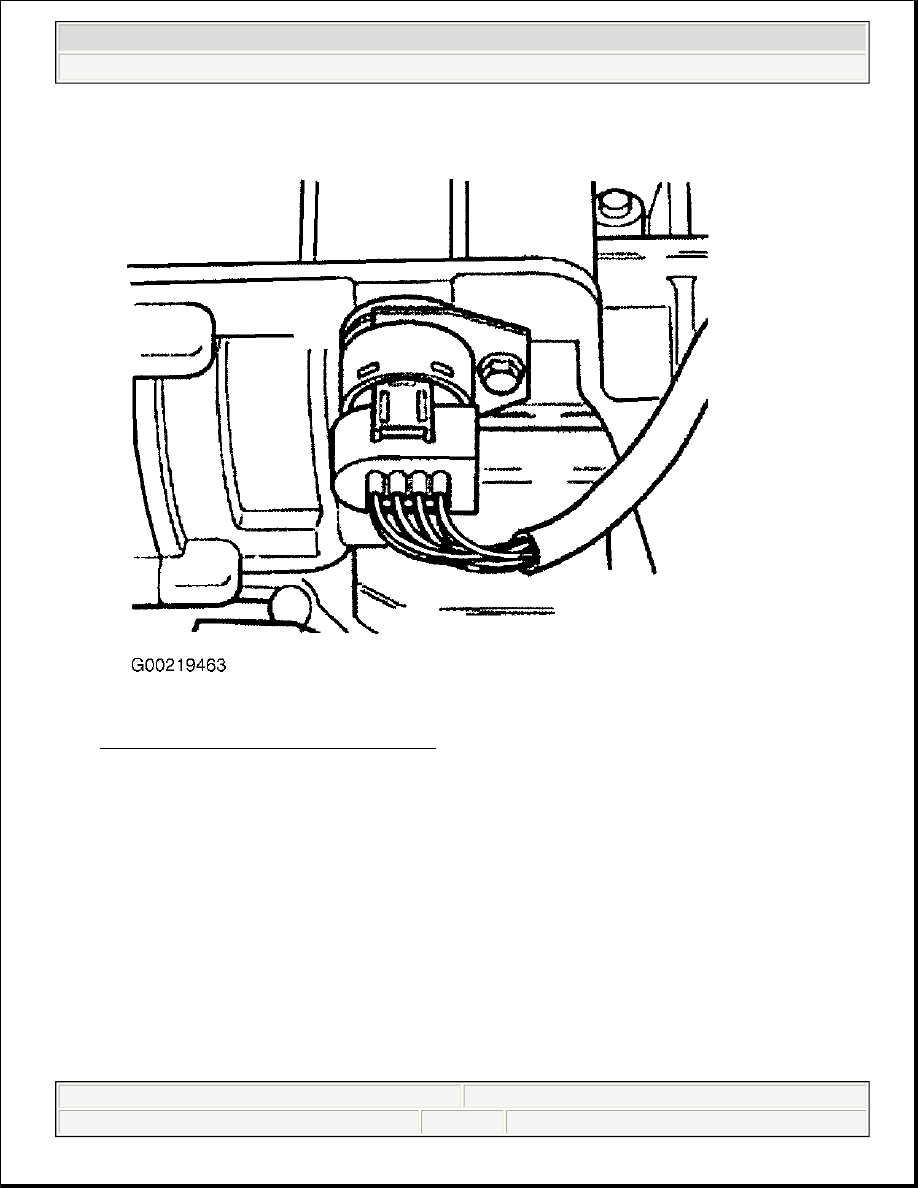

Fig. 2: Identifying Multifunction TR Switch
