Volkswagen New Beetle. Manual - part 2303





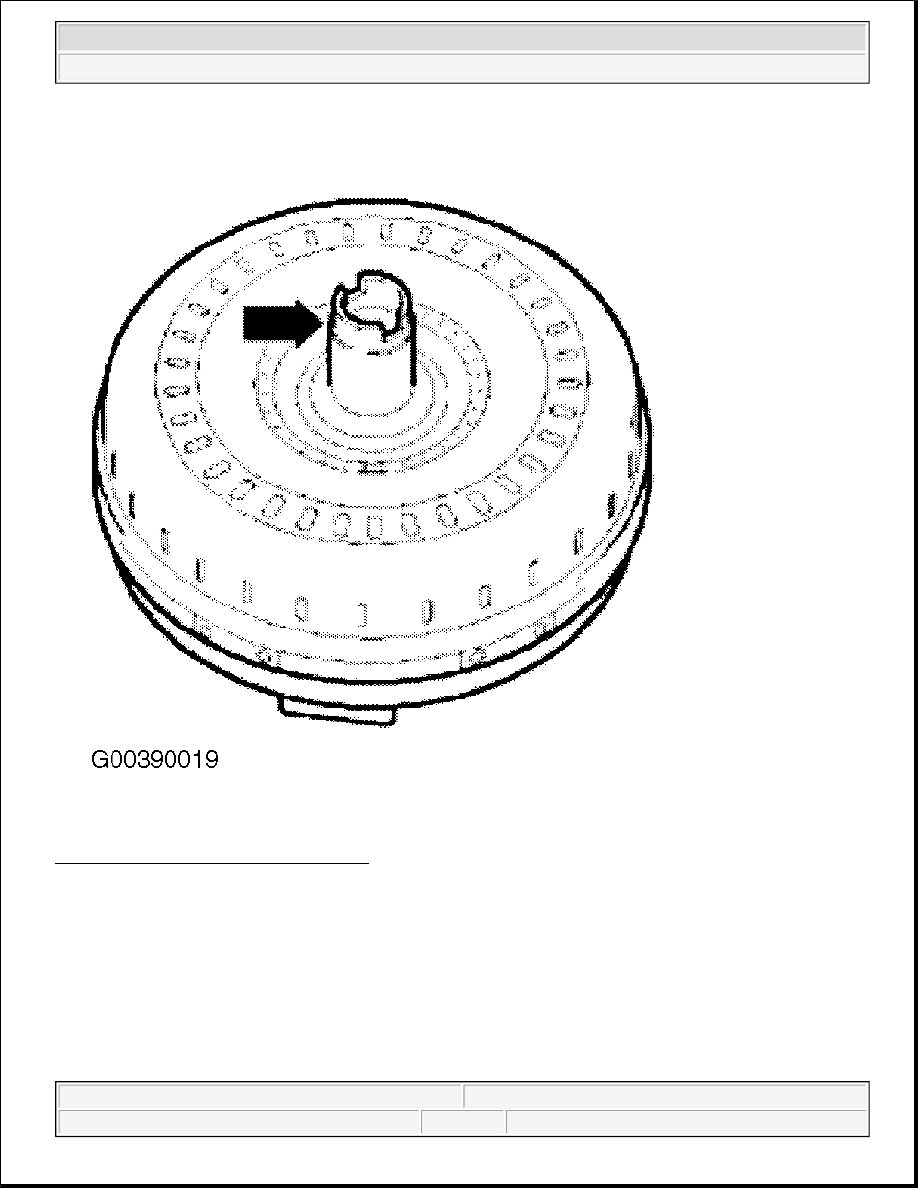

Fig. 13: Locating Torque Converter Hub
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Torque converter is worn and must be replaced if damaged.

TORQUE CONVERTER, INSTALLING

Special Tools And Equipment

z

T10175 press piece

z

Depth gauge



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC TRANSMISSION Overhaul - New Beetle, 09G

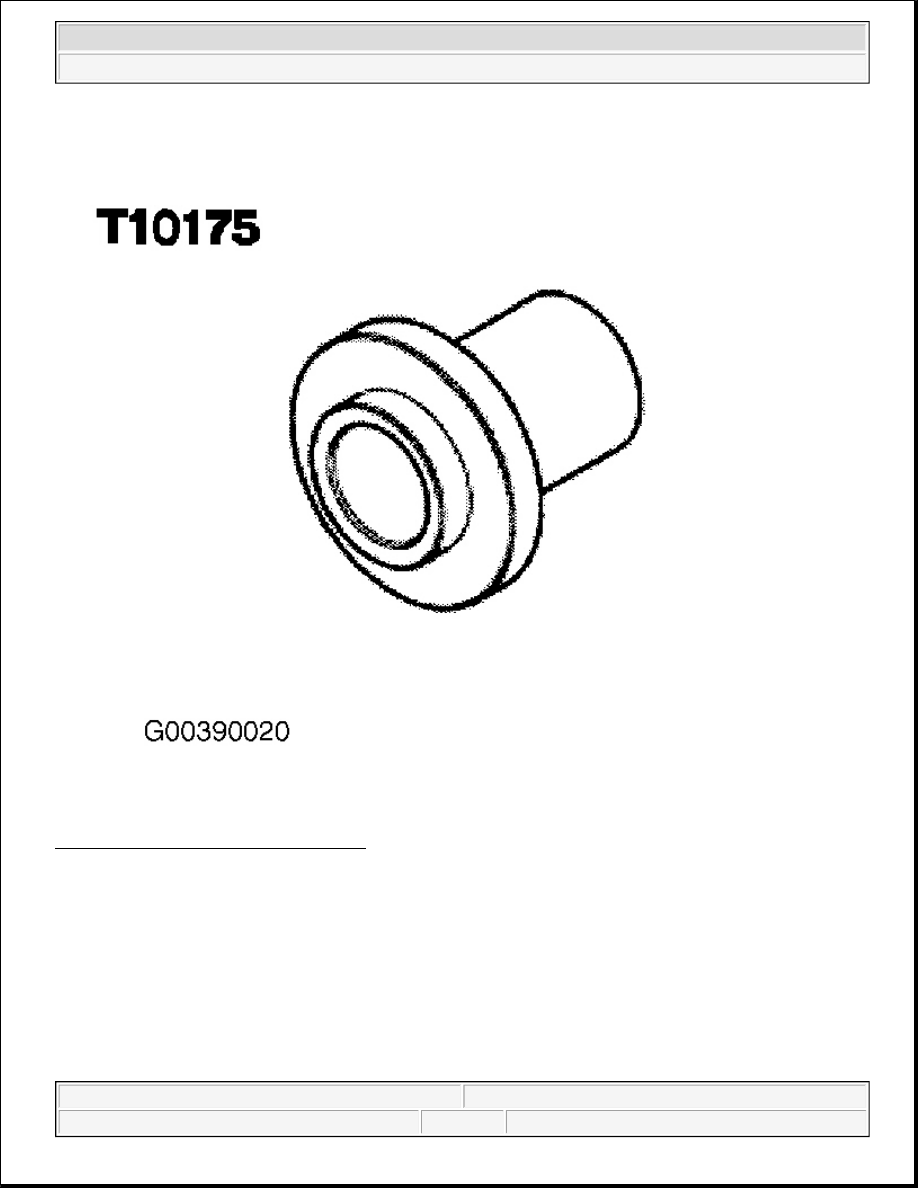

Fig. 14: Identifying Press Piece (T10175)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Driving In Torque Converter Oil Seal



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC TRANSMISSION Overhaul - New Beetle, 09G

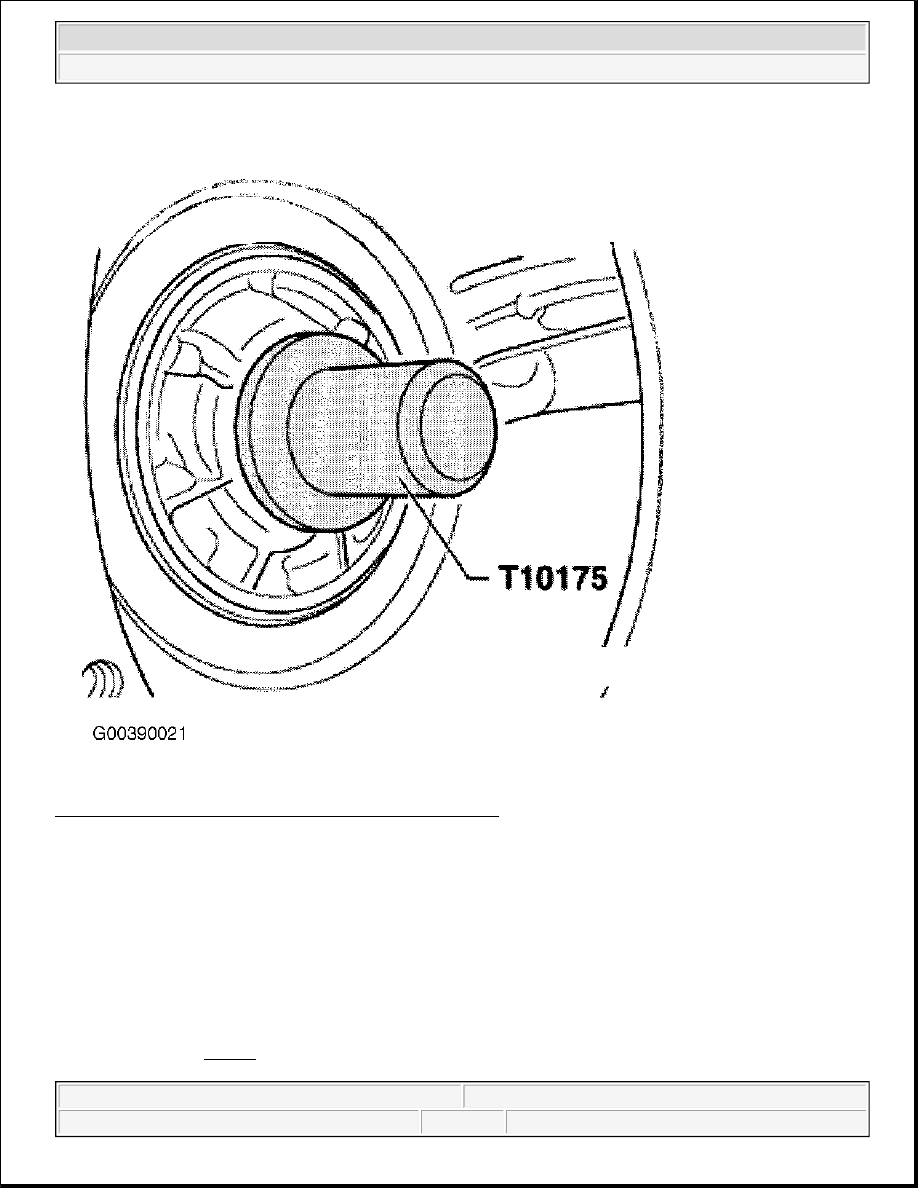

Fig. 15: Driving In Torque Converter Oil Seal Until Flush
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Slide torque converter hub through oil seal and onto first limit stop.

Turn torque converter while pushing in lightly until recesses in torque converter engage into drive of pump and
torque converter slips noticeably inward.

Check Installation Dimension Of Torque Converter

When the torque converter is correctly installed in the transmission, the distance -a- between the contact
surfaces down by the studs on the torque converter and the contact surfaces of the torque converter housing is
approx. 20 mm. See Fig. 16 .



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC TRANSMISSION Overhaul - New Beetle, 09G

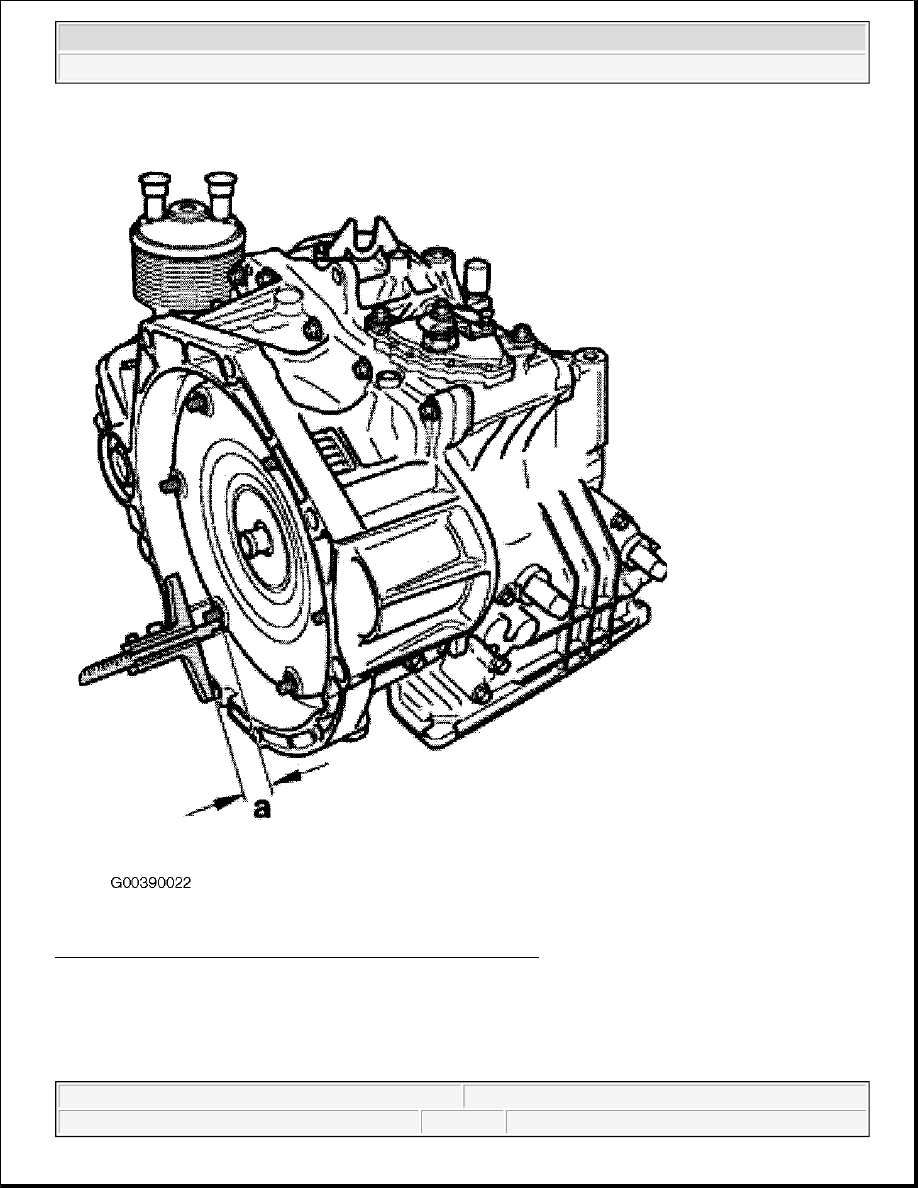

Fig. 16: Checking Installation Dimension Of Torque Converter
Courtesy of VOLKSWAGEN UNITED STATES, INC.

If the torque converter is incorrectly installed this distance is considerably less.

CAUTION: When the torque converter is incorrectly installed the torque converter
