Volkswagen New Beetle. Manual - part 2305

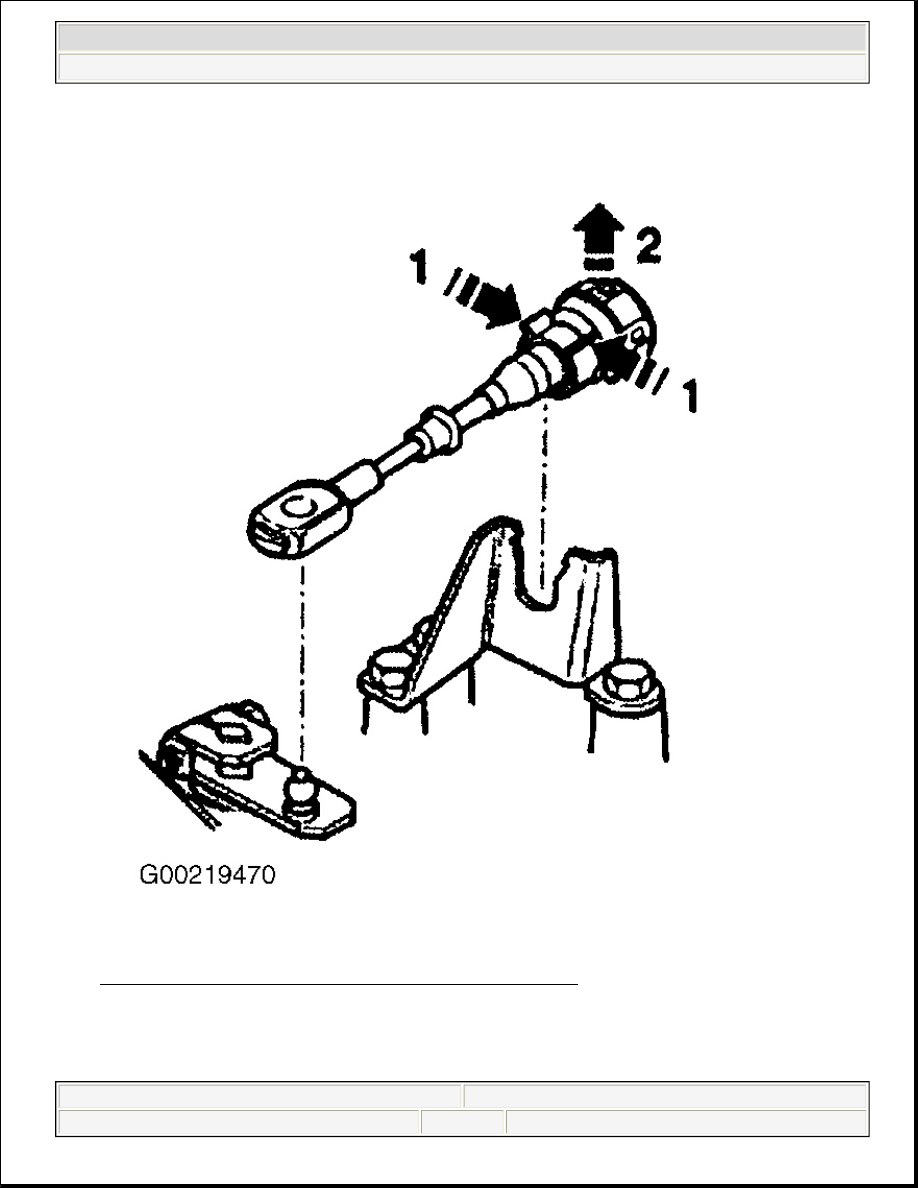

Fig. 3: Removing Selector Lever Cable From Support Bracket
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Removal & Installation - 01M



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:58:17 AM

Page 4

© 2004 Mitchell Repair Information Company, LLC.

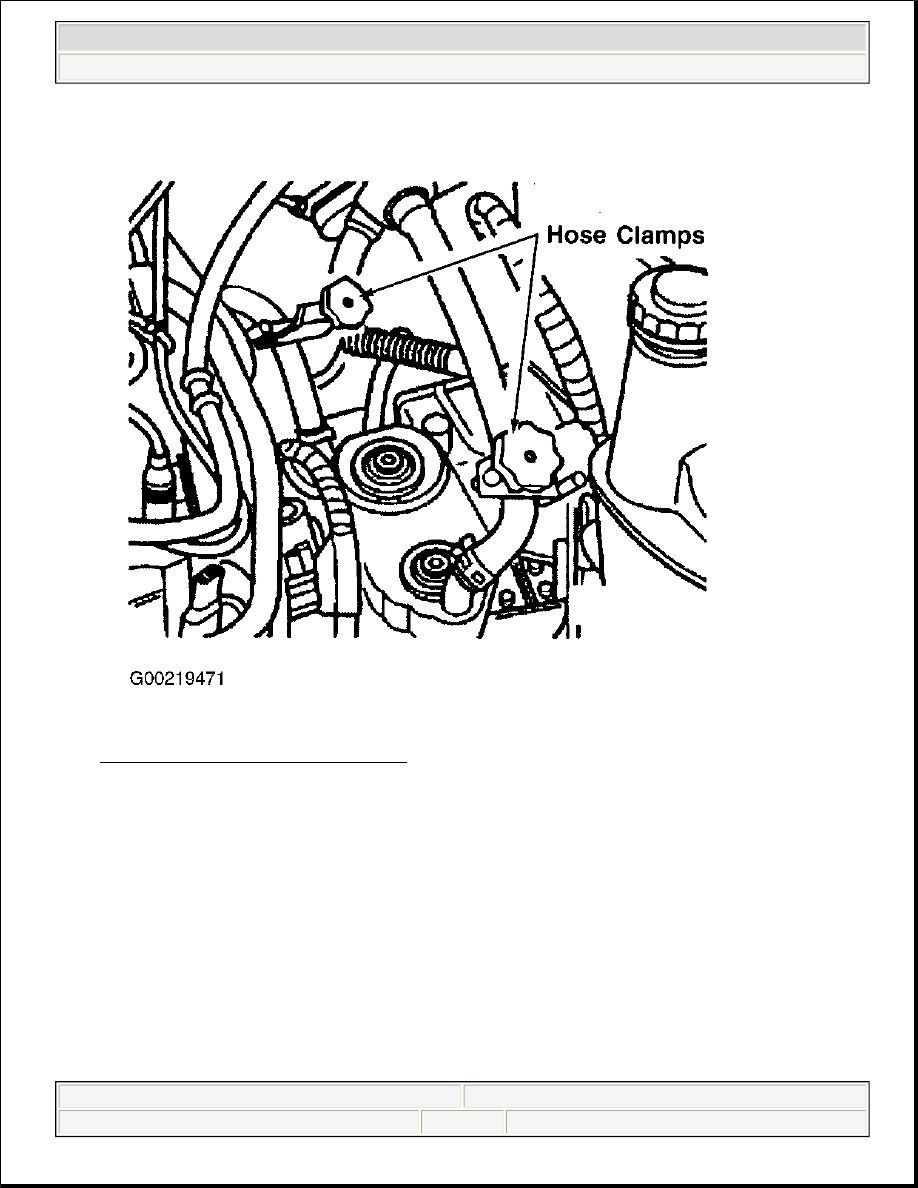

Fig. 4: Clamping Off ATF Cooler Hoses
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Removal & Installation - 01M



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:58:17 AM

Page 5

© 2004 Mitchell Repair Information Company, LLC.

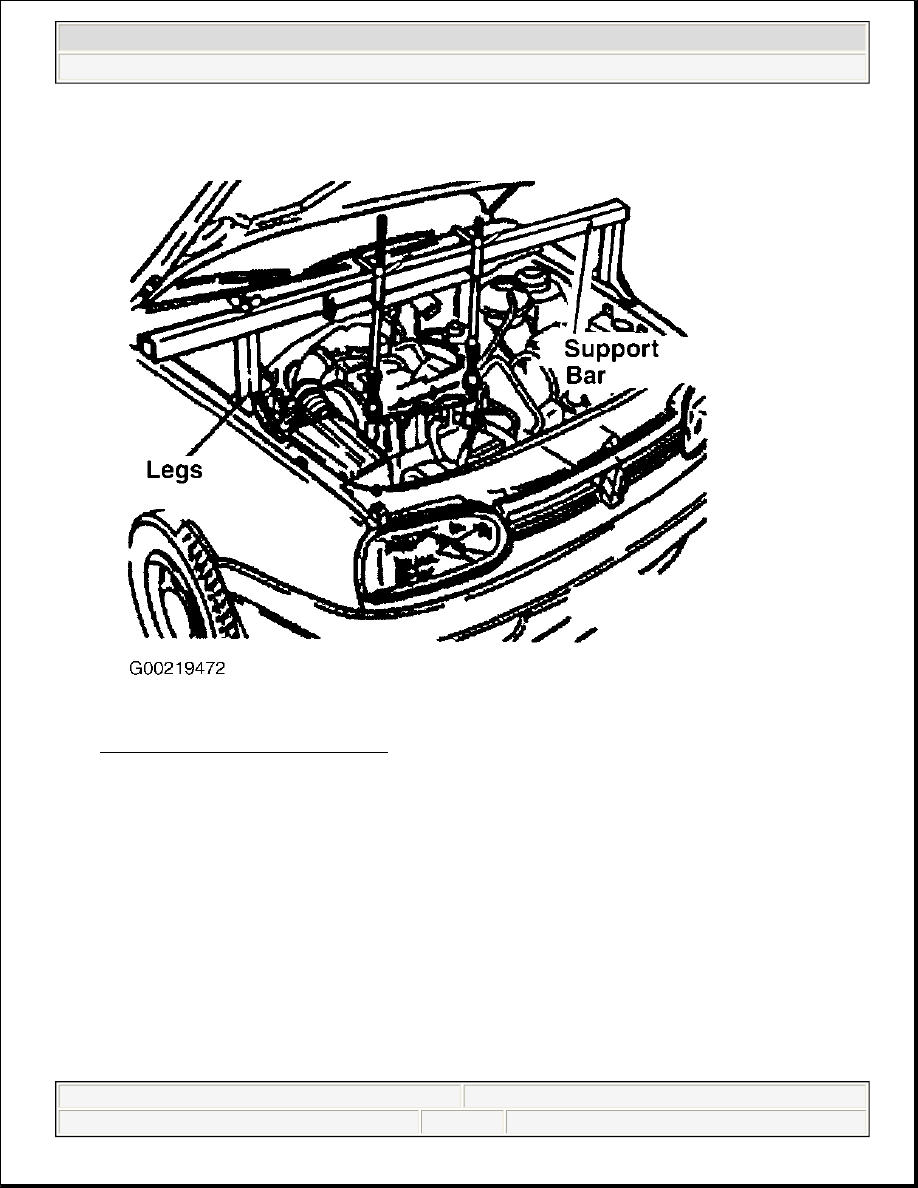

Fig. 5: Installing Support Bar & Legs
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Removal & Installation - 01M



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:58:17 AM

Page 6

© 2004 Mitchell Repair Information Company, LLC.

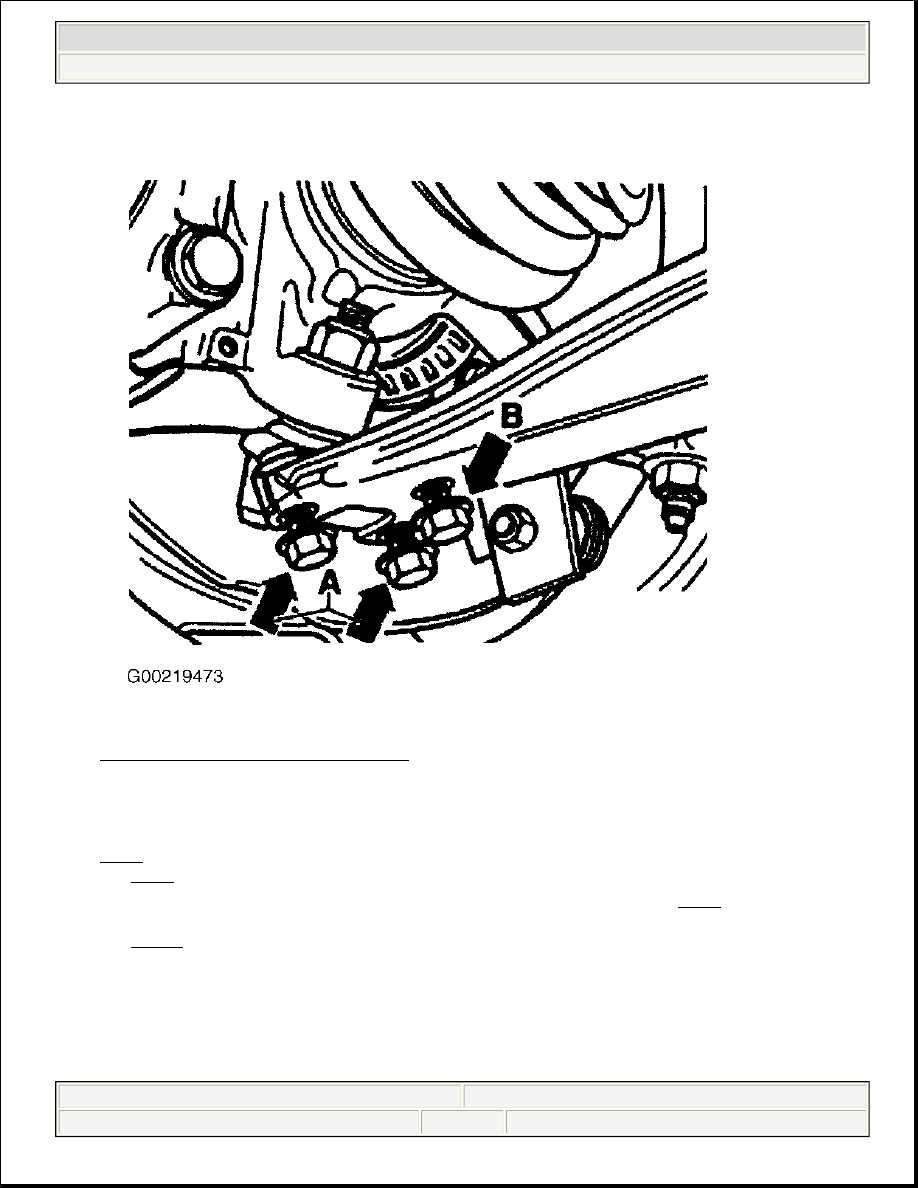

Fig. 6: Removing Lower Ball Joint Bolts
Courtesy of VOLKSWAGEN UNITED STATES, INC.

7. On all models, set up Transaxle Support (3282). Transaxle Support (3282) is set up with Adjusting Plate

(3282/2) for removing transaxle. The symbols on the adjusting plate indicate the mounts required. See
Fig. 7 . Move Transaxle Jack (VAG 1383 A) with Transaxle Support (3282) under transaxle and support.
See Fig. 8 .

8. Place safety support pin on oil pan and secure to transaxle housing (arrow). See Fig. 9 . Remove lower

engine/transaxle connecting bolts. Tilt engine and transaxle forward with Supporting Device (3300 A).
See Fig. 10 . Press transaxle off engine. When doing this, press torque converter out of drive plate. Press
torque converter against ATF pump. Lower engine using support device spindle. Lower transaxle
slightly.

9. Guide power steering pressure line past transaxle. Tilt transaxle using jack spindle and, while lowering,

ensure cover (wheel housing side) is guided closely past wheel housing. Swivel transaxle and carefully
lower transaxle. Ensure right joint flange does not contact Supporting Device (3300 A) and multifunction
TR switch does not contact subframe. Secure torque converter to prevent it from falling out.



2003 Volkswagen New Beetle GLS

2001-04 AUTOMATIC TRANSMISSIONS Removal & Installation - 01M



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:58:17 AM

Page 7

© 2004 Mitchell Repair Information Company, LLC.
