Volkswagen New Beetle. Manual - part 2300





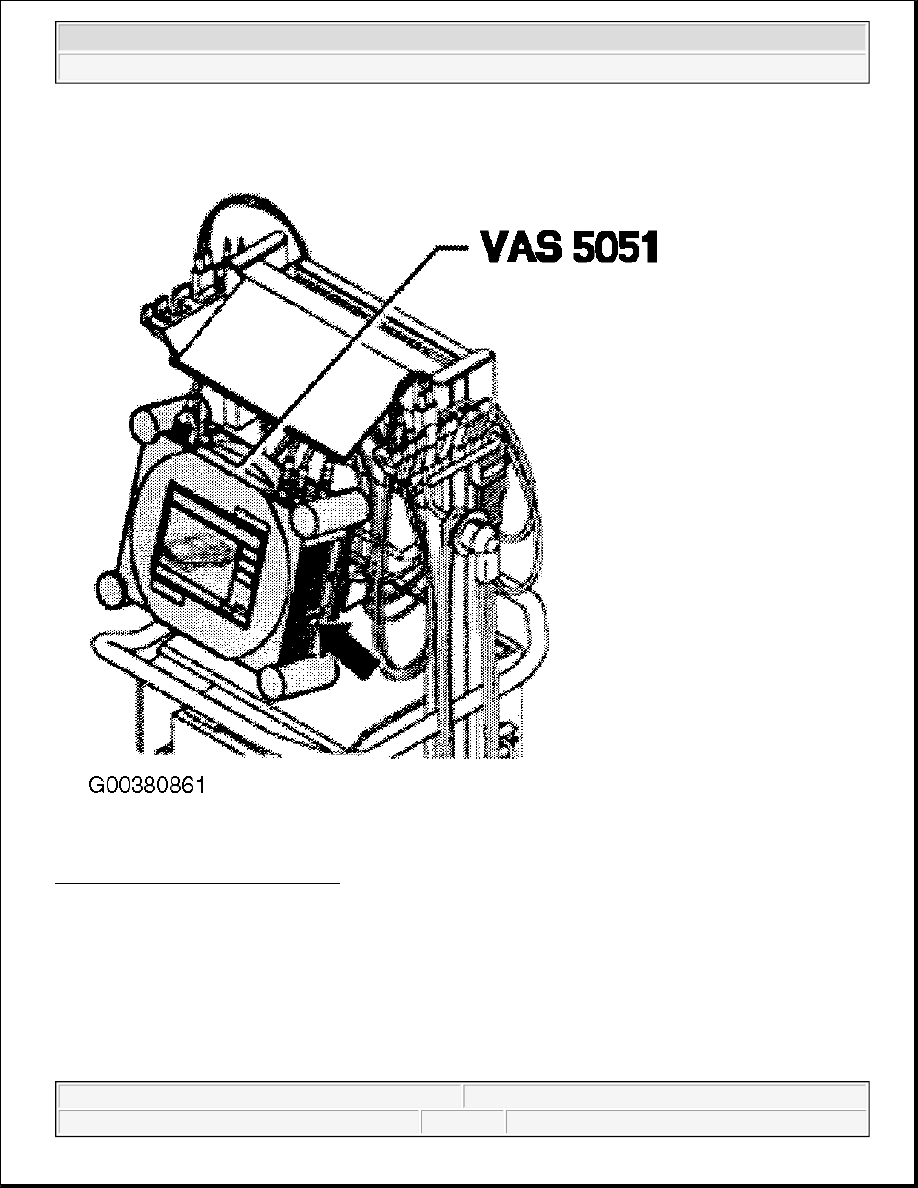

Fig. 4: Identifying Tester (VAS 5051)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

VAS 5051, Connecting And Selecting Function

With ignition switched off, connect tester VAS 5051 to Data Link Connector (DLC) using diagnostic cable

WARNING:

z

When performing a road test the test and measuring units must be
secured on the rear seat.

z

During the road test only one person must operate these units.



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC TRANSMISSION Overhaul - New Beetle, 09G



VAS 5051/1 or VAS 5051/3. See Fig. 5 .

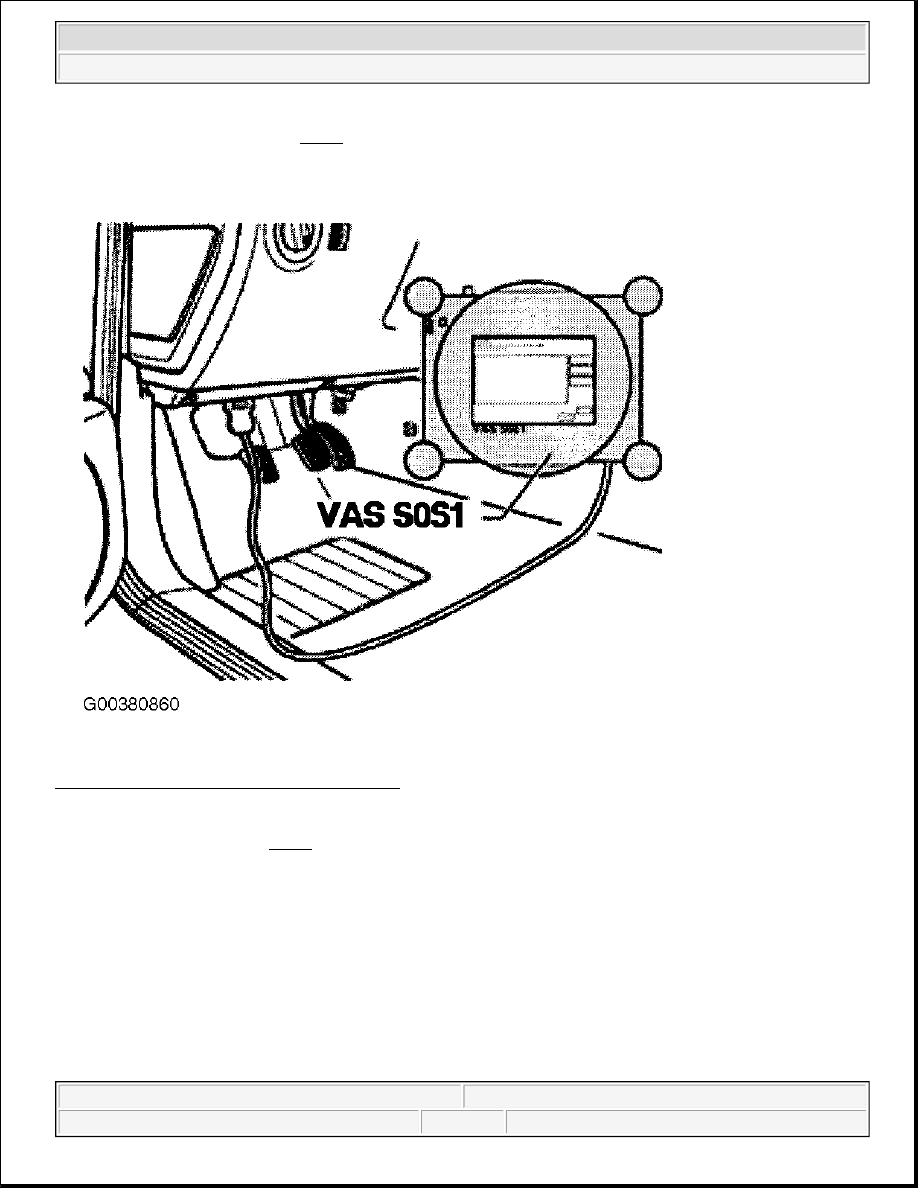

Fig. 5: Connecting Diagnostic Cable To DLC
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Switch tester on (arrow). See Fig. 4 .

Tester is operationally ready when picture of a vehicle appears on display.

Switch ignition on.

Touch key on screen for: Guided Fault finding.

Select one after another:

z

Brand

z

Model



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC TRANSMISSION Overhaul - New Beetle, 09G



z

Model year

z

Variant

z

Engine code

Confirm data as entered:

Using "Go to" key, select "Function/component selection"

Follow instructions on screen to start functions desired.

REPAIR INSTRUCTIONS

The maximum possible care and cleanliness and proper tools are essential to ensure satisfactory and successful
transmission repairs. The usual basic safety precautions also apply when performing vehicle repairs.

A number of generally applicable instructions for individual repair operations, which are otherwise mentioned
at various points in the repair manual; are summarized here.

BATTERY DISCONNECTING & RECONNECTING

For work steps required after reconnecting battery, see Fig. 6 .

NOTE:

Wait until the tester has read all the available control modules.

CAUTION: Before beginning repairs on the electrical system:

z

Obtain anti-theft radio security code.

z

Switch off all electrical consumers.

z

Switch ignition off and remove ignition key.

z

Do not loosen or remove ground strap from body. Disconnect
terminal from battery only.



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC TRANSMISSION Overhaul - New Beetle, 09G

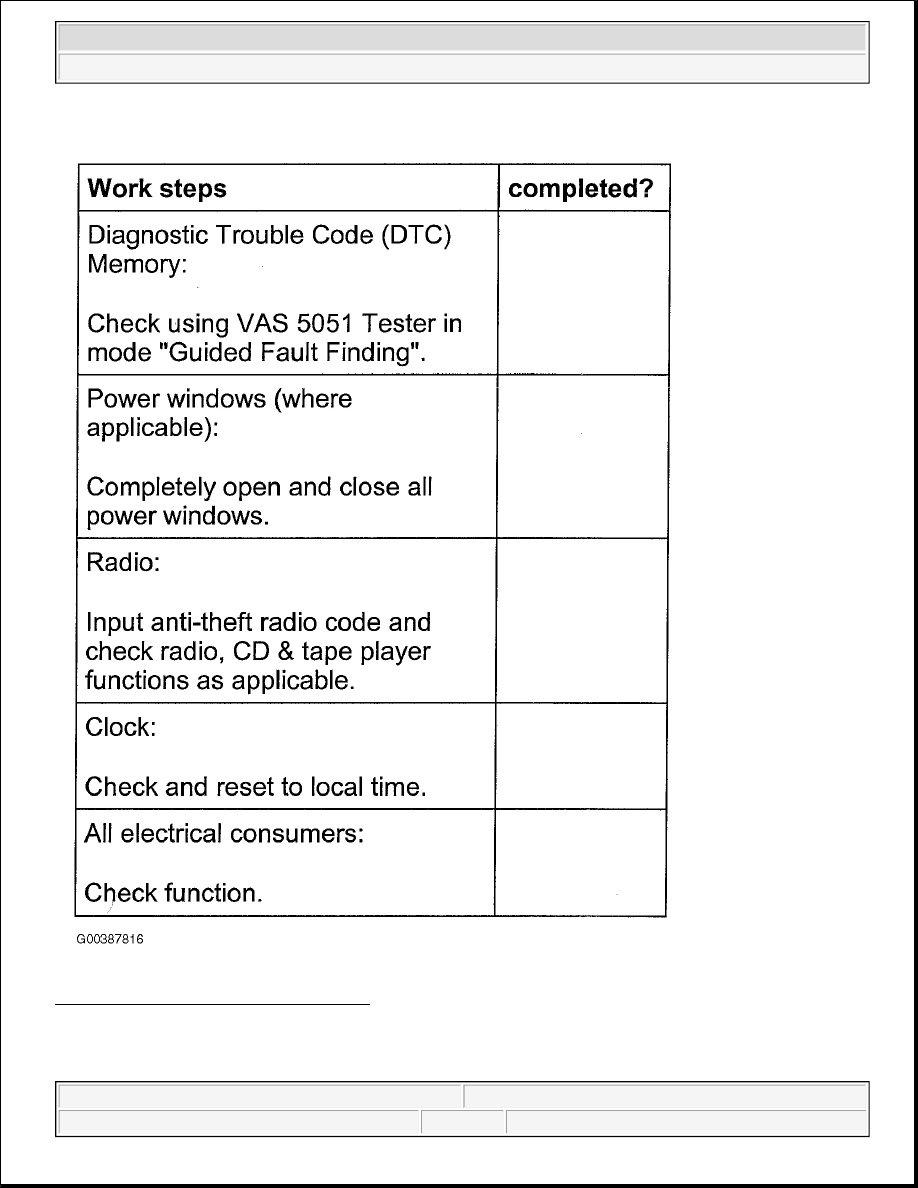

Fig. 6: Reconnecting Battery Work Steps
Courtesy of VOLKSWAGEN UNITED STATES, INC.

NOTE:

If desired, print this page and use the table above as a checklist.



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC TRANSMISSION Overhaul - New Beetle, 09G
