Volkswagen New Beetle. Manual - part 2298

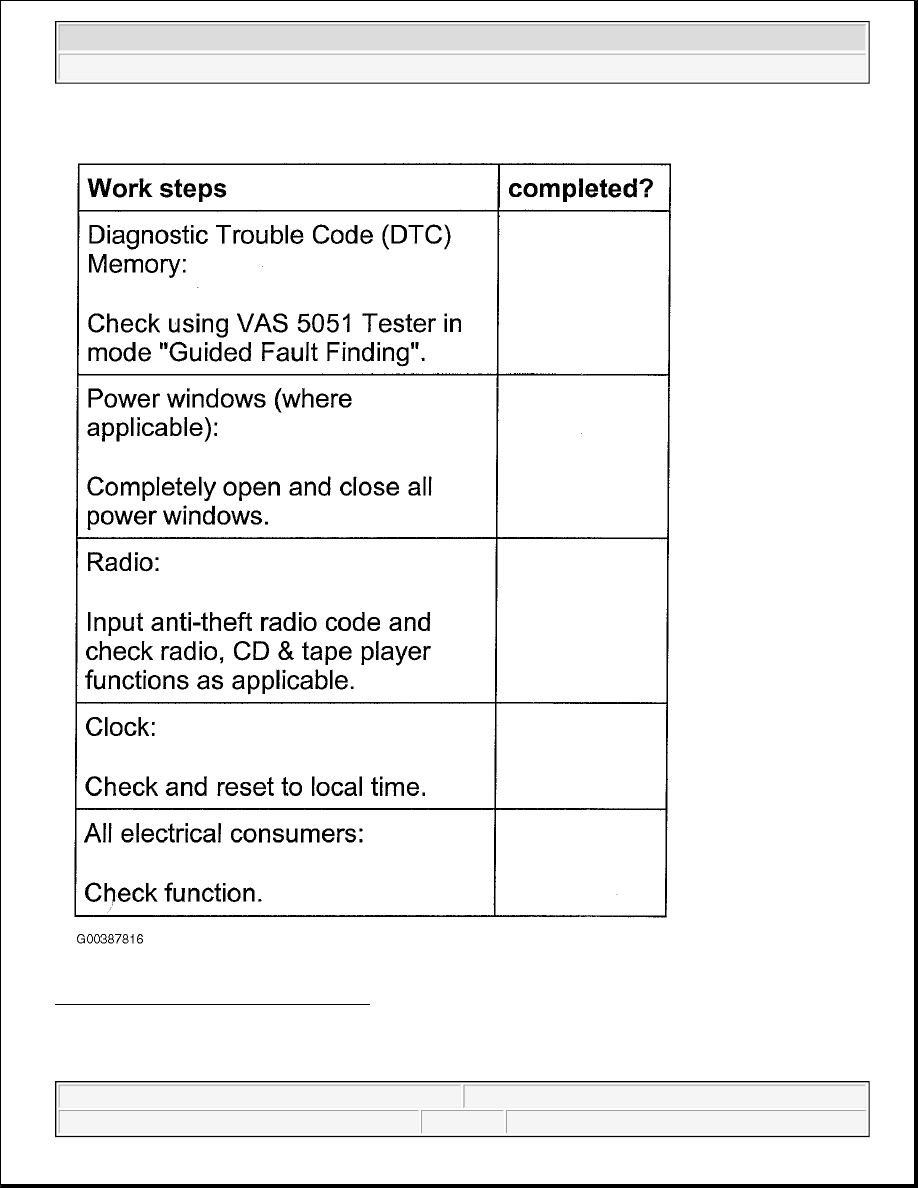

Fig. 3: Reconnecting Battery Work Steps
Courtesy of VOLKSWAGEN UNITED STATES, INC.

NOTE:

If desired, print this page and use the table above as a checklist.



2003 Volkswagen New Beetle GLS

2003-04 AUTOMATIC TRANSMISSION Overhaul - New Beetle, 02E



RULES FOR CLEANLINESS WHEN WORKING ON TRANSMISSION

z

Do not run engine or tow vehicle with oil pan removed or without gear oil.

z

Carefully clean all joints and adjacent areas before disconnecting.

z

When installing transmission make sure that the dowel sleeves between engine and transmission are
seated correctly.

z

Place parts that have been removed on a clean surface and cover so that they are not soiled. Use sheeting
and paper. Do not use fluffy cloths!

z

Only install clean components: Unpack replacement parts immediately prior to installation.

z

Carefully cover opened components or seal if repairs cannot be carried out immediately.

O-RINGS, OIL SEALS, GASKETS

z

Always replace O-rings, oil seals and gaskets.

z

After removing seals/gaskets, examine the contact surfaces on housings or shafts for burrs and signs of
damage and repair before reinstalling.

z

Before installing a radial shaft seal lubricate the outside diameter with gear oil and fill the space between
the sealing lips (arrow) halfway with G 052 128 A1.

z

The open side of an oil seal faces towards the oil.

z

Always use transmission oil. Other lubricants will cause the hydraulics to malfunction.

z

Check gear oil level after installing and if necessary top off. See SERVICING - A/T (02E) article.

NUTS, BOLTS

z

Loosen and tighten nuts, bolts/screws for securing covers and housings in a diagonal sequence.

z

Do not tilt the very sensitive parts and also loosen and tighten in a diagonal sequence.

z

The torque settings indicated refer to non-lubricated screws and bolts:

z

Threads of bolts/screws that are secured by locking fluid are to be cleaned with a wire brush. Then insert
bolts/screws with AMV 185 100 A1.

z

All threaded holes where locking fluid is applied must be cleaned with a thread tap to remove remnants of
locking fluid. Otherwise there is a danger that a bolt/screw will shear when reinstalling.

z

Replace self-locking nuts.

OVERHAUL

Manufacturer does not provide overhaul procedures or specifications. For fluid capacities and types, adjustment
or servicing procedures, seeSERVICING - A/T (02E) article. For removal and installation procedures, see
REMOVAL & INSTALLATION - A/T (02E) article.



2003 Volkswagen New Beetle GLS

2003-04 AUTOMATIC TRANSMISSION Overhaul - New Beetle, 02E



2002-04 AUTOMATIC TRANSMISSION

Overhaul - New Beetle, 09G

APPLICATION

TRANSMISSION APPLICATION

IDENTIFICATION

Transmission code letters are given on type plate (arrow). See Fig. 1 . Transmission code letters are also given
on vehicle data plate.

Application

Transmission Model

1.8L (2002-2004)

09G, 6-Speed

2.0L (2003-2004)

09G, 6-Speed



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC TRANSMISSION Overhaul - New Beetle, 09G





2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC TRANSMISSION Overhaul - New Beetle, 09G

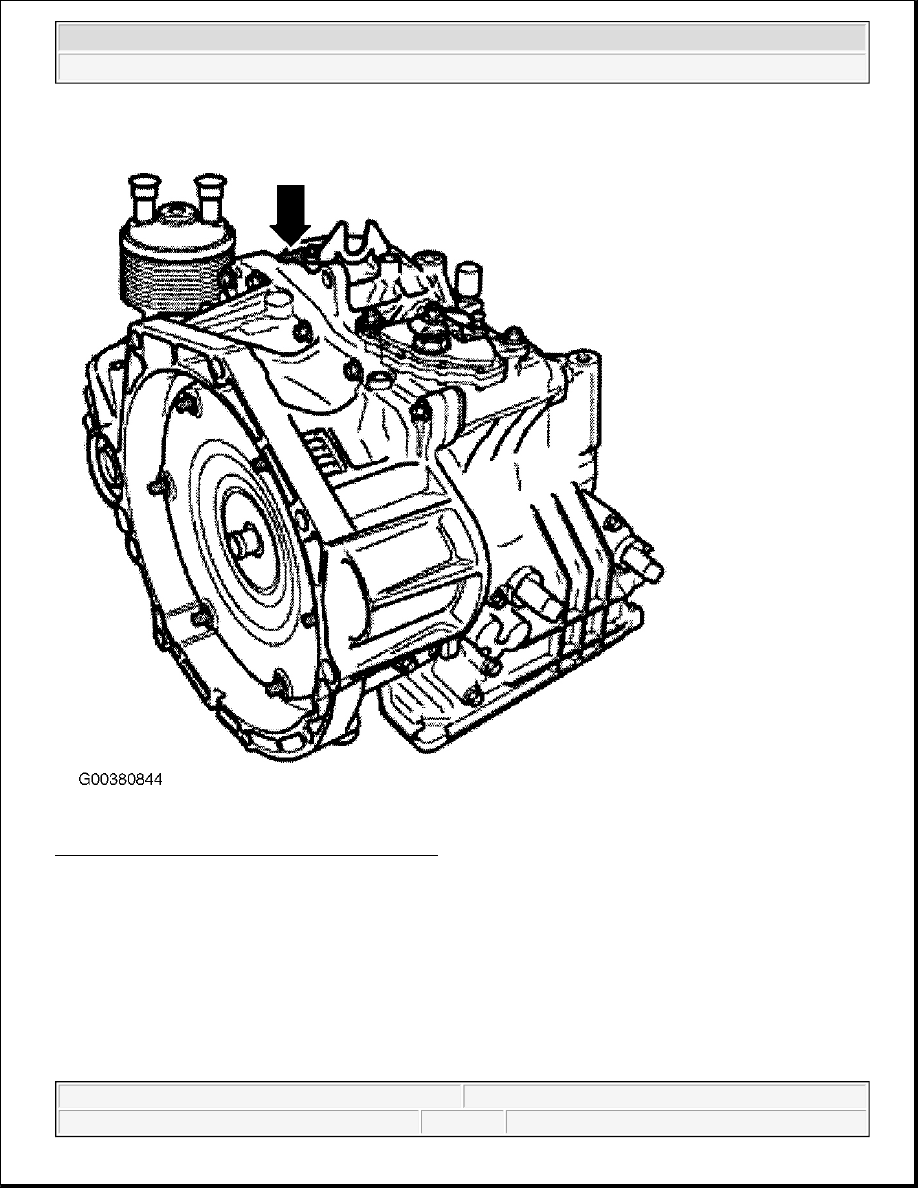

Fig. 1: Locating Transmission Identification Code
Courtesy of VOLKSWAGEN UNITED STATES, INC.

CODE LETTERS, TRANSMISSION APPLICATION, RATIOS, EQUIPMENT



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC TRANSMISSION Overhaul - New Beetle, 09G
