Volkswagen New Beetle. Manual - part 2296

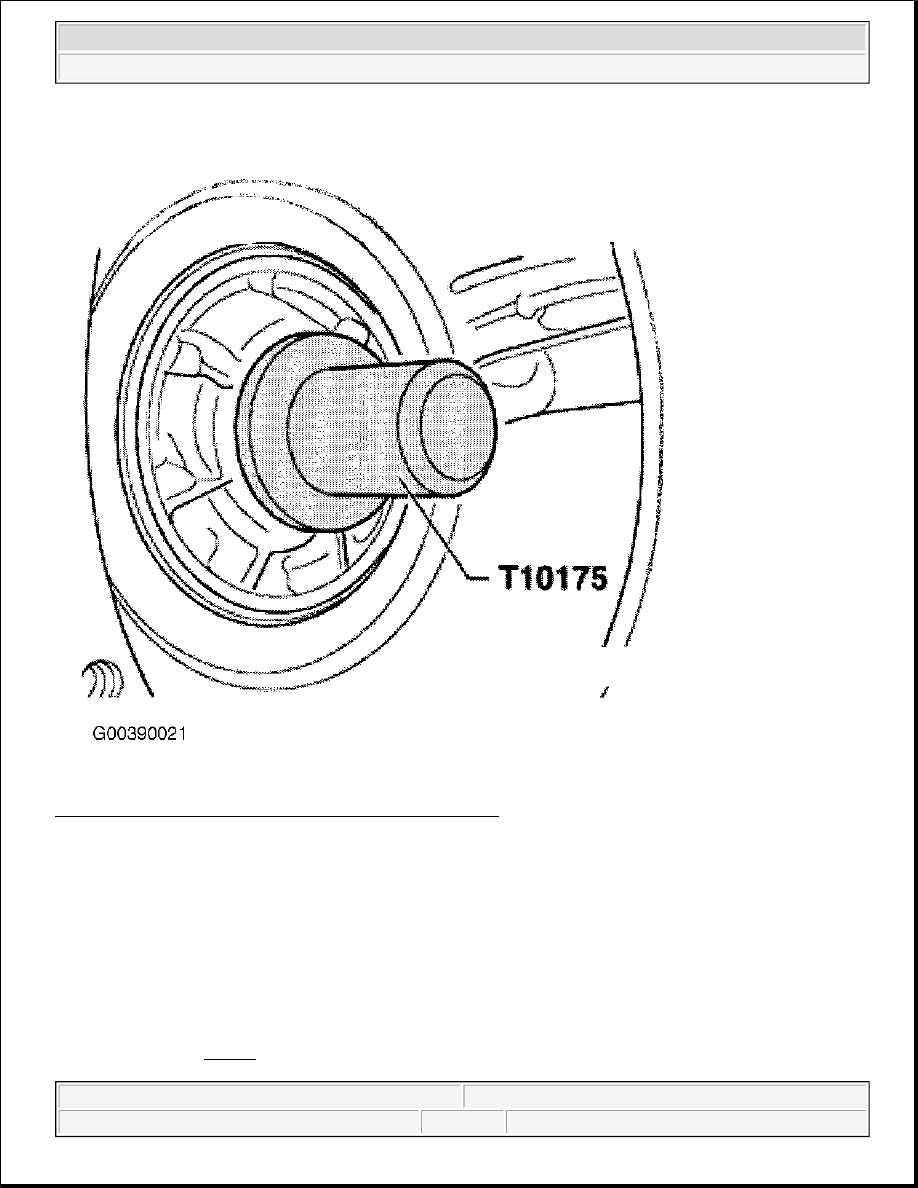

Fig. 15: Driving In Torque Converter Oil Seal Until Flush
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Slide torque converter hub through oil seal and onto first limit stop.

Turn torque converter while pushing in lightly until recesses in torque converter engage into drive of pump and
torque converter slips noticeably inward.

Check Installation Dimension Of Torque Converter

When the torque converter is correctly installed in the transmission, the distance -a- between the contact
surfaces down by the studs on the torque converter and the contact surfaces of the torque converter housing is
approx. 20 mm. See Fig. 16 .



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC TRANSMISSION Overhaul - New Beetle, 09G

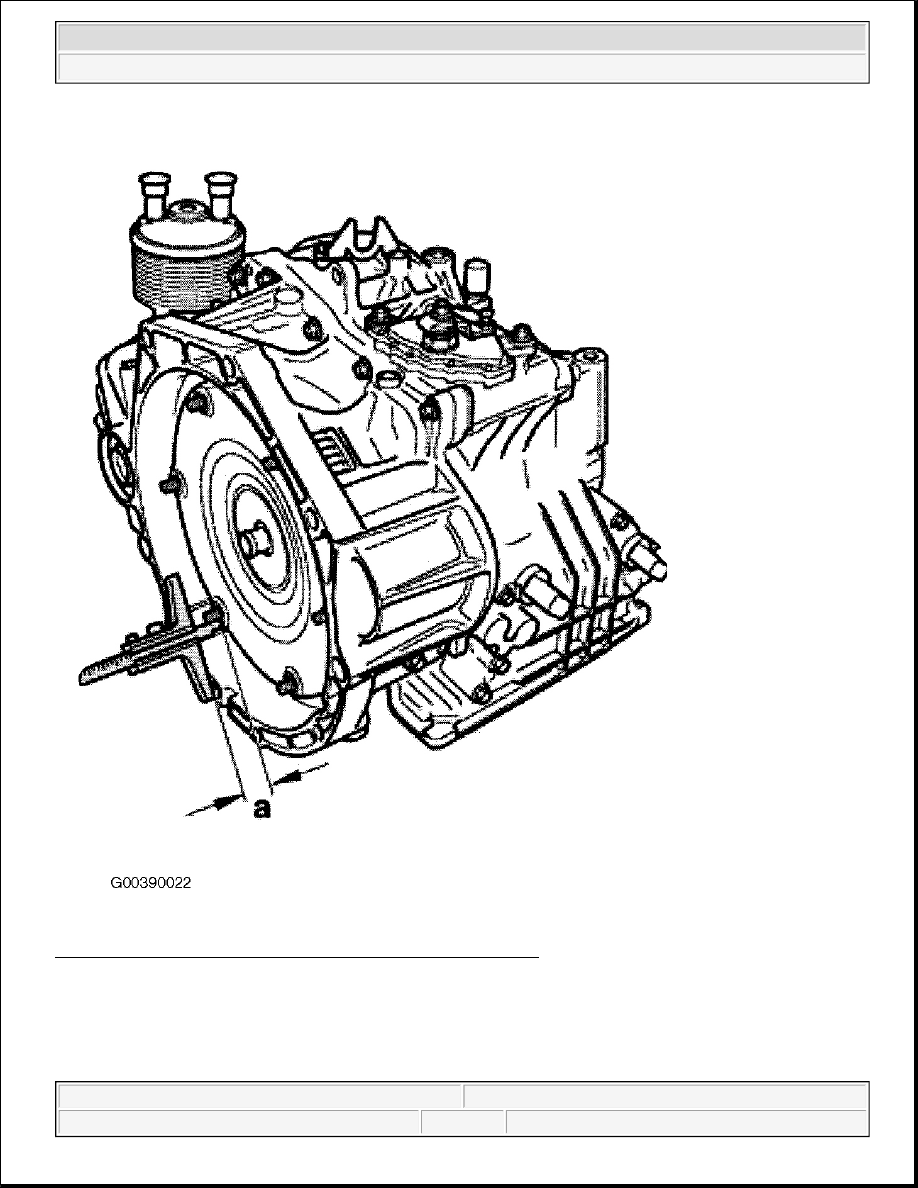

Fig. 16: Checking Installation Dimension Of Torque Converter
Courtesy of VOLKSWAGEN UNITED STATES, INC.

If the torque converter is incorrectly installed this distance is considerably less.

CAUTION: When the torque converter is incorrectly installed the torque converter



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC TRANSMISSION Overhaul - New Beetle, 09G



When subsequently installing the transmission the following points must be observed:

When tightening the bolts on the engine/transmission flange, check often that the torque converter still moves
behind the drive plate.

If the torque converter does not turn, one must assume that it has not been installed correctly and the torque
converter drive or the ATF pump will be destroyed when finally tightening the bolts.

OVERHAUL

Manufacturer does not provide overhaul procedures or specifications. For fluid capacities and types, adjustment
or servicing procedures, see SERVICING - A/T (09G) article. For removal and installation procedures, see
REMOVAL & INSTALLATION - A/T (09G) article.

drive or the ATF pump will be destroyed when the transmission is
connected to the engine.



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC TRANSMISSION Overhaul - New Beetle, 09G



2003-04 AUTOMATIC TRANSMISSION

Overhaul - New Beetle, 02E

APPLICATION

TRANSMISSION APPLICATION

IDENTIFICATION

Transmission code letters are given on bottom of transmission, near oil cooler. See Fig. 1 . Transmission code
letters are also given on vehicle data stickers.

Application

Transmission Model

1.9L (2003-2004)

02E, 6-Speed



2003 Volkswagen New Beetle GLS

2003-04 AUTOMATIC TRANSMISSION Overhaul - New Beetle, 02E





2003 Volkswagen New Beetle GLS

2003-04 AUTOMATIC TRANSMISSION Overhaul - New Beetle, 02E
