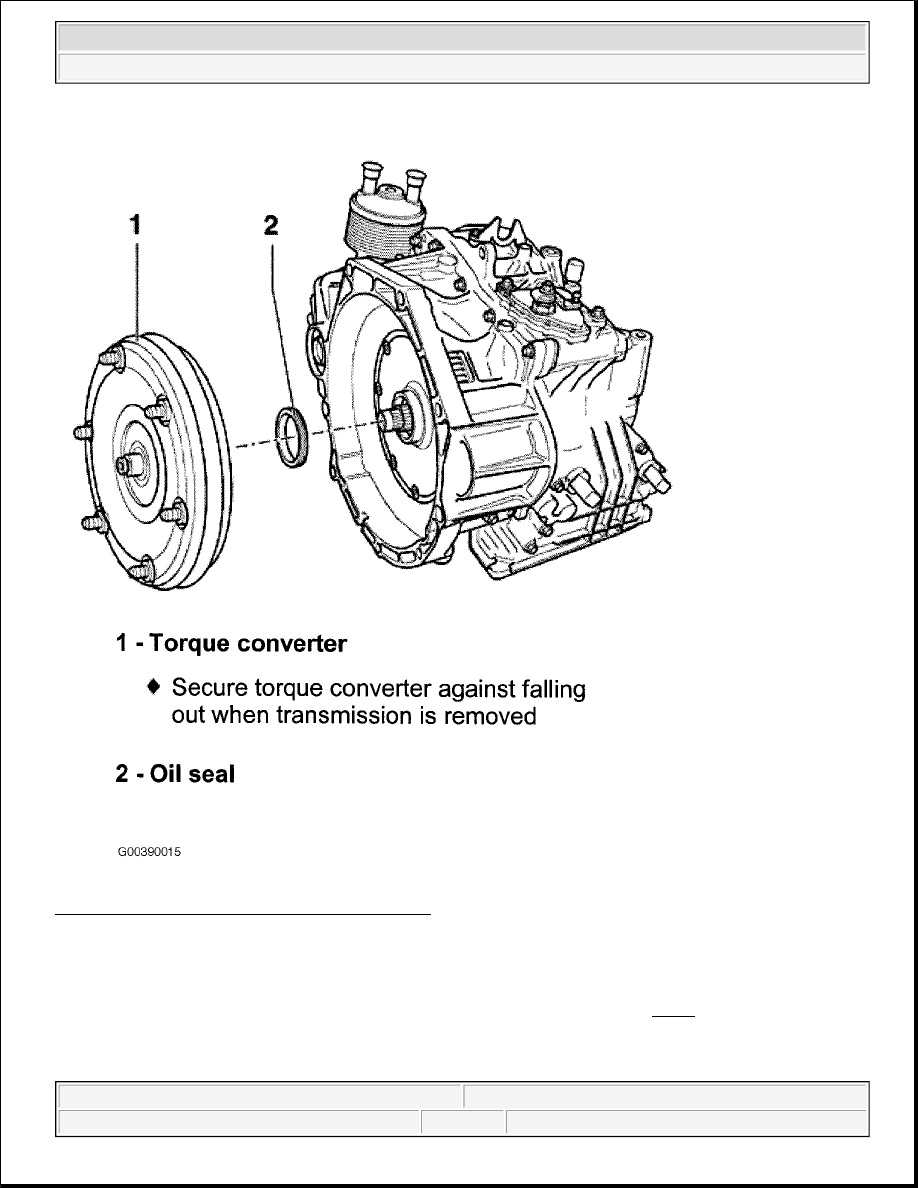

Fig. 7: Overview Of Torque Converter Assembly
Courtesy of VOLKSWAGEN UNITED STATES, INC.

TORQUE CONVERTER, IDENTIFICATION

There are various torque converters. Identification is via code letters (arrows). See Fig. 8 .



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC TRANSMISSION Overhaul - New Beetle, 09G

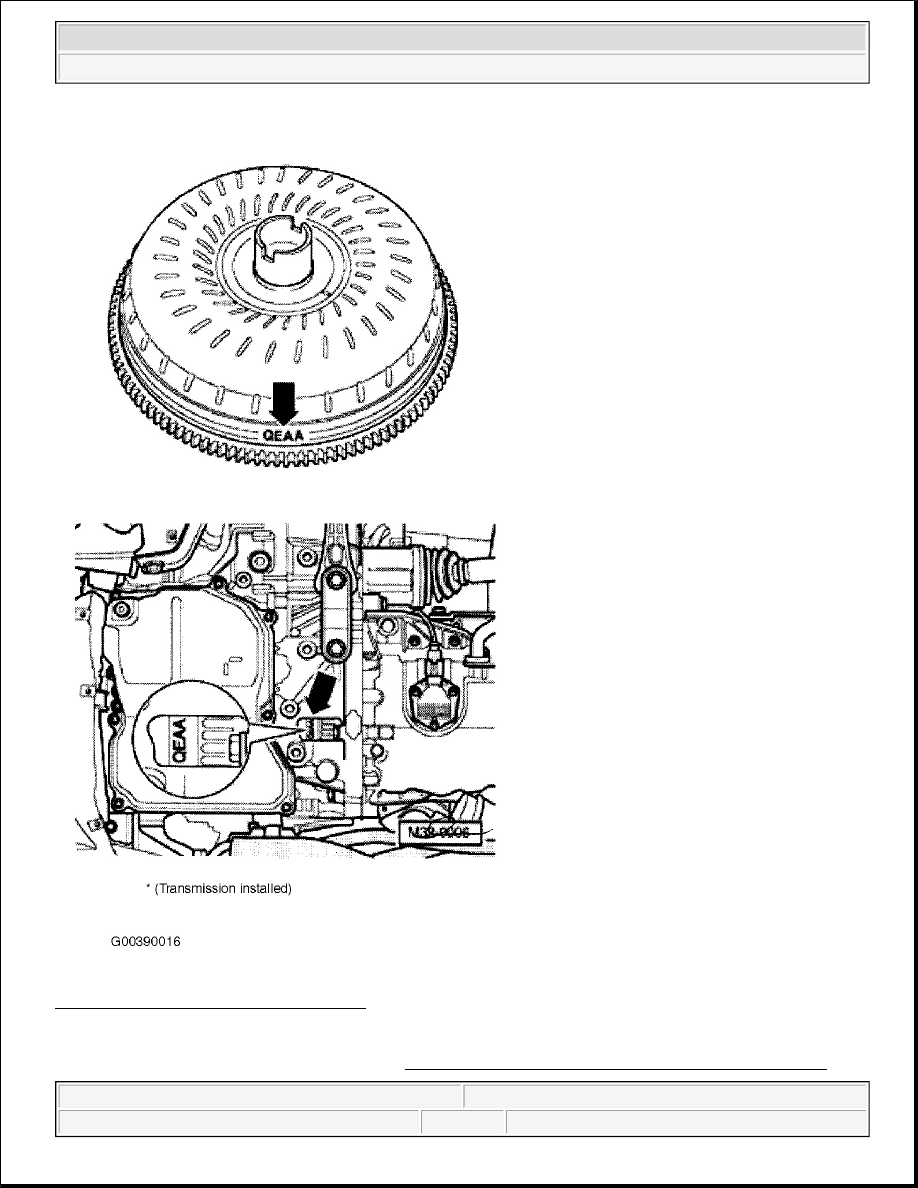

Fig. 8: Locating Torque Converter Code
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Allocating torque converter to transmission, see CODE LETTERS, TRANSMISSION APPLICATION,



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC TRANSMISSION Overhaul - New Beetle, 09G



RATIOS, EQUIPMENT .

TORQUE CONVERTER, DRAINING

Special Tools And Equipment

z

V.A.G 1358/A Oil extractor unit

z

V.A.G 1358 A/1 Oil extraction probe

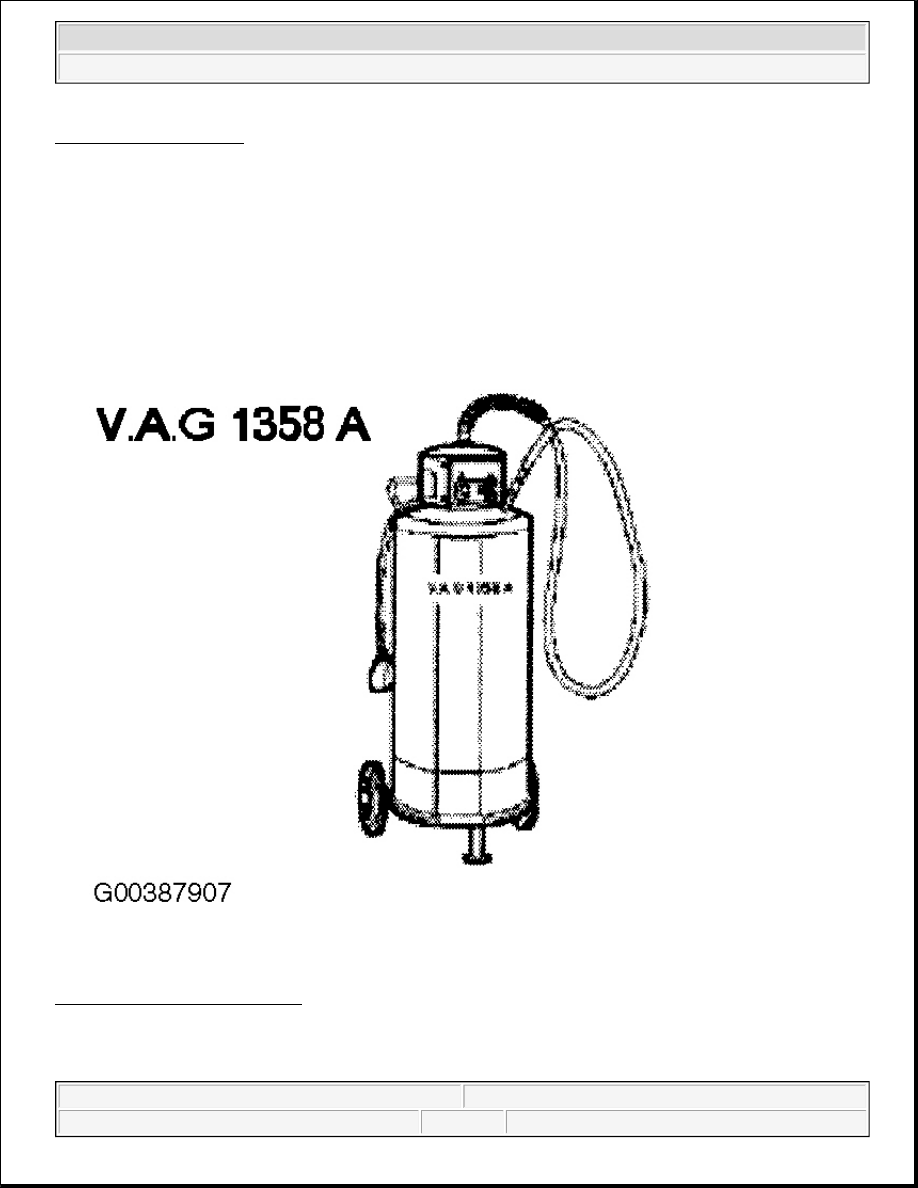

Fig. 9: Identifying Oil Extractor
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Drain the torque converter when performing a major overhaul of the transmission or if the ATF has become



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC TRANSMISSION Overhaul - New Beetle, 09G



contaminated by abrasion as follows:

Extract ATF from torque converter using V.A.G 1358 A and probe V.A.G 1358 A/1. See Fig. 10 .

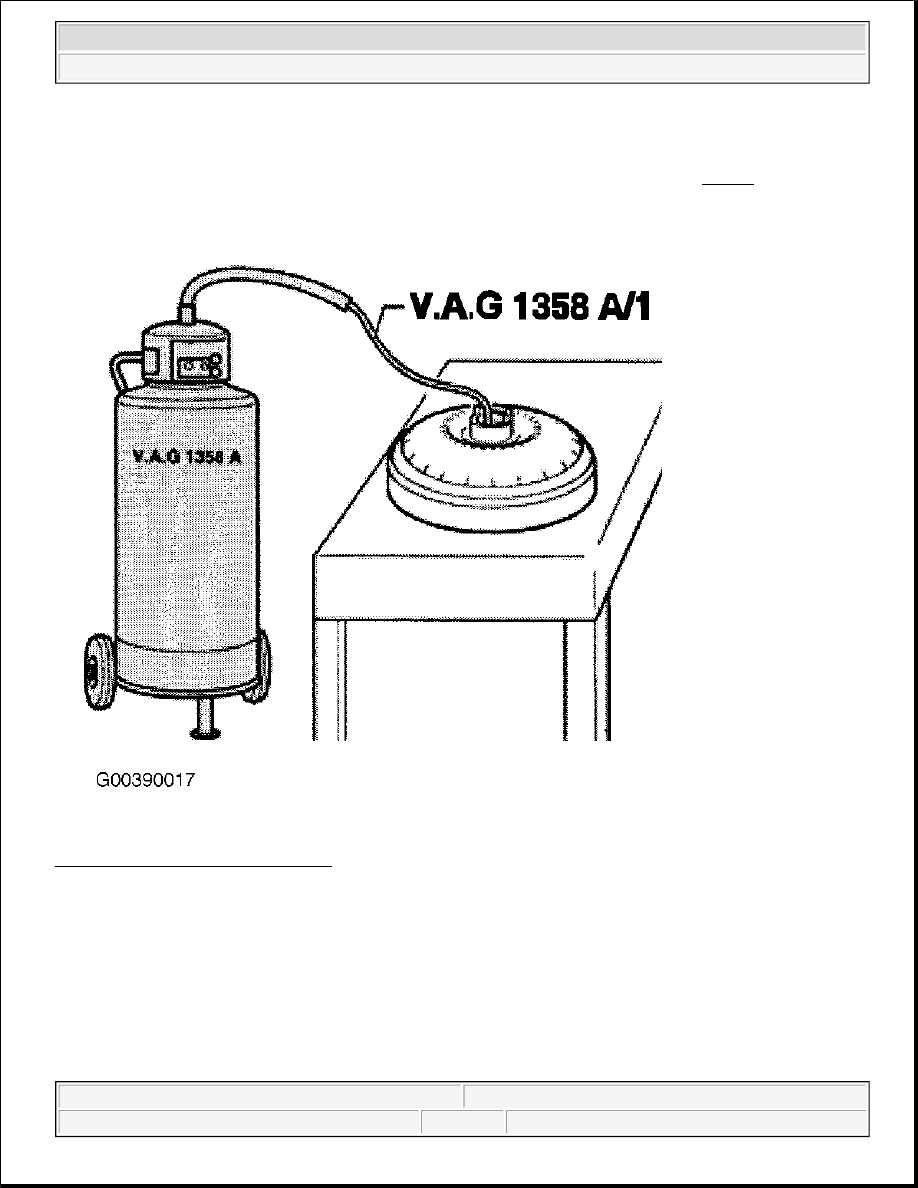

Fig. 10: Draining Torque Converter
Courtesy of VOLKSWAGEN UNITED STATES, INC.

TORQUE CONVERTER, REMOVING

Special Tools And Equipment

z

VW 681 Extractor lever
