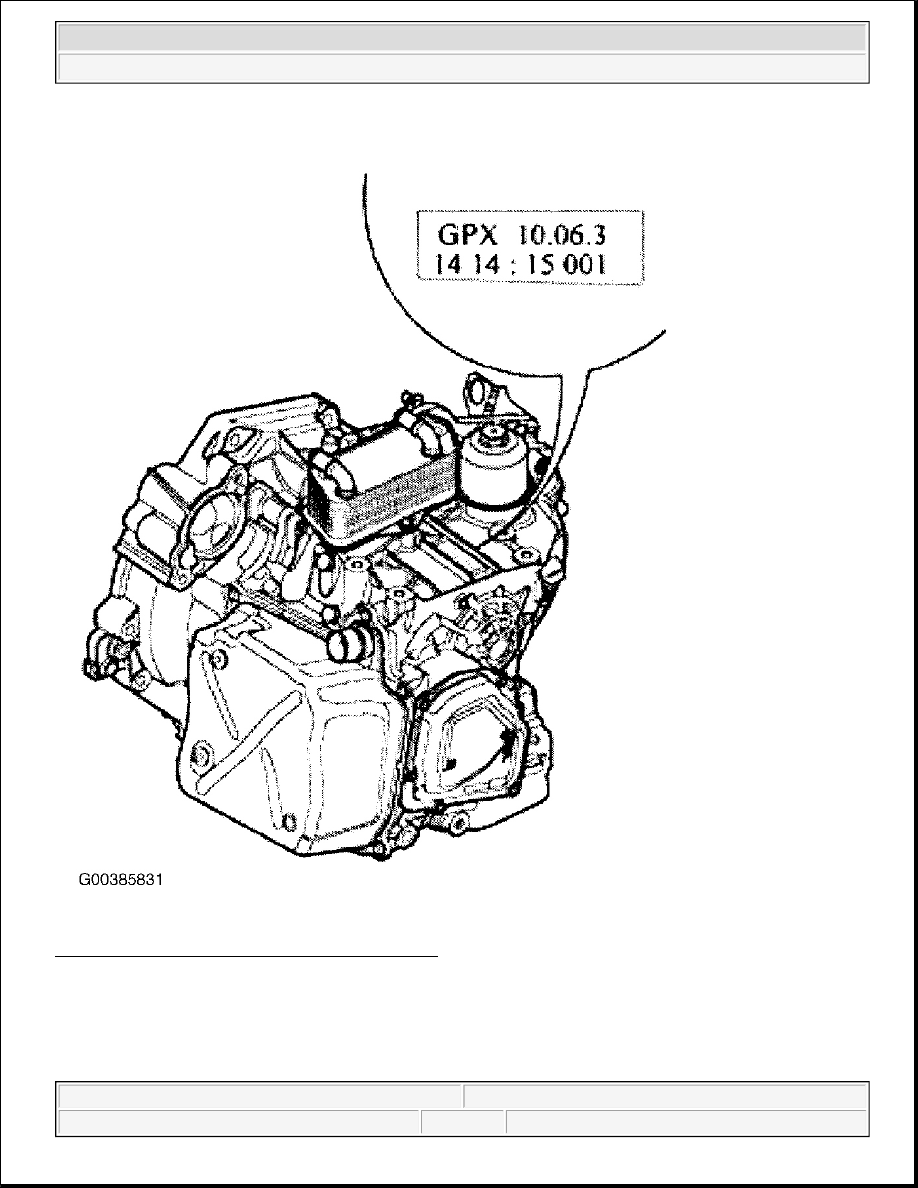

Fig. 1: Locating Transmission Identification Code
Courtesy of VOLKSWAGEN UNITED STATES, INC.

CODE LETTERS, TRANSMISSION APPLICATION, RATIOS, EQUIPMENT



2003 Volkswagen New Beetle GLS

2003-04 AUTOMATIC TRANSMISSION Overhaul - New Beetle, 02E

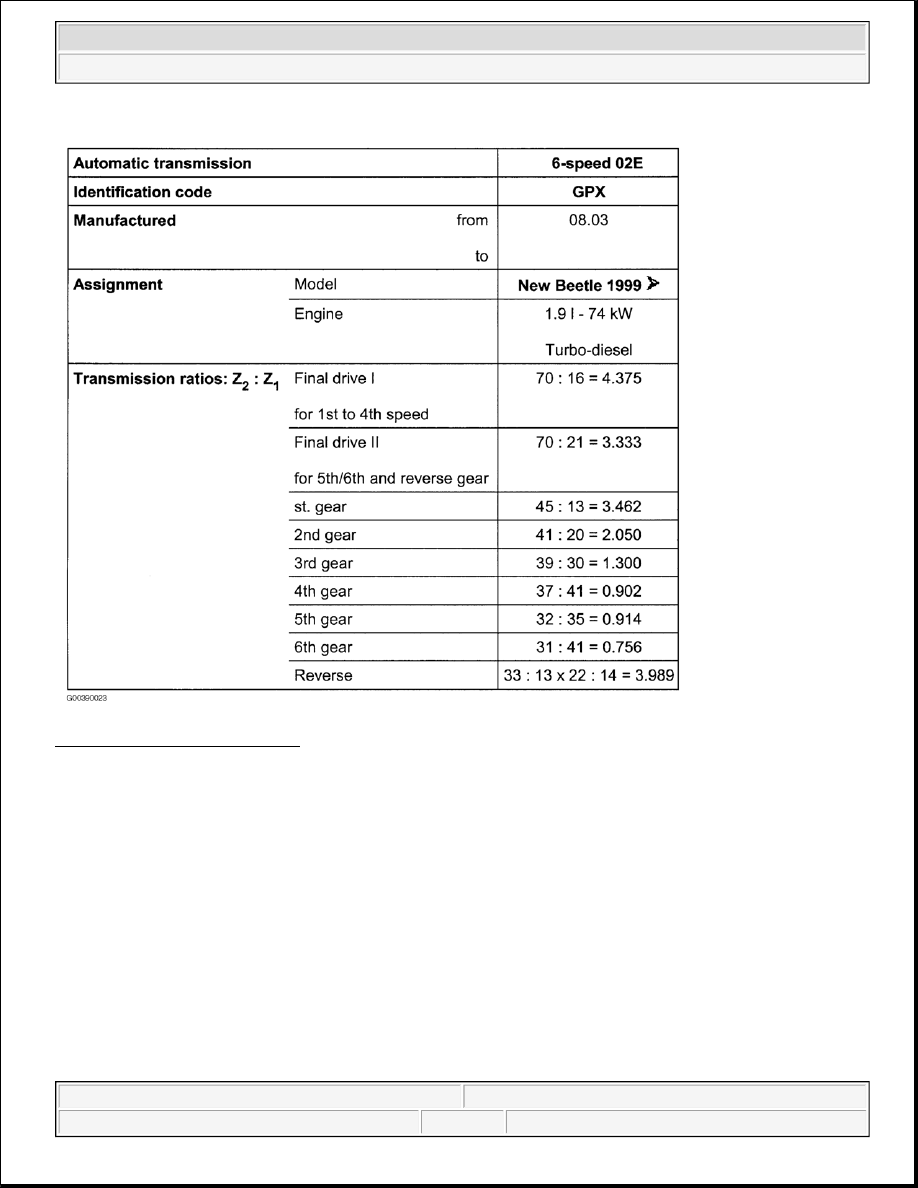

Fig. 2: Transmission Code GPX
Courtesy of VOLKSWAGEN UNITED STATES, INC.

DESCRIPTION & OPERATION

TRANSMISSION

The 6 Spd. Direct Shift Automatic Transmission 02E is also called double-clutch transmission. The engine
torque is initiated via the two-mass flywheel into the transmission. The transmission is built up like a 6-speed
manual transmission. By alternating sequence of the hydraulic activation of two multi-plate wet clutches, it is
operated like an automatic transmission, that means the speeds are selected automatically or manually via
Tiptronic mode. A clutch pedal is not installed.

SAFETY FUNCTIONS OF TRANSMISSION CONTROL MODULE

If one or more components or sensors fail the Transmission Control Module (TCM) -J217- activates the
corresponding functions or emergency programs. This ensures a transmission operation without damage which



2003 Volkswagen New Beetle GLS

2003-04 AUTOMATIC TRANSMISSION Overhaul - New Beetle, 02E



could have effects on gearshift function and quality.

GEAR CHANGE POINT VARIATIONS FOR HILLS

An additional gear change map automatically selects gear changes for hills dependent upon accelerator pedal
position and driving speed.

z

Gear change map for extreme uphill stretches, is matched to engine output.

z

Gear change map for extreme downhill stretches, is matched to braking effect of the engine.

z

By selecting a gear directly via Tiptronic the engine braking effect can be exploited also with a specific
gear selected, such as when you have gradients in the trailer mode.

LUBRICATION & ADJUSTMENTS

For lubrication and adjustments, see SERVICING - A/T (02E) article in TRANSMISSION SERVICING.

ON-VEHICLE SERVICE

AXLE SHAFTS

For information on axle shaft, see AXLE SHAFTS article in DRIVELINE/AXLES.

TRANSMISSION COMPONENTS

For information on components serviceable while transmission is installed in vehicle, see SERVICING - A/T
(02E) article.

APPLY & BRAKE CLUTCH APPLICATION

Manufacturer does not provide specific information for apply and brake clutch application.

REPAIR INSTRUCTIONS

The maximum possible care and cleanliness and proper tools are essential to ensure satisfactory and successful
transmission repairs. The usual basic safety precautions naturally also apply when performing servicing work.

A number of generally valid instructions for various repair procedures, which are mentioned at various points in
the Repair Manual; are summarized here.

BATTERY DISCONNECTING & RECONNECTING

CAUTION: Before beginning repairs on the electrical system:

z

Obtain anti-theft radio security code.



2003 Volkswagen New Beetle GLS

2003-04 AUTOMATIC TRANSMISSION Overhaul - New Beetle, 02E



For work steps required after reconnecting battery, see Fig. 3 .

z

Switch off all electrical consumers.

z

Switch ignition off and remove ignition key.

z

Do not loosen or remove ground strap from body. Disconnect
terminal from battery only.
