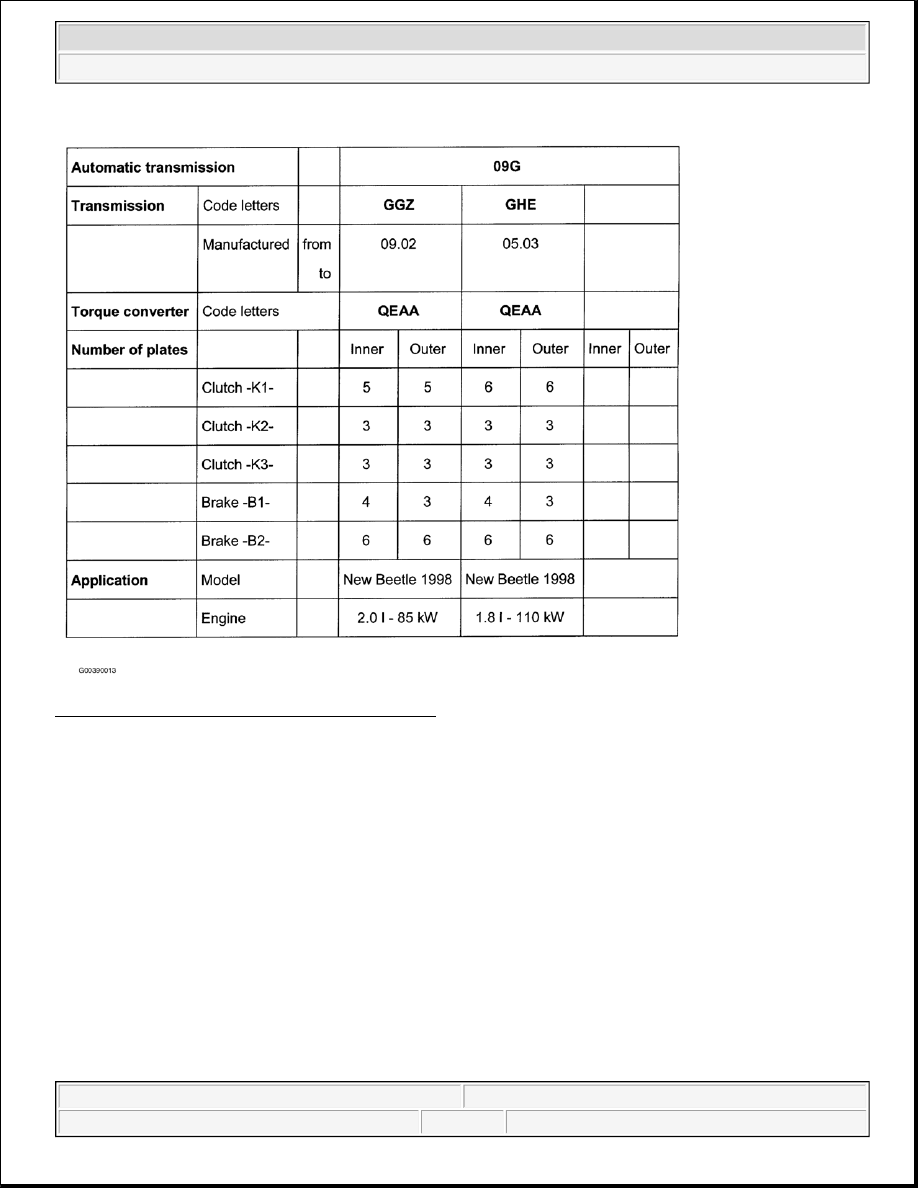

Fig. 2: Transmission Codes GGZ & GHE (1 Of 2)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC TRANSMISSION Overhaul - New Beetle, 09G

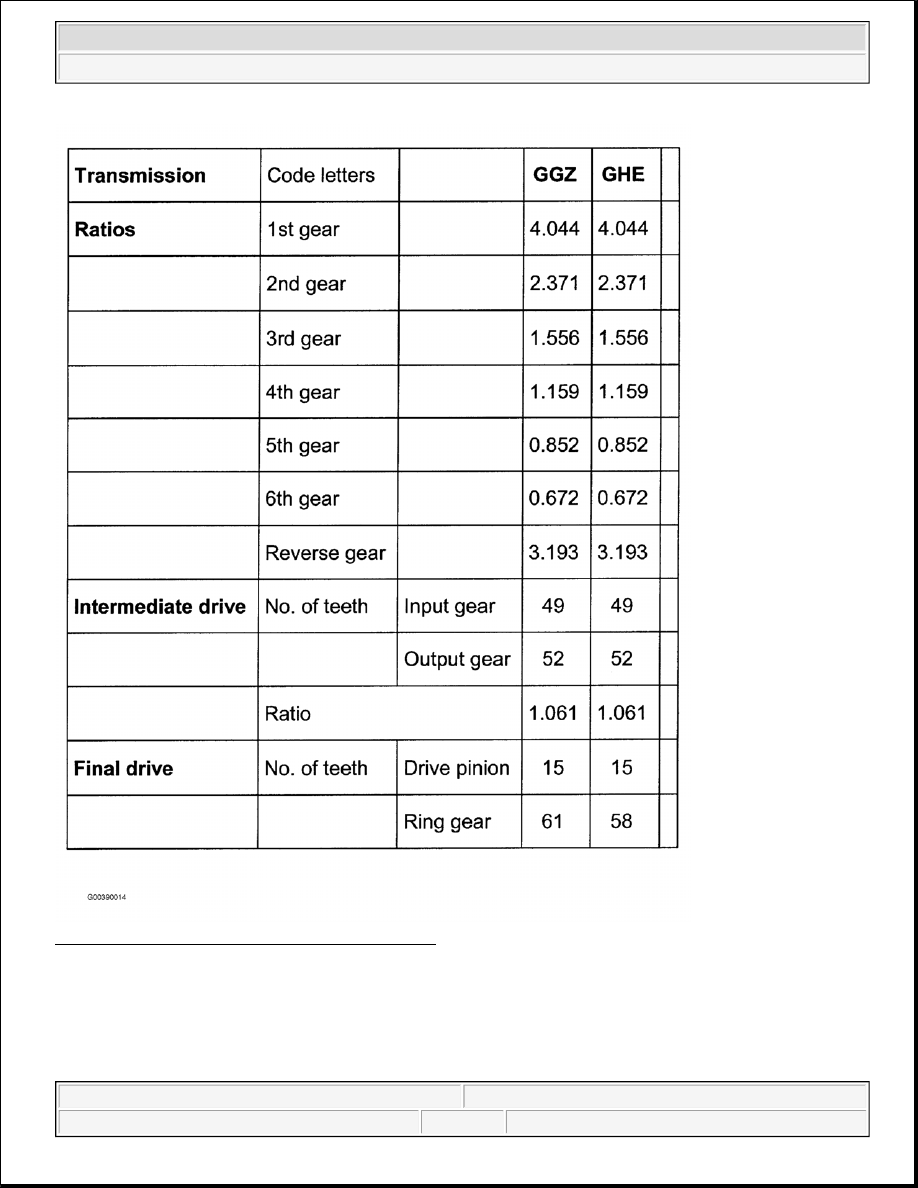

Fig. 3: Transmission Codes GGZ & GHE (2 Of 2)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

DESCRIPTION & OPERATION

TRANSMISSION



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC TRANSMISSION Overhaul - New Beetle, 09G



The 6-speed automatic transmission 09G is equipped with 6 hydraulically activated forward gears. The 2nd,
3rd, 4th ,5th and 6th gears become mechanically driven gears by cutting out torque converter slip when the
lock-up clutch is closed.

TORQUE CONVERTER

The torque converter is equipped with a lock-up clutch. The lock-up clutch is closed dependent on load and
speed. The 2nd, 3rd, 4th, 5th and 6th gears are then driven mechanically independent of slip.

ATF

The ATF oil is filled-for-life. The ATF does not require changing within the framework of a service.

When checking oil level use only ATF with the Part No. G 055 025 A2.

The ATF level in the planetary gearbox and the final drive is checked and filled simultaneously. See
SERVICING - A/T (09G) article.

GUIDED FAULT FINDING, VEHICLE SELF-DIAGNOSIS AND MEASURING TECHNOLOGY

Before performing repairs to the automatic transmission, determine the cause of the malfunction as precisely as
possible with the aid of "Guided fault finding".

The guided fault finding is performed with Vehicle Diagnosis, Testing and Information System VAS 5051.

TRANSMISSION CONTROL MODULE -J217-

With Driving Situation Gear Changes (Fuzzy Logic)

Advantages:

z

Gear changes are consumption orientated

z

Maximum engine output is always available

z

Individual adaptation of gear change points in all driving situations

z

Gear change points are infinitely variable

Gear Change Point Variations For Hills

An additional gear change map automatically selects gear changes for hills dependent upon accelerator pedal
position and driving speed.

z

Gear change map for extreme uphill stretches is matched to engine output

NOTE:

Determining the driving situation and driving resistance dependent gear change
point occurs automatically.



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC TRANSMISSION Overhaul - New Beetle, 09G



z

Gear change map for extreme downhill stretches is matched to braking effect of the engine

LUBRICATION & ADJUSTMENTS

For lubrication and adjustments, see SERVICING - A/T (09G) article in TRANSMISSION SERVICING.

ON-VEHICLE SERVICE

AXLE SHAFTS

For information on axle shaft, see AXLE SHAFTS article in DRIVELINE/AXLES.

TRANSMISSION COMPONENTS

For information on components serviceable while transmission is installed in vehicle, see SERVICING - A/T
(09G)
 article.

APPLY & BRAKE CLUTCH APPLICATION

Manufacturer does not provide specific information for apply and brake clutch application.

TRANSMISSION CHECKING

VAS 5051, CONNECTING AND SELECTING FUNCTION

Special Tools And Equipment

z

VAS 5051 Vehicle Diagnosis, Testing and Information System

z

Diagnostic cable VAS 5051/1 or VAS 5051/3



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC TRANSMISSION Overhaul - New Beetle, 09G
