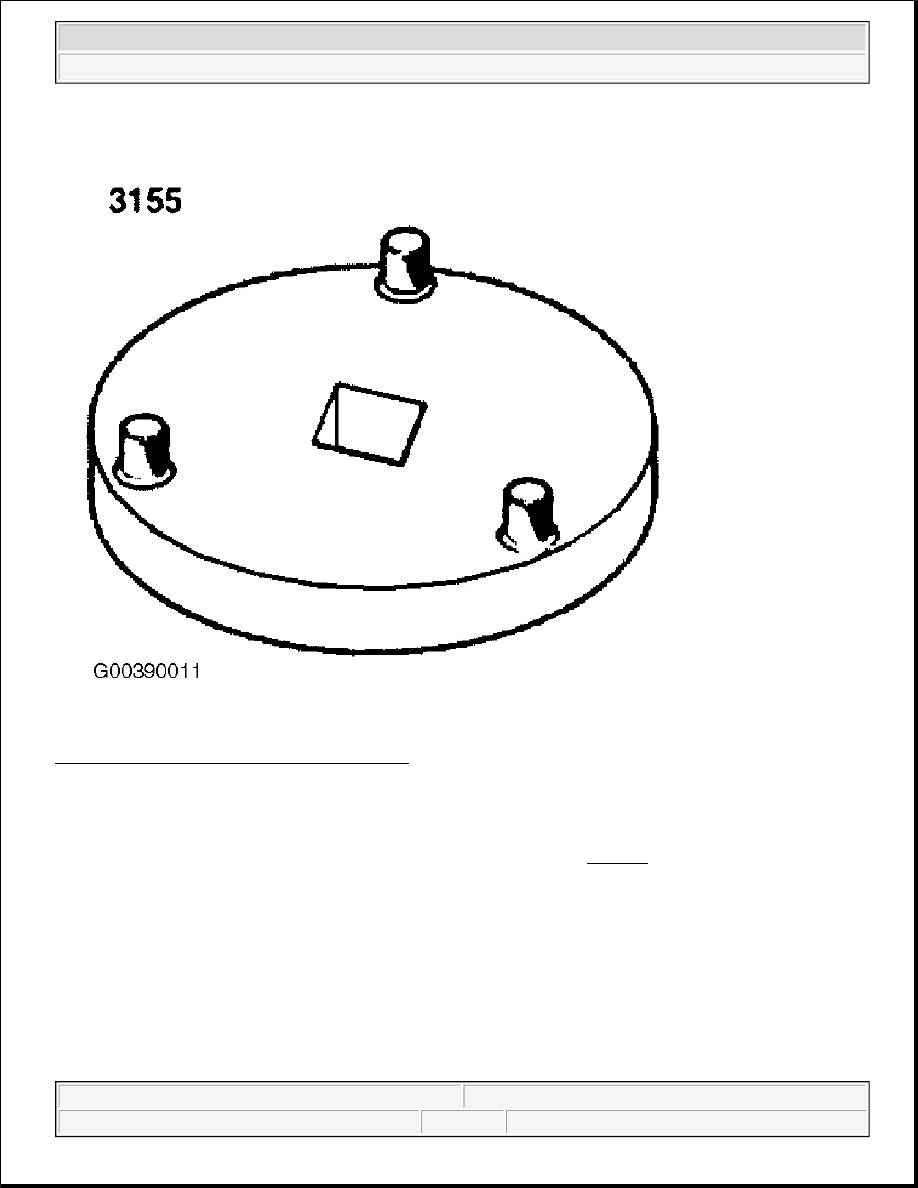

Fig. 219: Identifying Ring Nut Spanner (3155)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Adjusting Differential

Tighten bearing body with 3155 to 150 Nm as far as stop and secure. See Fig. 220 .



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M



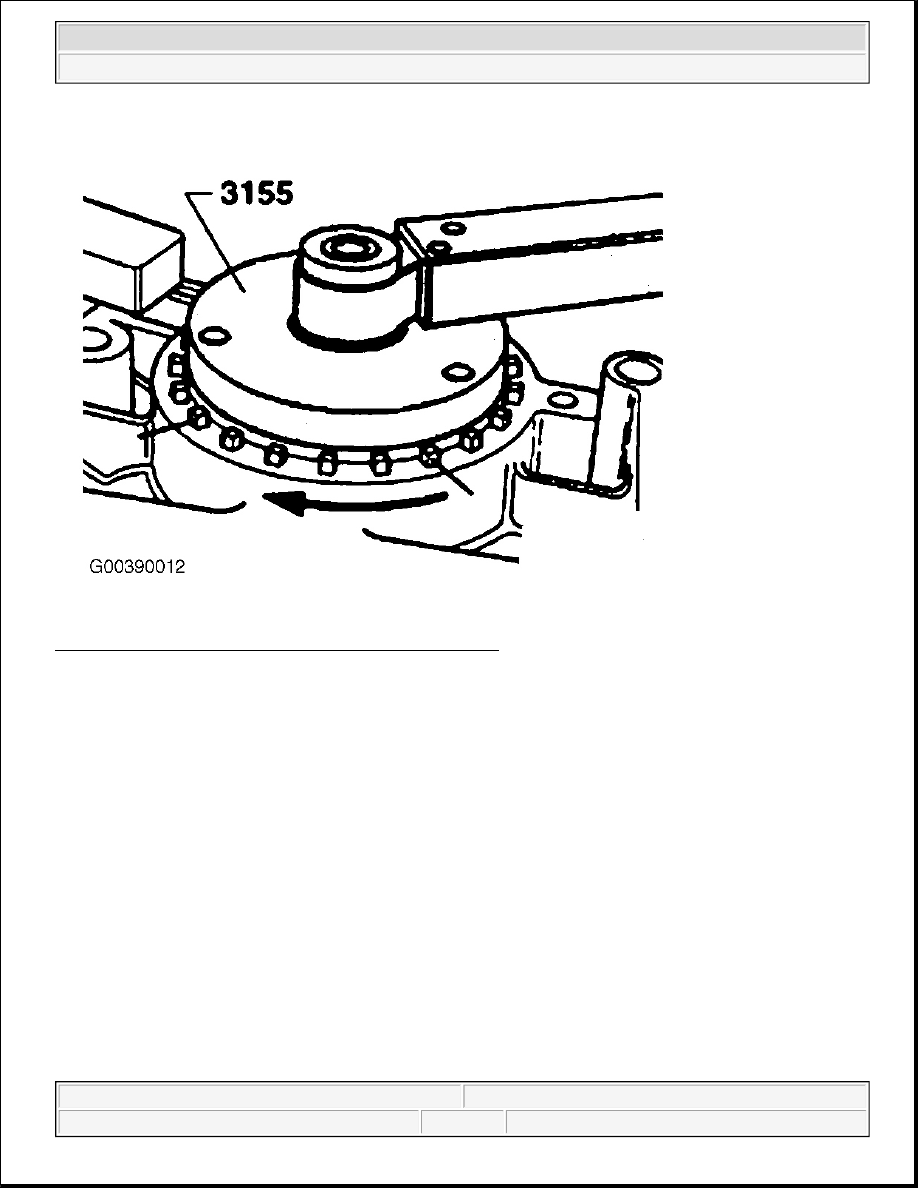

Fig. 220: Tightening Bearing Body with Special Tool 3155
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Tighten adjusting ring to 50 Nm and mark.

Turn adjusting ring on by five locking lugs and secure so that preload of tapered roller bearings is set.

DEFINITIONS

These definitions are only for this assembly group: Automatic transmission 01M. They are not valid for general
use.

ATF (AUTOMATIC TRANSMISSION FLUID)

Transmission oil for automatic transmission.

ATF PUMP

NOTE:

When performing measurement, do not turn differential otherwise the bearings
will settle and give you a false measurement.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M



A gear type pump driven by the torque converter.

ATF LEVEL

The fill level of ATF in the transmission with engine running.

DATA BUS

Transportation of data. To do this the electrical signals are brought into a certain format (bus).

DATA BUS LOW (HIGH)

The voltage used to transport the data is low (high).

BRAKES

These hold rotating components in the transmission. The automatic transmission is fitted with plate type brakes.
In difference to the clutches, the brakes support against the transmission housing.

TORQUE CONVERTER

Transfers the engine torque to the automatic transmission and acts as a drive-away clutch. The torque converter
also includes the lock-up clutch.

ON BOARD DIAGNOSTIC (OBD)

The capability of the control module:

z

to recognize malfunctions,

z

to react to malfunctions,

z

to store diagnostic trouble codes (DTCs),

z

to register malfunctions and make them available in the Measured Value Block.

PERFORMING ON BOARD DIAGNOSTIC

Connecting the Scan Tool to be able to check the Diagnostic Trouble Code (DTC) memory.

PERFORMING ELECTRICAL CHECK

A targeted check of the electronic components by performing certain measurements.

FREEWHEEL/STATOR

Ensures the torque is increased in the torque converter when driving off.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M



FREEWHEEL/TRANSMISSION

Technically simplifies the gear changes without interrupting the power and ensures a constant gear change
quality.

TRANSMISSION VEHICLE SPEED SENSOR (VSS) -G38-

The sensor records the speed of the large sun-wheel in the planetary gearbox and transmits it to the automatic
transmission control module. Further information on this can be found in Self-study program No. 172.

VEHICLE SPEED SENSOR (VSS) -G68-

The sensor records the speed of the output gear and transmits it to the automatic transmission control unit (not
to the speedometer). Further information on this can be found in Self-study program No. 172.

CLUTCHES

Together with the brakes, they engage the individual gears.

SELECTOR LEVER LOCK SOLENOID N110

Located in the selector mechanism close to the selector lever. Prevents movement (involuntary) of the selector
lever from positions "P" and "N" as long as the brake pedal is not depressed.

SOLENOID VALVES

Opens and closes the oil channels to the clutches and brakes.

MULTI FUNCTION SWITCH -F125-

Electrical switch with multiple functions. For more information refer to Self-study program No. 172.

EMERGENCY RUNNING

"Condition of the control unit" when certain malfunctions are recognized it guarantees the further driving
safety, protects the transmission against damage and at the same time impairs the driving characteristics only as
much as is necessary.

PARKING LOCK

The parking lock gear is mechanically locked when the vehicle is stationary and prevents the vehicle from
rolling (involuntarily).

PLANETARY GEARBOX

Is a mechanical component of the automatic transmission and is switched via the clutches and brakes without
