loss of power.

PENDULUM SUPPORT

Designation for a part of the assembly mounting.

VALVE BODY

Located on the bottom of the transmission and is enclosed in the ATF pan. Its valves regulates the hydraulic
pressure and distributes it via the oil channels to the switch elements (clutches and brakes).

TRANSMISSION CONTROL MODULE (TCM) -J217-

The electronic control module defines the shift points. The function of the transmission is monitored via the
self-diagnosis. If a component or sensor fails, an emergency running program ensures the vehicle can still be
driven.

TCC (TORQUE CONVERTER LOCK-UP CLUTCH)

It transfers the engine torque mechanically to the transmission.

IGNITION KEY WITHDRAWAL LOCK

Makes sure that the ignition key can only be withdrawn when Park position is selected and also mechanically
locks the selector level in this position.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M



2003-04 AUTOMATIC TRANSMISSION

Overhaul - New Beetle, 02E

APPLICATION

TRANSMISSION APPLICATION

IDENTIFICATION

Transmission code letters are given on bottom of transmission, near oil cooler. See Fig. 1 . Transmission code
letters are also given on vehicle data stickers.

Application

Transmission Model

1.9L (2003-2004)

02E, 6-Speed



2003 Volkswagen New Beetle GLS

2003-04 AUTOMATIC TRANSMISSION Overhaul - New Beetle, 02E





2003 Volkswagen New Beetle GLS

2003-04 AUTOMATIC TRANSMISSION Overhaul - New Beetle, 02E

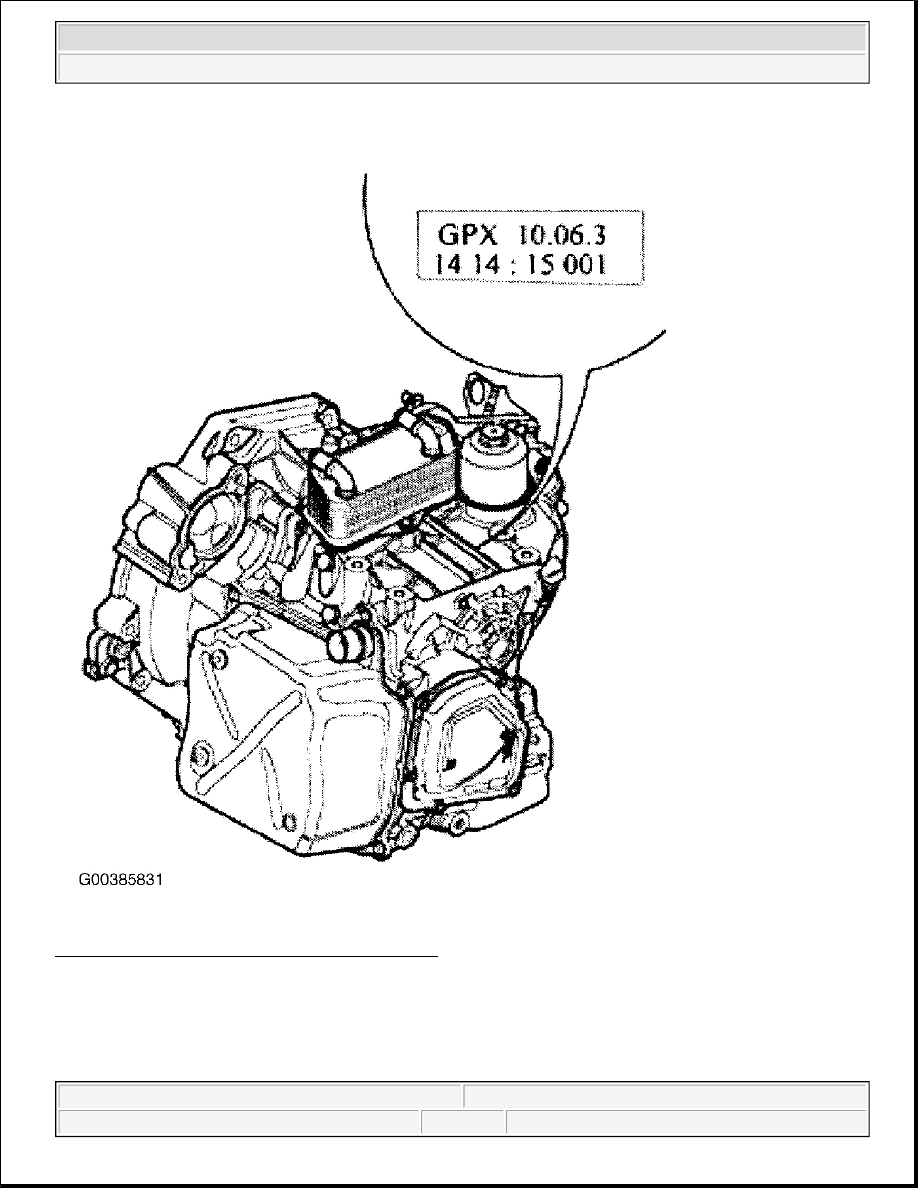

Fig. 1: Locating Transmission Identification Code
Courtesy of VOLKSWAGEN UNITED STATES, INC.

CODE LETTERS, TRANSMISSION APPLICATION, RATIOS, EQUIPMENT



2003 Volkswagen New Beetle GLS

2003-04 AUTOMATIC TRANSMISSION Overhaul - New Beetle, 02E

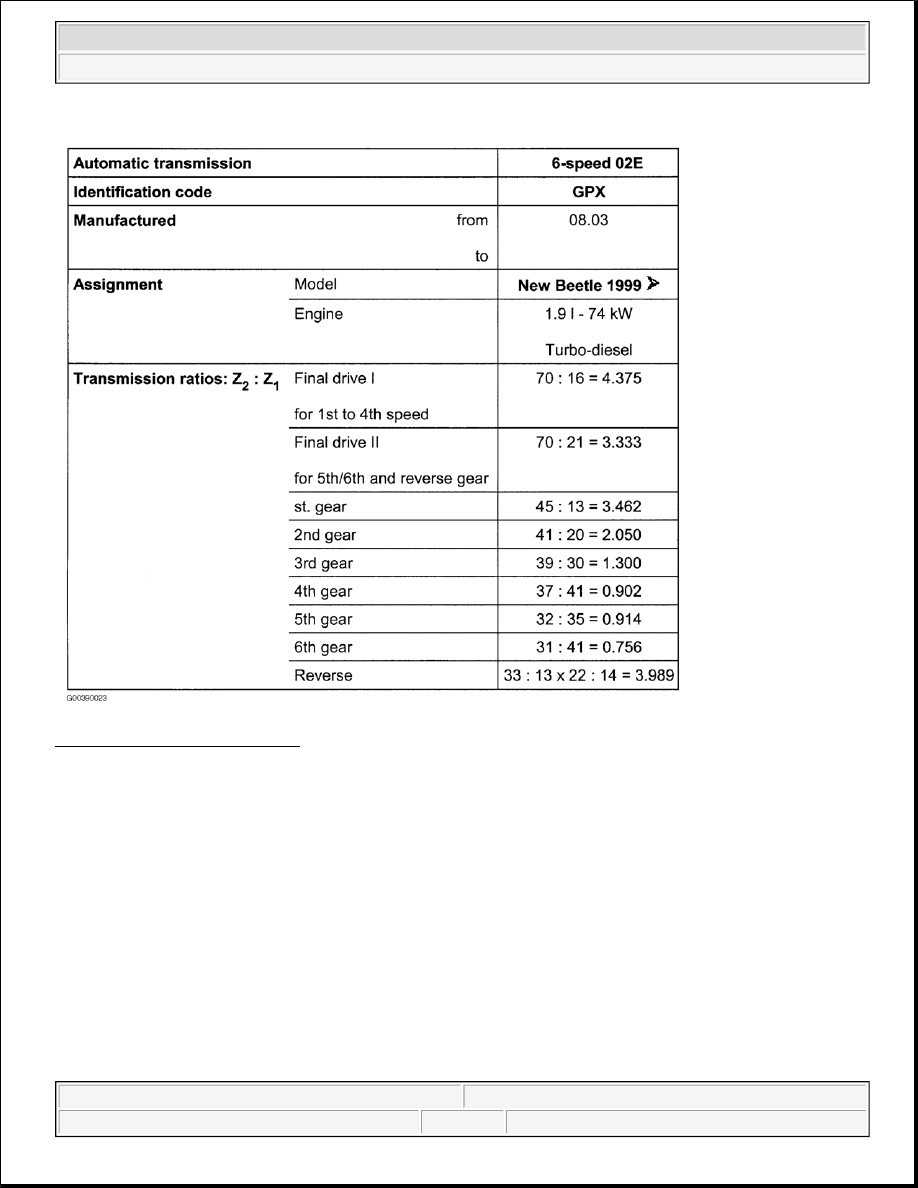

Fig. 2: Transmission Code GPX
Courtesy of VOLKSWAGEN UNITED STATES, INC.

DESCRIPTION & OPERATION

TRANSMISSION

The 6 Spd. Direct Shift Automatic Transmission 02E is also called double-clutch transmission. The engine
torque is initiated via the two-mass flywheel into the transmission. The transmission is built up like a 6-speed
manual transmission. By alternating sequence of the hydraulic activation of two multi-plate wet clutches, it is
operated like an automatic transmission, that means the speeds are selected automatically or manually via
Tiptronic mode. A clutch pedal is not installed.

SAFETY FUNCTIONS OF TRANSMISSION CONTROL MODULE

If one or more components or sensors fail the Transmission Control Module (TCM) -J217- activates the
corresponding functions or emergency programs. This ensures a transmission operation without damage which



2003 Volkswagen New Beetle GLS

2003-04 AUTOMATIC TRANSMISSION Overhaul - New Beetle, 02E
