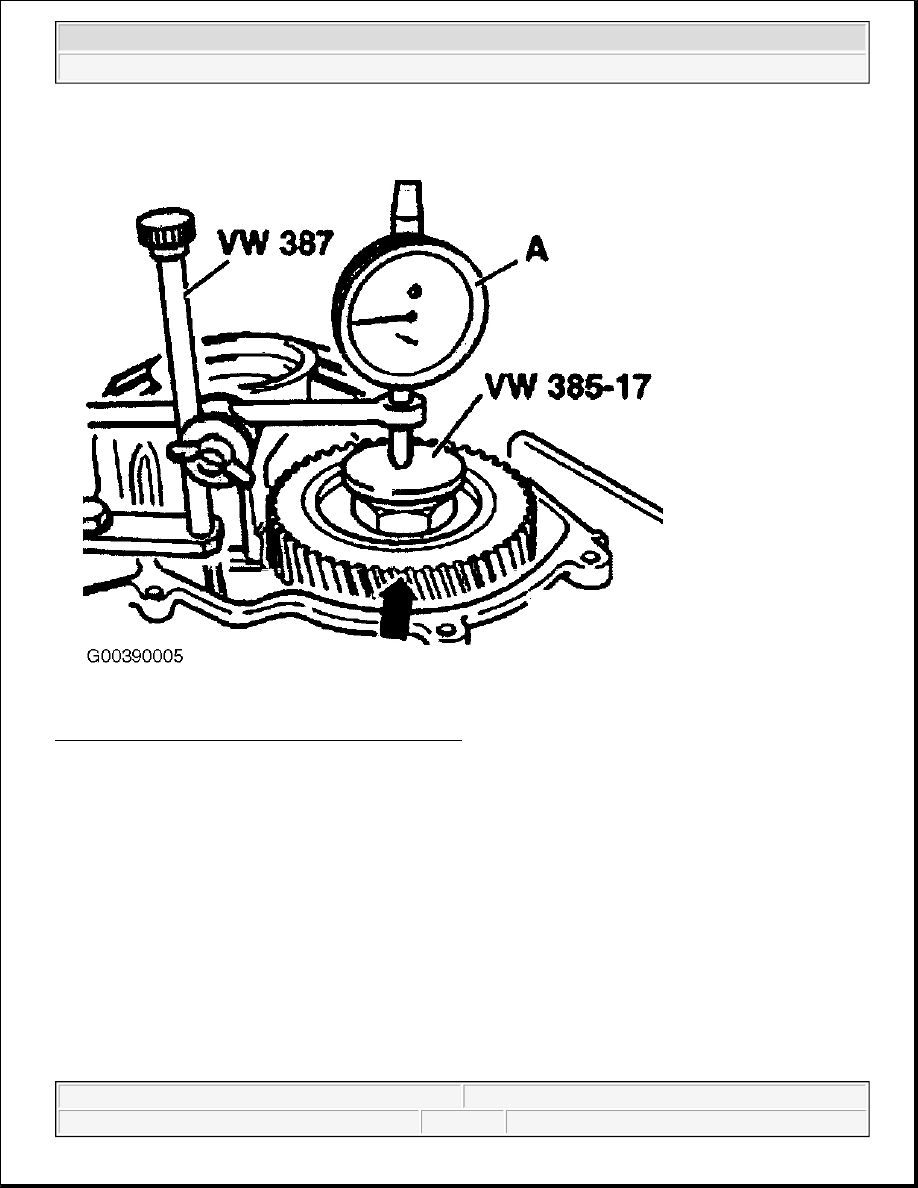

Fig. 213: Identifying Dial Gauge Installation Position
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Determining Shims

The specified bearing preload is achieved if the reading (0.93 mm), the preload of the bearings 0.12 mm and the
amount for compression 0.10 mm are deducted from the 2 x 1.5 mm thick shims.

Example calculation:

z

"start" Shims inserted = 3.00 mm

z

"minus" Reading = 0.93 mm

z

"minus" Preload = 0.12 mm

NOTE:

When performing measurement, do not turn drive pinion as the bearings will
otherwise settle and give you a false measurement.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M



z

"minus" Amount for settlement = 0.10 mm

z

"equals" Thickness of shim = 1.85 mm

Remove output gear. Determine size of shim on basis of table, and fit onto pinion. See Table Of Shims For
Drive Pinion And Input Gear
 .

Re-install output gear and tighten hex nut to 250 Nm. Secure with drift.

Table Of Shims For Drive Pinion And Input Gear



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M

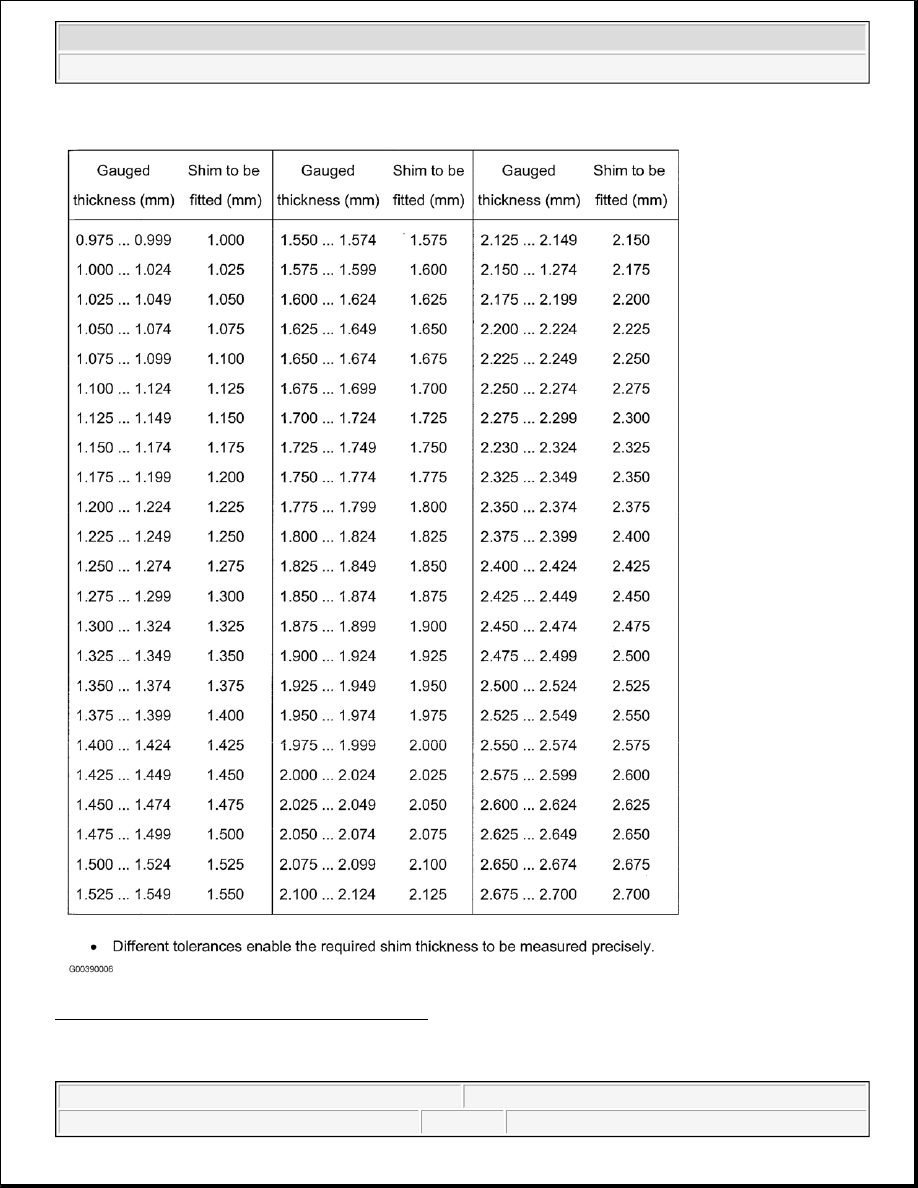

Fig. 214: Drive Pinion & Input Gear Shim Table
Courtesy of VOLKSWAGEN UNITED STATES, INC.

INPUT GEAR, ADJUSTING



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M



Special Tools And Equipment

z

VW 382 Measuring appliance

z

VAG 1332 Torque wrench

z

Dial gauge

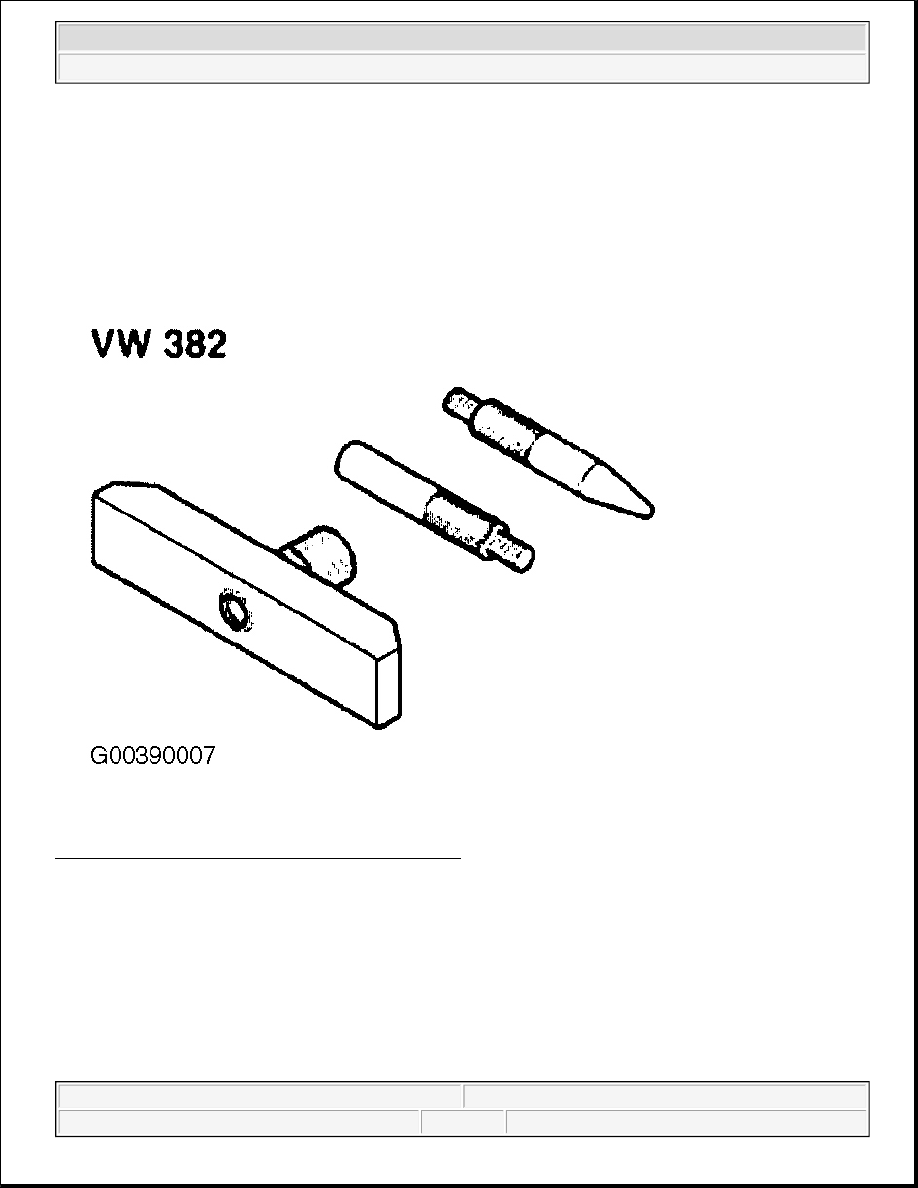

Fig. 215: Identifying Measuring Appliance (VW 382)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M
