Volkswagen New Beetle. Manual - part 2262





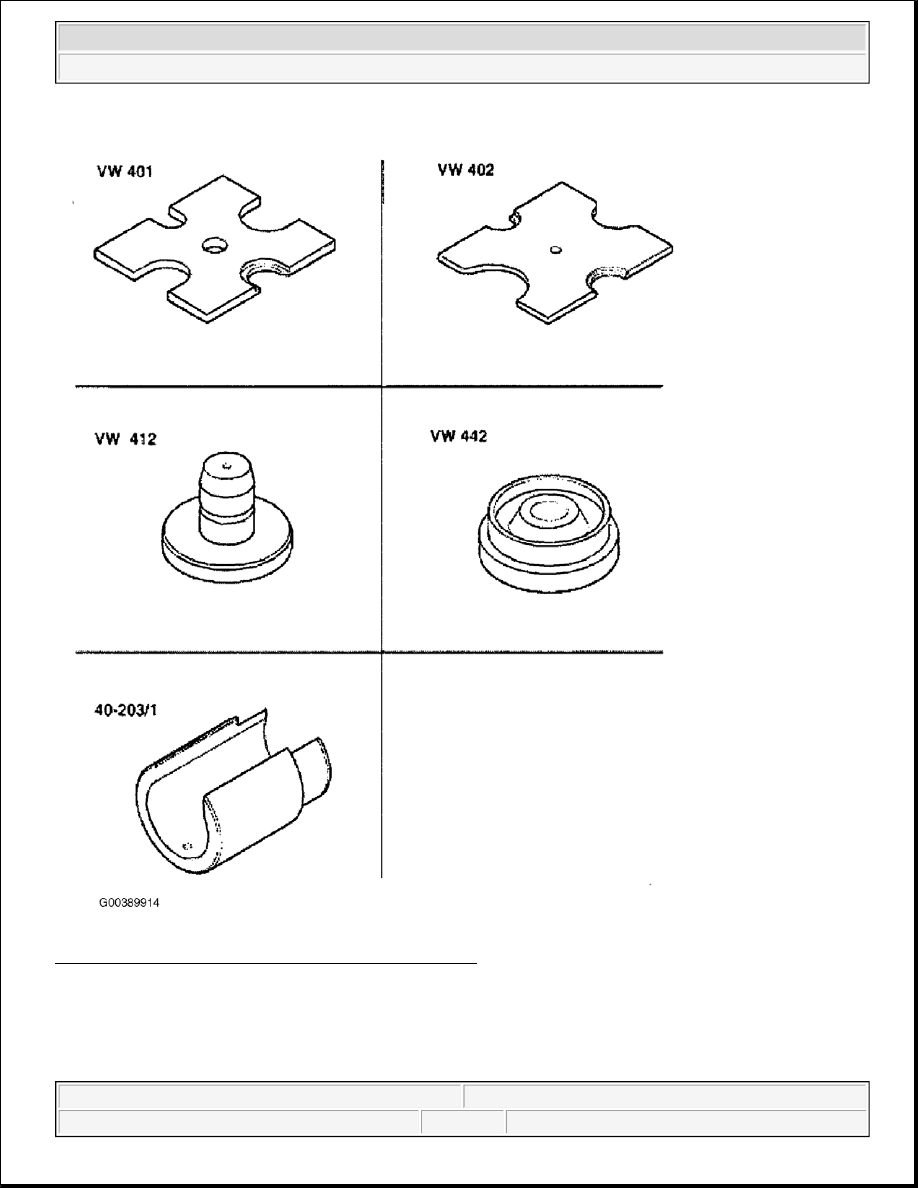

Fig. 121: Identifying 1st-3rd Gear Clutch Special Tools
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Disassembling And Assembling



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M

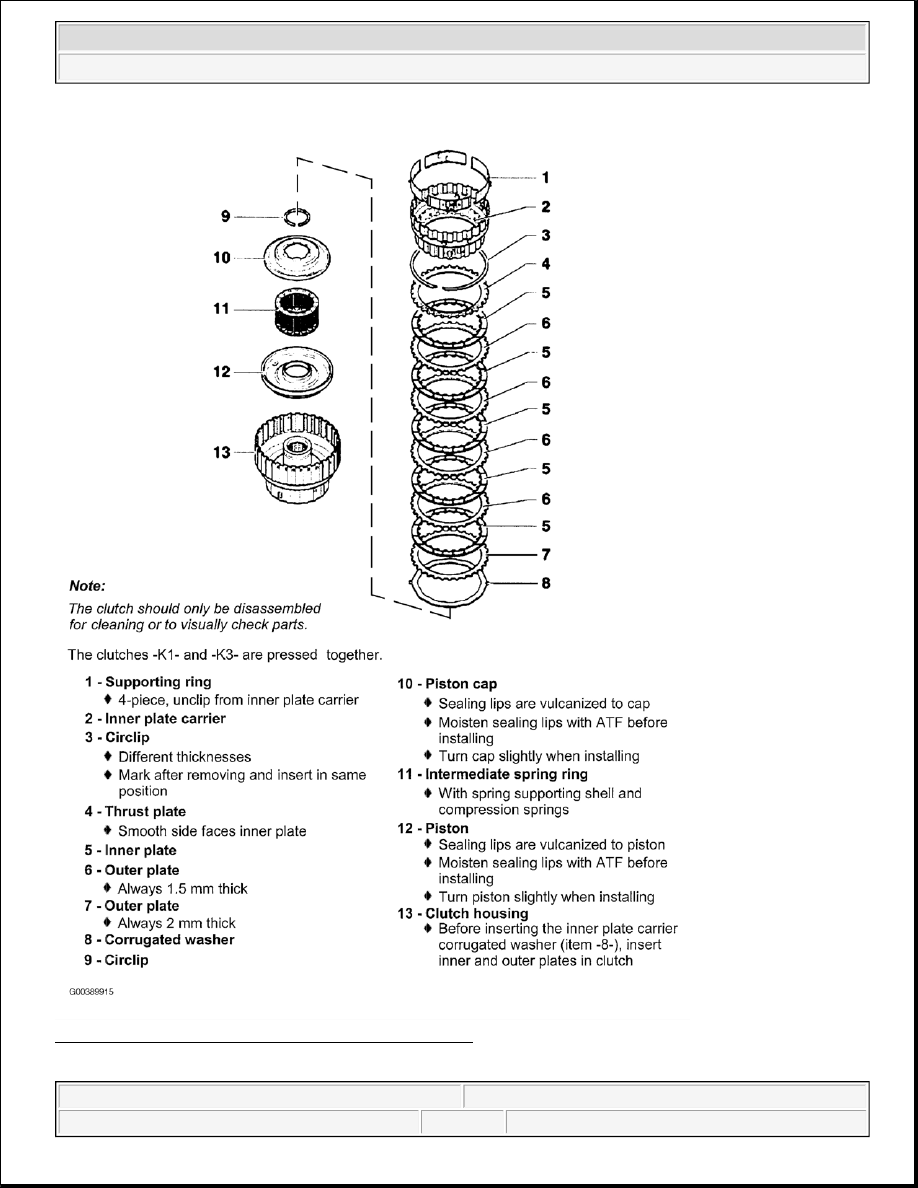

Fig. 122: Identifying 1st-3rd Gear Clutch Components
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M



Press piston cap with intermediate spring ring down far enough for circlip (arrow) to be inserted in groove. See
Fig. 123 .

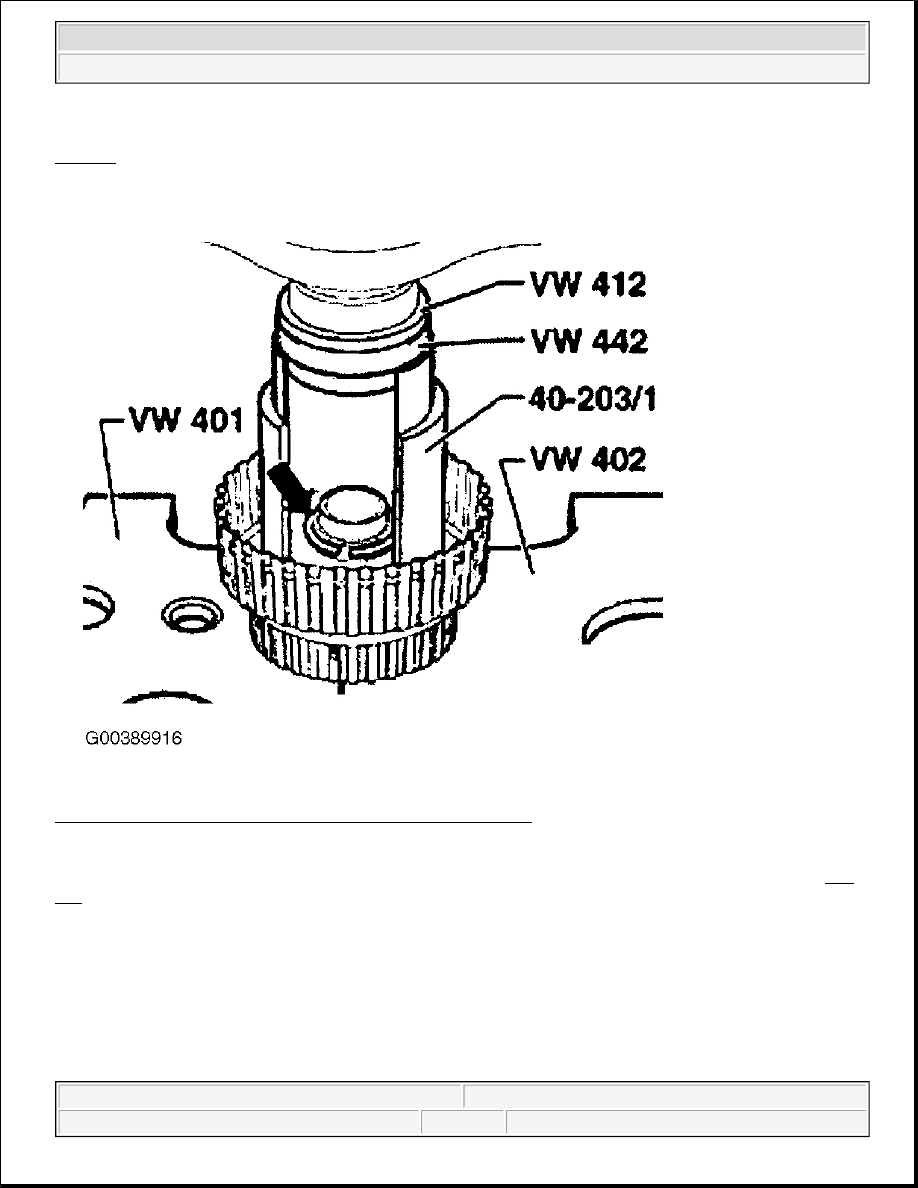

Fig. 123: Removing & Installing Circlip (1st-3rd Gear Clutch)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Install thrust plate -a- with smooth side facing inner plate and stepped side towards inner plate carrier. See Fig.
124
 .



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M

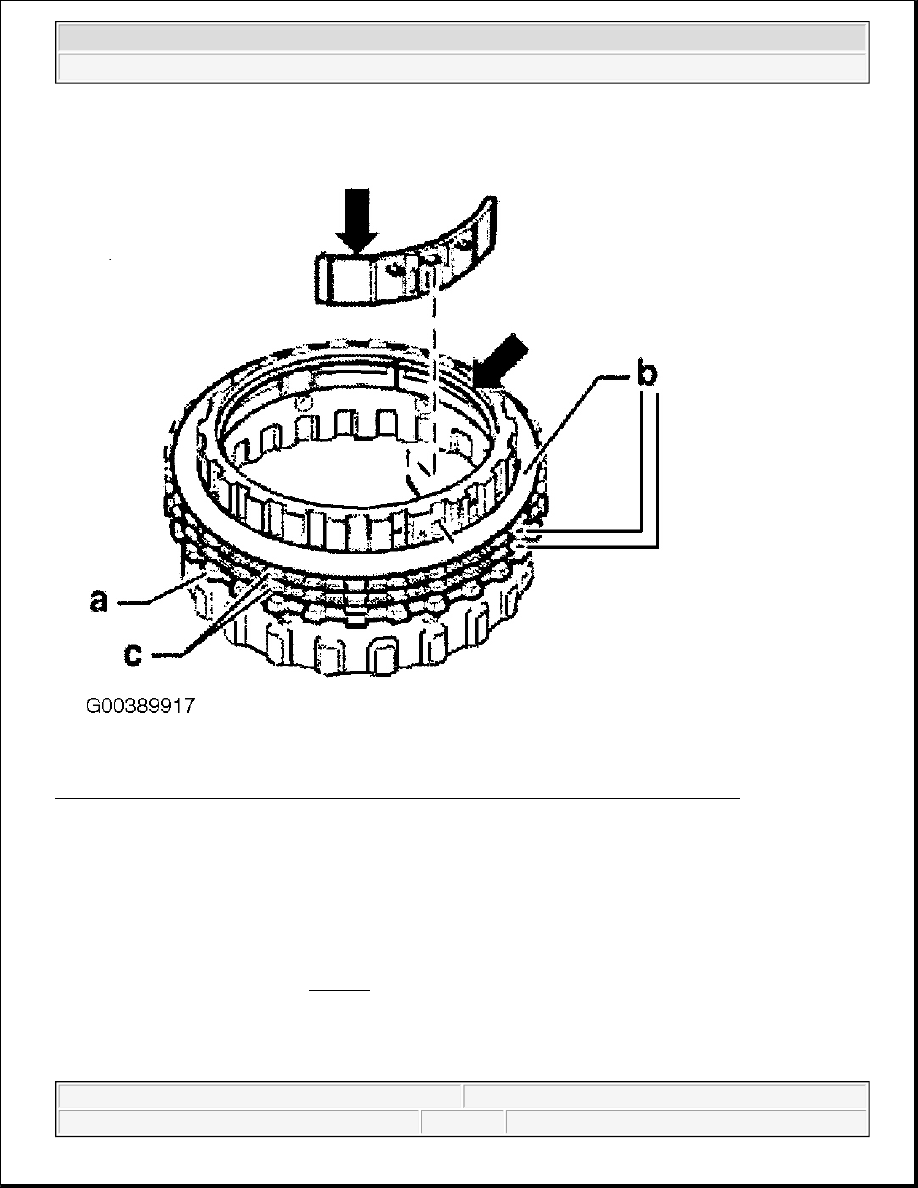

Fig. 124: Installing Thrust Plate & Plates Onto Inner Plate Carrier (1st-3rd Gear Clutch)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Install 3 inner plates -b- and 2 outer plates -c-.

Clip in supporting ring with step (arrow).

First insert corrugated washer. See Fig. 125 .

NOTE:

Locate locating lugs correctly.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M
