Volkswagen New Beetle. Manual - part 2253





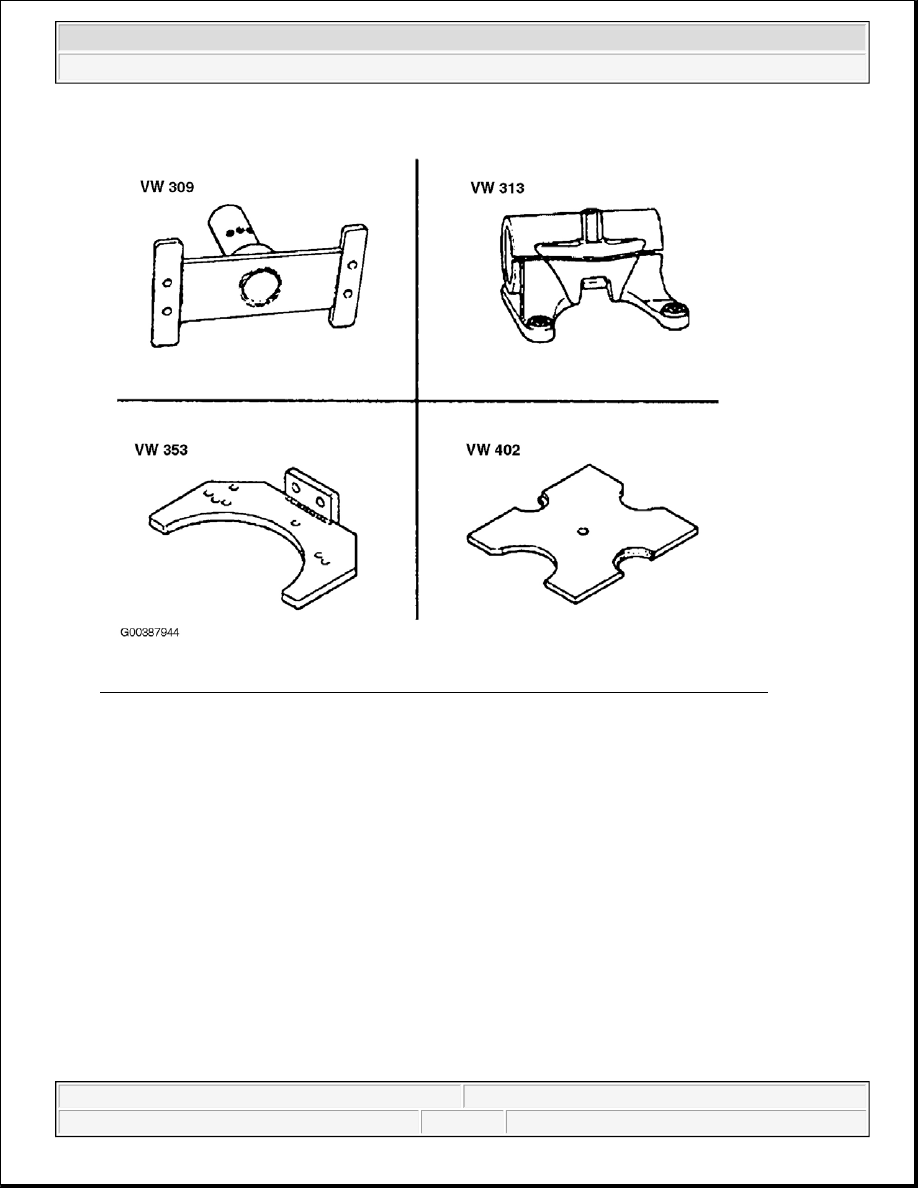

Fig. 93: Identifying Reverse Gear Adjustment Special Tools (Reverse Gear Brake -B1-)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Overview Of Components To Adjust Reverse Gear Brake -B1-



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M

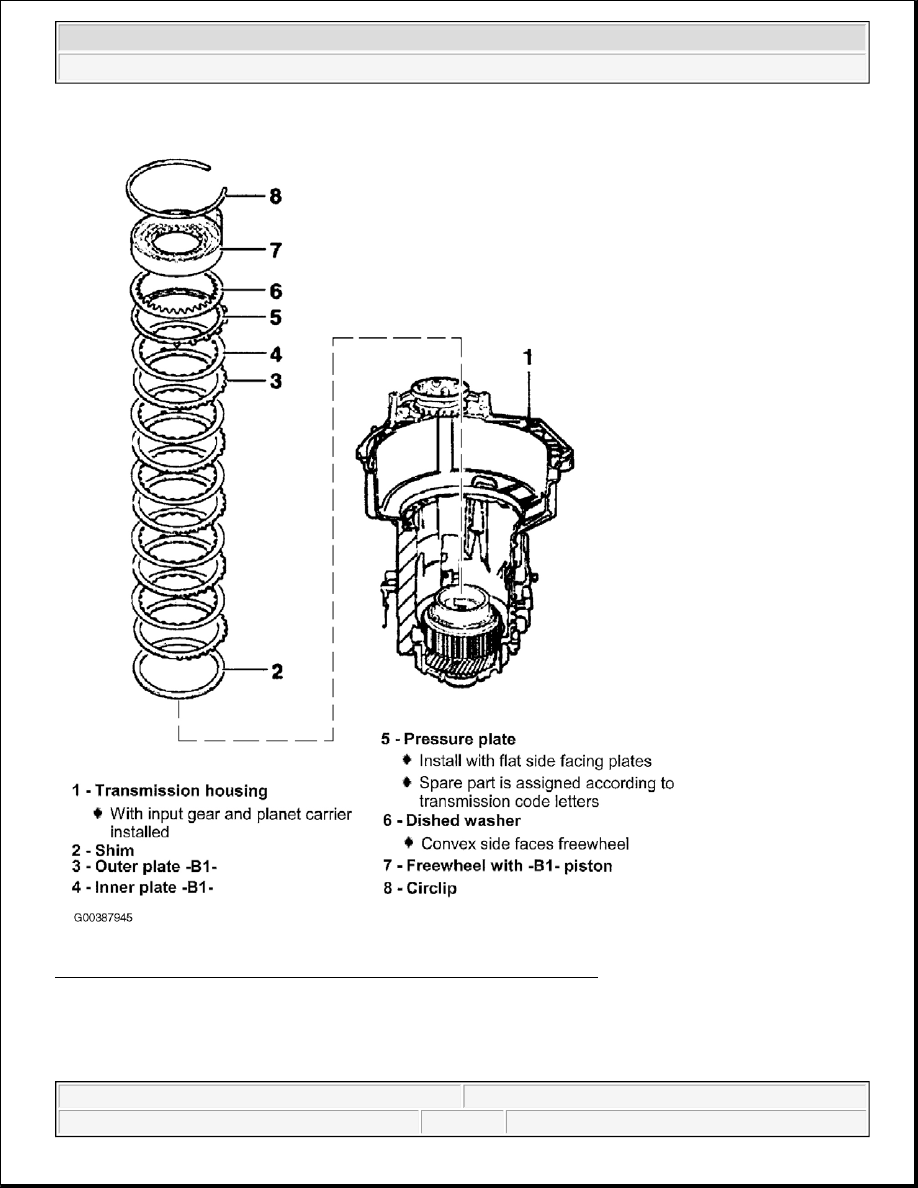

Fig. 94: Overview Of Components To Adjust Reverse Gear Brake -B1-
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Determining Shim -A- Thickness (Reverse Gear Brake -B1-)

For the measuring sequence the transmission housing must be clamped into the assembly stand so that the input



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M



gear is facing downward, as illustrated. See Fig. 94 .

For explanation of callouts in Fig. 94 , see the following:

z

A = Shim

z

x = Gap

z

I = Position of piston in freewheel

z

m = Height of plate set including pressure plate

z

K = Constant = 26.9 mm

"K" is determined by installation height in transmission housing and is not adjustable

Shim thickness is determined by gap "x" and selected from table. See Table Of Shims (Reverse Gear Brake -
B1-)
 .



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M

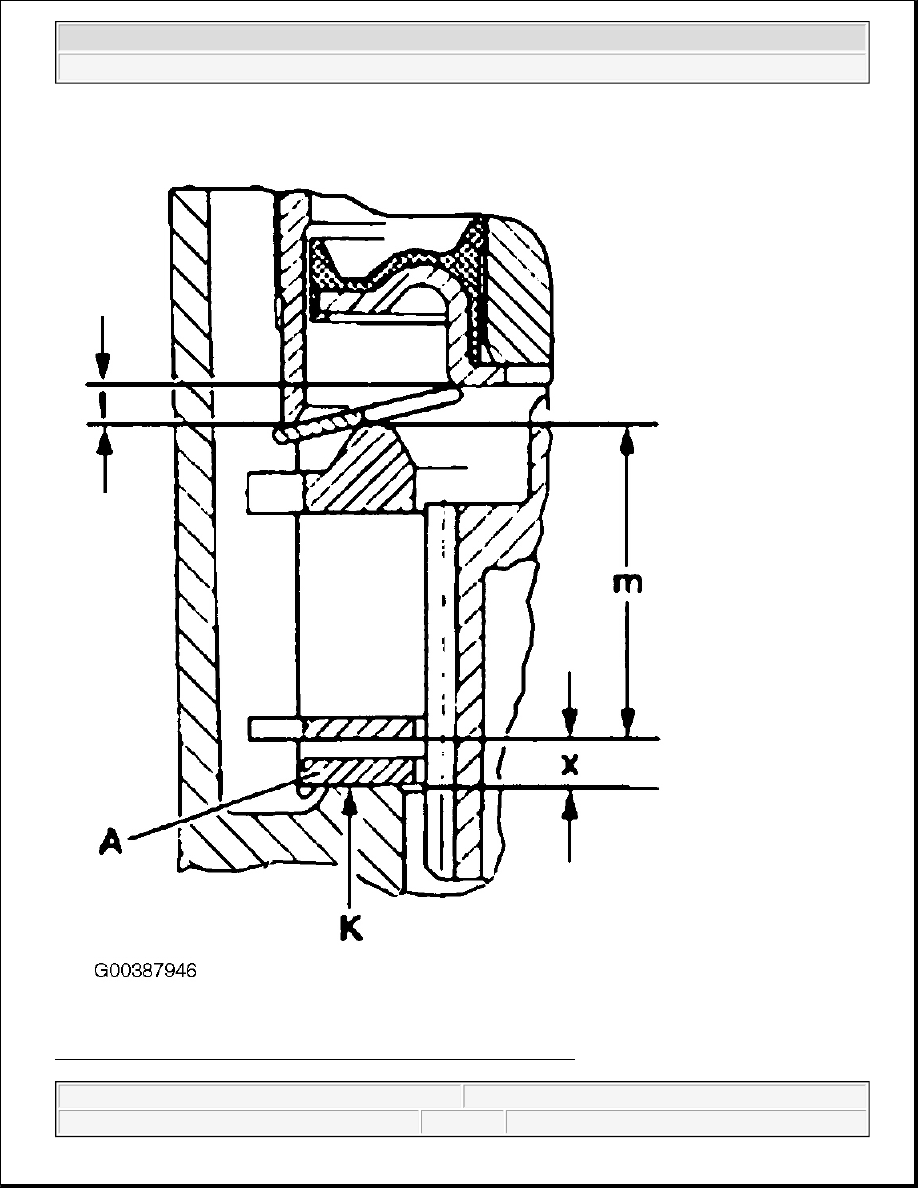

Fig. 95: Identifying Shim Measurements (Reverse Gear Brake -B1-)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M
