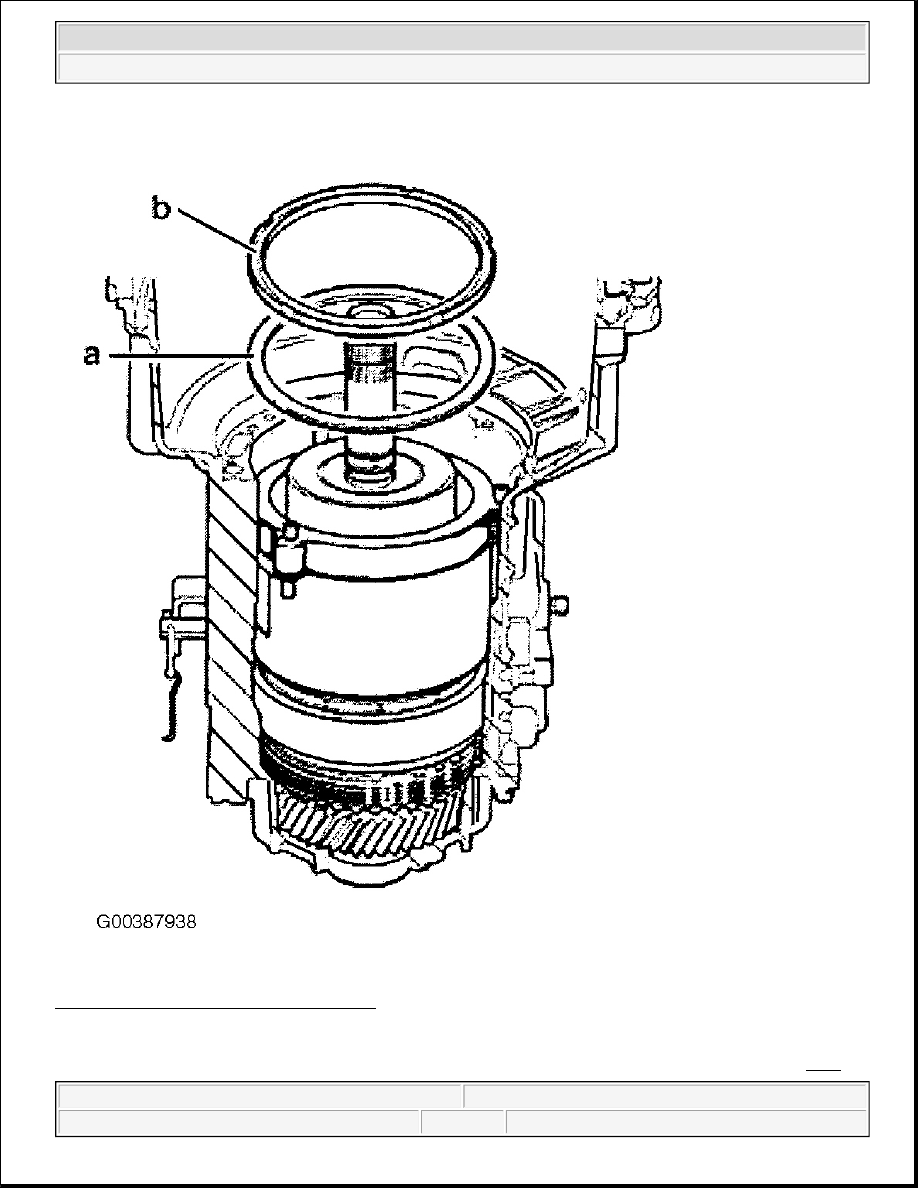

Fig. 83: Installing Shim & Retaining Ring
Courtesy of VOLKSWAGEN UNITED STATES, INC.

When replacing the following component, then the 2nd and 4th gear brakes -B2- are to be adjusted. See 2ND



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M



AND 4TH GEAR BRAKE -B2-, ADJUSTMENT

z

the transmission housing

z

Supporting tube

z

the ATF pump

z

retaining ring

z

or the plates

Clean strainer.

Install strainer. See Fig. 57 .

Strainer is located in ATF cooler pipe.

Install ATF pump seal. Install O-ring on ATF pump. Tighten bolts evenly, in a diagonal pattern. See Fig. 84 .
Turn bolts 90° further after initial tightening torque. Turning further can be done in several stages.

NOTE:

These components are assigned as replacement parts according to
transmission code letters.

NOTE:

Make sure that the O-ring is not damaged. Initial tightening torque: 8 Nm.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M

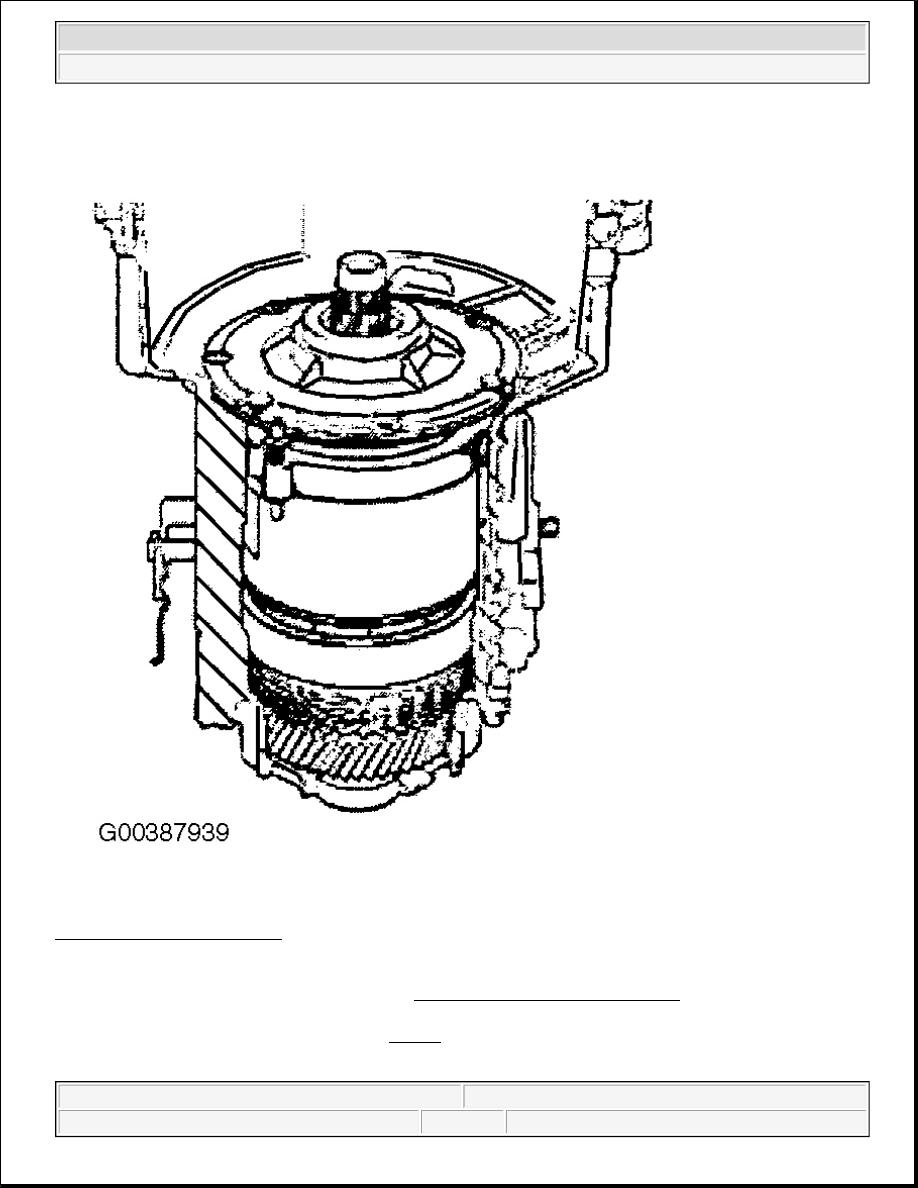

Fig. 84: Installing ATF Pump
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Carry out check measurement of clutch play. See Check Measurement (Clutch Play) .

Insert sealing plugs with O-rings -arrow-. See Fig. 54 . Installation position: Lug engages in oil channel.

Install valve body with conductor strip. See CONDUCTOR STRIP WITH INTEGRATED



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M



TRANSMISSION FLUID TEMPERATURE SENSOR -G93- in DIAGNOSIS - 01M article.

Install transmission oil pan. See VALVE BODY, REMOVING AND INSTALLING .

Install cover (arrow) with gasket and spacer bushings. See Fig. 85 . Tightening torque: 8 Nm.

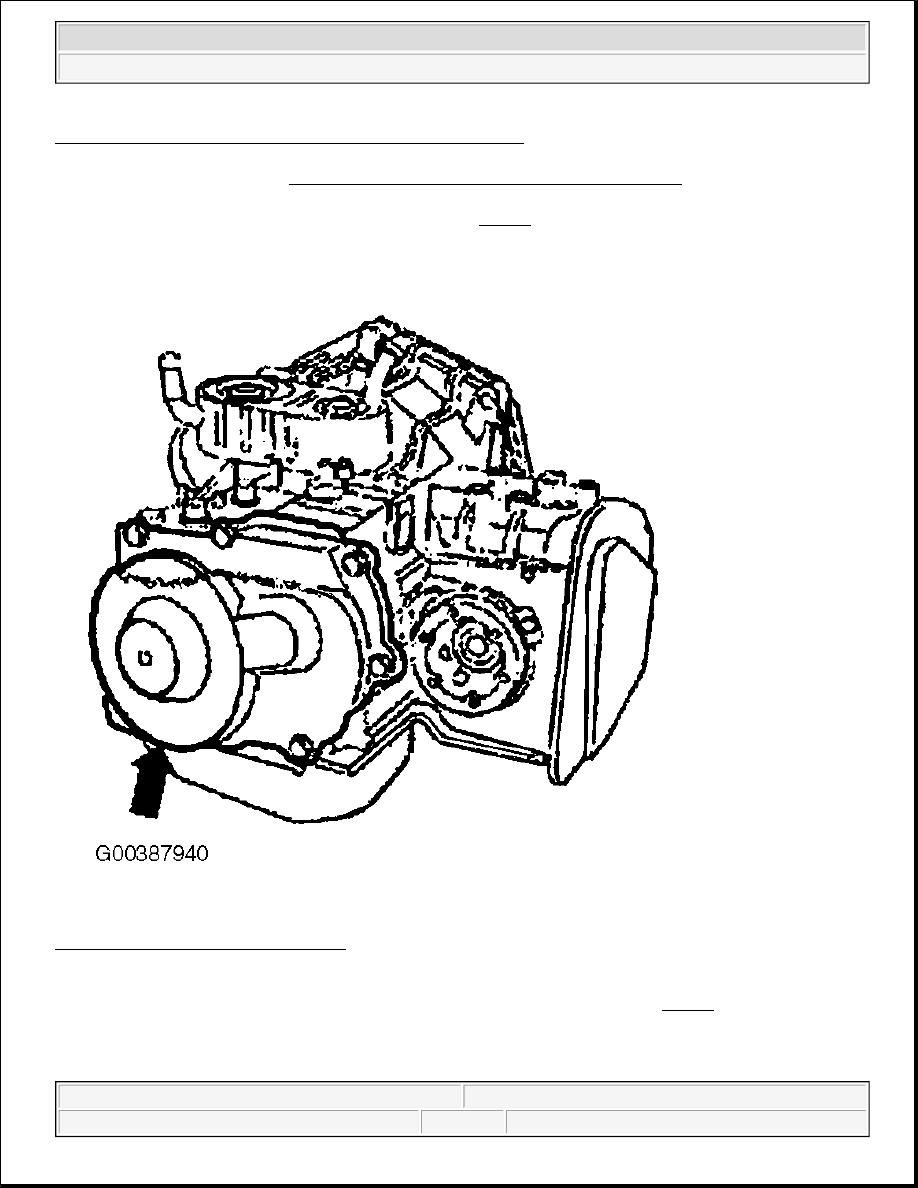

Fig. 85: Locating Transmission Cover
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Thread in ATF overflow pipe -1- and sealing plug -2- with new seal hand tight. See Fig. 86 .



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M
