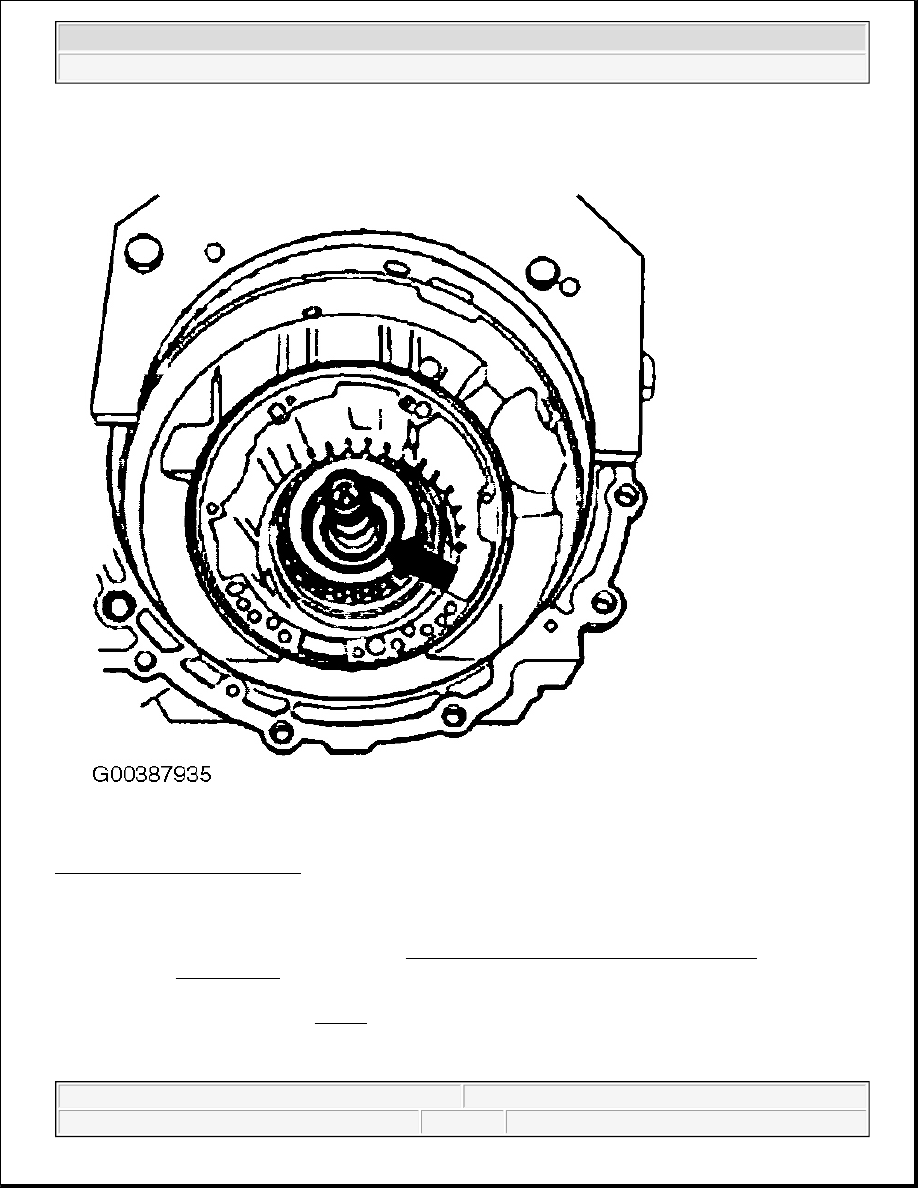

Fig. 80: Installing Shims in -K1-
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Insert reverse gear clutch -K2-. See Fig. 81 . Insert supporting tube for -B2- plate set (arrow) so that supporting
tube groove engages in freewheel wedge.

NOTE:

Remeasure shim when replacing -K1-, -K2- or ATF pump, adjusting clutch play
between -K1- and -K2. See CLUTCH PLAY BETWEEN -K1- AND -K2-,
ADJUSTING . 1 or 2 shims can be installed.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M



Insert reverse gear clutch -K2-. See Fig. 81 .

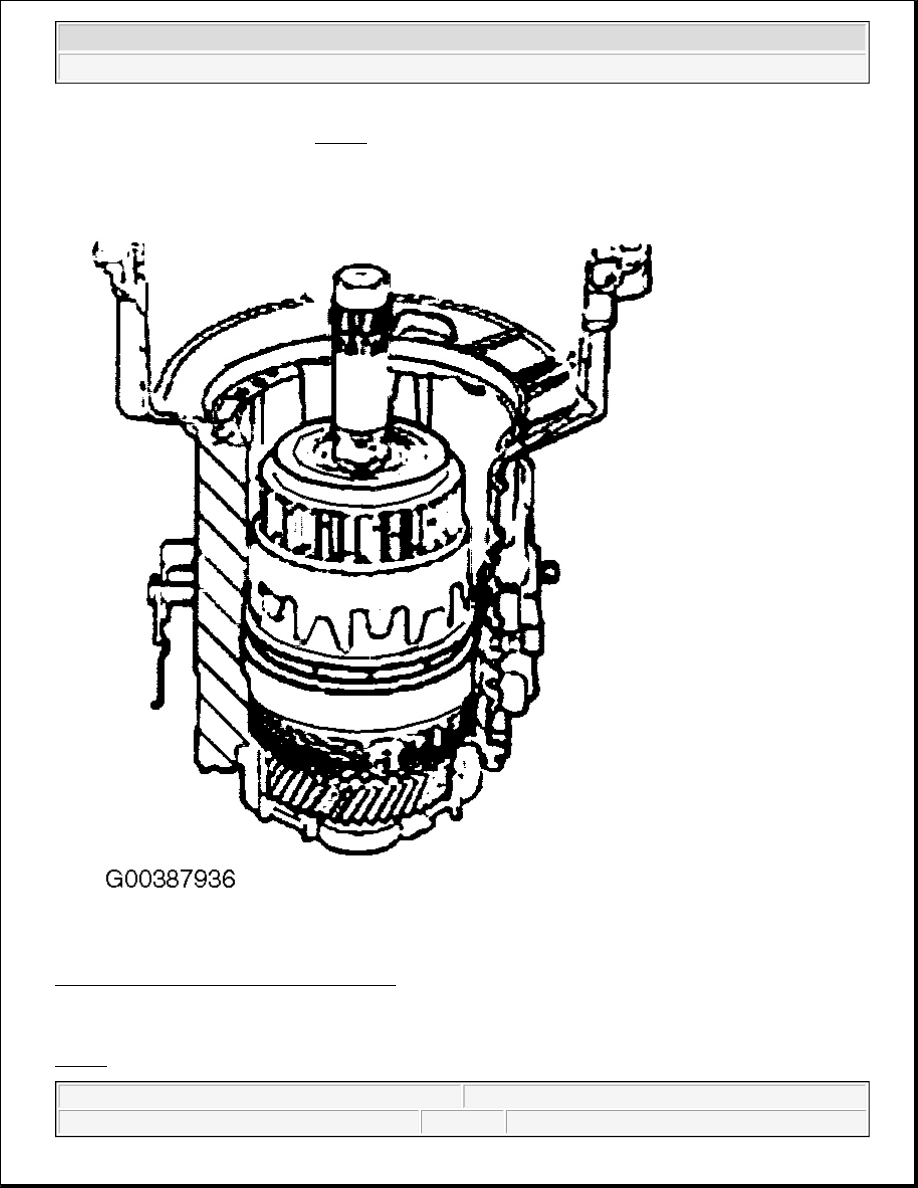

Fig. 81: Installing Reverse Gear Clutch -K2-
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Insert supporting tube for -B2- plate set (arrow) so that supporting tube groove engages in freewheel wedge. See
Fig. 82 .



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M

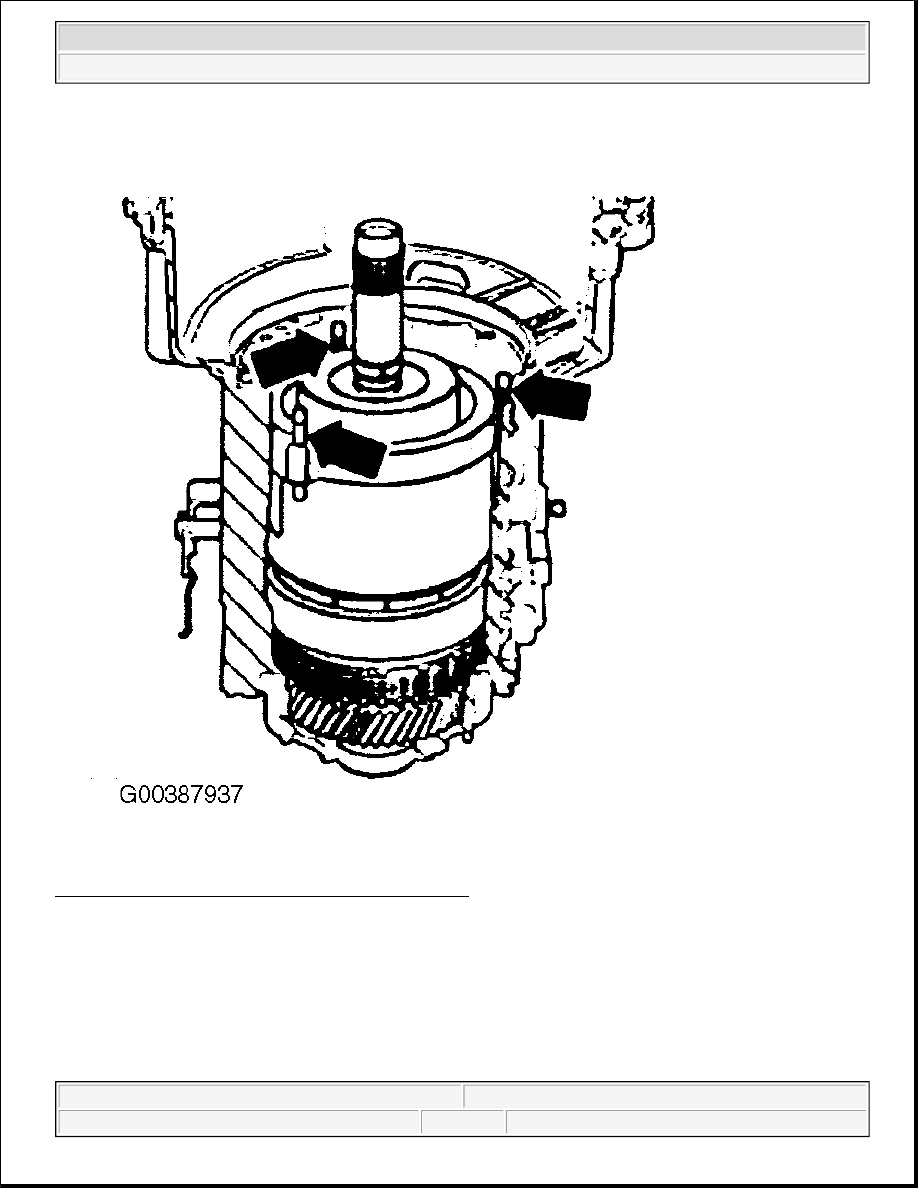

Fig. 82: Installing Supporting Tube For -B2- Plate Set
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Install -B2- plates as follows:

z

First insert a 3 mm thick outer plate.

z

Insert three spring caps in outer plate.

z

Insert compression springs (arrows).

z

Insert all but last outer plate.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M



z

Insert three spring caps onto compression springs.

z

Insert last outer plate -3 mm thick-.

Determine shim thickness. See 2ND AND 4TH GEAR BRAKE -B2-, ADJUSTMENT .

Install shim -a-. See Fig. 83 .

Insert retaining ring -b- onto shim. Smooth side facing shim. See Fig. 83 .



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M
