Volkswagen New Beetle. Manual - part 2248





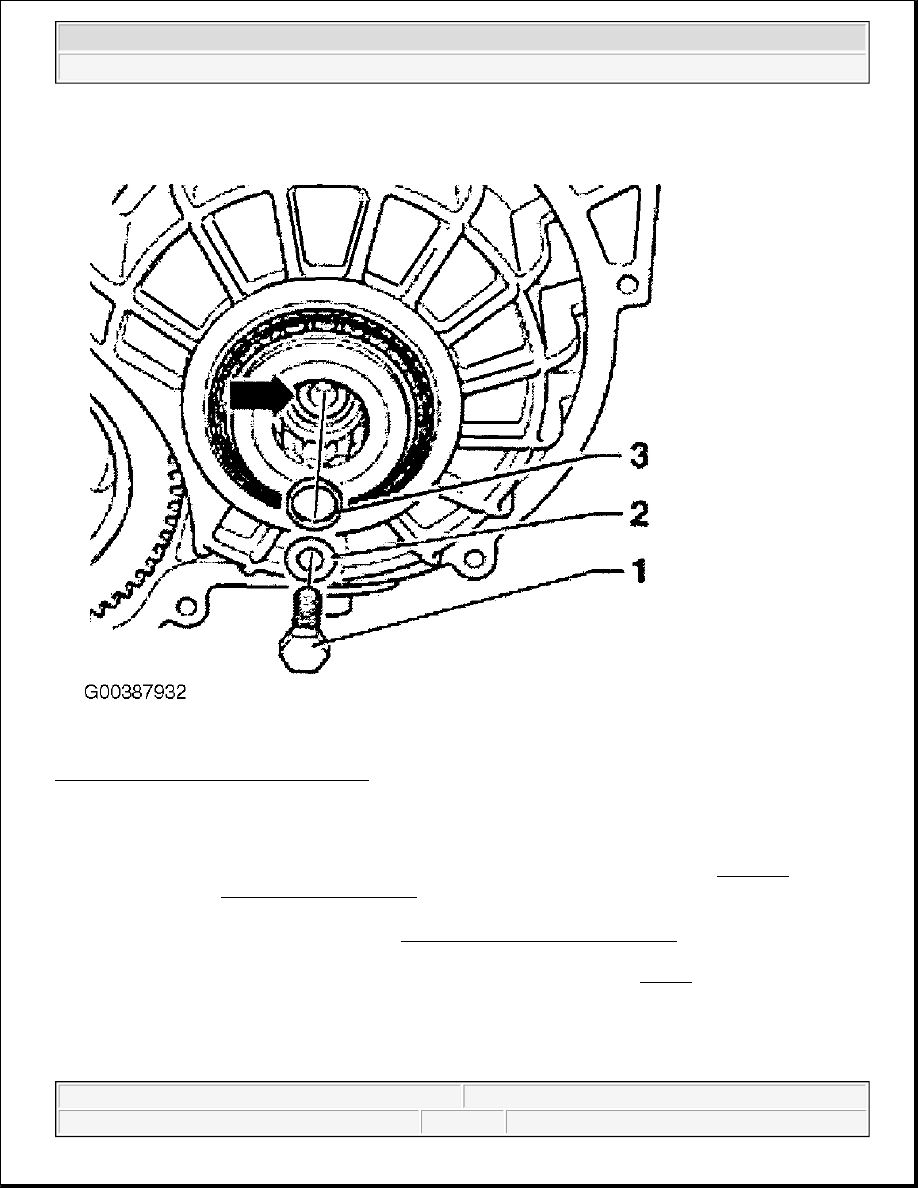

Fig. 76: Installing Small Drive Shaft Bolt
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Perform planet carrier check measurement. See Planet Carrier Check Measurement .

Clip axial needle bearing with thrust washer to 3rd and 4th gear clutch -K3-. See Fig. 77 .

z

1 - Axial needle bearing with thrust washer

z

2 - 3rd and 4th gear clutch -K3-

NOTE:

z

Insert shim -3- onto small input shaft shoulder (arrow).

z

Determining shim thickness, adjusting planet carrier. See PLANET
CARRIER, ADJUSTING .



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M



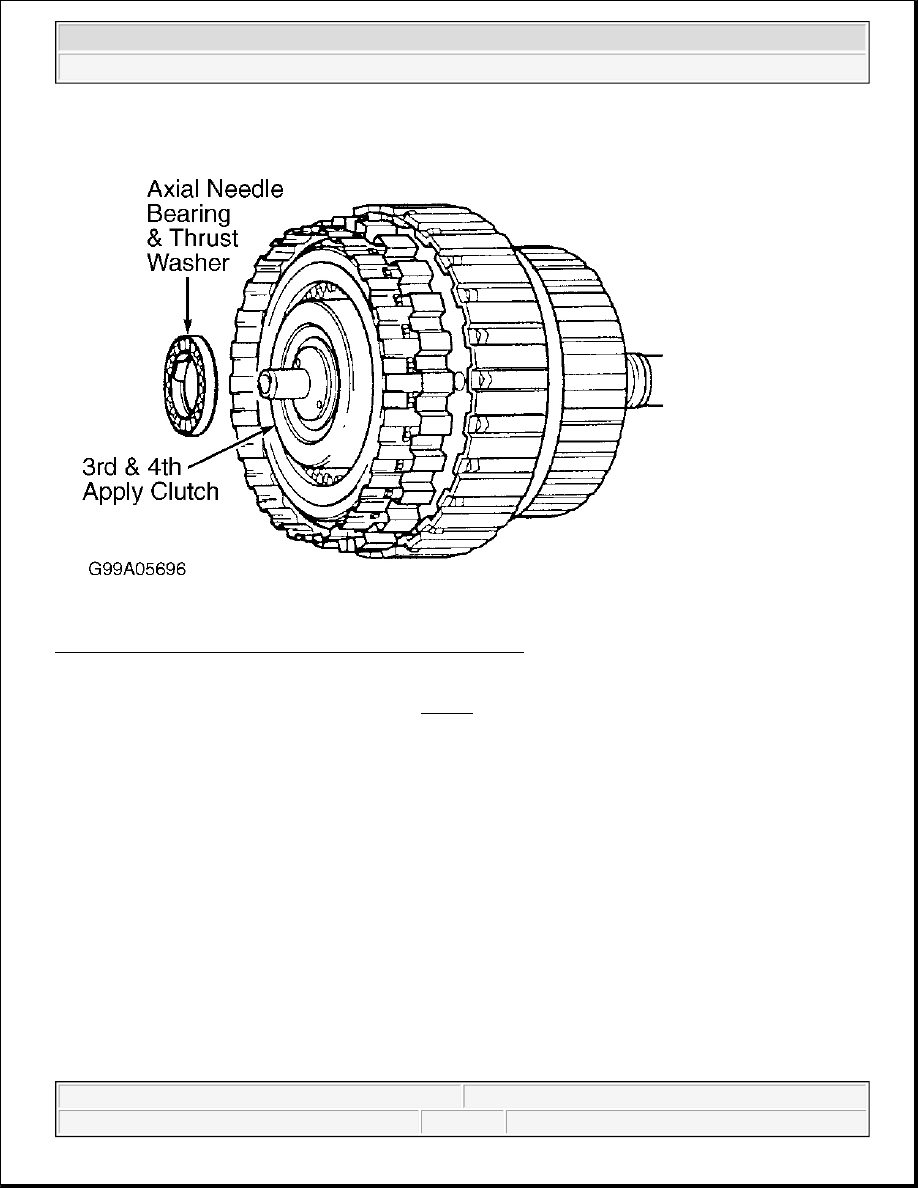

Fig. 77: Installing Axial Needle Bearing With Thrust Washer
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Make sure piston rings seat correctly on -K3-. See Fig. 78 .



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M



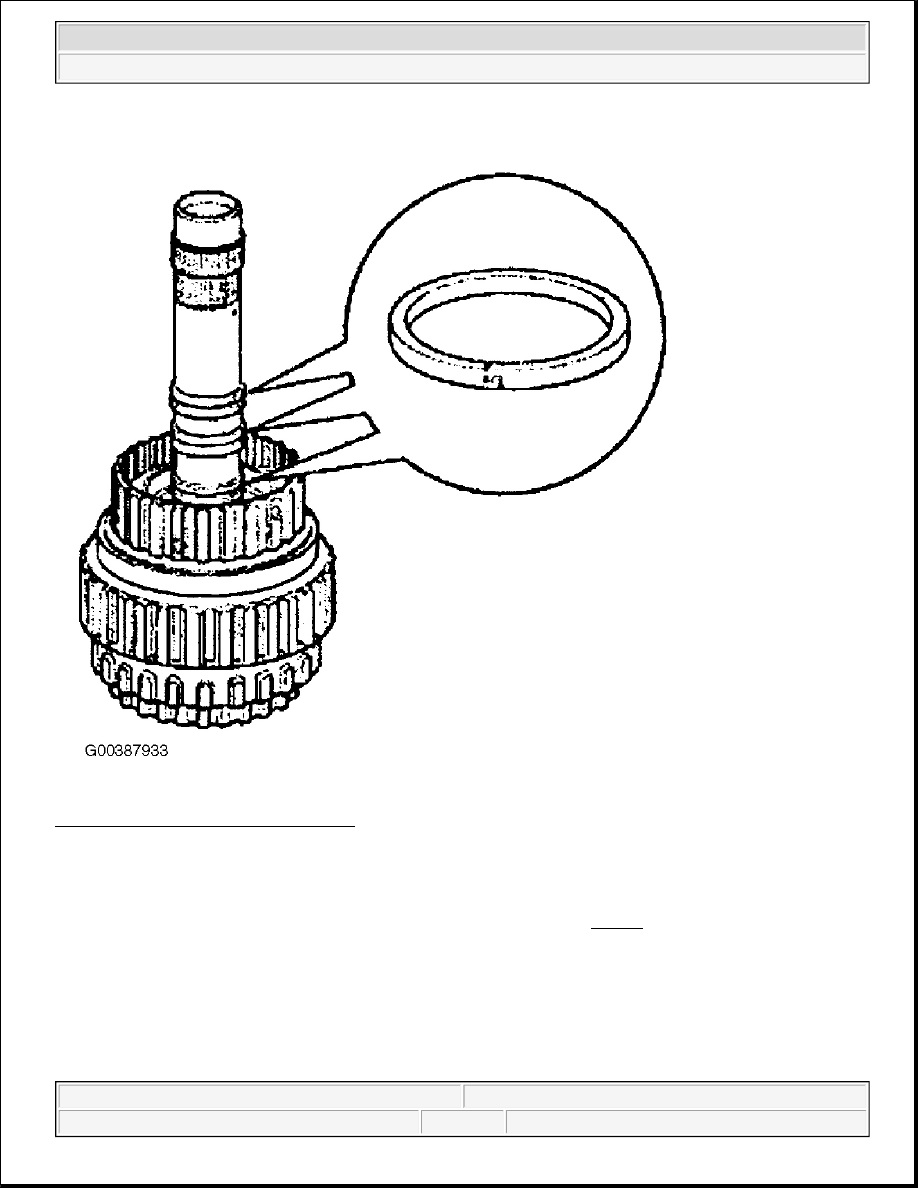

Fig. 78: Locating Piston Rings On -K3-
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Make sure that ends of piston rings are hooked together.

Insert 1st to 3rd gear clutches -K1- with 3rd and 4th gear clutch -K3-. See Fig. 79



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M



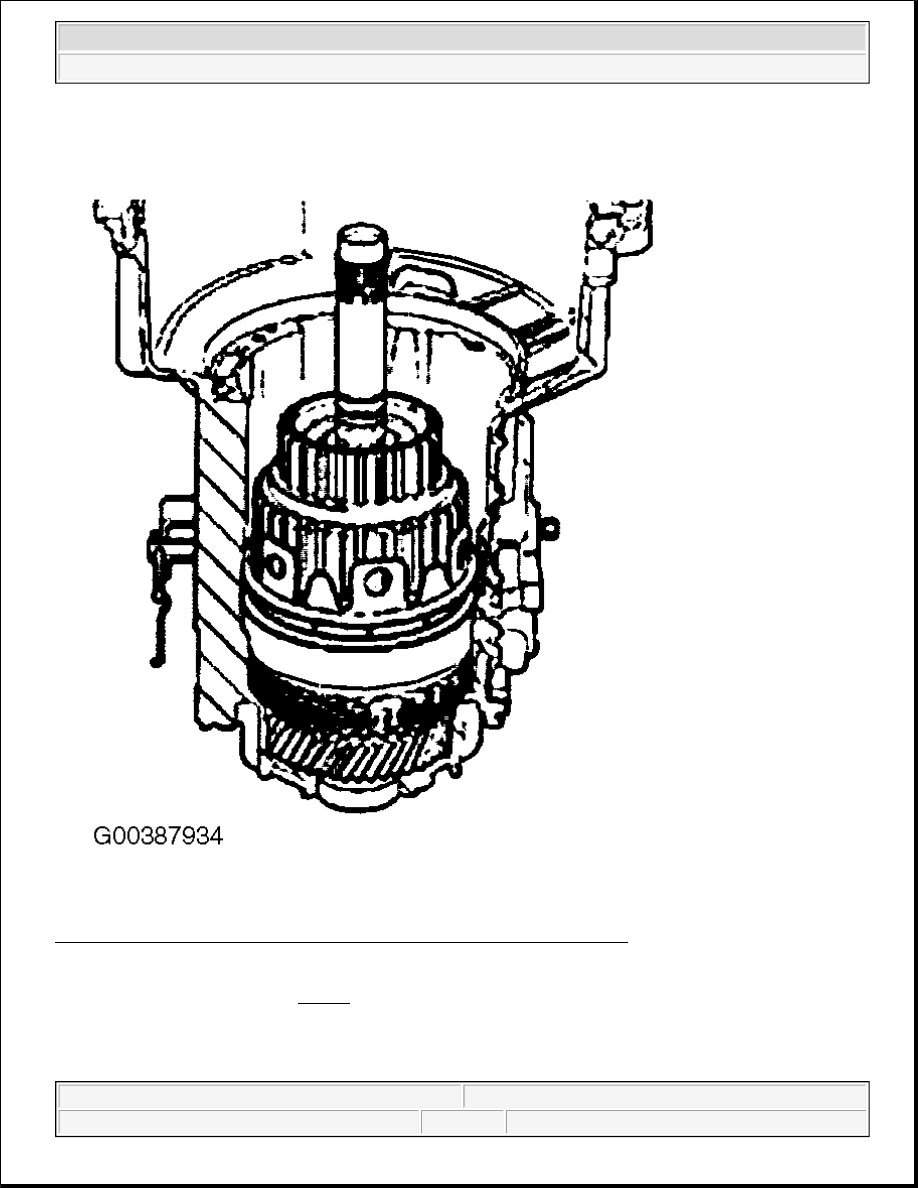

Fig. 79: Install 1st-3rd Gear Clutches -K1- W/ 3rd & 4th Gear Clutch -K3-
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Insert shims -arrow- in -K1-. See Fig. 80 .



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M
