MAIN PRESSURE CHECKING

Conditions For Performing Check

z

Diagnostic Trouble Code (DTC) memory checked

When the DTC memory is checked, the following display should appear: "No DTC recognized!"

z

ATF level OK

Special Tools And Equipment

z

VAG 1702 Pressure tester

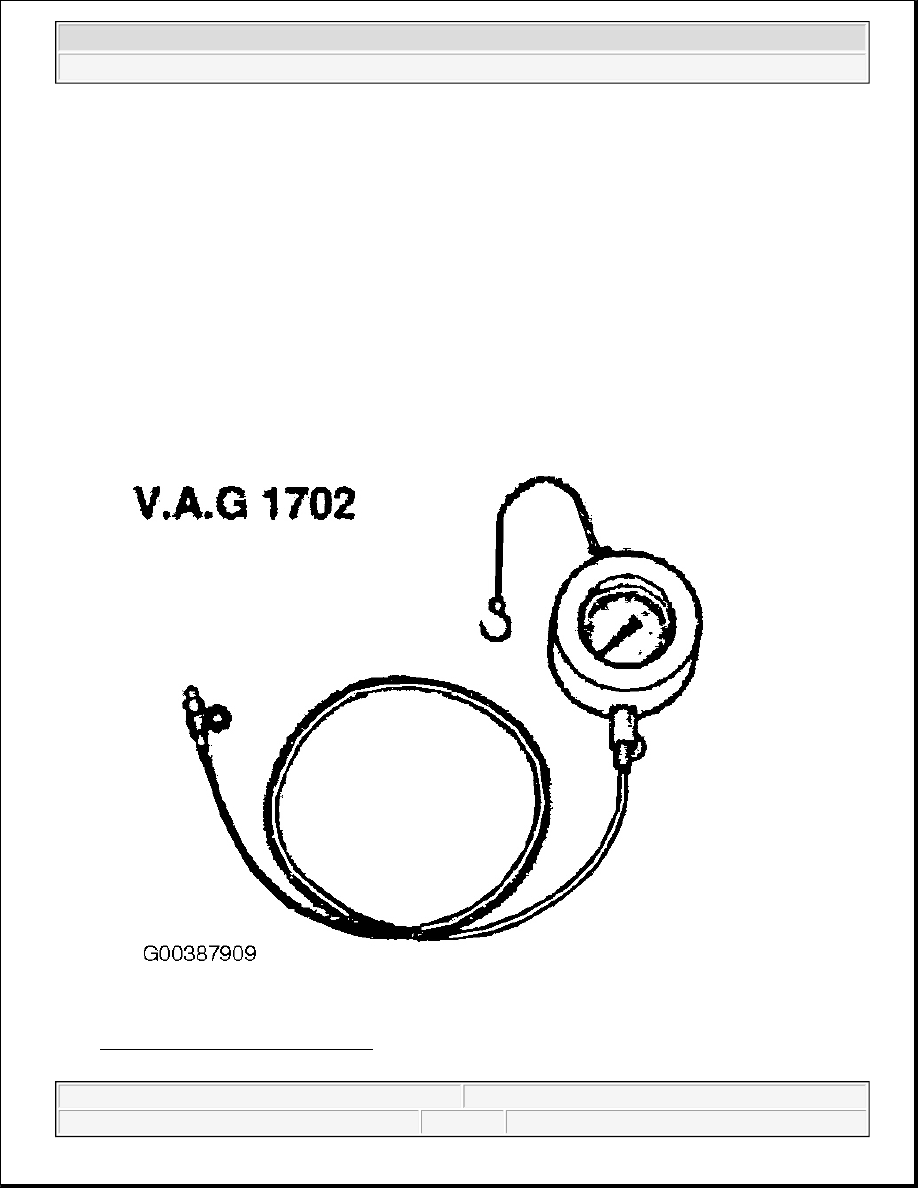

Fig. 20: Identifying Pressure Tester
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M



Main Pressure Checking

Remove bolt -arrow- for main pressure port. Always replace bolt. See Fig. 21 .

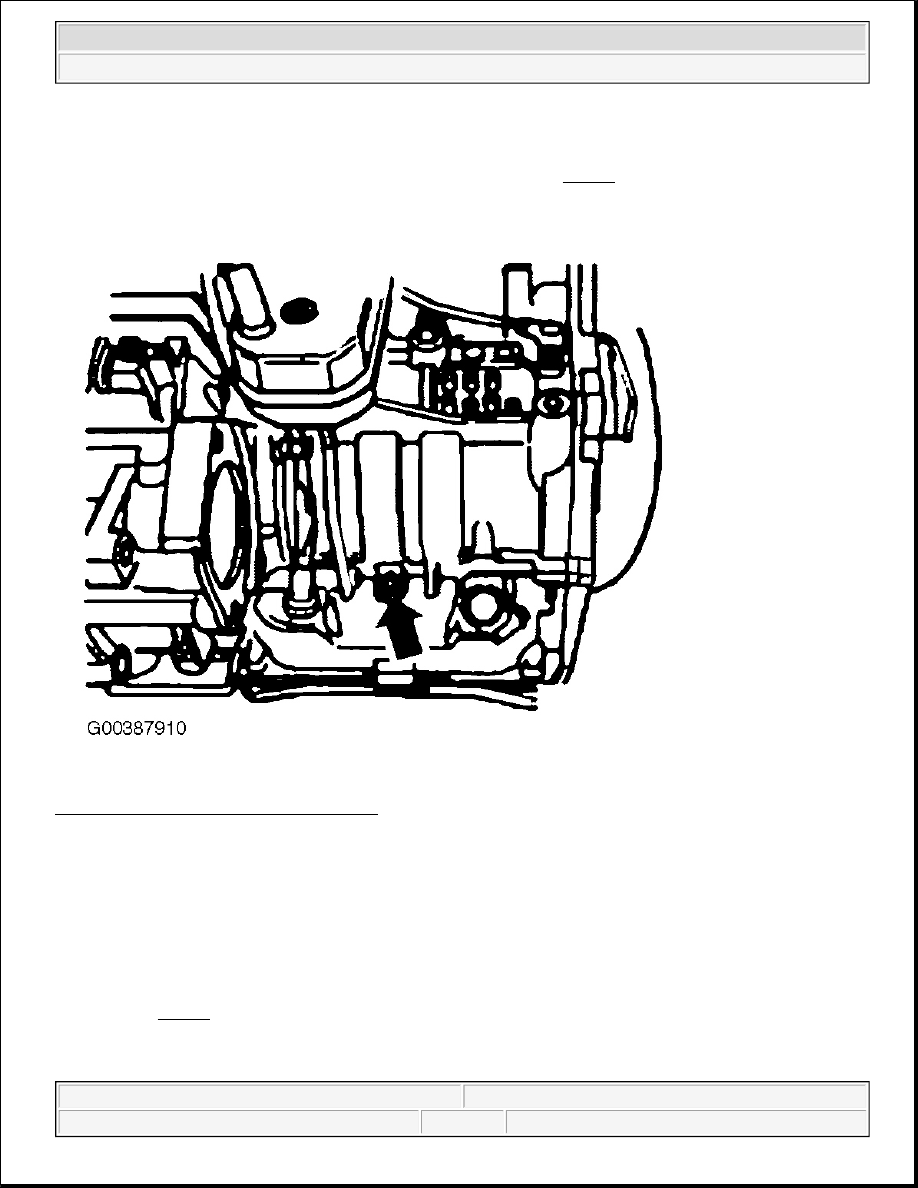

Fig. 21: Locating Main Pressure Port Bolt
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Connect pressure tester VAG 1702 and tighten thumb screw.

Start engine.

Bleed pressure tester VAG 1702 by loosening thumb screw and tighten when bleeding is complete.

If V.A.G 1551 is used: With ignition switched off, connect V.A.G 1551 Scan Tool with diagnosis cable V.A.G
1551/3A. See Fig. 22 .



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M

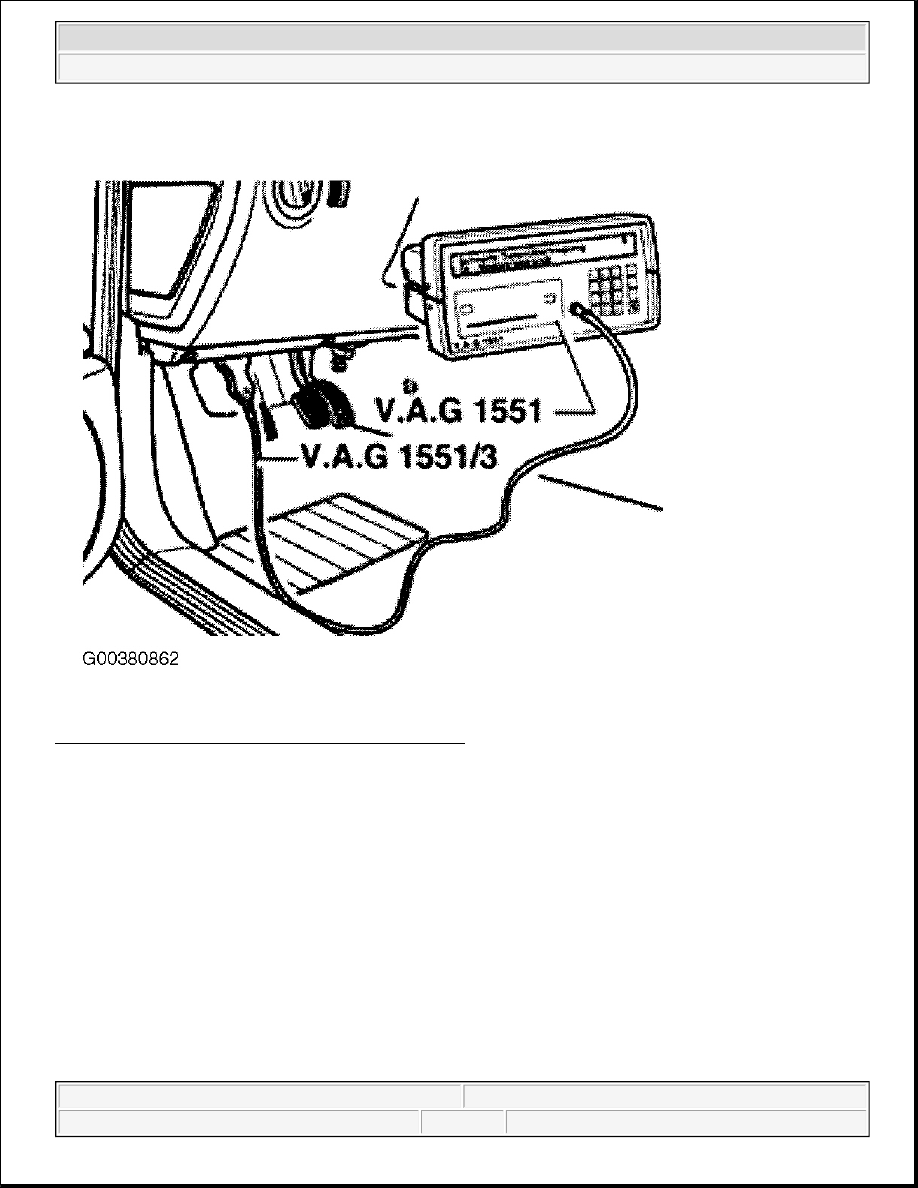

Fig. 22: Connecting Diagnostic Cable (VAG 1551/3A)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Indicated on display:

z

VAG - ON BOARD DIAGNOSTIC HELP

z

1 - Rapid data transfer (appears alternately)

z

2 - Blink code output (appears alternately)

Start engine.

Press key 1 for "Rapid data transfer" mode.

Indicated on display:

z

Rapid data transfer HELP



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M



z

Enter address word XX

Press keys 0 and 2 to select address word "Transmission electronics".

Indicated on display:

z

Rapid data transfer Q

z

02 - Transmission electronics

Confirm entry with key Q.

Indicated on display:

z

Rapid data transfer HELP

z

Select function XX

Press keys 0 and 8 to select function "Read measured value block".

Indicated on display:

z

Rapid data transfer Q

z

08 - Read measured value block

Confirm entry with key Q.

Indicated on display:

z

Read measured value block

z

Enter display group number XXX

Press keys 0 0 5 to select "Display group number 005".

Confirm entry with key Q.

Indicated on display (values shown are for example):

z

Read measured value block 5 "right arrow"

z

30° C 0011011 0 900 RPM

The first display zone shows the ATF temperature.

Allow ATF temperature to rise to 60° C.

For main pressure specifications at idle, see Fig. 23 .



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M
