regarding poor acceleration and speed performance or generally with drive train questions. The table makes it
possible to determine which selector elements may not be operating properly.

All gears will be shifted hydraulically. All forward gears are driven mechanically at a predetermined load and
speed via the torque converter lock-up clutch.

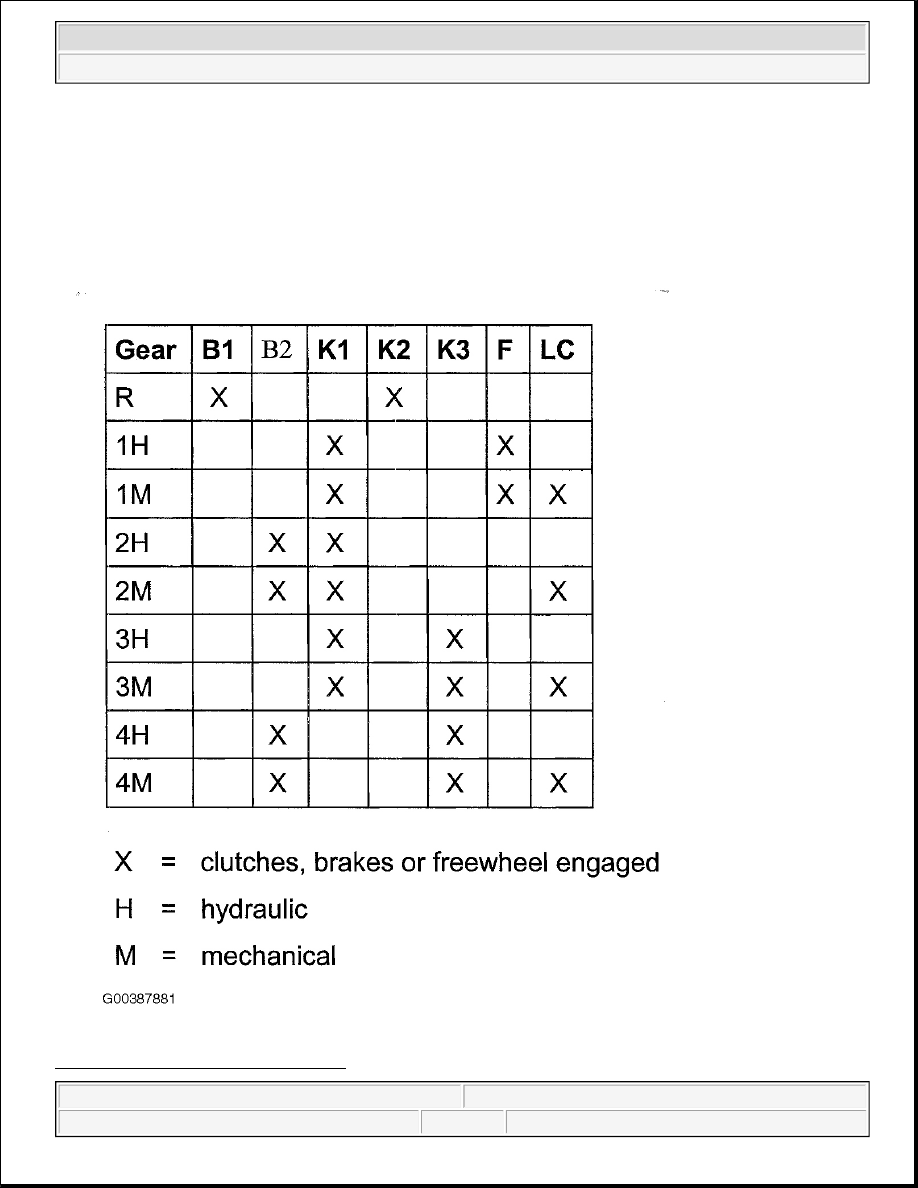

Fig. 17: Position Of Selector Elements



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M



Courtesy of VOLKSWAGEN UNITED STATES, INC.

TRANSMISSION CHECKING

All functions which could previously be performed with V.A.G 1551/1552 can also be performed with the new
tester VAS 5051 in the vehicle self-diagnosis operating mode.

VEHICLE DIAGNOSIS, TESTING AND INFORMATION SYSTEM VAS 5051 CONNECTING

Special Tools And Equipment

z

VAS 5051 Vehicle diagnosis, testing and information system

Connecting VAS 5051

With ignition switched off, connect tester VAS 5051 to diagnosis connection using diagnosis cable VAS 5051/1
or VAS 5051/3. See Fig. 18 .



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M

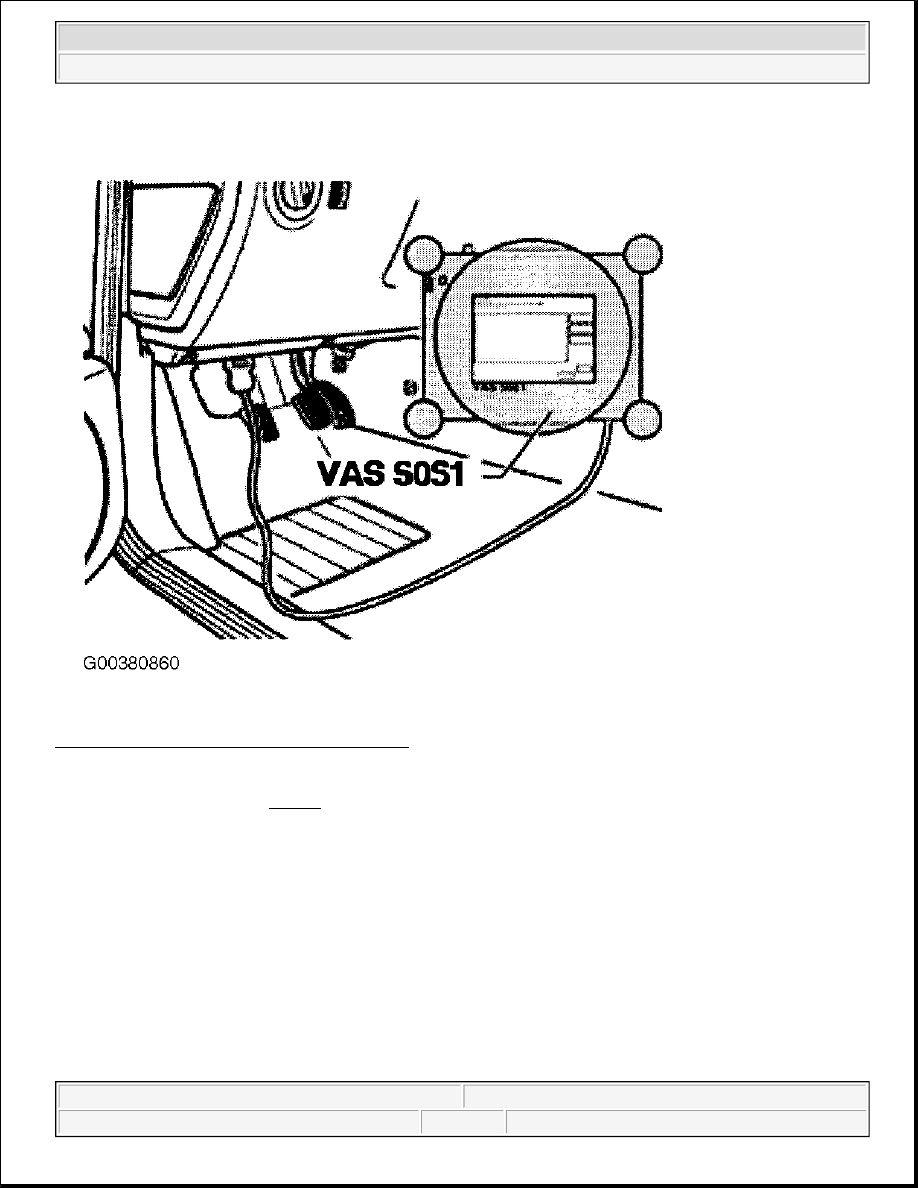

Fig. 18: Connecting Diagnostic Cable To DLC
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Switch on tester -arrow-. See Fig. 19 . The tester requires approx. 3 minutes to warm up.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M

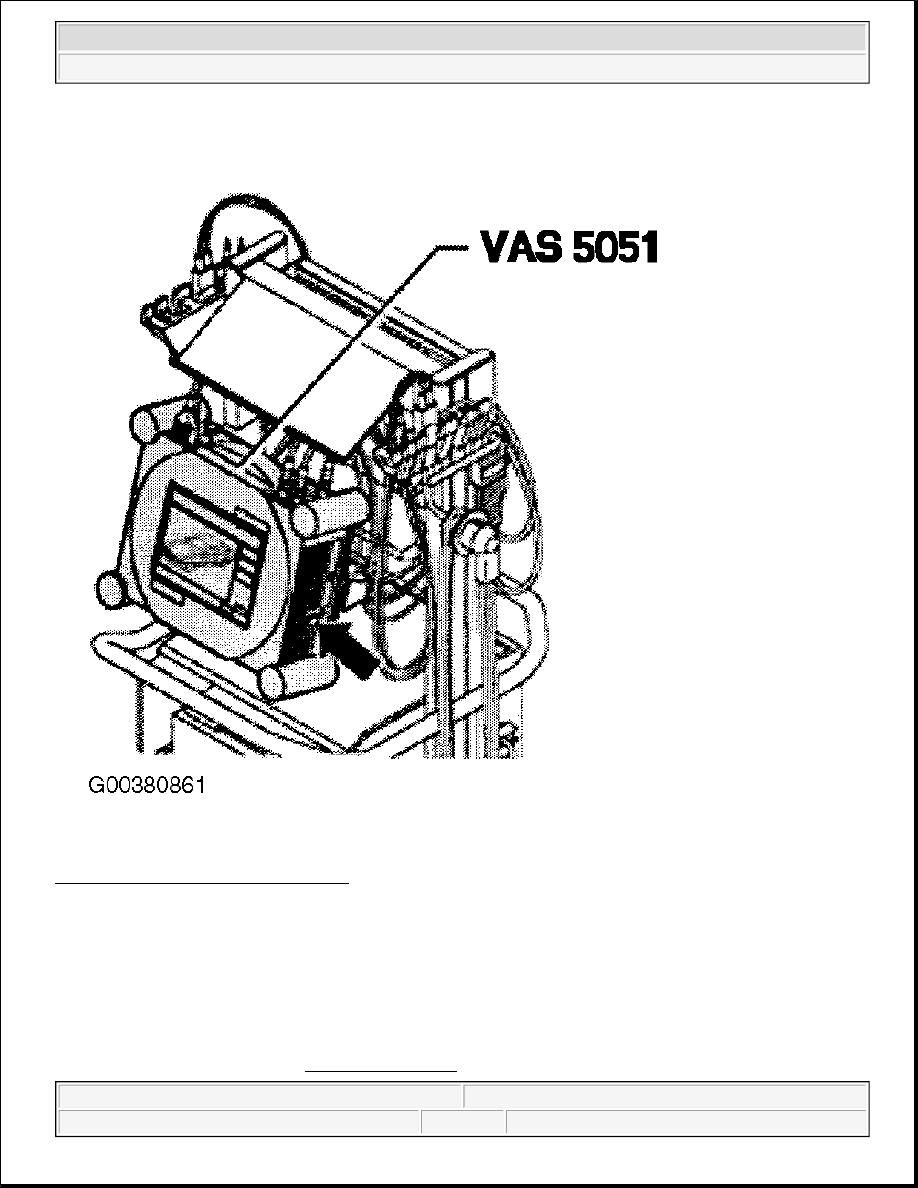

Fig. 19: Identifying Tester (VAS 5051)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Switch ignition on.

Select zone "Vehicle self-diagnosis" on touch screen.

NOTE:

The automatic transmission is only to be checked AFTER having first
completed the self-diagnosis and the cause of damage cannot be located and
corrected. See DIAGNOSIS - 01M article.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M
