Volkswagen New Beetle. Manual - part 2229

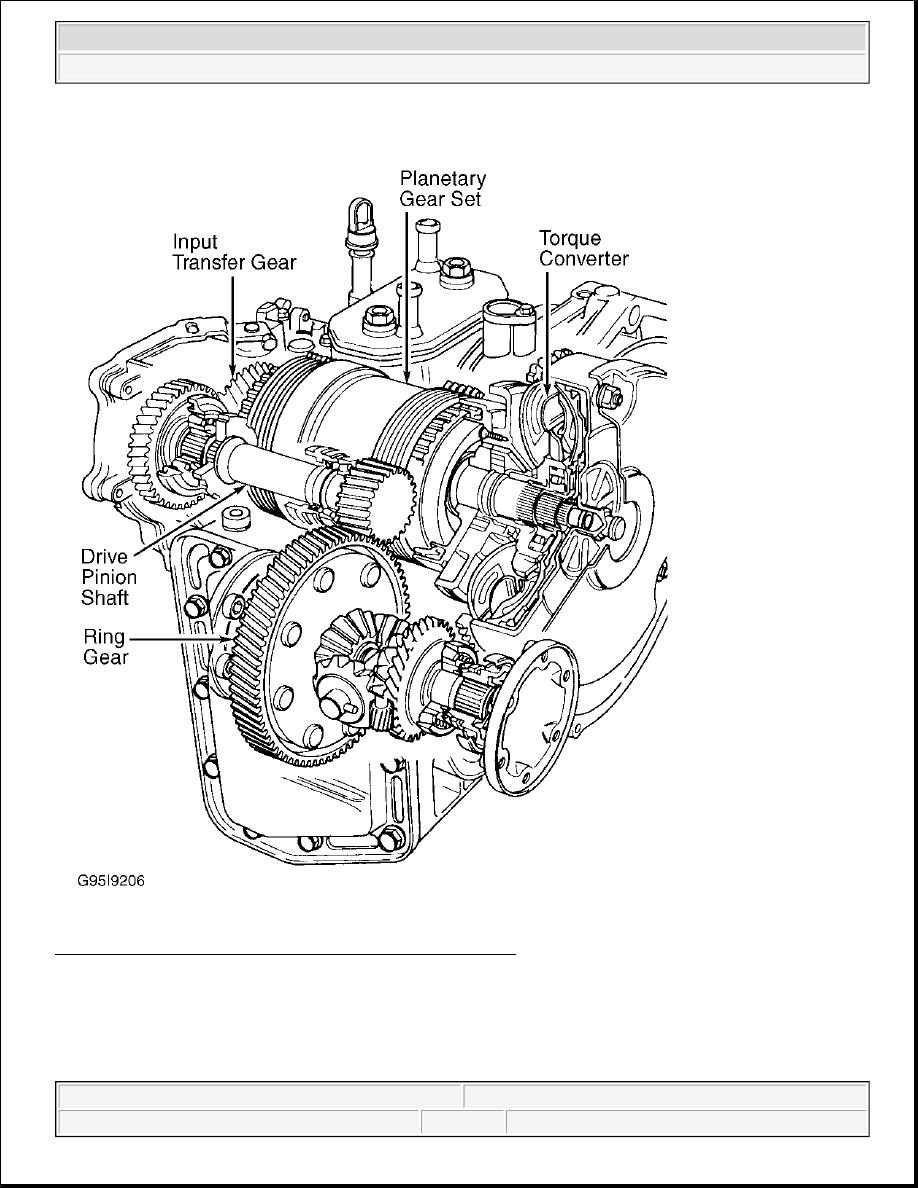

Fig. 14: Cross-Sectional View Of Transmission Components
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M





2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M

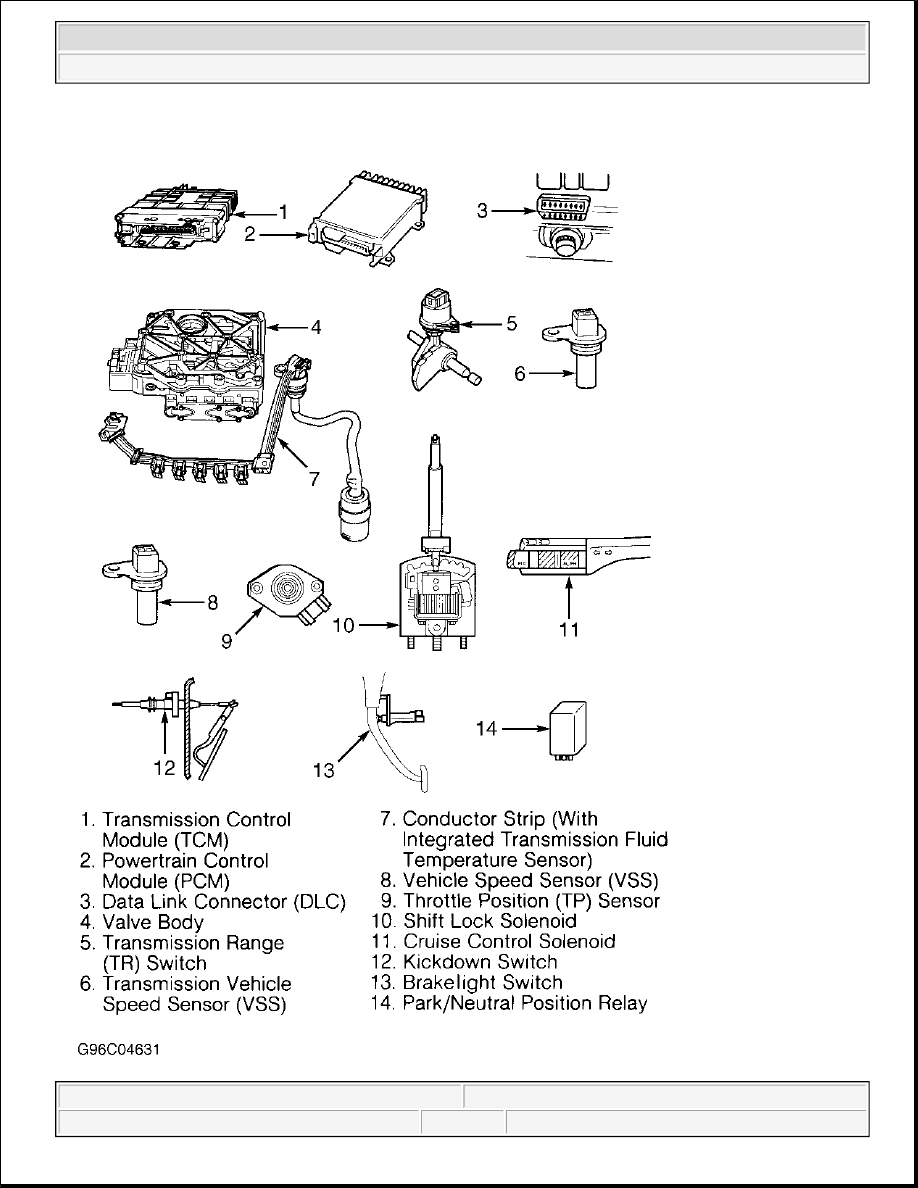

Fig. 15: Identifying Transmission Control Module (TCM) & Shift Lock Electrical Components
Courtesy of VOLKSWAGEN UNITED STATES, INC.


TRANSMISSION

The 4-speed automatic transmission 01M is equipped with 4 hydraulically activated forward gears. When the
lock-up clutch is closed these forward gears become mechanically driven gears by cutting-out the torque
converter slip.

TORQUE CONVERTER

The torque converter is equipped with a lock-up clutch. The lock-up clutch is closed dependent on load and
speed and drives 1st, 2nd, 3rd and 4th gears mechanically independent of slip.

In some cases, it may be necessary for installation of a new converter to remove the sleeve bearing from the
turbine shaft.

ON BOARD DIAGNOSTIC (OBD)

It is recommended that the OBD be performed before and after each repair. See DIAGNOSIS - 01M article.

TRANSMISSION CONTROL MODULE

With Driving Situation Gear Changes (Fuzzy Logic)

Determining the driving situation and driving resistance dependent gear change point happens automatically.

Advantages:

z

Gear changes will be consumption orientated

z

Maximum engine output is always available

z

Individual adaption of gear change points in all driving situations

z

Gear change points are infinitely variable

Gear Change Point Variations For Hills

An additional gear change map automatically selects gear changes for hills dependent upon accelerator pedal
position and driving speed.

Gear change map for extreme uphill stretches is matched to engine output.

Gear change map for extreme downhill stretches is matched to the braking effect of the engine.

LUBRICATION & ADJUSTMENTS

For lubrication and adjustments, see SERVICING - A/T (01M) article in TRANSMISSION SERVICING.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M



ON-VEHICLE SERVICE

AXLE SHAFTS

For information on axle shaft, see AXLE SHAFTS article in DRIVELINE/AXLES.

TRANSMISSION COMPONENTS

For information on components serviceable while transmission is installed in vehicle, see SERVICING - A/T
(01M)
 article.

FINAL DRIVE, CHECKING OIL LEVEL

For final drive fluid level checking, see SERVICING - A/T (01M) article.

APPLY & BRAKE CLUTCH APPLICATION

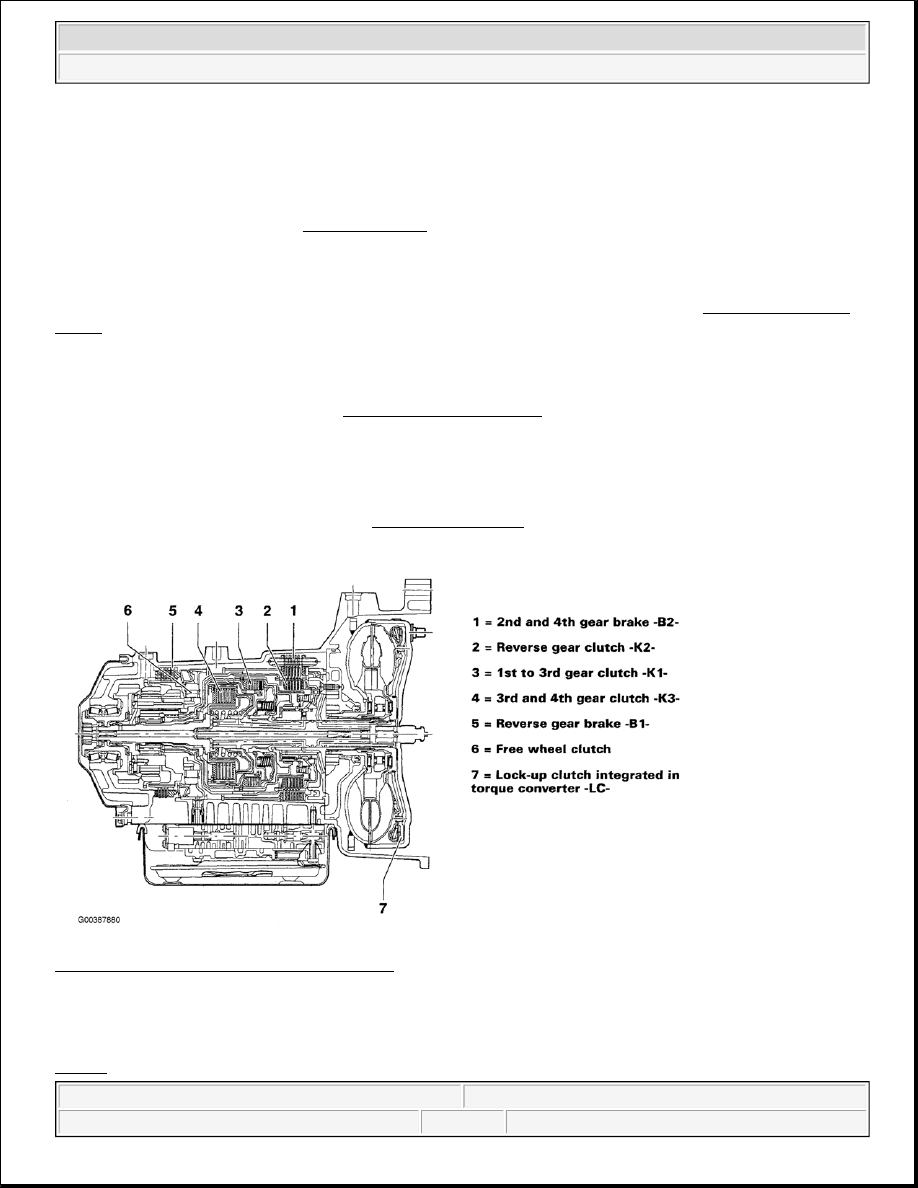

Fig. 16: Locating Selector Elements Position
Courtesy of VOLKSWAGEN UNITED STATES, INC.

POSITION OF SELECTOR ELEMENTS

Fig. 17 shows which selector elements are operated in the individual gears to help deal with complaints

NOTE:

Before starting repairs to the transmission, first perform the On Board
Diagnostic (OBD). See DIAGNOSIS - 01M article.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M
