Volkswagen New Beetle. Manual - part 2232

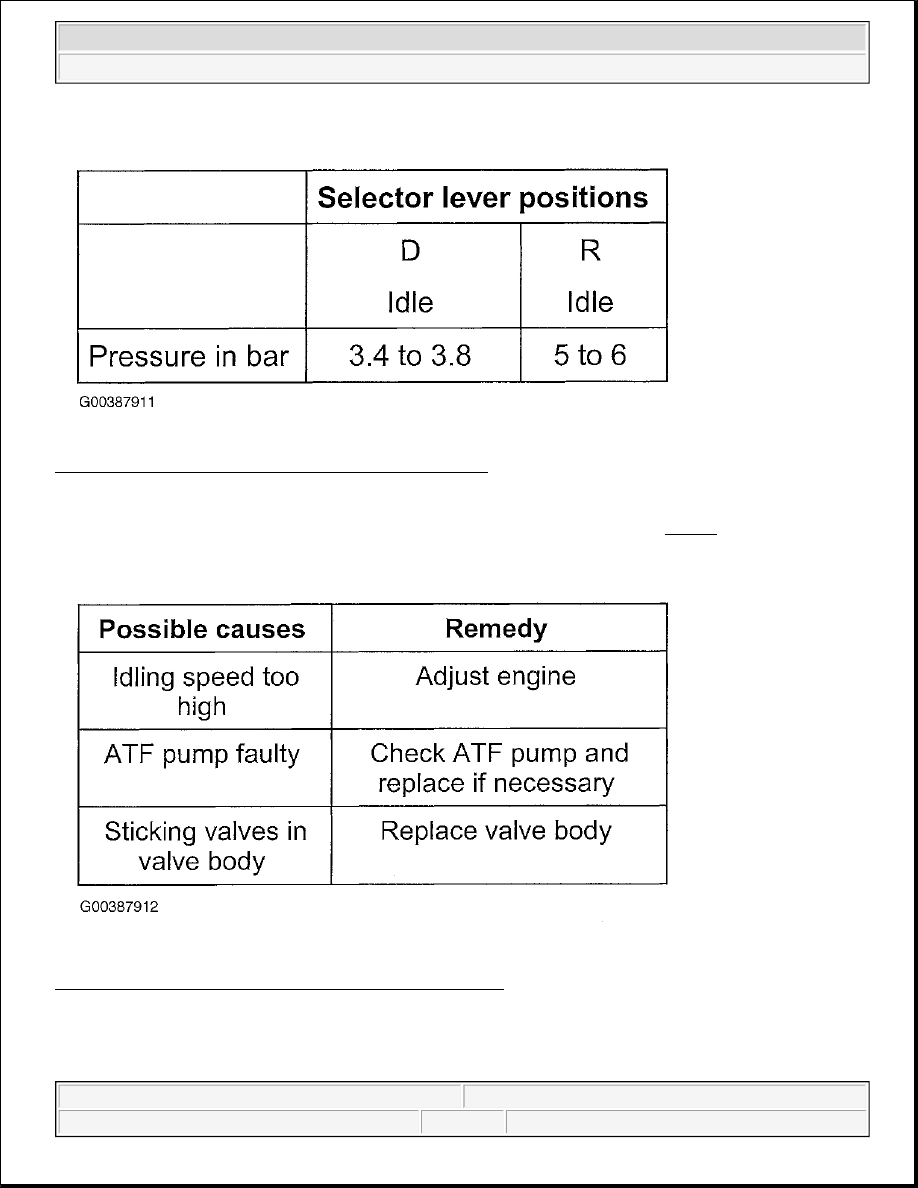

Fig. 23: Identifying Main Pressure Specifications At Idle
Courtesy of VOLKSWAGEN UNITED STATES, INC.

If there are deviations from prescribed values, the following could be the cause: See Fig. 24 .

Fig. 24: Possible Causes & Remedies Of Deviations At Idle
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Switch engine off.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M

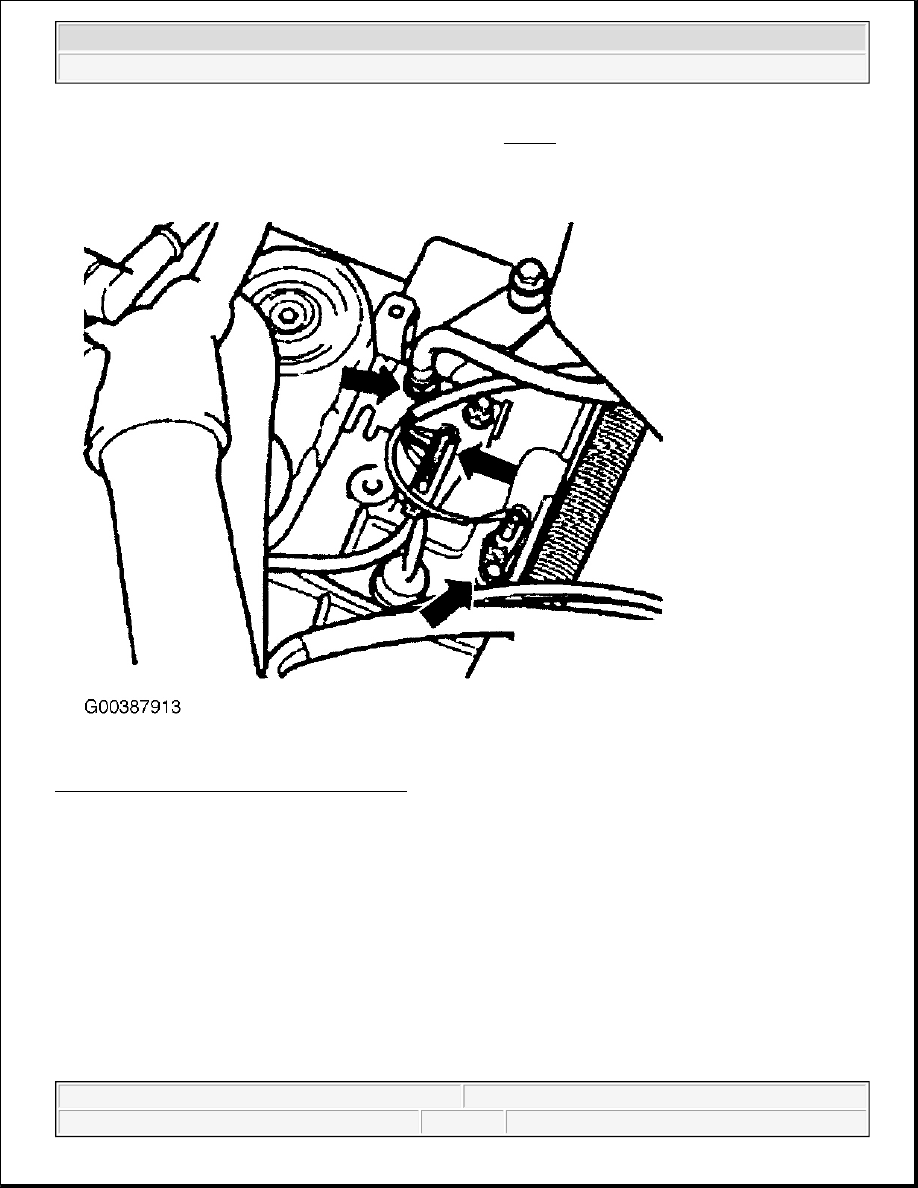

Press fuse together and pull off solenoid valve connector. See Fig. 25 .

Fig. 25: Identifying Solenoid Valve Connector
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Start engine.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M

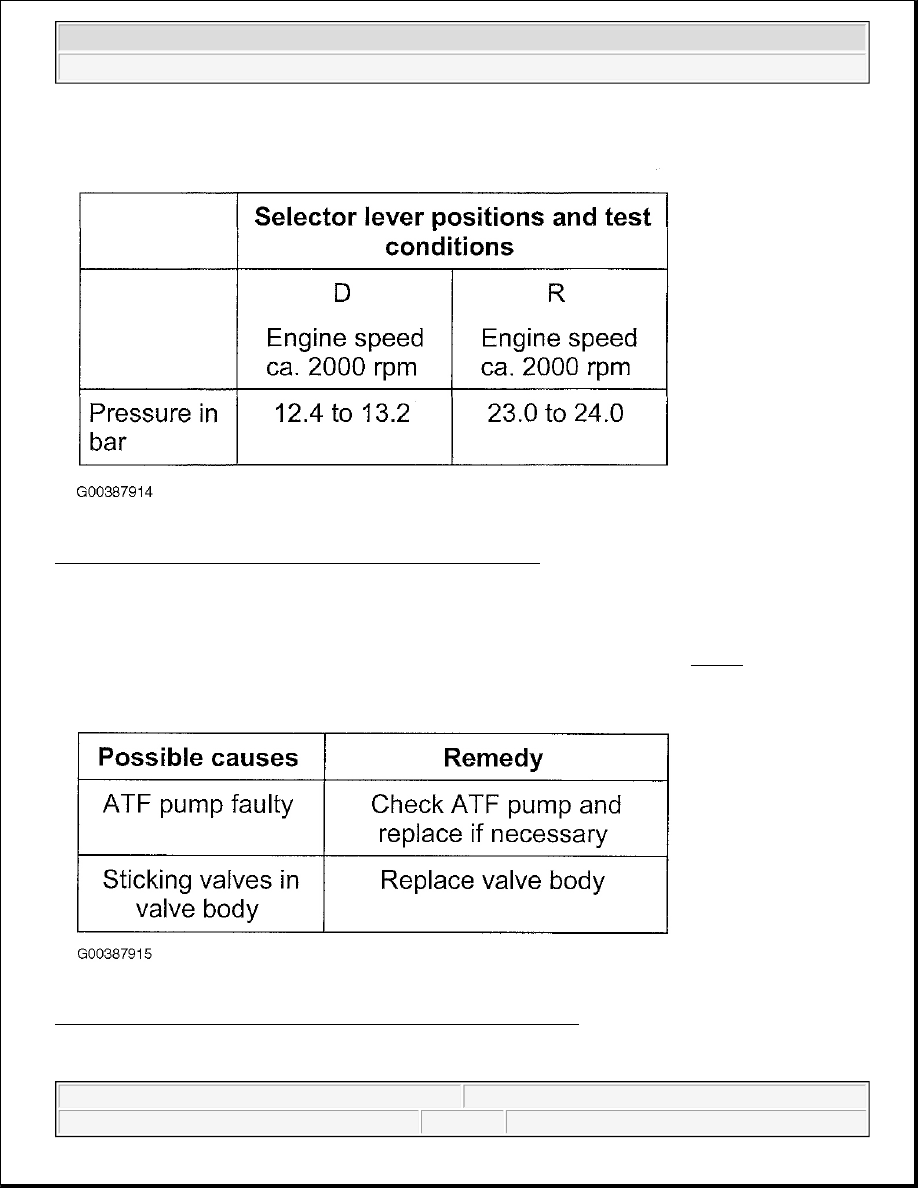

Fig. 26: Identifying Main Pressure Specifications At 2000 RPM
Courtesy of VOLKSWAGEN UNITED STATES, INC.

If possible, main pressure test should be performed on a rolling road.

If there are deviations from the prescribed values, the following could be the cause. See Fig. 27 .

Fig. 27: Identifying Causes & Remedies Of Deviations At 2000 RPM
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M



After test: Disconnect pressure tester VAG 1702.

Install new bolt for main pressure port and tighten to 15 Nm.

Install solenoid valve connector.

Once connector has been fitted, check and erase DTC memory.

If necessary, install sound insulation.

REPAIR INSTRUCTIONS

The maximum possible care and cleanliness and proper tools are essential to ensure satisfactory and successful
transmission repairs. The usual basic safety precautions also apply when repairing the vehicle.

A number of generally applicable instructions for individual repair operations, which are otherwise mentioned
at various points in the overhaul are summarized here.

BATTERY DISCONNECTING & RECONNECTING

For work steps required after reconnecting battery, see Fig. 28 .

CAUTION: Before beginning repairs on the electrical system:

z

Obtain anti-theft radio security code.

z

Switch off all electrical consumers.

z

Switch ignition off and remove ignition key.

z

Do not loosen or remove ground strap from body. Disconnect
terminal from battery only.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M
