Volkswagen New Beetle. Manual - part 2163





When reinstalling multi-pin connector, fit connector onto pin of TCM -J217- (arrow -1-) and then lock multi-
pin connector in position (arrow -2-). See Fig. 24 .

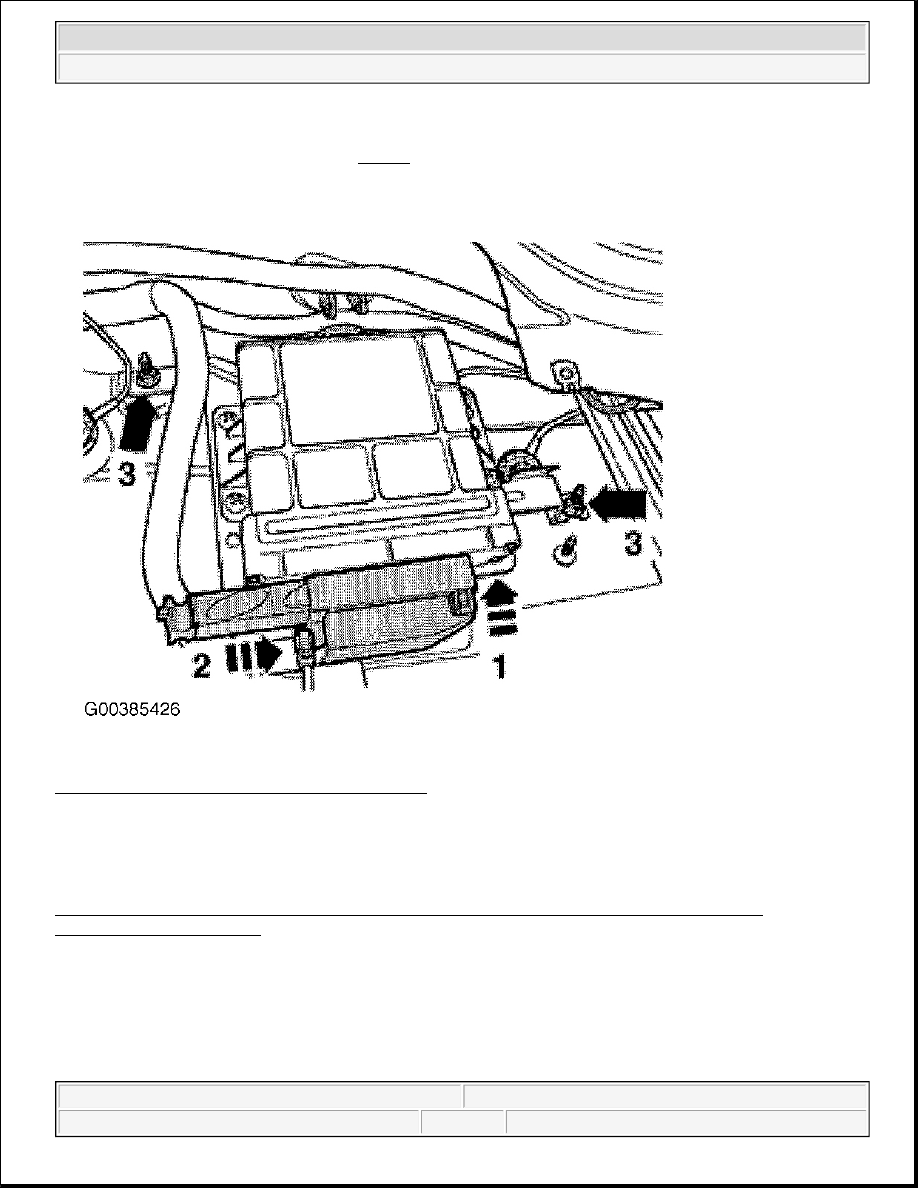

Fig. 24: Installing Transmission Control Module
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Tighten nuts (arrow -3-) to 10 Nm.

Connect VAS 5051 and advance through programs until "Functions/selecting component" is displayed. See
VAS 5051 DIAGNOSIS, TESTING AND INFORMATION SYSTEM, CONNECTING AND
SELECTING FUNCTION
 under ON BOARD DIAGNOSTIC (OBD), PERFORMING.

z

Press "Drive (Repair group. 01;10...26; 28...39)".

z

Press "6-speed automatic transmission 09G".

z

Press "01 self-diagnosis".

z

Press "Functions".

z

Press "Initiate basic (default) setting".



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC Diagnosis - New Beetle, 09G



RADIO

Radio Precautions

Before beginning repairs on the electrical system:

z

Obtain the anti-theft radio security code.

z

Switch off all electrical consumers.

z

Switch ignition off and remove ignition key.

z

Disconnect negative ( - ) battery terminal.

z

When disconnecting and reconnecting battery terminals, observe all applicable Notes and torque
specifications, as well as instructions on performing OBD program and electrical system function checks
as specified. See BATTERY DISCONNECTING & RECONNECTING under GENERAL NOTES
ON REPAIR.

If radio is exchanged or replaced

z

Anti-theft security code for new radio must be entered before use. Be sure to advise customer of new
security code.

z

Confirm radio coding for sound system functions using On Board Diagnostic program function 07: "Code
Control Module"

z

Radio sound system coding must be performed to account for presence of CD changer (if installed),
Monsoon system (where applicable) and interior sound field differences between models.

Radio "Premium V" & "Premium V - Monsoon", Removing And Installing

Special Tools, Testers And Auxiliary Items Needed

Radio release tool T10057. See Fig. 25 .

NOTE:

Before removing the radio obtain anti-theft security code from customer. If the
radio has been replaced, always activate the anti-theft coding. Be sure to advise
customer of new security code.



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC Diagnosis - New Beetle, 09G

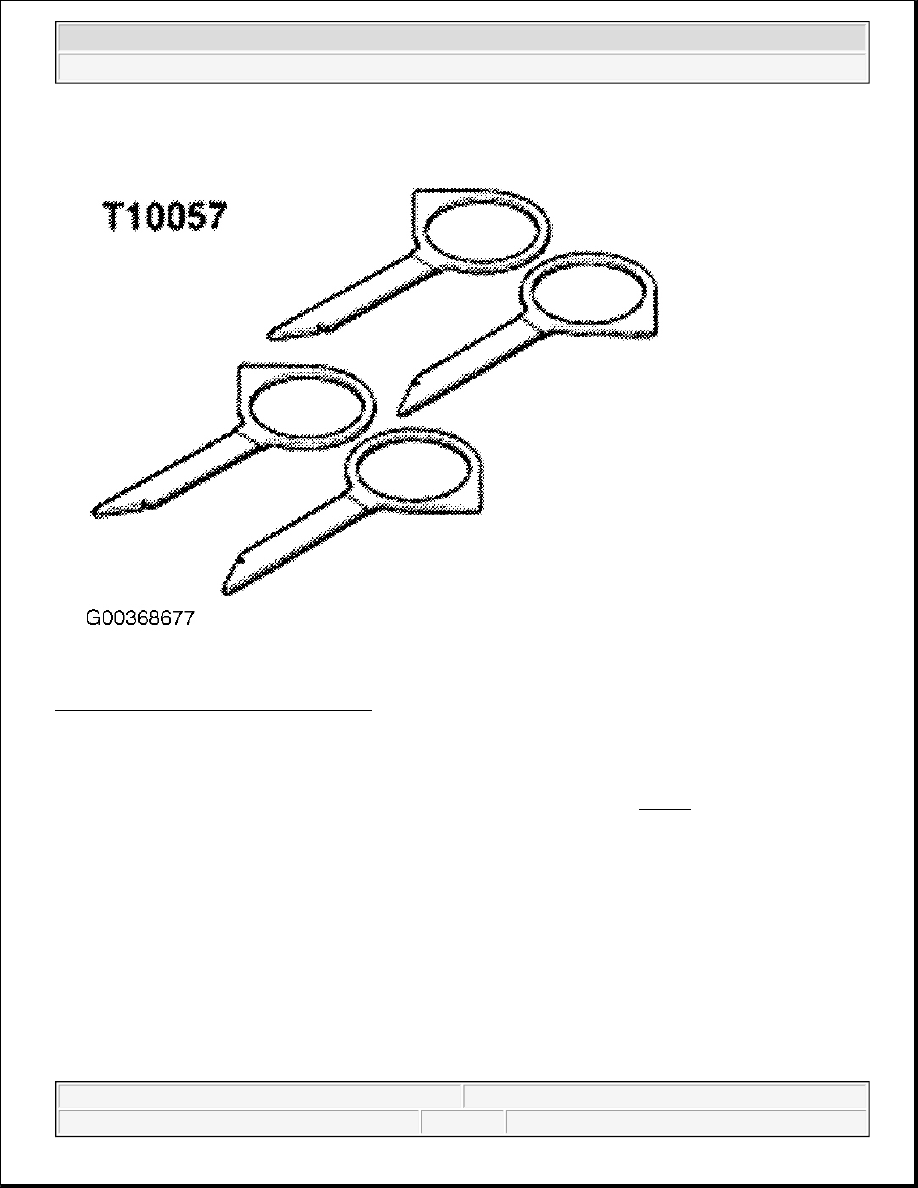

Fig. 25: Identifying Radio Removal Tools
Courtesy of AUDI OF AMERICA, INC.

Removing

Slide radio release tool T10057 into release slots -arrows- until they engage. See Fig. 26 .



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC Diagnosis - New Beetle, 09G

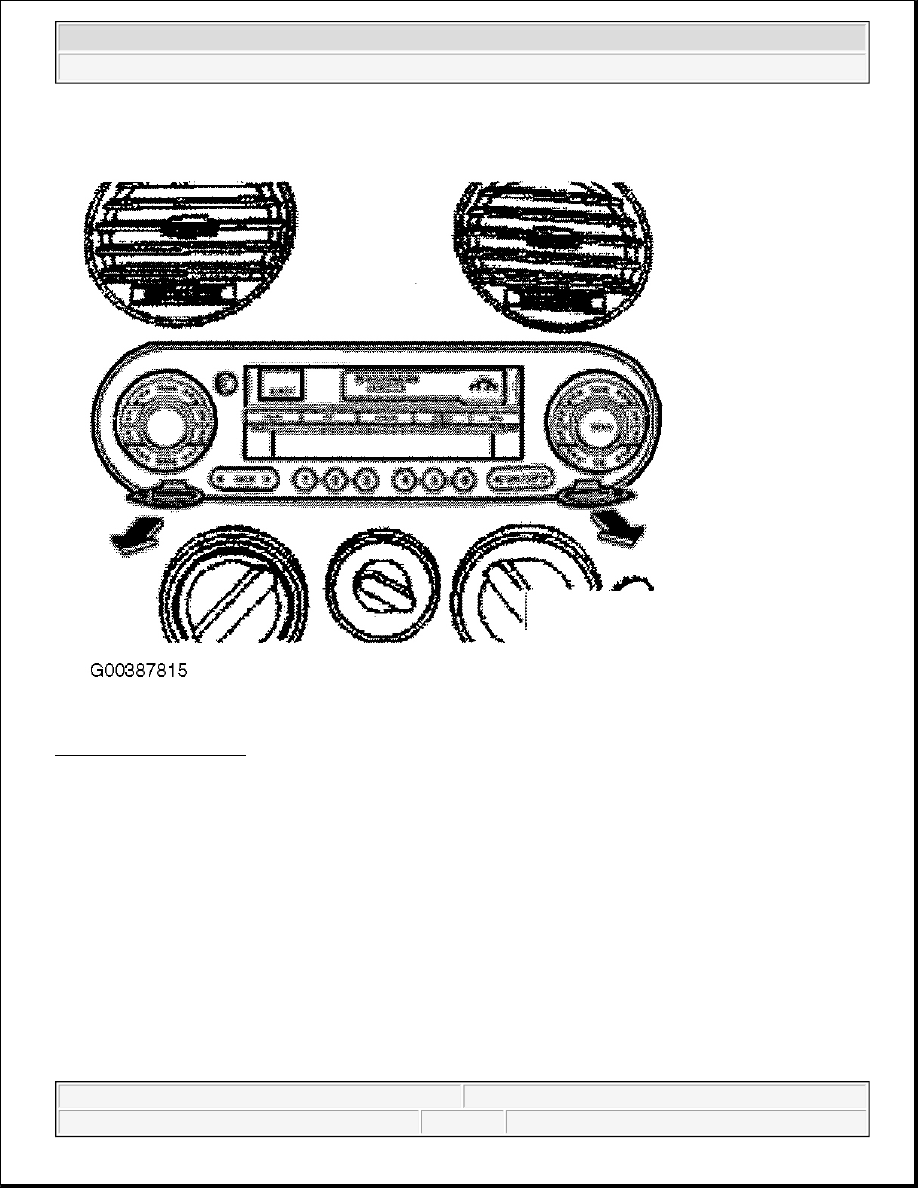

Fig. 26: Removing Radio
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Pull radio out of instrument panel using grip rings of release tools.

z

The radio release tool T10057 must not be pushed to the side or tilted.

z

To remove the release tools from the radio the locating lugs on the side of the radio must be pressed
inward.

Disconnect electrical connections and antenna cable from rear of radio.

Installing

Reconnect electrical connectors and antenna cable to radio.

Slide radio level into instrument panel until it engages properly in assembly frame.



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC Diagnosis - New Beetle, 09G
