Input anti-theft security code. See Anti-Theft Security Code, Inputting .

Confirm radio coding for sound system functions using On Board Diagnostic program function 07, "Code
Control Module".

Anti-Theft Security Code, Inputting

General Information

All radios are equipped with an electronic anti-theft system.

The electronic anti-theft system is activated and locks the radio as soon as:

z

Voltage supply (terminal 30) drops below a predetermined voltage value.

z

The radio unit is disconnected from voltage supply (terminal 30) (e.g. when removing radio unit).

z

Vehicle battery (terminal 30) has been disconnected.

A radio which is locked by the electronic anti-theft system, is indicated by the letters "SAFE," which appears on
the display when the radio is switched on.

Anti-Theft Security Code, Inputting

The radio will only work, if the correct code number for the anti-theft system is entered.

z

The anti-theft protection code can be found along with the radio number on the radio card in Owner's
Manual.

z

For safety reasons, never leave the radio card in the car. If necessary, ask the customer for the code.

Perform steps in the exact order given below:

Obtain anti-theft code number from radio card.

Switch radio on.

"SAFE" will appear on the display.

After 3 seconds, the number 1000 will appear on the display.

Use station preset buttons (B) -1- to -4- to enter the 4digit code number. See Fig. 27 .

NOTE:

Radio sound system coding must be performed to account for presence of CD
changer (if installed), Monsoon system (where applicable) and interior sound
field differences between models.



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC Diagnosis - New Beetle, 09G

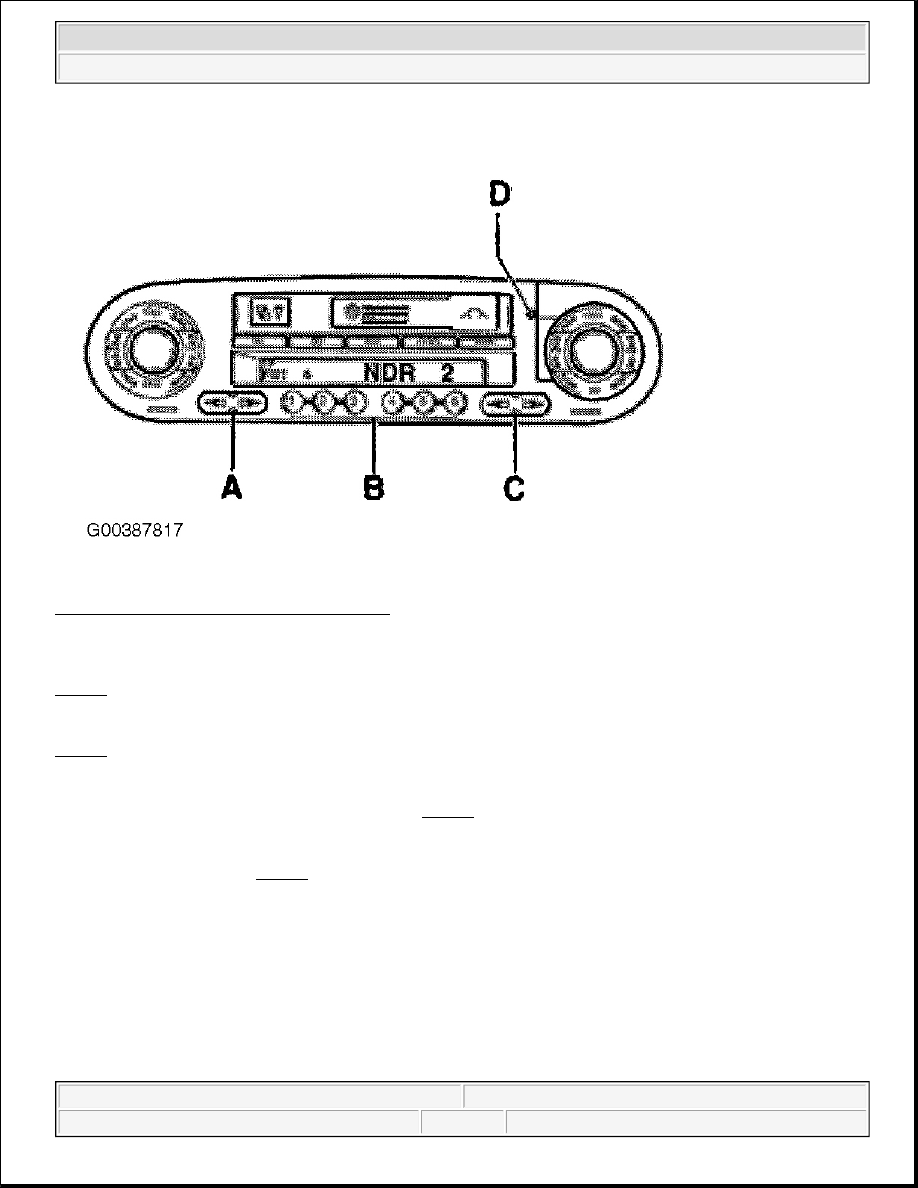

Fig. 27: Identifying Radio Button Locations
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Press preset button -1- to enter first digit in the code number, preset button -2- for second digit and so on. See
Fig. 27 .

Press preset button -1- to enter first digit in the code number, preset button -2- for second digit and so on. See
Fig. 27 .

The value range for each of the 4 digits is between 0 and 9. If a button is pressed beyond desired number, the
sequence will start over at 1 after 9 is pressed. See Fig. 27 .

When entire code is entered, press right side of "Seek/Track" rocker button -C- for about 2 seconds, until an
audible signal is heard. See Fig. 27 .

NOTE:

If a wrong code was accidentally entered, the display will flash "SAFE" initially,
and then remain on. The coding procedure may be repeated a second time (the
number of coding attempts is displayed). If a wrong code is entered again, the
radio will be disabled for an hour. If this happens, leave the radio ON and the
key in the ignition for one hour. After the hour has elapsed, the number of
attempts stops being displayed and the electronic lock can be cancelled. The
cycle is: 2 attempts, 1 hour locked.



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC Diagnosis - New Beetle, 09G



CHECK STARTING INTERLOCK RELAY -J207-

Special Tools And Equipment

z

Electrical Wiring Diagrams, Troubleshooting & Component Locations

Remove cover in driver's footwell. See Fig. 28 .

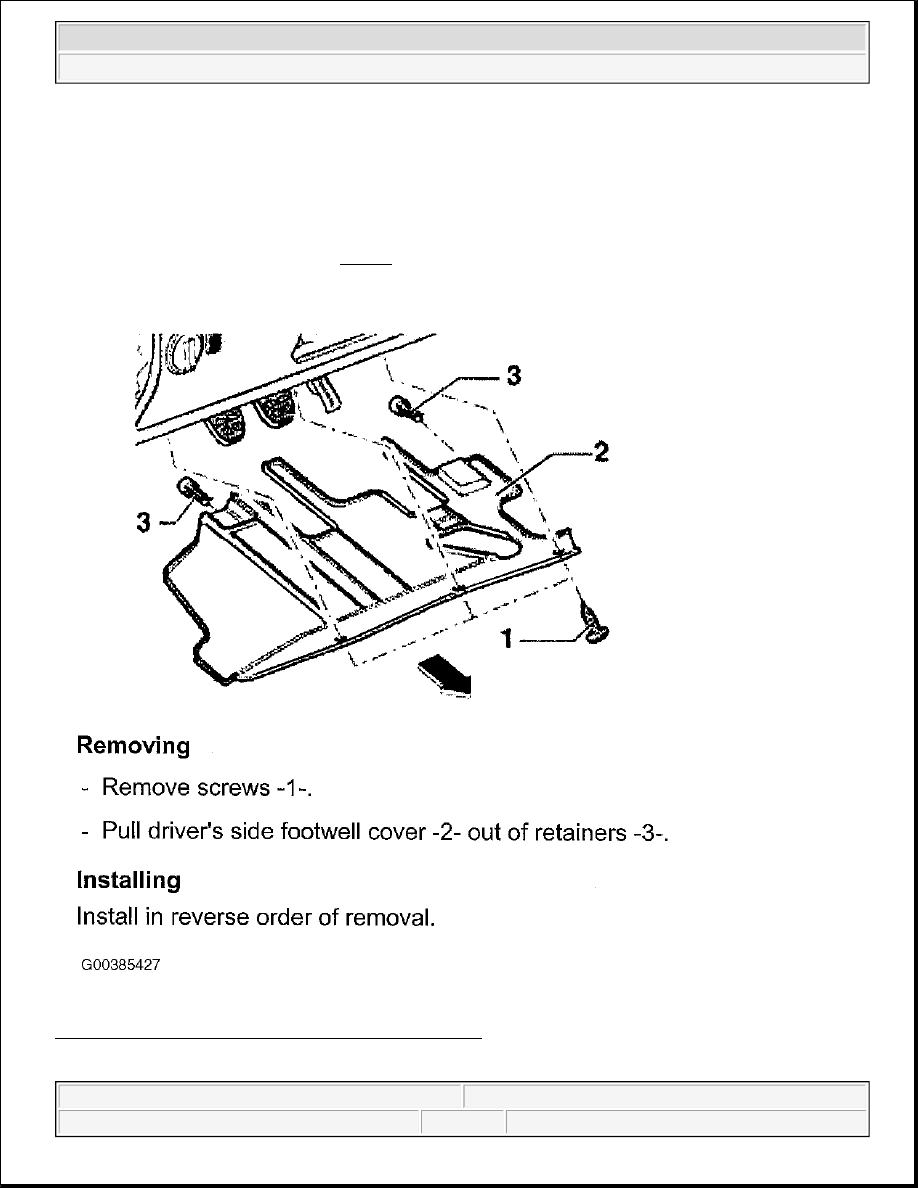

Fig. 28: Removing & Installing Driver's Footwell Cover
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC Diagnosis - New Beetle, 09G



Turn ignition key to position "Start".

Move selector lever from position "S" to "P" and back to "S" again.

Starting interlock relay -J207- must audibly and perceptibly operate.

Starter must operate in positions "N" or "P" as long as no fault exists.

If the relay does not operate:

z

Check Starting interlock relay -J207- and wiring connections plate according to wiring diagram.

ON BOARD DIAGNOSTIC (OBD), PERFORMING

SUPPLEMENTARY INFORMATION

z

SERVICING - A/T (09G) article

z

Appropriate SYSTEM WIRING DIAGRAM article in ELECTRICAL

z

Available Parts catalog

REQUIREMENTS

z

Selector lever in position "P" and parking brake applied

z

Vehicle voltage supply OK

z

Fuses OK

z

All Ground connections for transmission OK:

a. Check ground connections for corrosion and poor contact; repair if necessary.

b. Check battery ground strap and ground strap between battery and transmission.

SAFETY PRECAUTIONS

Observe the following if test and measuring instruments are required during a road test:

z

Test and measuring instruments must be secured to the rear seat and operated by an assistant from this
location.

z

If test and measuring instruments are operated from the front passenger's seat and the vehicle is involved
in an accident, there is a possibility that the person sitting in this seat may receive serious injuries when
the airbag is triggered.

VAS 5051 DIAGNOSIS, TESTING AND INFORMATION SYSTEM, CONNECTING AND

NOTE:

The ground connecting point is located in the engine compartment (below
the battery).
