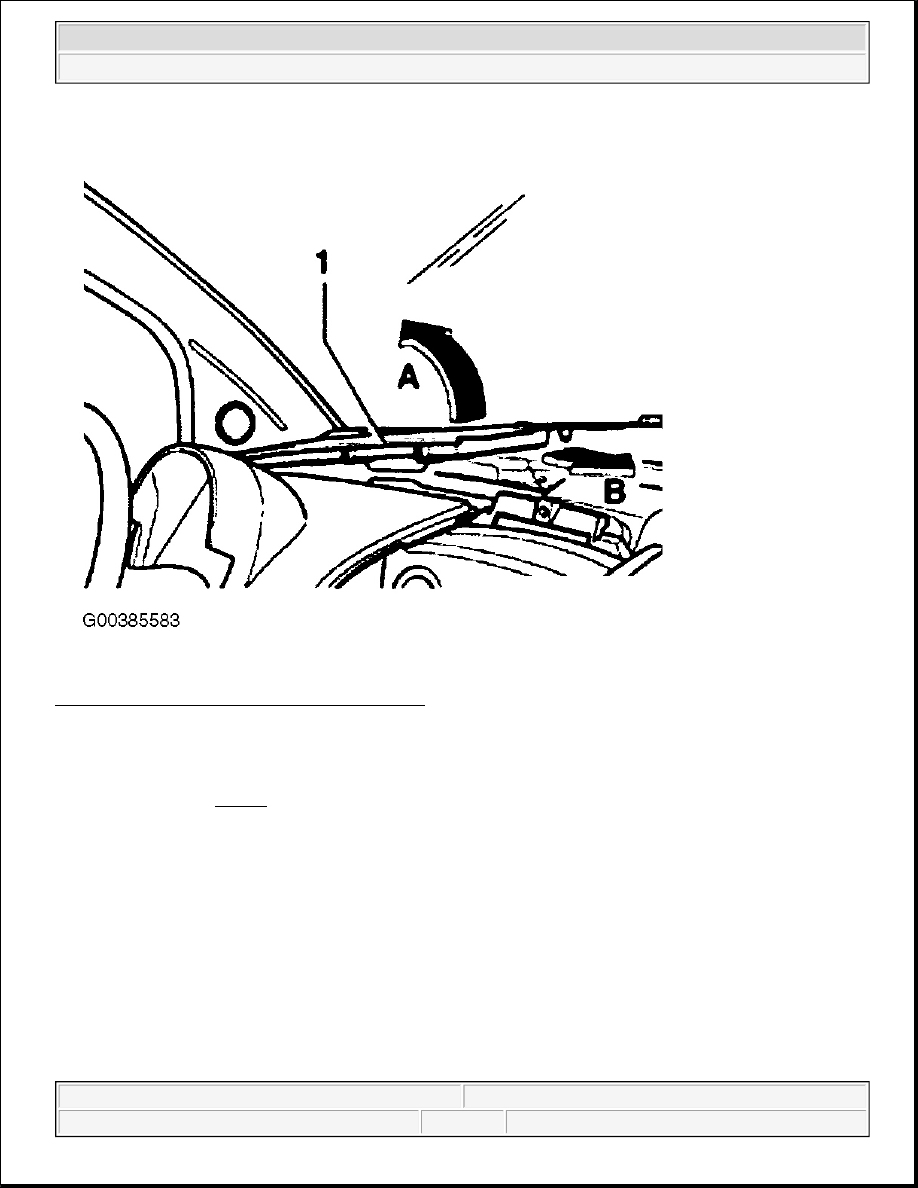

Fig. 20: Removing Left Plenum Chamber Cover
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Pull cover -1- toward center of instrument panel and out of retainers in A-pillar -arrow B-. Remove securing
screws from the right-hand sealing part -1- or the left-hand sealing part -2- and take sealing part off plenum
chamber upward. See Fig. 21 .



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC Diagnosis - New Beetle, 09G

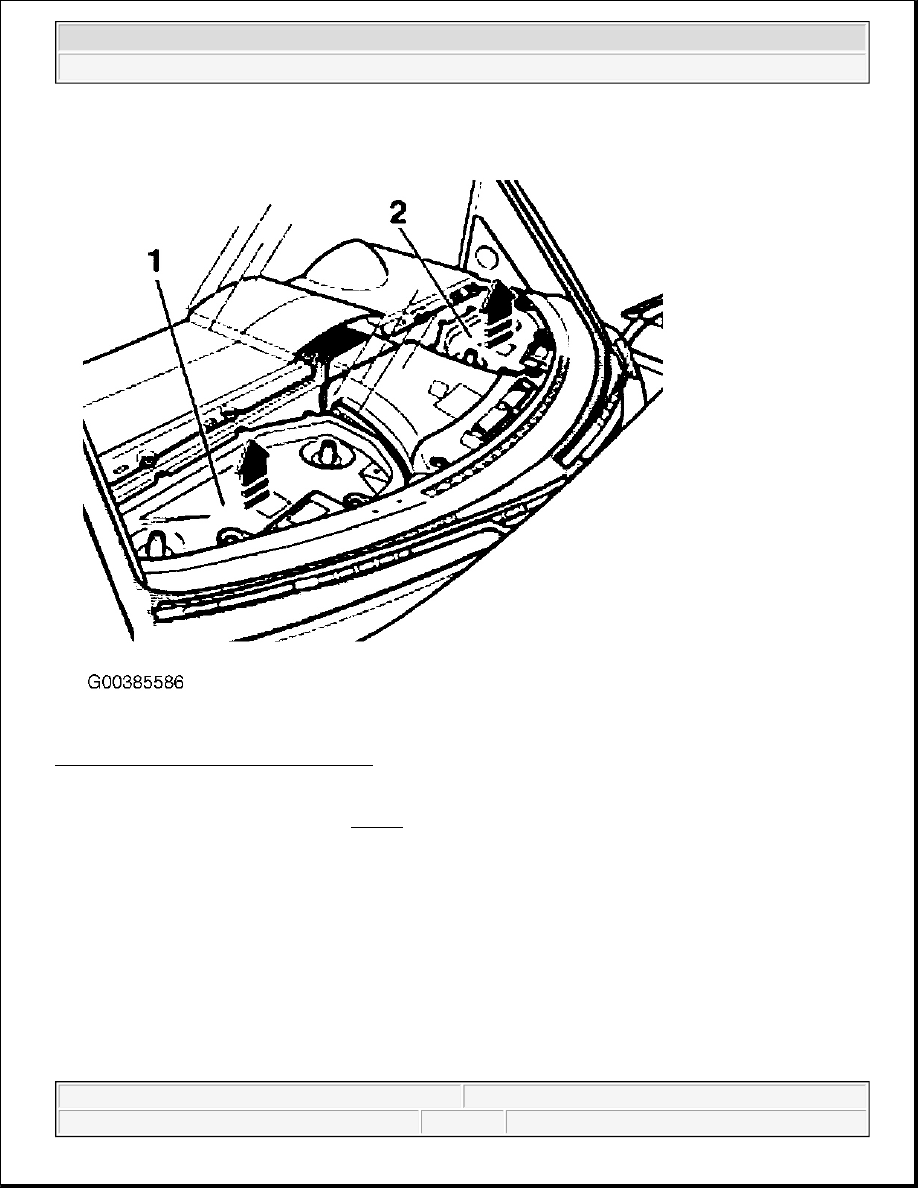

Fig. 21: Removing Plenum Chamber Seal
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove closeout panels -3- and -4-. See Fig. 22 . Remove spreader rivets -6- and lift out panel -5- from
bulkhead clips.



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC Diagnosis - New Beetle, 09G

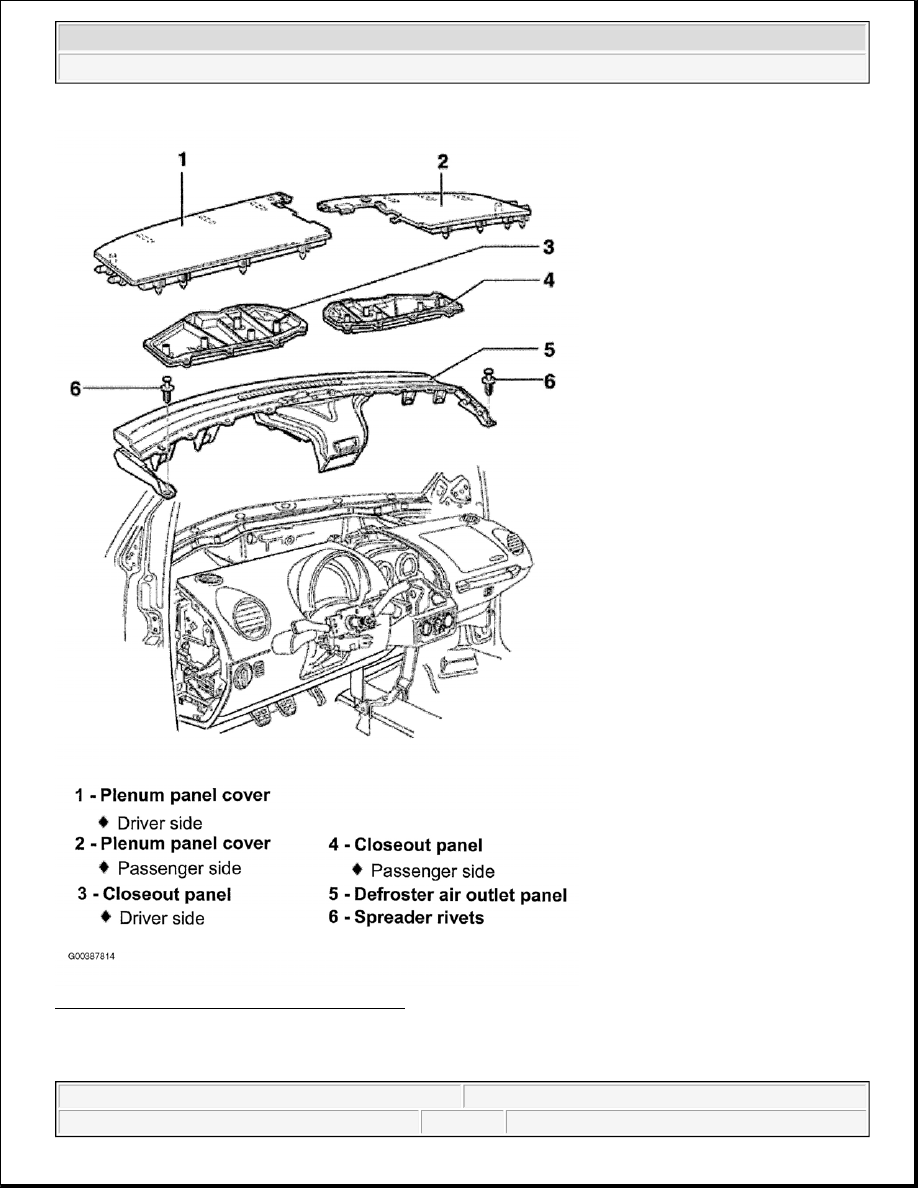

Fig. 22: Removing Defroster Air Outlet Panel
Courtesy of VOLKSWAGEN UNITED STATES, INC.

NOTE:

Separating the connector automatically resets the adaptation values of the



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC Diagnosis - New Beetle, 09G

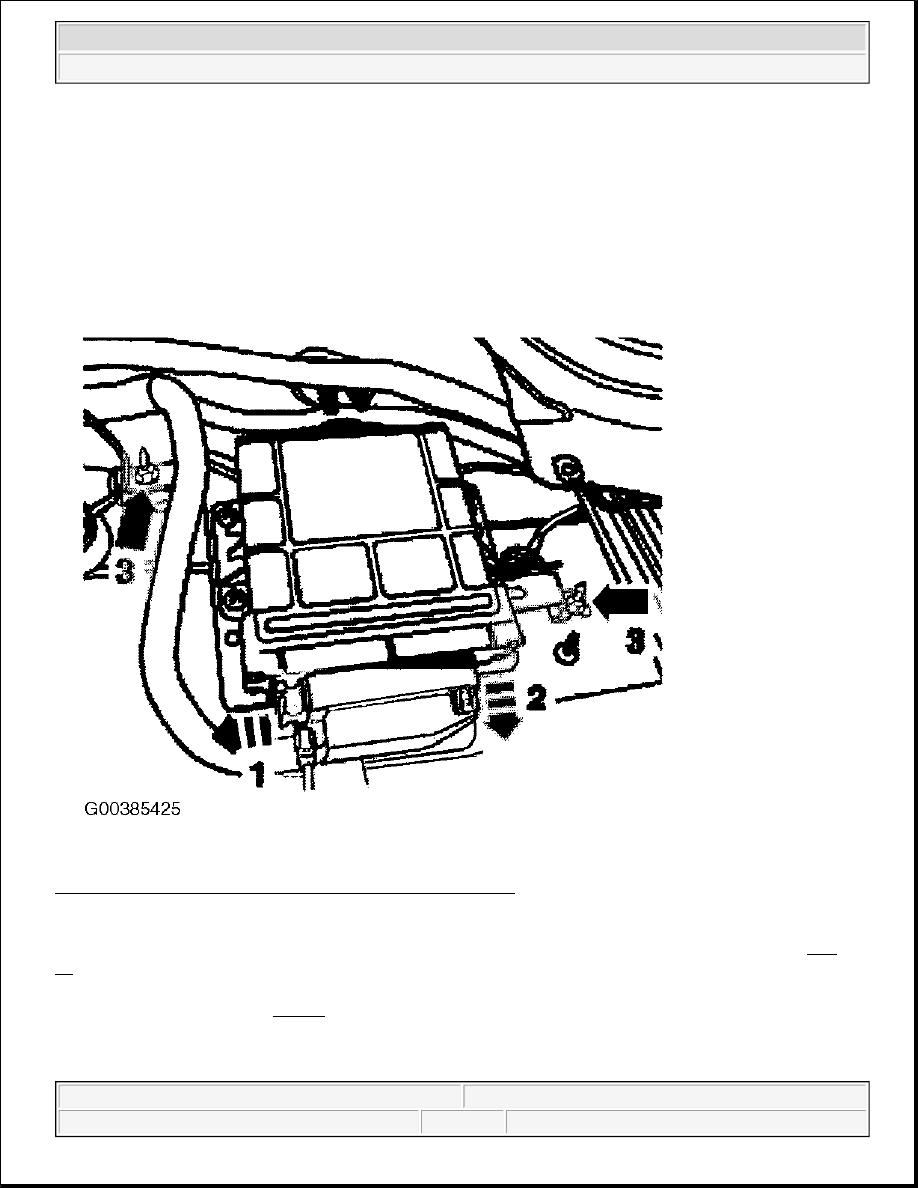

Fig. 23: Locating Transmission Control Module Connectors
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Release connector (arrow -1-) and remove connector from transmission control module (arrow -2-). See Fig.
23
 .

Remove nuts (arrow -3-). See Fig. 23 . Remove control module.

Install in reverse order.

transmission. The control module must relearn the values once the
transmission is operational again. The quality of the gear changes may
deteriorate during the learning phase.

NOTE:

The control module connector may only be connected or disconnected once a
run-down period of 30 seconds has elapsed after switching the ignition off.



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC Diagnosis - New Beetle, 09G
