Volkswagen New Beetle. Manual - part 2161

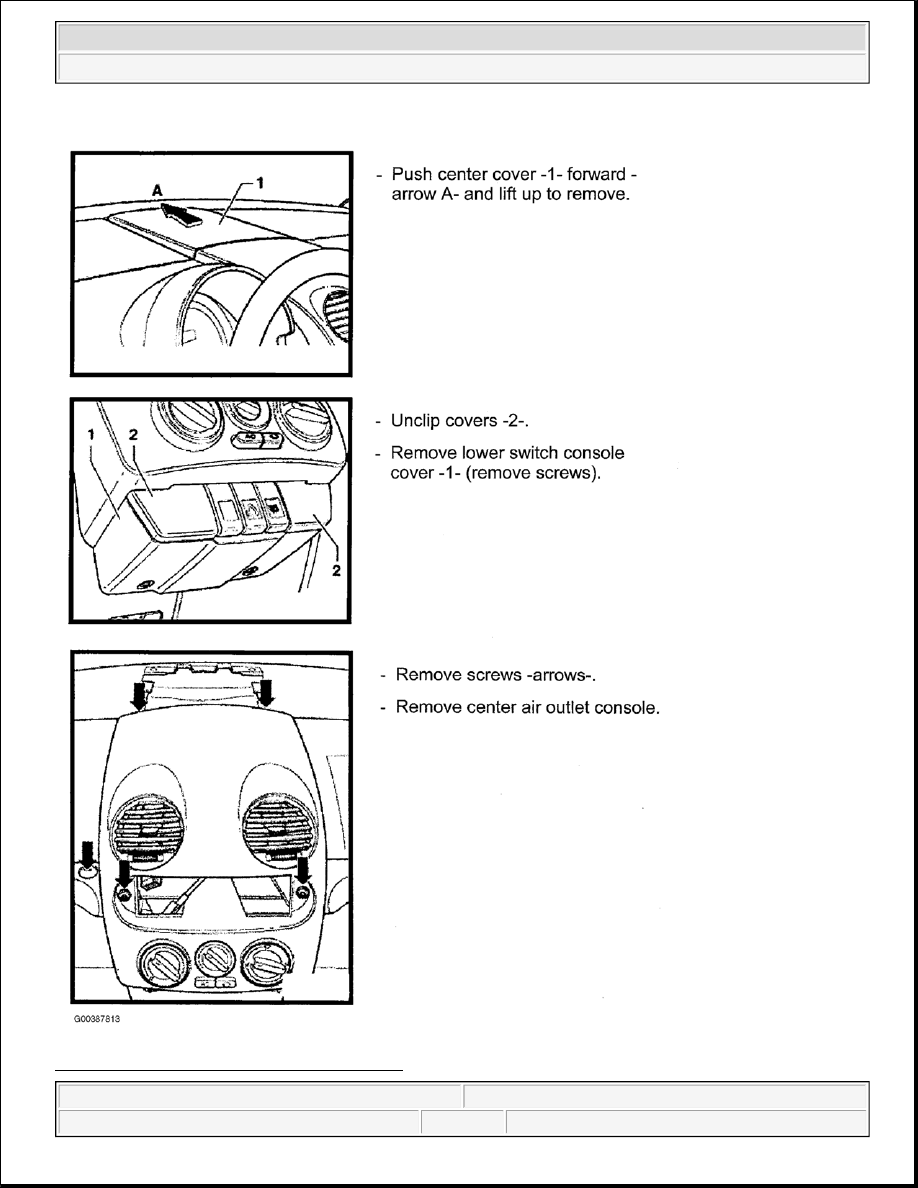

Fig. 16: Removing Center Air Outlet Console



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC Diagnosis - New Beetle, 09G



Courtesy of VOLKSWAGEN UNITED STATES, INC.

Slide plenum chamber center cover -1- forward out of its locking device and take off of dash panel -arrow-. See
Fig. 17 .

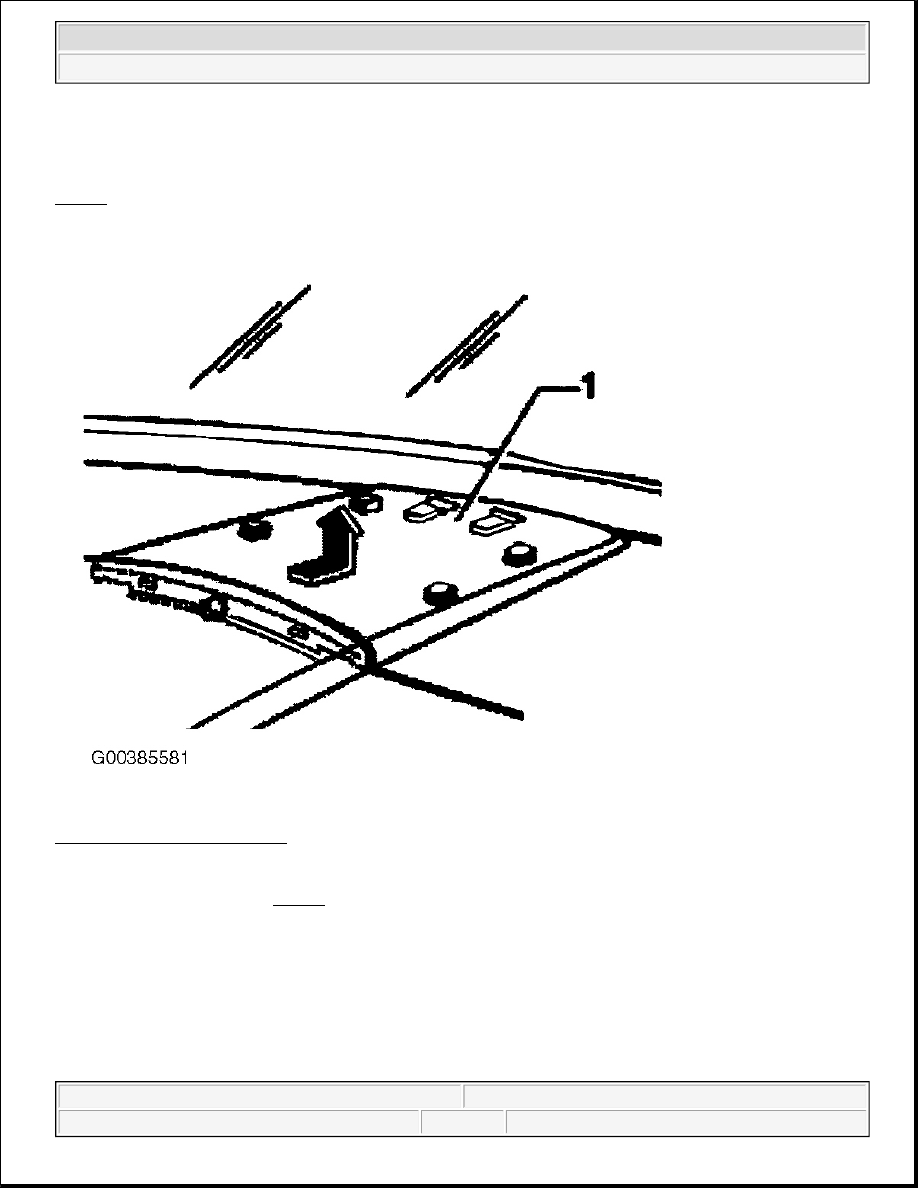

Fig. 17: Removing Dash Panel
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove scres -1- (Qty. ). See Fig. 18 .



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC Diagnosis - New Beetle, 09G

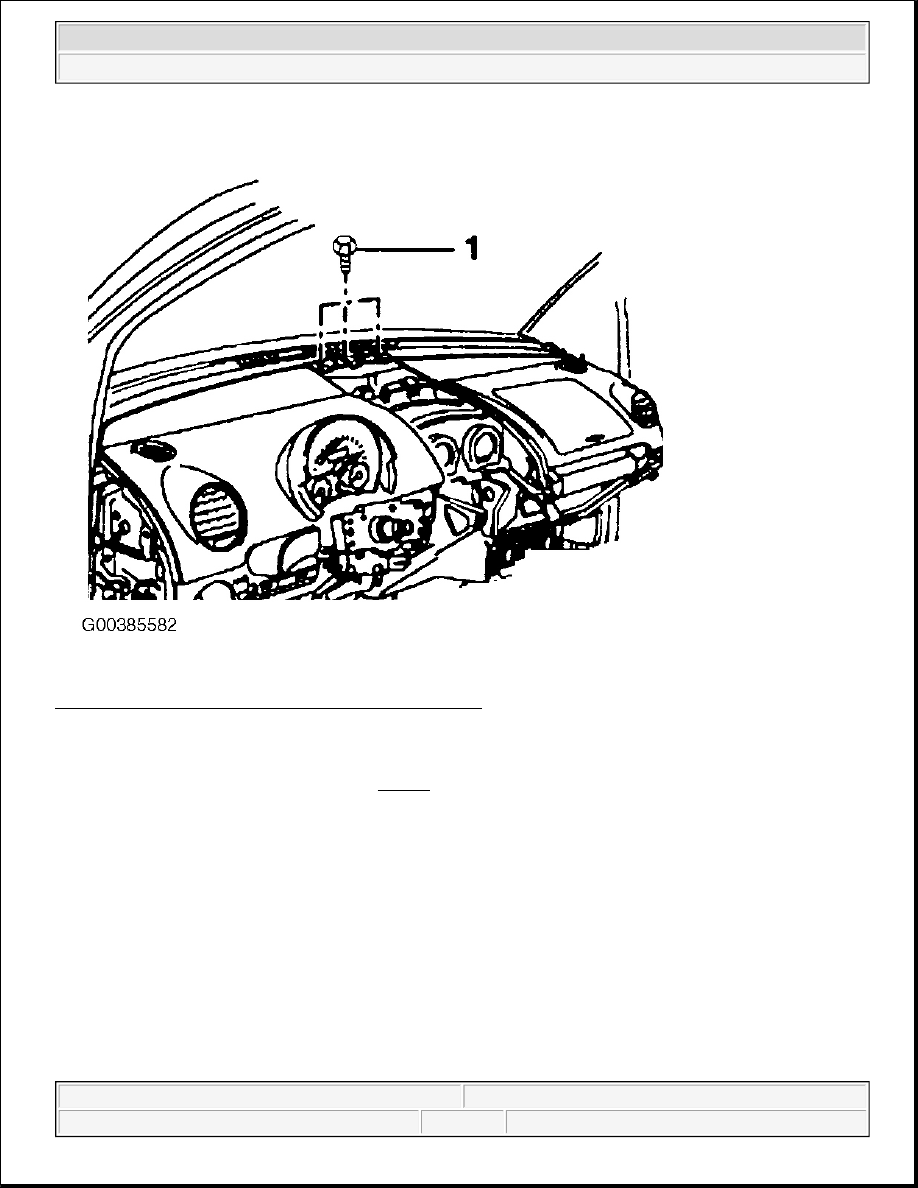

Fig. 18: Locating Plenum Cover Center Mounting Bolts
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Lift left-hand plenum chamber cover -1- in the center of the instrument panel -arrow A-, this action unclips the
panel (front and rear edges are clipped). See Fig. 19 .



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC Diagnosis - New Beetle, 09G

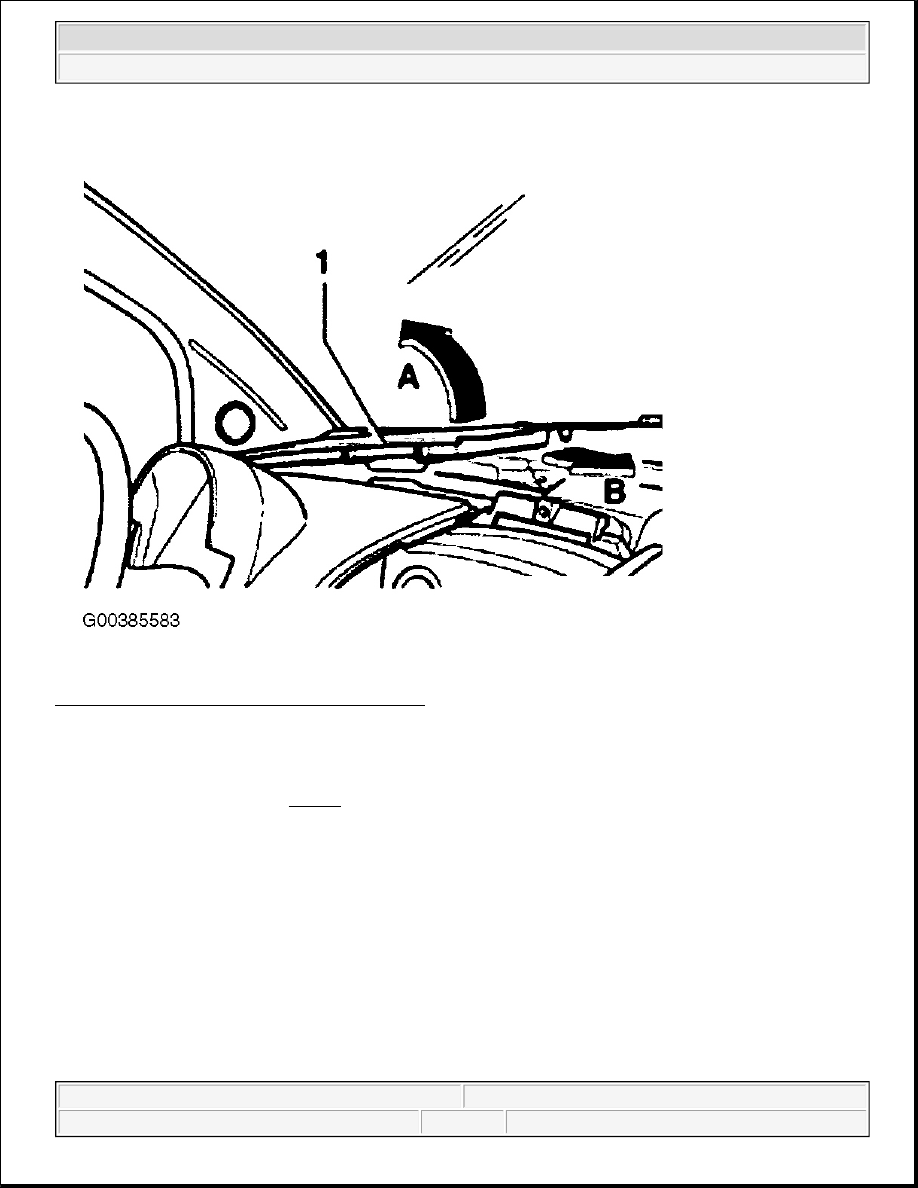

Fig. 19: Removing Left Plenum Chamber Cover
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Pull cover -1- toward center of instrument panel and out of retainers in A-pillar -arrow B-. Lift right-hand
plenum chamber cover -1- in the center of the instrument panel -arrow A-, this action unclips the panel (front
and rear edges are clipped). See Fig. 20 .



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC Diagnosis - New Beetle, 09G
