Volkswagen New Beetle. Manual - part 2140





ADDITIONAL INFORMATION

For additional informations, see:

z

REMOVAL & INSTALLATION - A/T (01M) article

z

Appropriate SYSTEM WIRING DIAGRAM article in ELECTRICAL

z

Available Parts catalog

VAG 1551 SCAN TOOL, CONNECTING AND SELECTING FUNCTIONS

Test Conditions

z

Vehicle voltage supply OK

z

Fuses No. 07, 11, 15 and 31 OK

z

Fuse in main fuse box (110 amps.) OK

z

Ground connections for transmission OK. Ground connecting points are located in plenum chamber and
below the battery in engine compartment.

z

Check Ground connections for corrosion and poor contact; repair if necessary.

z

Check battery Ground strap and Ground strap between battery and transmission.

z

Selector lever in "P" and parking brake applied.

Notes

z

The DLC may be found in the center console on some vehicles.

z

Additional operating instructions can be retrieved by pressing the HELP button of VAG 1551.

z

The "right arrow" button is used for advancing within the program sequence.

z

An automatic check (buttons 00) can be selected in operating mode 1 "Rapid data transfer". All vehicle
control modules will then be checked automatically.

z

See scan tool manufacturer operational booklet for additional procedures and notes.

Connecting & Selecting Functions

1. Switch ignition off and connect VAG 1551 Scan Tool with adapter VAG 1551/3A. See Fig. 12 .

2. Switch on ignition.

3. Switch on printer with Print button (indicator lamp in button lights).

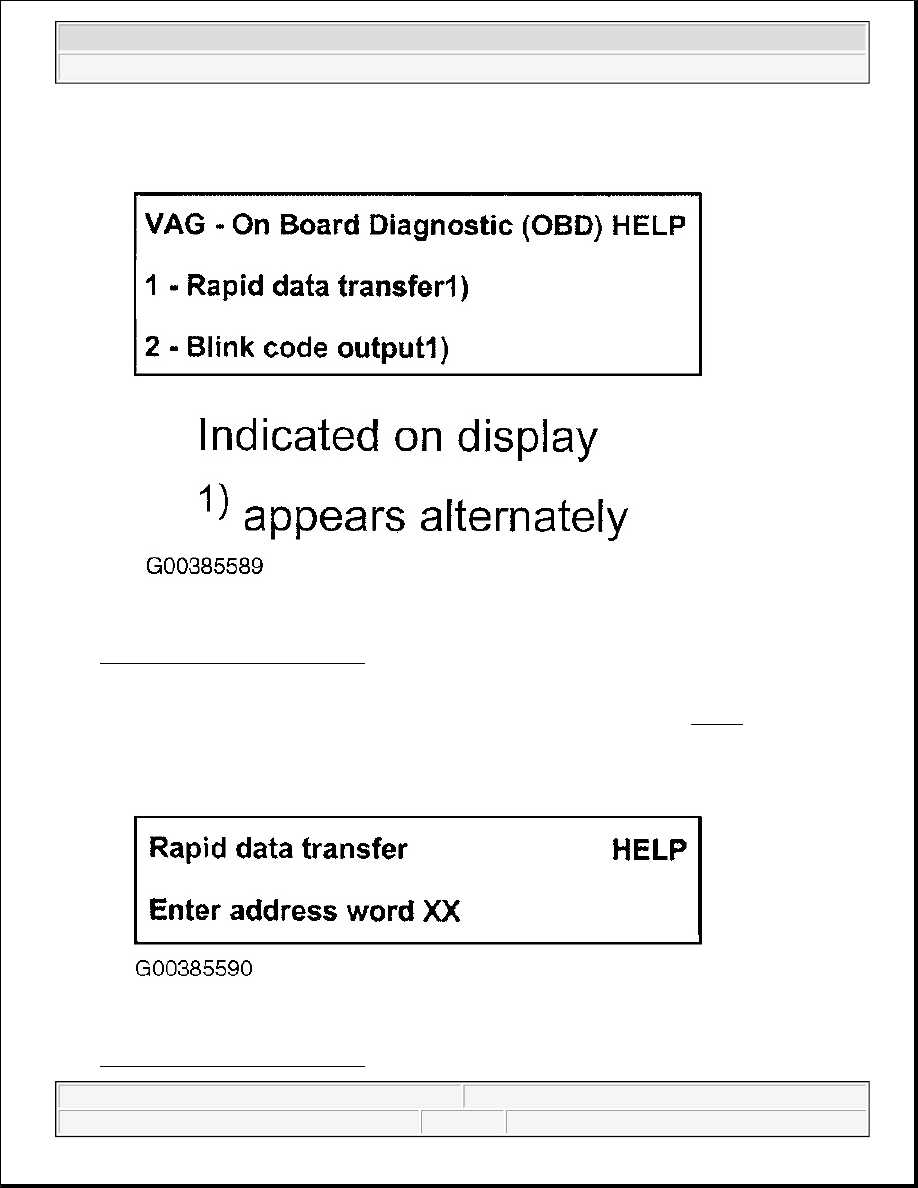

4. Press button 1 for "Rapid data transfer" mode. See Fig. 34

WARNING:

Test and measuring instruments must be secured to the rear seat and
operated by a second technician from this location.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Diagnosis - 01M



Fig. 34: Scan Tool Display (1 Of 4)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

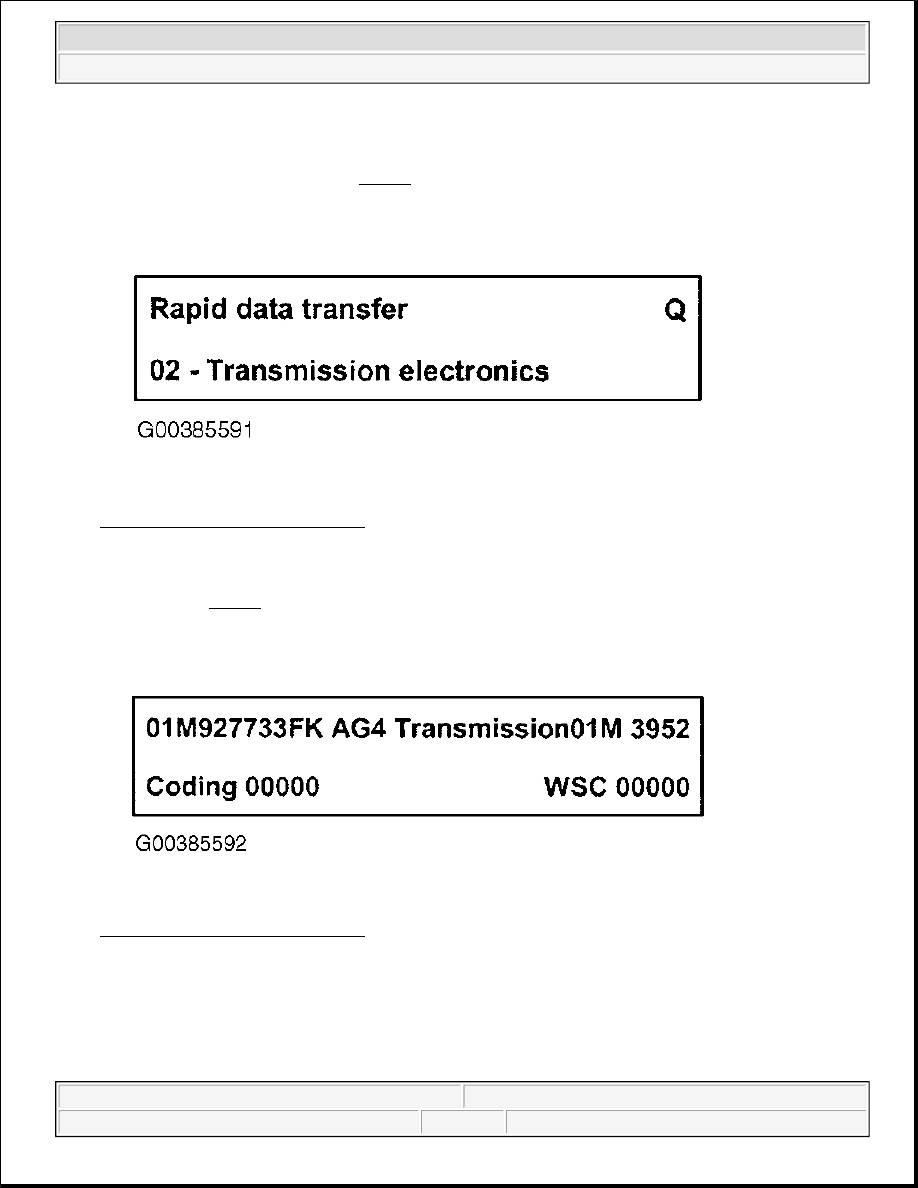

5. Press buttons -0- and -2- to enter "transmission electronics" address word 02. See Fig. 35 .

Fig. 35: Scan Tool Display (2 Of 4)



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Diagnosis - 01M



Courtesy of VOLKSWAGEN UNITED STATES, INC.

6. Confirm entry with -Q- button. See Fig. 36 .

Fig. 36: Scan Tool Display (3 Of 4)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

7. Example: The control module identification, the coding and the dealership number of the VAG 1551 are

displayed. See Fig. 37 .

Fig. 37: Scan Tool Display (4 Of 4)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

CONTROL MODULE IDENTIFICATION

Depending upon build level (program level) the control module can indicate a different control module
identification to that shown in the example.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Diagnosis - 01M



z

01M 927 733 FK: Part No.

z

AG4 transmission 01M: 4-speed automatic transmission 01M

z

3952: EPROM (Program level)

z

Coding 00000: not required at present.

z

WSC 00000: VAG 1551 dealership number with which the last coding was performed.

z

If "Control module does not answer!" appears, press HELP button to print out a list of possible fault
causes. After eliminating possible causes of faults, again enter the address word 02 for "transmission
electronics" and confirm.

z

If "Control module does not answer!" again appears:

a. Check control module voltage supply.

b. Perform test step 1. See TRANSMISSION: ELECTRICAL TEST .

c. Check wiring connections to Data Link Connector (DLC). See appropriate WIRING article in

ELECTRICAL.

d. Check under DTC 65535, control module faulty! See DIAGNOSTIC TROUBLE CODE (DTC)

TABLE .

e. Press "right arrow" button.

f. Display should be similar to illustration. See Fig. 38 . After the HELP button is pressed, a list of the

possible functions is printed out.

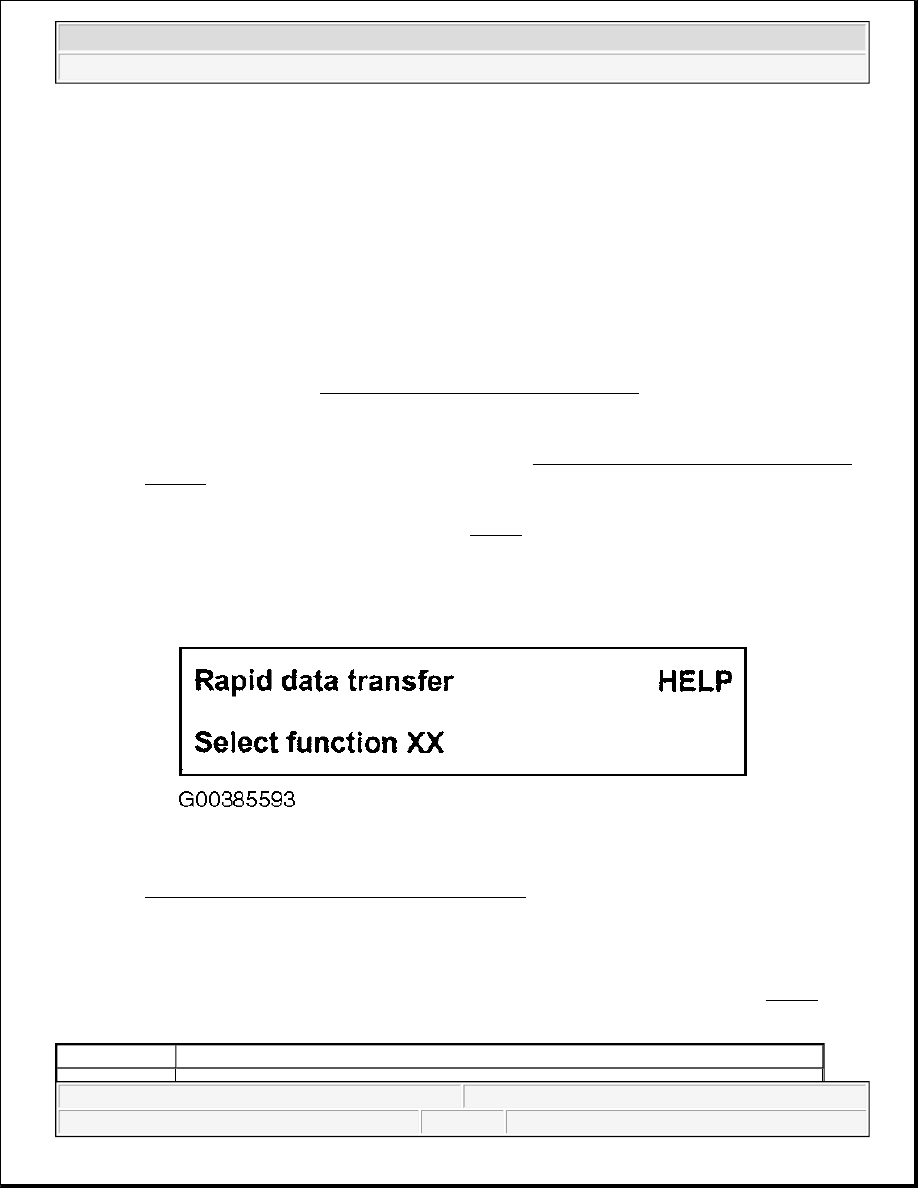

Fig. 38: Scan Tool Function Select Display Screen
Courtesy of VOLKSWAGEN UNITED STATES, INC.

LIST OF SELECTABLE FUNCTIONS

The VAG 1551 Scan Tool returns to the following start position after checking each function. See Fig. 38 .

SELECTABLE SCAN TOOL FUNCTIONS

Function No.

Description



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Diagnosis - 01M
