1. Obtain radio code for vehicles with coded radio.

2. Switch ignition off and disconnect battery ground strap.

3. Remove battery.

4. Remove air cleaner.

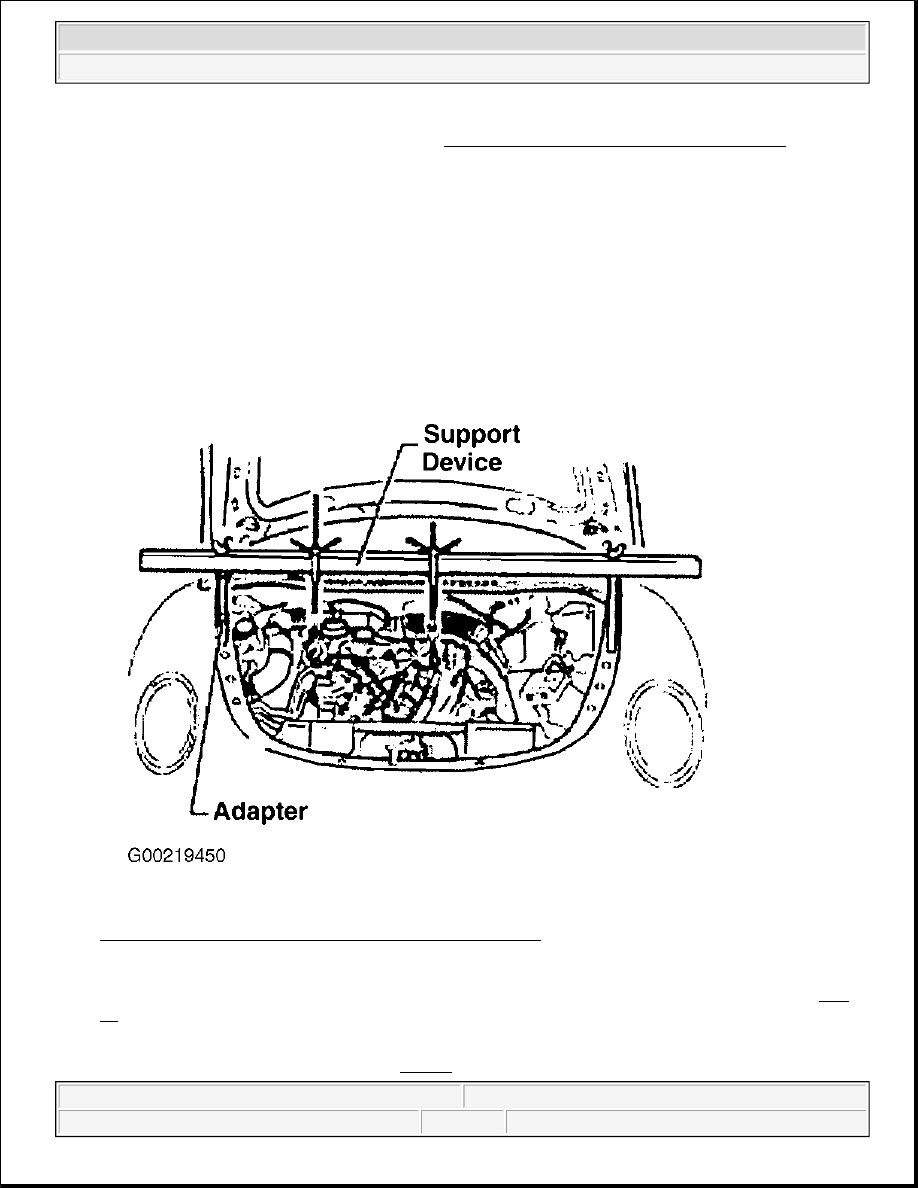

Fig. 26: Installing Support Device & Adapters To Vehicle
Courtesy of VOLKSWAGEN UNITED STATES, INC.

5. Install support bar 10-222 A with legs 10-222 A/8 and support engine/transmission in position. See Fig.

26 .

6. Remove bracket for power steering pressure hose.

7. Remove pendulum support (arrows). See Fig. 27 .

NOTE:

For additional information, see REMOVAL & INSTALLATION - A/T (01M) article.

CAUTION: DO NOT remove bolts for transmission carrier (arrows) until

transmission has been supported.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Diagnosis - 01M

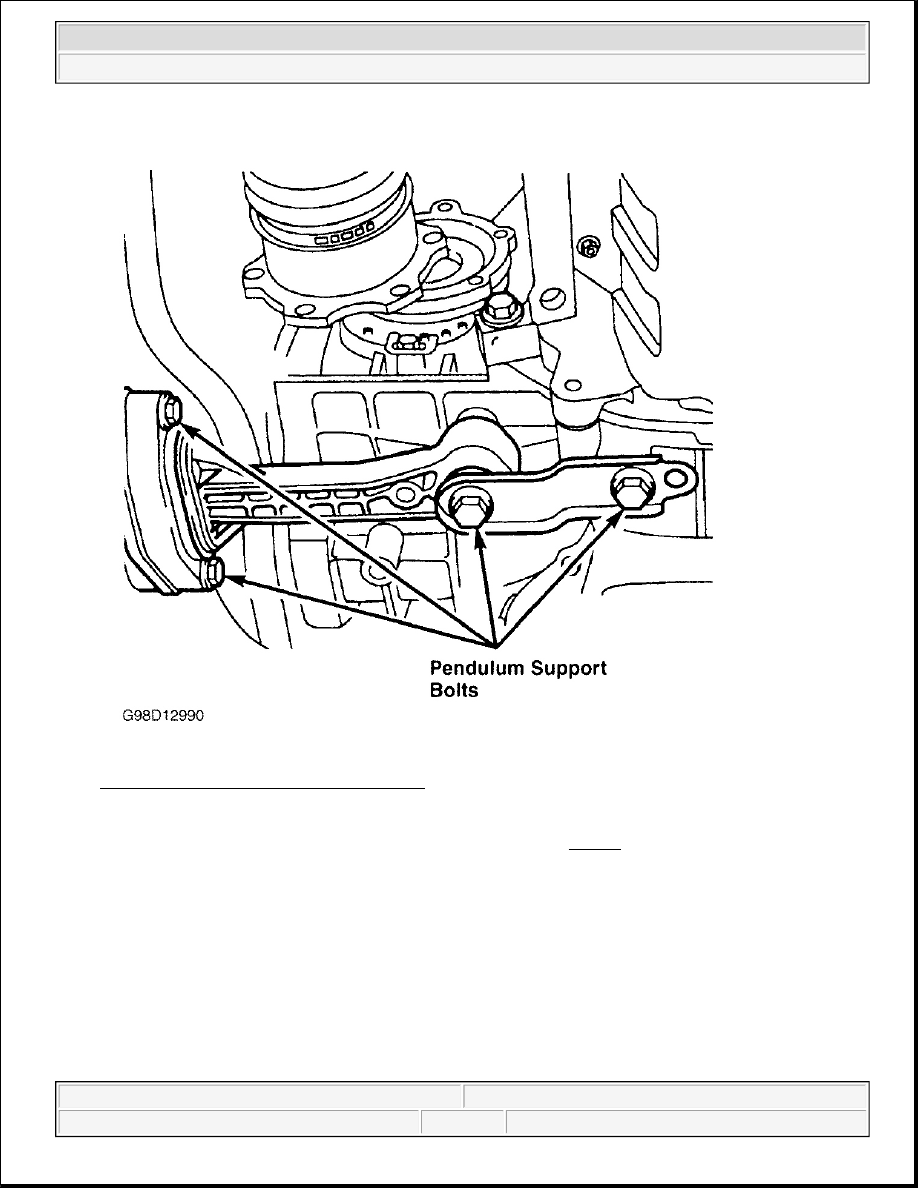

Fig. 27: Locating Pendulum Support Bolts
Courtesy of VOLKSWAGEN UNITED STATES, INC.

8. Lower transmission approx. 60 mm (2.4 in.). See dimension a in Fig. 28 .



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Diagnosis - 01M

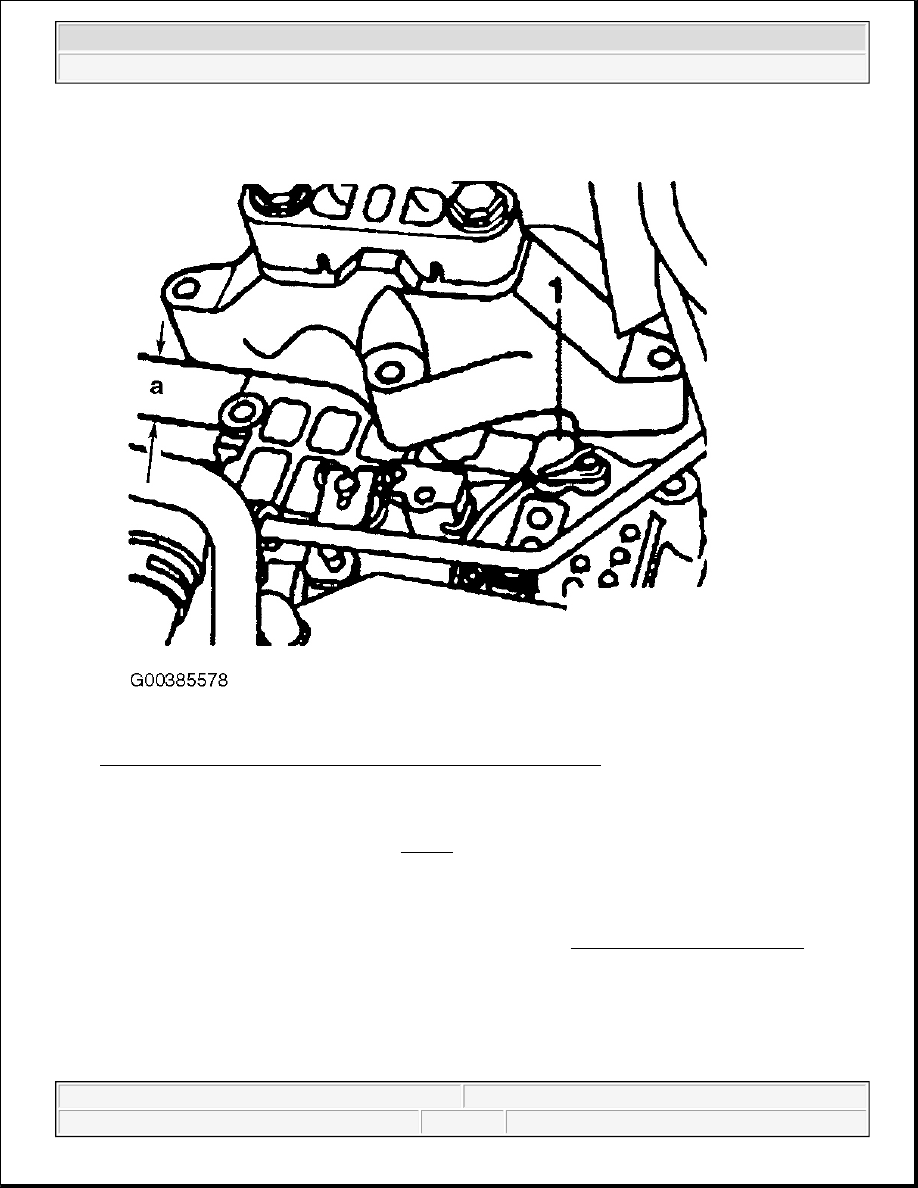

Fig. 28: Identifying Transmission Height & Vehicle Speed Sensor
Courtesy of VOLKSWAGEN UNITED STATES, INC.

9. Disconnect black connector from sensor.

10. Remove bolt and take sensor -1- out. See Fig. 28 .

11. Replace seal.

12. Installation is performed in the reverse order. Use NEW pendulum support bolts.

13. Tighten bolt to 10 Nm (7 ft lb).

Transmission Control Module (TCM) -J217-

NOTE:

For additional torque specifications, see TORQUE SPECIFICATIONS in
REMOVAL & INSTALLATION - A/T (01M) article.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Diagnosis - 01M



The control module (arrow) is located in the plenum chamber, center right.

Removing & Installing

1. Switch off ignition.

2. Slide plenum chamber center cover -1- forward out of its locking device and take off of dash panel -

arrow-. See Fig. 8 .

3. Remove screws -1- (Qty. 3). See Fig. 9 .

4. Lift left-hand plenum chamber cover -1- in the center of the instrument panel -arrow A-, this action

unclips the panel (front and rear edges are clipped). See Fig. 10 .

5. Pull cover -1- toward center of instrument panel and out of retainers in A-pillar -arrow B-. See Fig. 10 .

6. Lift right-hand plenum chamber cover -1- in the center of the instrument panel -arrow A-, this action

unclips the panel (front and rear edges are clipped). See Fig. 29 .

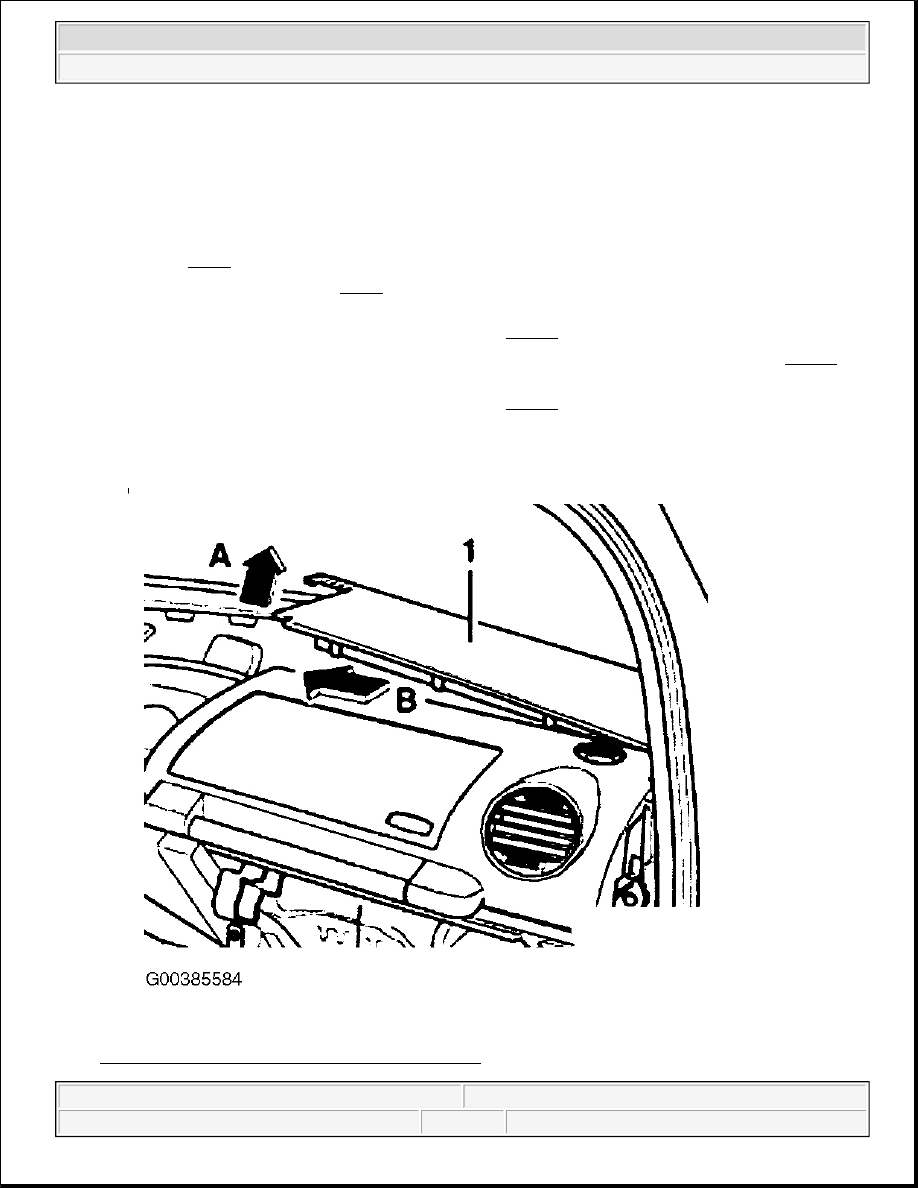

Fig. 29: Removing Right Plenum Chamber Cover
Courtesy of VOLKSWAGEN UNITED STATES, INC.
