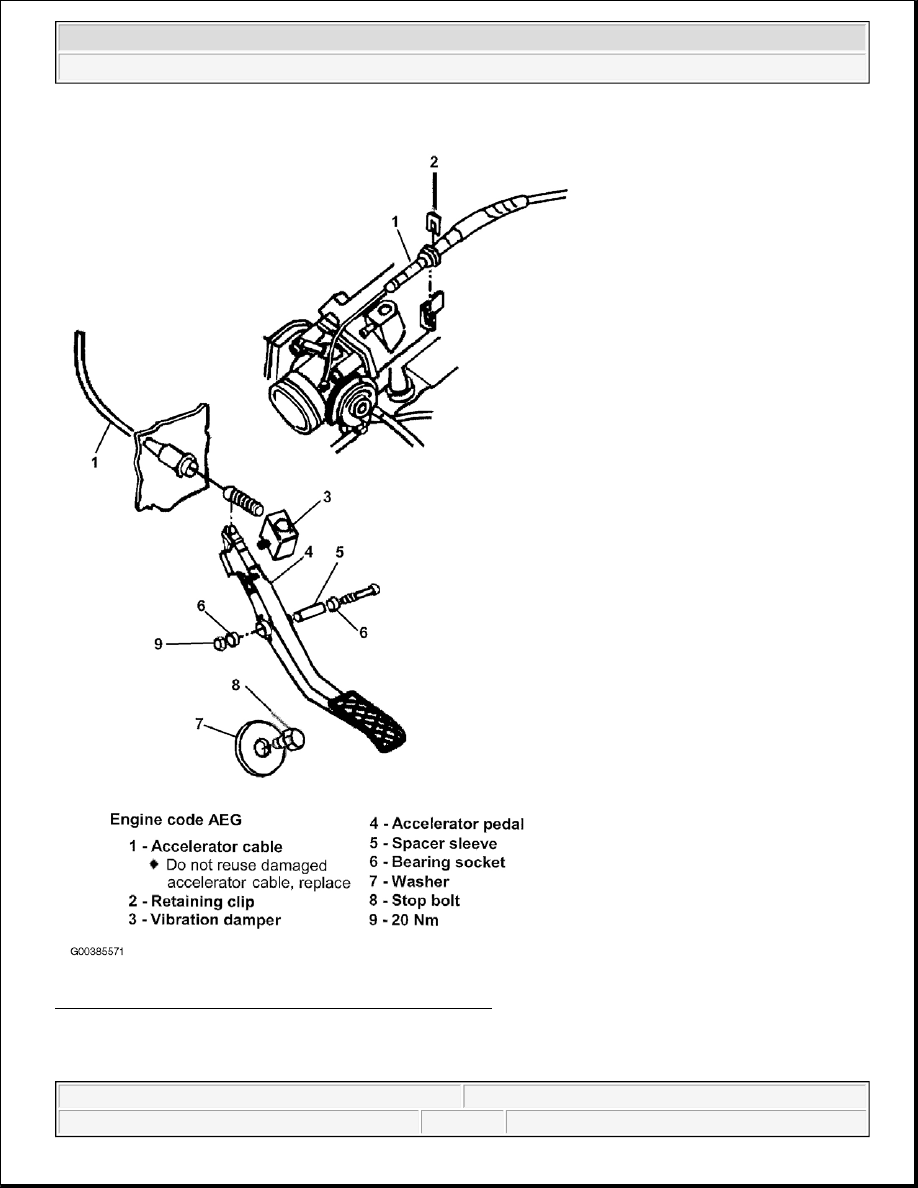

Fig. 19: Identifying Accelerator Mechanism Components
Courtesy of VOLKSWAGEN UNITED STATES, INC.

1. Adjust accelerator cable by moving retainer on support bracket so that wide open throttle position is



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Diagnosis - 01M



attained on cam plate of throttle valve control module.

2. Release accelerator pedal.

3. Pull 2-pin connector off Kick down switch -F8- in front engine compartment (on bulkhead).

4. Connect hand multimeter V.A.G. 1526 A with auxiliary cables from V.A.G 1594 to kick down switch.

5. Measure resistance at switch. Specification: infinite resistance.

6. Press accelerator pedal slowly to floor. Shortly after kick down switch point resistance must drop at 0

ohms. Accelerator pedal must be at point just before limit stop.

7. Adjust accelerator cable by moving retainer on support bracket, so that throttle valve is fully open and

kick-down switch clicks audibly.

8. Release accelerator pedal or remove speed regulator.

9. Once adjustments are complete check idling and wide open throttle limit stops on throttle valve.

Cruise Control Switch -E45-

Location: on steering column switch.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Diagnosis - 01M



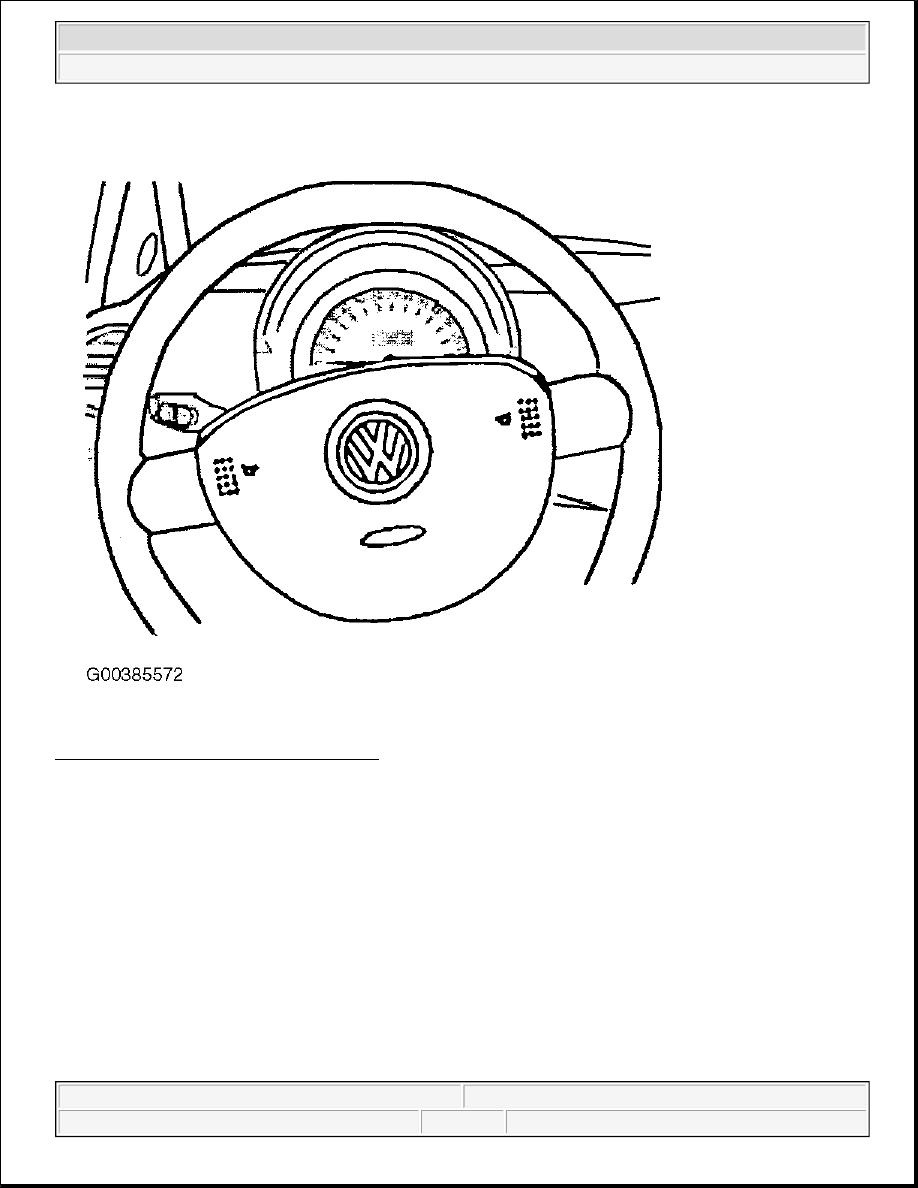

Fig. 20: Identifying Cruise Control Switch
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Removal & Installation

For removal and installation procedures, see appropriate STEERING COLUMN SWITCHES article in
ACCESSORIES AND EQUIPMENT.

Shift Lock Solenoid -N110-

Location: in the selector lever housing.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Diagnosis - 01M



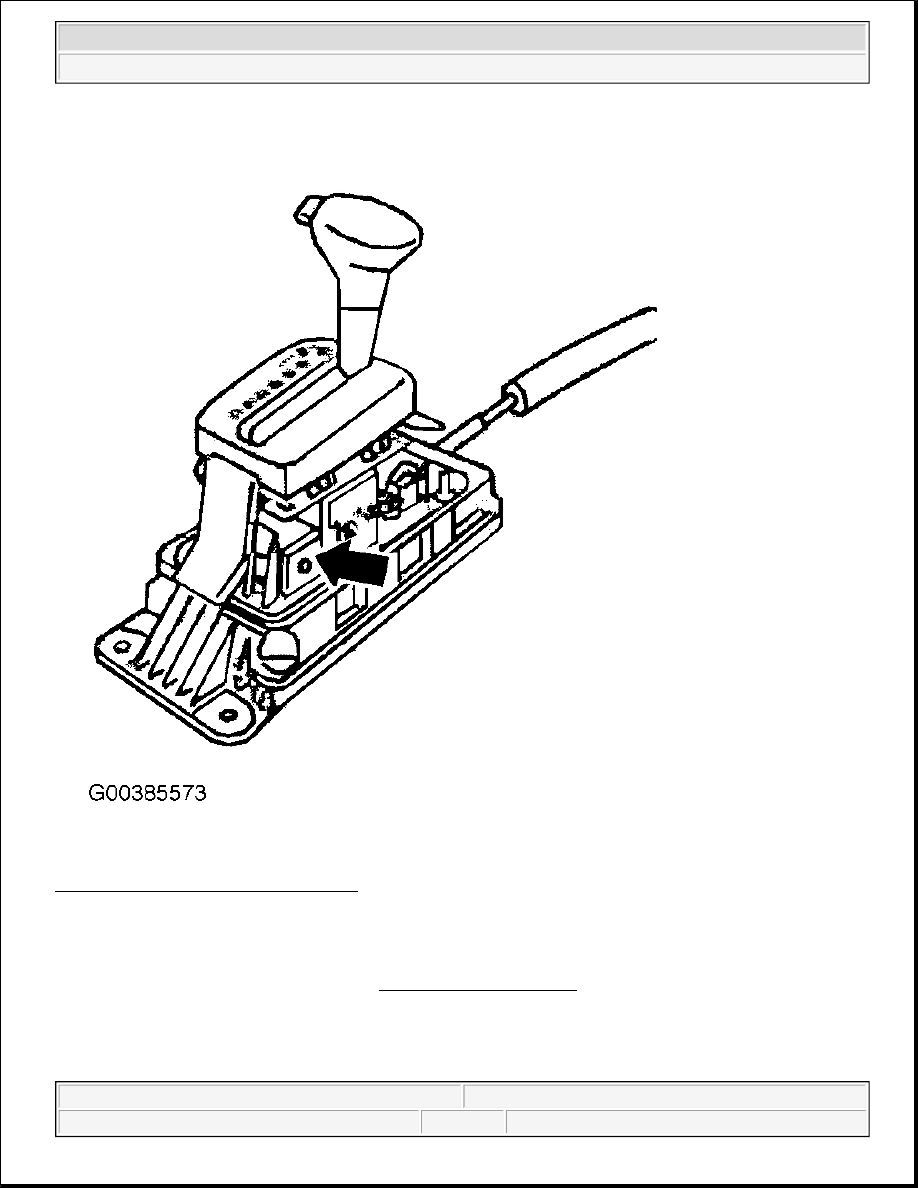

Fig. 21: Identifying Shift Lock Solenoid
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Removal & Installation

For removal and installation procedures, see SERVICING - A/T (01M) article.

Brake Light Switch

Location: on pedal cluster.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Diagnosis - 01M
