Volkswagen New Beetle. Manual - part 2134

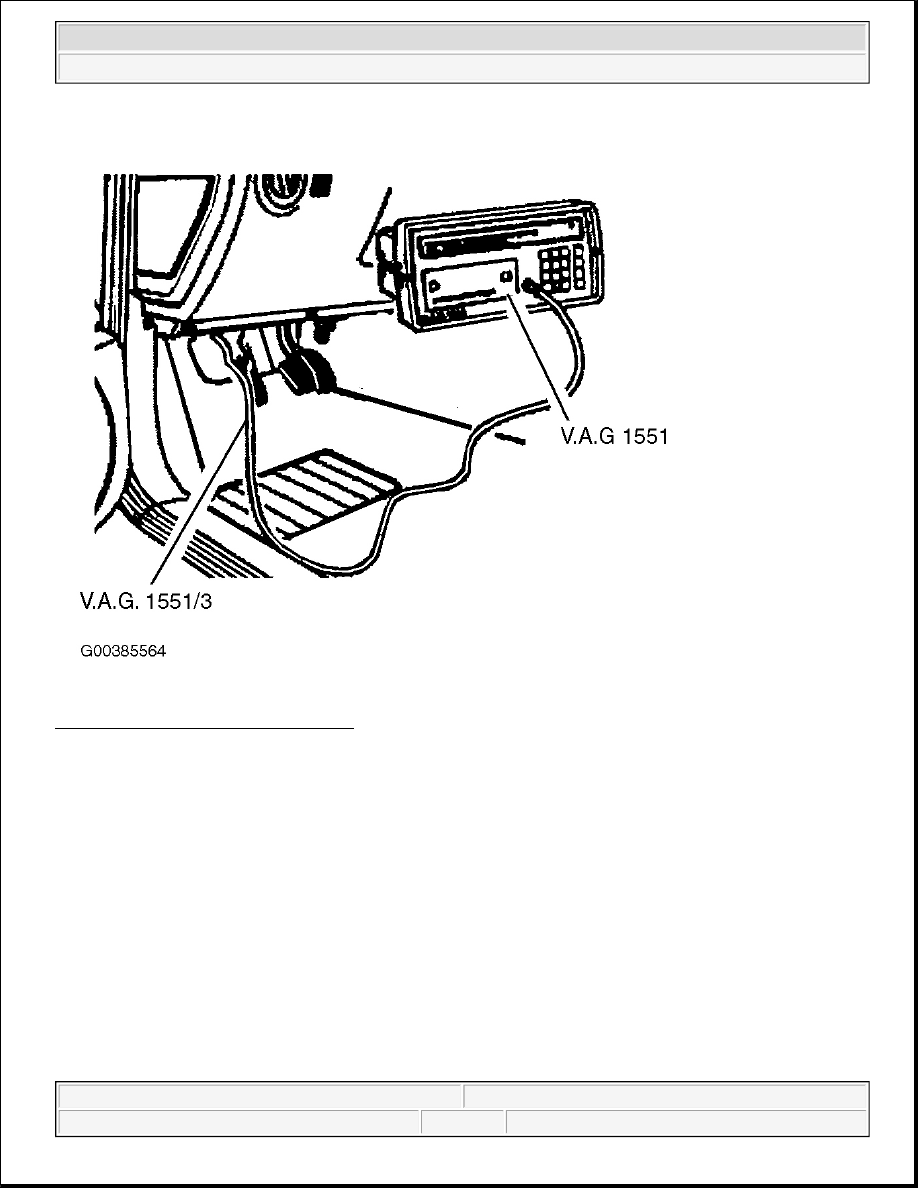

Fig. 12: Locating Data Link Connector
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Valve Body

Location: above oil pan

Solenoid valves -N88-, -N89-, -N90-, -N91-, -N92-, -N93- and -N94- are attached to the valve body.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Diagnosis - 01M

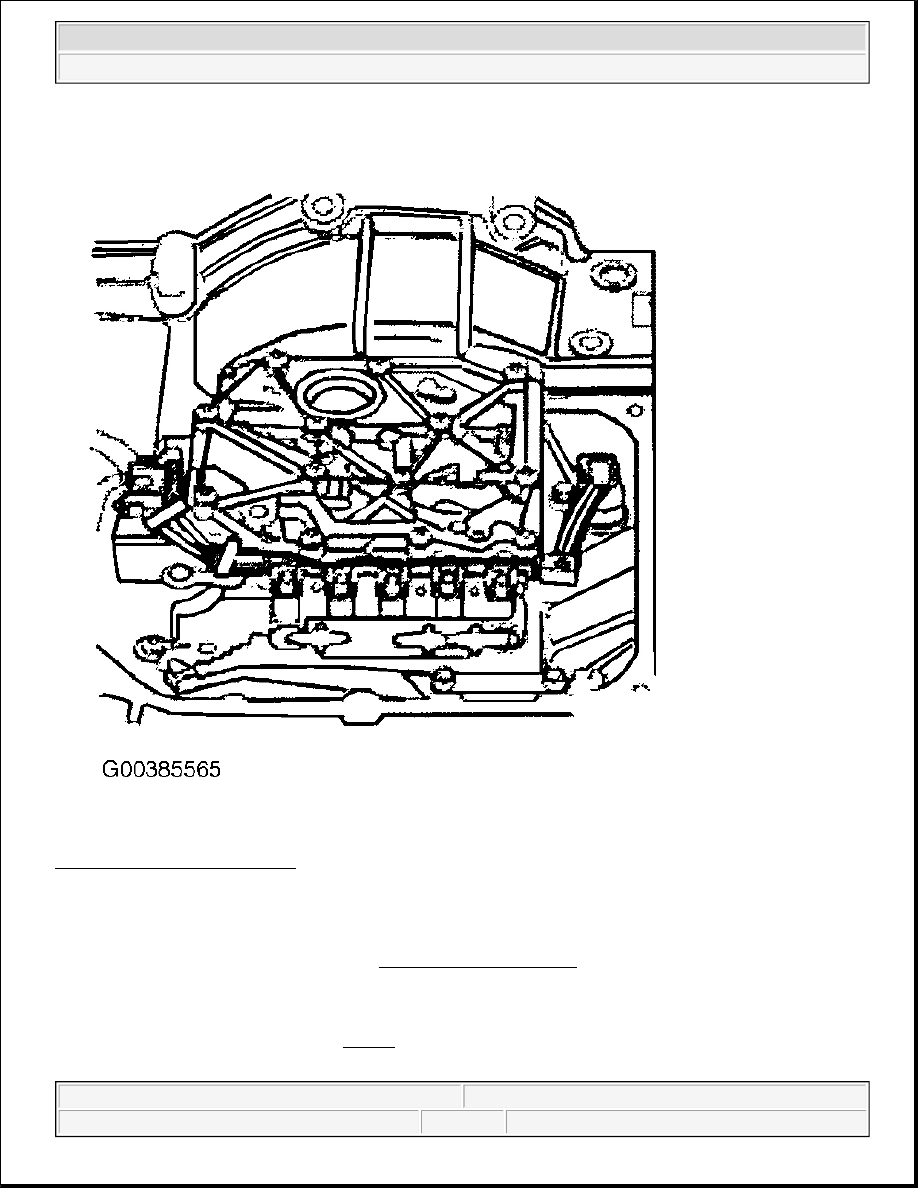

Fig. 13: Identifying Valve Body
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Removal & Installation

For removal and installation procedures, see SERVICING - A/T (01M) article.

Conductor Strip With Integrated Transmission Fluid Temperature Sensor -G93-

Location: in oil pan on valve body. See Fig. 13 .



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Diagnosis - 01M



Removal & Installation

The conductor strip can be replaced with the transmission installed and without removing the valve body.

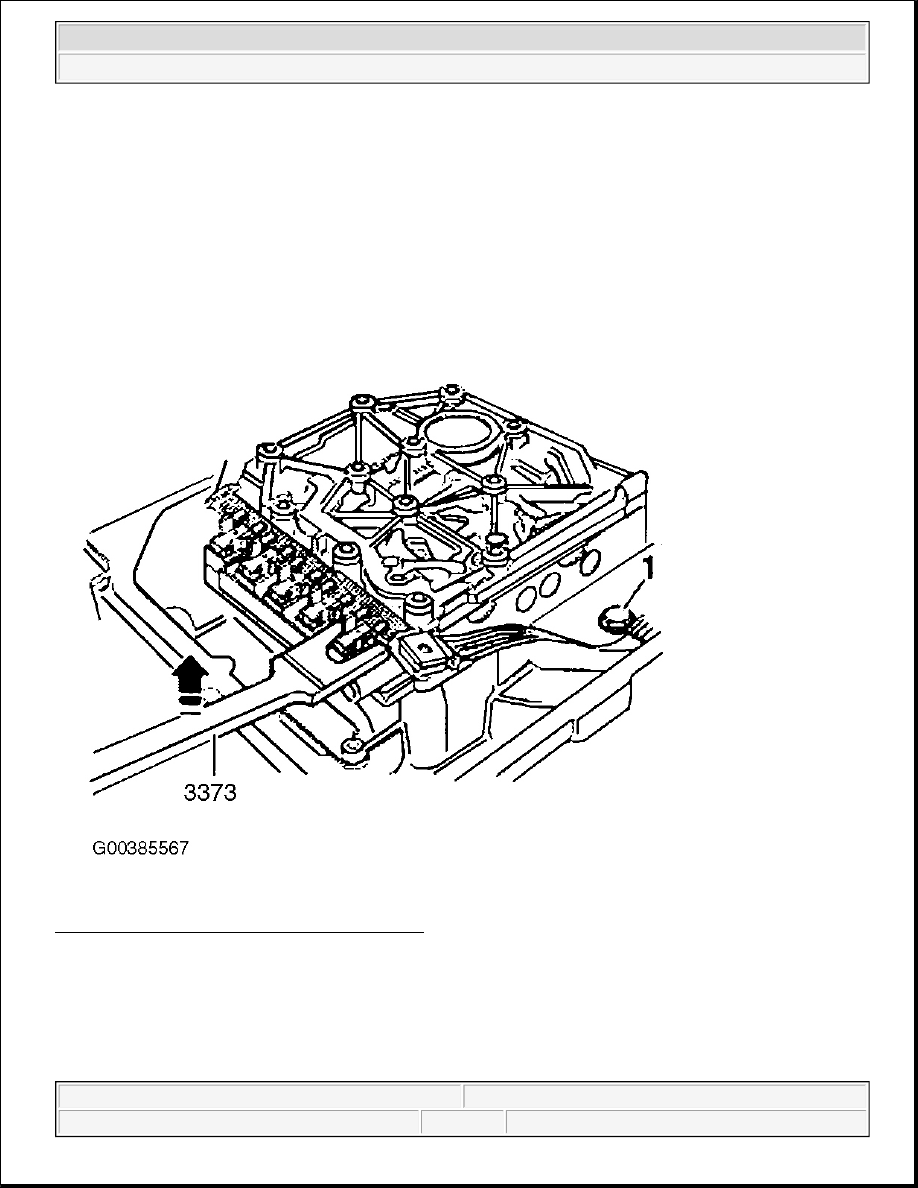

Fig. 14: Removing & Installing Conductor Strip
Courtesy of AUDI OF AMERICA, INC.

1. Separate connector at transmission and remove retaining clamp.

2. Drain ATF.

3. Remove transmission oil pan and remove wiring guide.

4. Pry conductor strip off solenoid valve in direction of arrow with special tool 3373.

CAUTION: If the locating points are damaged the valve body must be replaced.

NOTE:

Do not kink or damage conductor strip.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Diagnosis - 01M



5. Installation is performed in the reverse order.

6. For ATF refill procedure, see SERVICING - A/T (01M) article.

Multi-Function Transmission Range (TR) Switch -F125-

Location: on rear of transmission

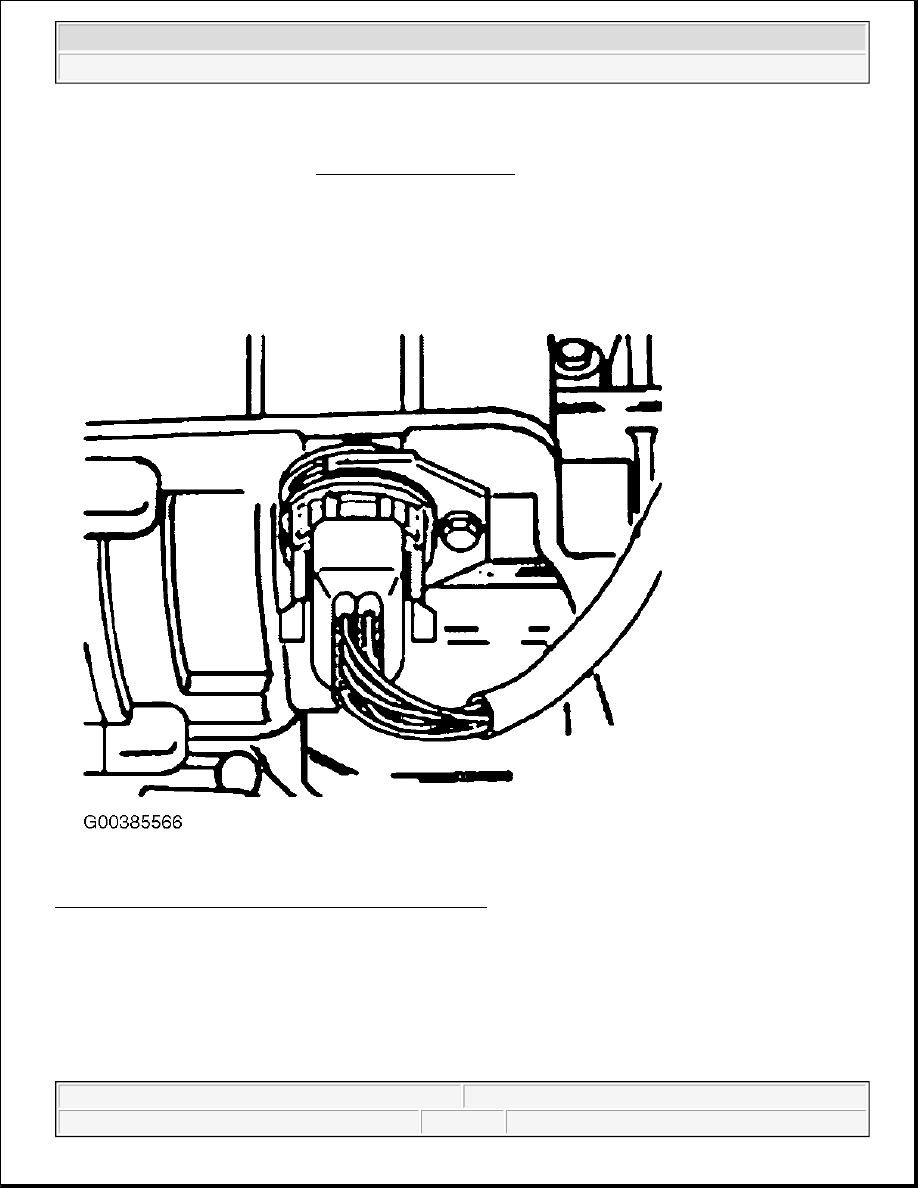

Fig. 15: Identifying Multi-Function Transmission Range
Courtesy of AUDI OF AMERICA, INC.

Removal & Installation

1. Switch off ignition.

2. Pull connector off multi-function TR switch.

3. Remove bolt and retainer.

4. Remove multi-function TR switch.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Diagnosis - 01M
